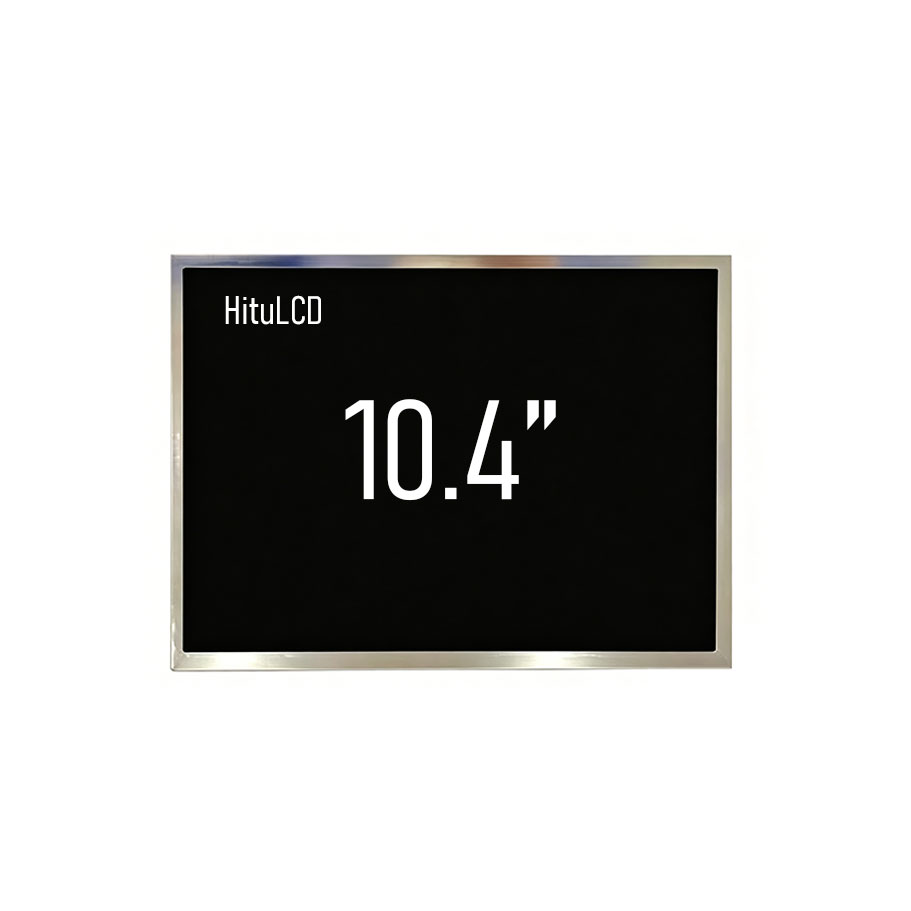

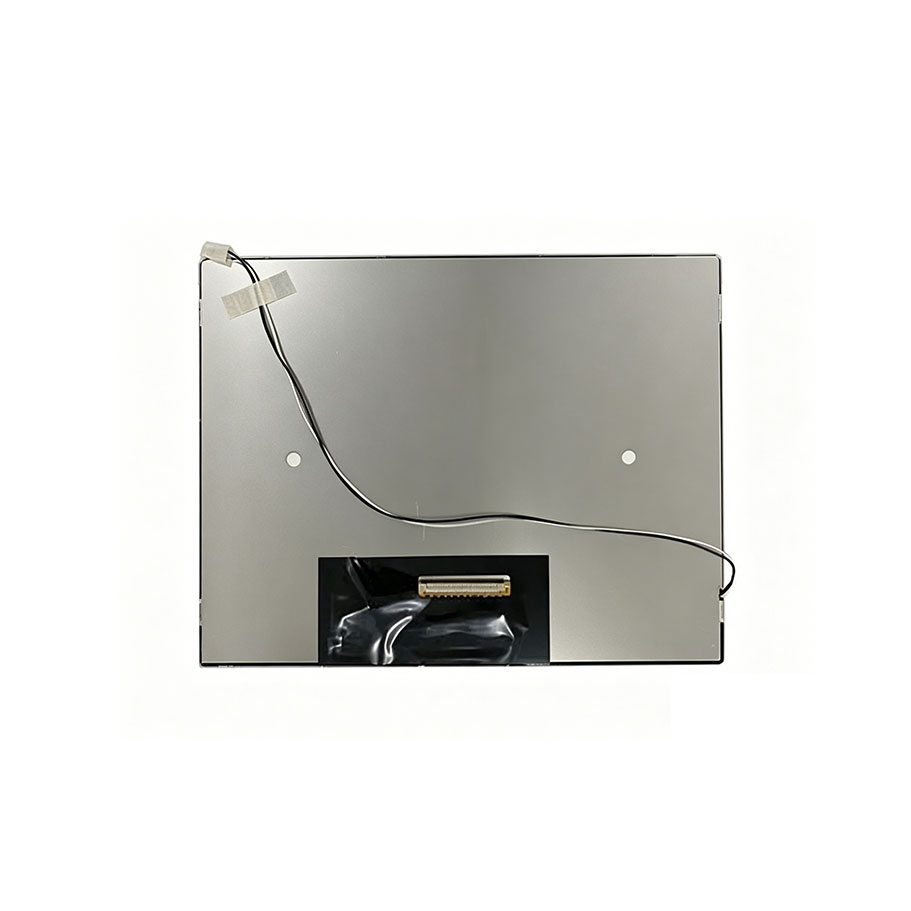

10.4 Inch High Brightness Industrial LCD Display Module
MODEL: HT104FHD-1000
Technical Highlights
- Flexible Integration & Customization Ready
- Wide temperature -30℃~85℃, stable industrial performance.
- IPS wide viewing angle with LVDS/EDP interface.
certification standard
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesTechnical Specifications
| LCD PANEL PARAMETERS | HDMI/CONTROL BOARD SPECIFICATIONS | ||
|---|---|---|---|
| ITEM | DETAILS | ITEM | DETAILS |
| Description | HANNTU 10.4" QLED QUANTUM DOT HIGH COLOR GAMUT 350CD | Input Interface | HDMI, VGA， |
| Size | 10.4 | Power Input | AC 100~240V |
| Display area (mm) | 210.432(W)×157.824(H) mm | OSD KEYS | 5 KEYS (POWER SWITCH, MENU, +, -, EXIT) |
| Resolution | 1024*768 | OSD CONTROL | BRIGHTNESS, COLOR, CONTRAST, AUTO ROTATION, H/V POSITION, ETC. |
| Aspect ratio | 4:3 | ||
| Contrast ratio | 1000:1 | ||
| Pixel per inch (PPI) | 69 | ||
| Viewing angle | 178(H),178(V) | ||
| Display Colors | 262K, 55% NTSC | ||
| Response time(Typical) | 14ms | ||
| Signal Type | LVDS (1 ch, 6/8-bit) 30pins | ||
| Backlight | WLED, 30K hrs, With LED Driver | ||
| Power consumption | 50W | ||
| Dimensions (mm) | 225.5(W)×176.3(H)×9.2(D) mm | ||
| Mounting | VESA | ||
| Bezel size (U/B/L/R) | 11/10/10/10 | ||
| Operating temperature | -20℃～+70℃ | ||
| Storage temperature | -30℃～+80℃ | ||
| Weight (Net) | 1KG | ||
Product Features
Explore the advanced specifications and features of our high-performance display solutions.
Custom
We provide flexible customization services for this product, enabling seamless integration into various terminal devices and helping you achieve broader compatibility and stronger market penetration.
Resolution Customization
Supports multiple resolution options including HD, FHD, 2K, and 4K. Custom pixel density ensures sharp and clear images.
Brightness Customization
Brightness adjustable from 500 nits to 5000 nits, optimized for all-day outdoor and high-brightness environments.
Open Frame Customization
Supports open frame structure for easy embedded integration, with flexible installation and housing dimensions.
Interface Customization
Supports HDMI, DP, VGA, USB, RS232, RJ45 and other interfaces for smooth system integration.
Housing Design
Full-scale housing customization with color, texture and structural adjustments to enhance brand image.
Logo & Software
Custom boot logos, UI design, firmware and software integration to boost your brand influence.
Packaging & Labeling
Private label packaging, custom boxes, manuals and labels for a premium brand image.
Why Choose Our OEM/ODM Services?
Fast prototyping and sample delivery
Strict quality control during production
Flexible MOQ adjustments for all projects
Stable lead times and reliable delivery
Global outdoor display expertise
Application Fields
Global Quality and Certification
Strict international certification standards ensure the safety, reliability, environmental friendliness, and high performance of our products in industrial applications.
CE certification
FCC Certification
RoHS compliance
ISO9001
IP65 protection ratingWorld-class LCD glass partner
We collaborate closely with the world's leading LCD glass manufacturers to create high-quality, high-performance display products for our customers, ensuring superior reliability, long service life, and stable performance in harsh industrial environments.
10.4" High Brightness Industrial LCD Display Module
Sunlight readable 1000 nits LCD module engineered for outdoor and industrial environments. Reliable, customizable, and built for long-term performance.
Request Quote☀ Sunlight Readable
1000 nits brightness ensures clear visibility even under direct sunlight.
🌡 Industrial Temperature
Stable operation from -20°C to 70°C for harsh environments.
⏳ Long Lifespan
Up to 50,000+ hours LED backlight, reducing maintenance cost.
⚙ Reliable Performance
Designed for 24/7 operation in mission-critical applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Size | 10.4 inch |
| Resolution | 1024 × 768 (XGA) |
| Brightness | 1000 nits |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 170° |
| Interface | LVDS / HDMI Optional |
| Operating Temp | -20°C to 70°C |
| Backlight Life | 50,000+ hours |
Applications
OEM / ODM Customization
Why Choose Us
Focused on industrial LCD manufacturing and global OEM projects.
CE, FCC, RoHS compliant with strict quality control.
Long-term availability for industrial lifecycle projects.
Professional engineering support within 24 hours.
FAQ
Q: Is 1000 nits enough for outdoor use?
A: Yes, 1000 nits is suitable for most sunlight readable applications.
Q: Can I customize this display?
A: Yes, we support full OEM/ODM customization based on your requirements.
Q: What is the lead time?
A: Standard models ship within 2–3 weeks. Custom projects depend on complexity.
