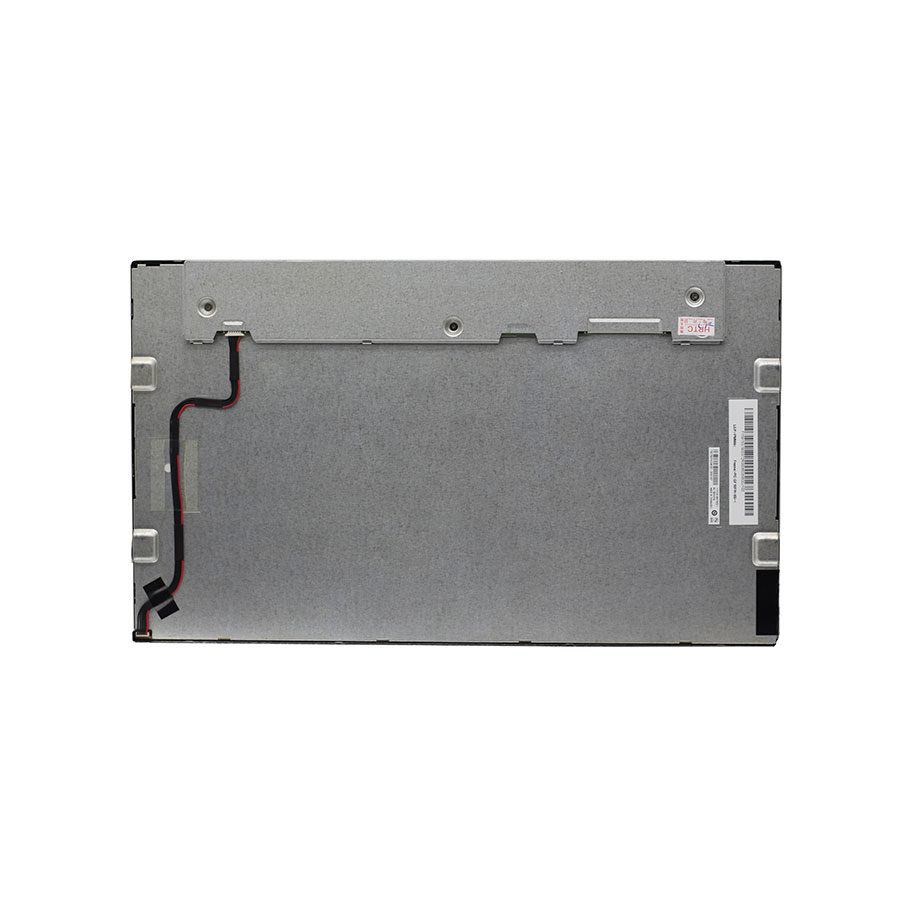

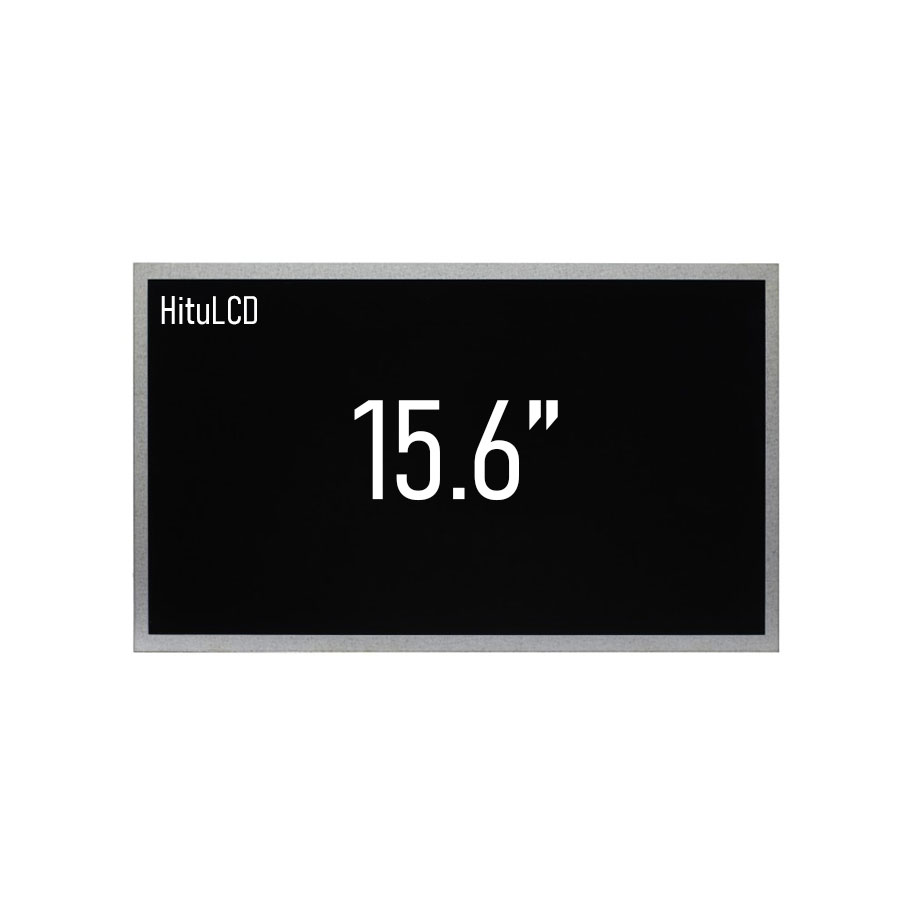

15.6 Inch Industrial High Brightness Oem Lcd Display Supplier
MODEL: HT156FHD-1000
Technical Highlights
- Ultra High Brightness & Outdoor Readability
- Industrial-Grade Reliability & Wide Temperature
- Flexible OEM Integration & System Compatibility
certification standard
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesTechnical Specifications
| LCD PANEL PARAMETERS | HDMI/CONTROL BOARD SPECIFICATIONS | ||
|---|---|---|---|
| ITEM | DETAILS | ITEM | DETAILS |
| Description | HANNTU 15.6" QLED QUANTUM DOT HIGH COLOR GAMUT 350CD | Input Interface | HDMI, VGA， |
| Size | 15.6 | Power Input | DC 12V-3A |
| Display area (mm) | 344.16(H)×193.59(V) mm | OSD KEYS | 5 KEYS (POWER SWITCH, MENU, +, -, EXIT) |
| Resolution | 1920*1080 | OSD CONTROL | BRIGHTNESS, COLOR, CONTRAST, AUTO ROTATION, H/V POSITION, ETC. |
| Aspect ratio | 16:9 | ||
| Contrast ratio | 700:1 | ||
| Pixel per inch (PPI) | 69 | ||
| Viewing angle | 140(H),120(V) | ||
| Display Colors | 16.7M, 72% NTSC | ||
| Response time(Typical) | 8ms | ||
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins | ||
| Backlight | WLED, 30K hrs, With LED Driver | ||
| Power consumption | 17W | ||
| Dimensions (mm) | 363.8(H)×215.9(V)×12.5(D) mm | ||
| Mounting | VESA | ||
| Bezel size (U/B/L/R) | 10/10/10/10 | ||
| Operating temperature | -10℃～+70℃ | ||
| Storage temperature | -20℃～+80℃ | ||
| Weight (Net) | 1.5KG | ||
Product Features
Explore the advanced specifications and features of our high-performance display solutions.
Custom
We provide flexible customization services for this product, enabling seamless integration into various terminal devices and helping you achieve broader compatibility and stronger market penetration.
Resolution Customization
Supports multiple resolution options including HD, FHD, 2K, and 4K. Custom pixel density ensures sharp and clear images.
Brightness Customization
Brightness adjustable from 500 nits to 5000 nits, optimized for all-day outdoor and high-brightness environments.
Open Frame Customization
Supports open frame structure for easy embedded integration, with flexible installation and housing dimensions.
Interface Customization
Supports HDMI, DP, VGA, USB, RS232, RJ45 and other interfaces for smooth system integration.
Housing Design
Full-scale housing customization with color, texture and structural adjustments to enhance brand image.
Logo & Software
Custom boot logos, UI design, firmware and software integration to boost your brand influence.
Packaging & Labeling
Private label packaging, custom boxes, manuals and labels for a premium brand image.
Why Choose Our OEM/ODM Services?
Fast prototyping and sample delivery
Strict quality control during production
Flexible MOQ adjustments for all projects
Stable lead times and reliable delivery
Global outdoor display expertise
Application Fields
Global Quality and Certification
Strict international certification standards ensure the safety, reliability, environmental friendliness, and high performance of our products in industrial applications.
CE certification
FCC Certification
RoHS compliance
ISO9001
IP65 protection ratingWorld-class LCD glass partner
We collaborate closely with the world's leading LCD glass manufacturers to create high-quality, high-performance display products for our customers, ensuring superior reliability, long service life, and stable performance in harsh industrial environments.
🚀 Key Features
Ultra High Brightness – Sunlight Readable
Industrial-Grade Reliability
Wide Temperature Operation
Full HD Resolution & Wide Viewing Angle
Flexible Integration (OEM Ready)
🏭 OEM / ODM Customization Capabilities
Customization Options:
Brightness: 500 ~ 5000 nits
Touch: PCAP / Resistive / No-touch
Optical bonding (anti-glare / anti-reflection)
Interface: HDMI / LVDS / eDP / VGA
Housing: Open frame / Panel mount / Full enclosure
Waterproof: IP65 / IP67
Cover glass: AG / AR / IK protection
Logo & firmware customization
🧪 Quality & Certifications
🌍 Applications
📊 Technical Specifications
Item | Specification |
|---|---|
Screen Size | 15.6 inch |
Resolution | 1920 × 1080 |
Brightness | 1000–1500 nits |
Viewing Angle | 178° |
Interface | HDMI / LVDS / eDP |
Operating Temp | -30°C ~ 85°C |
Backlight Life | 50,000+ hours |
Touch Option | PCAP / Resistive |
Mounting | Embedded / VESA / Panel |
💡 Why Choose Us
❓ FAQ
📞 CTA
Free technical consultation
Custom solution proposal
Fast quotation within 24 hours
