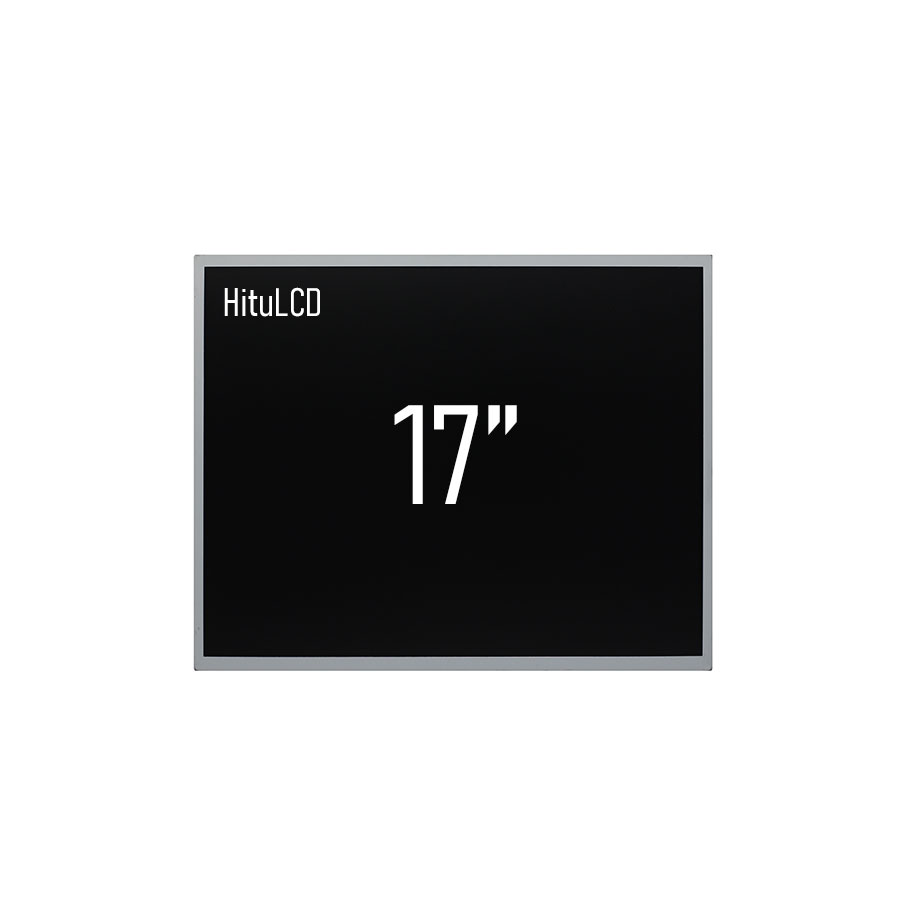

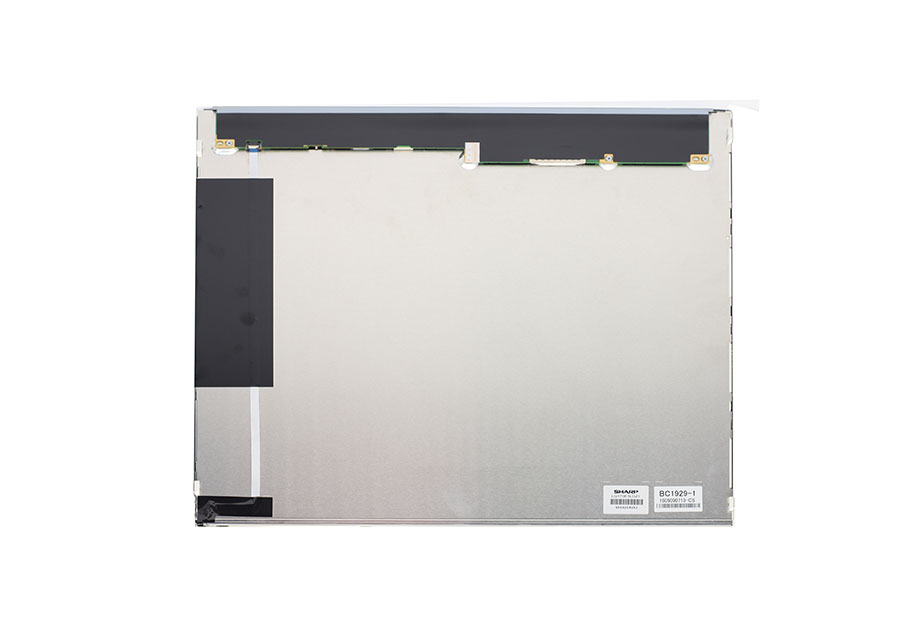

17 Inch High Brightness Embedded Display Screen, 5:4 Aspect Ratio.
MODEL: HT170FHD-1000
Technical Highlights
- Sunlight-Readable 900 nits with Smart Auto Dimming
- Industrial-Grade 5:4 SXGA Panel for Legacy System Compatibility
- Reliable Performance with Wide Interface & Control Flexibility
certification standard
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesTechnical Specifications
| LCD PANEL PARAMETERS | HDMI/CONTROL BOARD SPECIFICATIONS | ||
|---|---|---|---|
| ITEM | DETAILS | ITEM | DETAILS |
| Description | HANNTU 17" QLED QUANTUM DOT HIGH COLOR GAMUT 350CD | Input Interface | HDMI, VGA， |
| Size | 17 | Power Input | DC 12V-3A |
| Display area (mm) | 337.92×270.336 mm (H×V) | OSD KEYS | 5 KEYS (POWER SWITCH, MENU, +, -, EXIT) |
| Resolution | 1280*1024 | OSD CONTROL | BRIGHTNESS, COLOR, CONTRAST, AUTO ROTATION, H/V POSITION, ETC. |
| Aspect ratio | 5:4 | ||
| Contrast ratio | 1000:1 | ||
| Pixel per inch (PPI) | 96 | ||
| Viewing angle | 160(H),160(V) | ||
| Display Colors | 16.2M, 72% NTSC | ||
| Response time(Typical) | 8ms | ||
| Signal Type | LVDS (2 ch, 8-bit) 30pins | ||
| Backlight | WLED, 30K hrs, With LED Driver | ||
| Power consumption | 25W | ||
| Dimensions (mm) | 358.5×296.5×13.4 mm (H×V×D) | ||
| Mounting | VESA | ||
| Bezel size (U/B/L/R) | 10/10/13/13 | ||
| Operating temperature | -20℃～+70℃ | ||
| Storage temperature | -30℃～+70℃ | ||
| Weight (Net) | 1.2KG | ||
Product Features
Explore the advanced specifications and features of our high-performance display solutions.
Custom
We provide flexible customization services for this product, enabling seamless integration into various terminal devices and helping you achieve broader compatibility and stronger market penetration.
Resolution Customization
Supports multiple resolution options including HD, FHD, 2K, and 4K. Custom pixel density ensures sharp and clear images.
Brightness Customization
Brightness adjustable from 500 nits to 5000 nits, optimized for all-day outdoor and high-brightness environments.
Open Frame Customization
Supports open frame structure for easy embedded integration, with flexible installation and housing dimensions.
Interface Customization
Supports HDMI, DP, VGA, USB, RS232, RJ45 and other interfaces for smooth system integration.
Housing Design
Full-scale housing customization with color, texture and structural adjustments to enhance brand image.
Logo & Software
Custom boot logos, UI design, firmware and software integration to boost your brand influence.
Packaging & Labeling
Private label packaging, custom boxes, manuals and labels for a premium brand image.
Why Choose Our OEM/ODM Services?
Fast prototyping and sample delivery
Strict quality control during production
Flexible MOQ adjustments for all projects
Stable lead times and reliable delivery
Global outdoor display expertise
Application Fields
Global Quality and Certification
Strict international certification standards ensure the safety, reliability, environmental friendliness, and high performance of our products in industrial applications.
CE certification
FCC Certification
RoHS compliance
ISO9001
IP65 protection ratingWorld-class LCD glass partner
We collaborate closely with the world's leading LCD glass manufacturers to create high-quality, high-performance display products for our customers, ensuring superior reliability, long service life, and stable performance in harsh industrial environments.
17 Inch High Brightness Embedded Display Screen (5:4 Aspect Ratio)
Engineered for Industrial Reliability & Sunlight Readability
Designed for demanding industrial and outdoor environments, this 17-inch high brightness embedded LCD display delivers consistent performance, high visibility, and seamless system integration.
With a 900 nits brightness level and SXGA (1280×1024) resolution, it ensures clear readability in high ambient light conditions—ideal for kiosks, automation systems, and outdoor digital signage.
Key Technical Advantages
☀️ Sunlight Readable with Intelligent Brightness Control
This display features 900 cd/m² high brightness, ensuring clear visibility even in bright environments.
An integrated ambient light sensor automatically adjusts brightness, improving energy efficiency and extending backlight lifespan.
➡ Compared to standard 250–400 nits displays, high brightness panels (typically 800–1000 nits+) are required for outdoor readability
🖥️ 5:4 Industrial SXGA Panel – Perfect for Legacy Systems
The 1280×1024 (5:4) aspect ratio is widely used in industrial control systems and legacy equipment.
This allows drop-in replacement without redesign, reducing engineering cost and integration time.
➡ 17” 5:4 SXGA panels remain standard in industrial applications such as automation, kiosks, and control systems
🔌 Flexible Integration with Industrial Interfaces
Supports LVDS (30-pin) panel interface + HDMI / DVI-D / DisplayPort inputs, ensuring compatibility with a wide range of embedded systems and controllers.
Combined with a full OSD control system, users can easily adjust brightness, contrast, color, and positioning.
➡ Multi-interface industrial displays improve deployment flexibility and reduce system compatibility risks
Industrial-Grade Reliability
Built with a-Si TFT-LCD technology and WLED backlight, this display ensures stable, long-term operation in industrial environments.
Contrast Ratio: 1000:1
Display Colors: 16.7M
Viewing Angle: 85/85/80/80
Operating Temperature: 0 ~ 50°C
Storage Temperature: -20 ~ 60°C
➡ Typical industrial high-brightness LCDs operate within similar ranges and prioritize long-term stability and durability
Application Scenarios
This display is widely deployed across industries requiring high visibility and stable performance:
Industrial Automation Equipment
Outdoor Digital Signage
Self-Service Kiosks
Transportation Displays
Energy & Utility Systems
Customization & OEM / ODM Capability
We support full customization to meet your project requirements:
Touchscreen (PCAP / Resistive)
Optical Bonding for Outdoor Use
Wide Temperature (-30°C ~ 85°C optional)
Interface Customization (VGA / USB / RS232)
Housing / Open Frame / Embedded Design
👉 Tailored solutions for global industrial applications
Quality Assurance & Global Standards
Every display module undergoes strict quality control and reliability testing:
Stable LED backlight system
Long lifecycle supply guarantee
Industrial-grade component selection
Optional compliance: CE / FCC / RoHS
Why Choose HituLCD
✔ 10+ Years Industrial LCD Experience
✔ OEM / ODM for Global Clients
✔ Fast Customization & Engineering Support
✔ Reliable Supply Chain for Long-Term Projects
Get a Quote / Technical Support
Looking for a reliable 17" industrial display solution?
Our engineering team is ready to support your project.
👉 Contact us today for datasheets, pricing, and customization options
