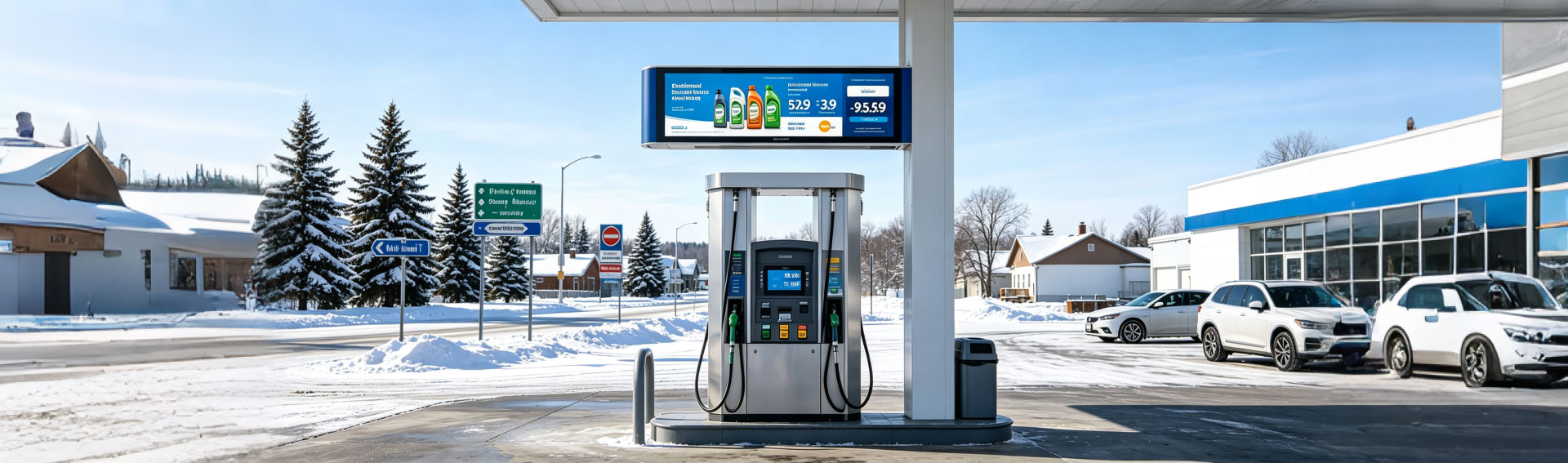

Stretched Bar LCD Display Solution for Outdoor Fuel Pump Terminals
A turnkey bar-format display solution for fuel pump OEMs and forecourt system integrators, covering panel selection, environmental hardening, and the certification pathway required to pass forecourt equipment approval in Europe, North America, and other regulated markets
Industry pain points and challenges
Understand the core issues in this application scenario and how we can provide solutions through advanced display technology
core pain point
Narrow Mounting Envelope, Standard Panel Economics
Pain Point: The price/status header on a fuel pump is a long, narrow strip — typically a 6:1 to 8:1 aspect ratio — built into a housing that was never designed around a standard 4:3 or 16:9 panel. OEMs are often forced to either crop a rectangular panel (wasting active area and driving up unit cost) or commission a fully custom cell, which stretches lead times and minimum order quantities beyond what a mid-volume program can absorb. Technical Requirement: A true stretched-bar LCD cell — not a cropped standard panel — available in common forecourt formats (e.g., 8.8", 11.9", 14.9", 23.1" bar ratios), with driver board and connector placement matched to typical pump-head mounting depth.
Sunlight Washout and Nighttime Glare
Pain Point: Forecourt displays run 24/7 under direct sun, rain, and temperature swings. Standard-brightness bar panels wash out at midday, making the unit price, pump status, or payment prompt unreadable from the driver's seat. After dark, an over-bright panel produces glare that annoys customers and can put the site out of compliance with local outdoor-lighting ordinances. Technical Requirement: 700–1200 nit sunlight-readable panels, optical bonding to remove the air-gap reflection layer, an anti-glare/anti-reflective coating, and an ambient light sensor driving automatic day/night brightness control.
Hazardous-Area and Ingress Protection Compliance
Pain Point: The pump island is a classified hazardous location due to fuel vapor. A display or driver board that hasn't been engineered for this environment cannot be qualified into an OEM's bill of materials, regardless of how good the panel looks on the bench. The enclosure also has to survive pressure washing, blown dust, and years of rain. Technical Requirement: Component and circuit design compatible with hazardous-area certification frameworks (ATEX, IECEx, UL 60079 / UL 913 Class I Div. 1 or 2), IP65/IP66 sealing at the full-unit level, and housing/gasket materials that resist fuel-vapor exposure and UV embrittlement over a multi-year field life.
Temperature Extremes and Long Field Life
Pain Point: A single pump platform gets deployed everywhere from sub-zero Nordic winters to desert heat above 50°C ambient. Swapping a bar display in the field is expensive — it means site downtime, a service call, and in some jurisdictions re-filing paperwork with the weights-and-measures authority. Buyers plan around an 8–10 year service interval, not a 2–3 year commercial-panel lifespan. Technical Requirement: Wide operating temperature rating (typically −30°C to +70°C, with an optional heater film for cold-start regions), a reinforced mounting frame sized to the narrow bar cutout, LED backlight rated for 50,000+ hours, and shock/vibration performance validated against IEC 60068-2.
Our technological advantages
We provide industry-leading display technology and customized solutions to meet the special requirements of this application scenario
Purpose-Built Stretched-Bar Cell Architecture
Cells are manufactured natively in bar aspect ratios rather than cropped from standard-format glass, so active display area, connector position, and mounting depth are matched to typical pump-head geometry from the outset. Solves: Eliminates wasted panel area and non-standard mechanical adapters, keeping unit cost and lead time in line with mid-volume production runs.
Sunlight-Readable Optical Design
High-brightness panels (700–1200 nit range) combined with optical bonding and AG/AR coating keep unit price and status text legible under direct sun without the reflective "mirror" effect of an air-gapped panel. An ambient light sensor automatically steps brightness down at night for glare control. Solves: The "can't read the price display" complaint, while keeping brightness within acceptable nighttime limits.
Hazardous-Area Ready Circuit and Component Selection
Panel and driver electronics are designed around low-power, hazardous-area-compatible circuit topologies, with supporting documentation (BOM, schematics, thermal and voltage test data) that an OEM's compliance team can hand directly to their ATEX/IECEx/UL notified body. Solves: Shortens the certification runway for the display subsystem and reduces the risk of a late-stage compliance rejection during full-unit type approval.
IP65/IP66 Sealed, Weather-Hardened Enclosure
Chemically strengthened cover glass resists impact and scratching from cleaning and vandalism; housing and gasket materials are validated through salt-spray and accelerated UV-aging cycles for coastal, desert, and high-altitude installs. Solves: Fewer field failures from washdown, blown sand, and driving rain — lower truck-roll and spare-parts costs over the contract life.
Wide-Temperature Operation, Long-Life Backlight
Rated operation from −30°C to +70°C (heater-film option available), paired with a long-life LED backlight and vibration/shock testing to IEC 60068-2, supports the 8–10 year deployment cycle OEMs plan around. Solves: Fewer cold-climate blackouts and hot-climate brightness drift, lowering total cost of ownership across a multi-region fleet.
Metrology-Aligned Refresh and Data Integrity
Low-latency refresh synchronized to the pump's metering controller keeps unit price, volume, and transaction amount on-screen without lag or dropped digits. Solves: Supports the display-layer expectations behind frameworks such as the EU Measuring Instruments Directive (MID) / OIML R117 and the US NTEP program, reducing the risk of a transaction dispute traced back to the screen.
Flexible Interfaces and Platform Integration
HDMI, LVDS, and RS232/485 interface options; PCAP capacitive touch (glove-compatible) or non-touch configurations; mounting and connector layouts adaptable to common pump control-unit conventions; custom bezel, cutout, and branding options for OEM programs. Solves: Shortens the integration and validation cycle between the bar display module and the pump's electronic control unit.
Complete Compliance Documentation Package
Every module ships with baseline CE, FCC, and RoHS documentation under an ISO 9001 quality system, plus structural drawings, BOM, and reliability test reports needed to support the OEM's own ATEX/IECEx/UL and metrology filings. Solves: Meets the documentation rigor expected in a supplier audit and speeds up Approved Vendor List (AVL) onboarding.

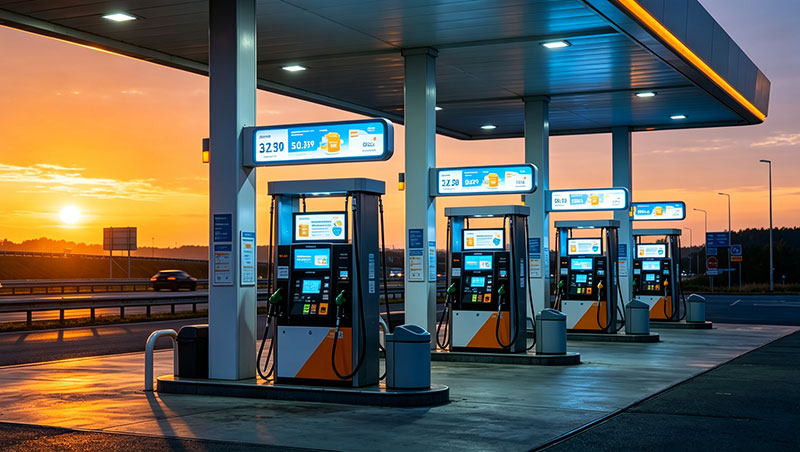

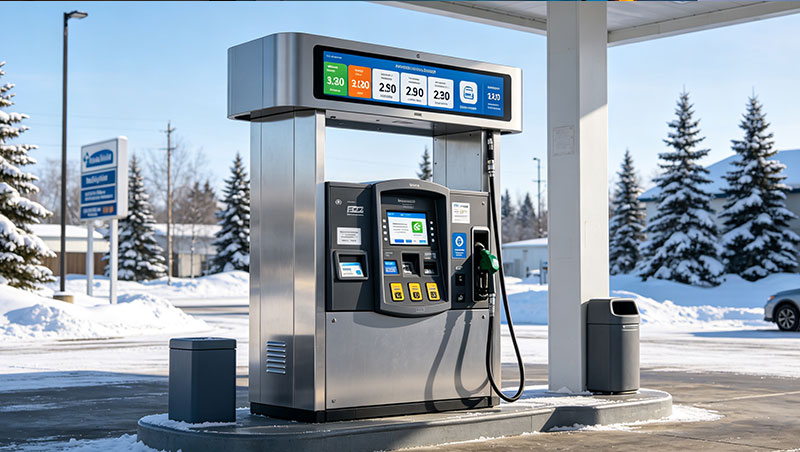

Application scenario display
Recommended product model
Selected industrial grade display products for this application scenario have been validated in multiple practical projects
">
1000 Nits
23.8 Inch Cuttable Bar LCD Panel for OEM Signage |500-1000nits
model: HT238HDL-1000
">
1000 Nits
21.5 Inch Cuttable Bar LCD Display | Custom Stretched Panel 500-1000nits
model: HT215HDL-1000
">
1000 Nits
18.5 Inch Cuttable Stretched Bar LCD Display | 500-1000nits
model: HT185HDL-1000
Technical document download
Obtain detailed CAD structural drawings and technical specifications
