21.5 Inch Stretched Bar LCD Cutting Solution for OEM Integration

HITULCD 21.5 inch stretched bar LCD cutting solution is developed for OEM manufacturers and system integrators who require a customized display size for compact commercial equipment.

Traditional 16:9 LCD panels often create unused space when integrated into narrow product structures. By applying precision LCD cutting technology, HITULCD can convert standard 21.5-inch LCD panels into customized stretched formats that better match the mechanical design of retail terminals, smart devices, and commercial display systems.

The 21.5-inch bar display solution focuses on applications that require a wider horizontal viewing area while maintaining sufficient display height for readable text, product images, and interactive information.

Customized Cutting Ratios for Different Applications

For 21.5-inch stretched LCD projects, the cutting ratio is selected according to installation space, viewing distance, and displayed content.

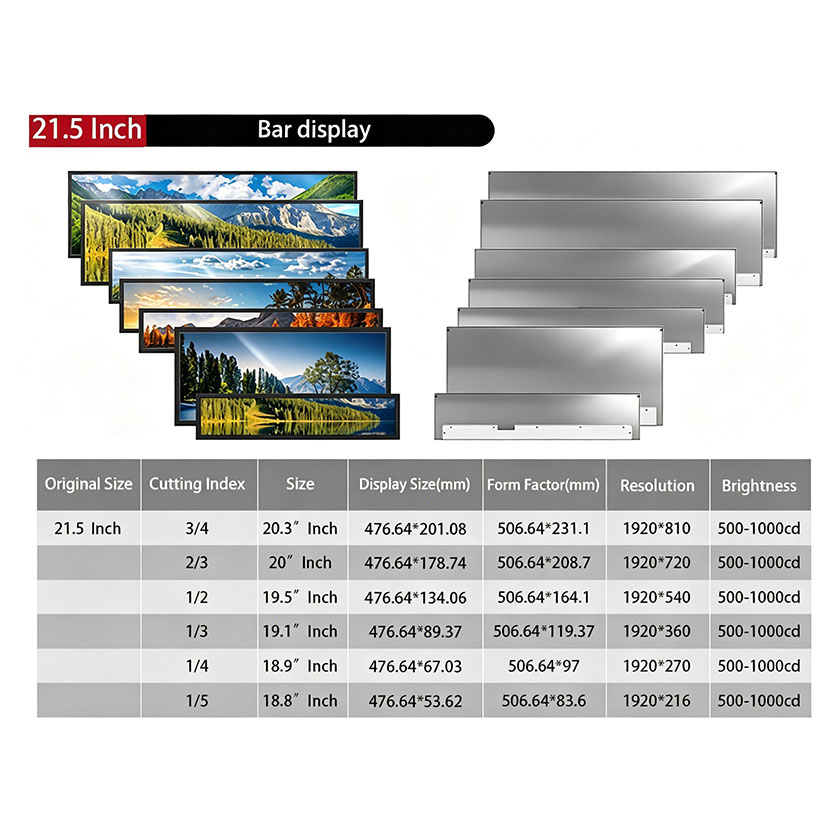

HITULCD provides several common configurations:

1. 5:1 Stretched Display Solution

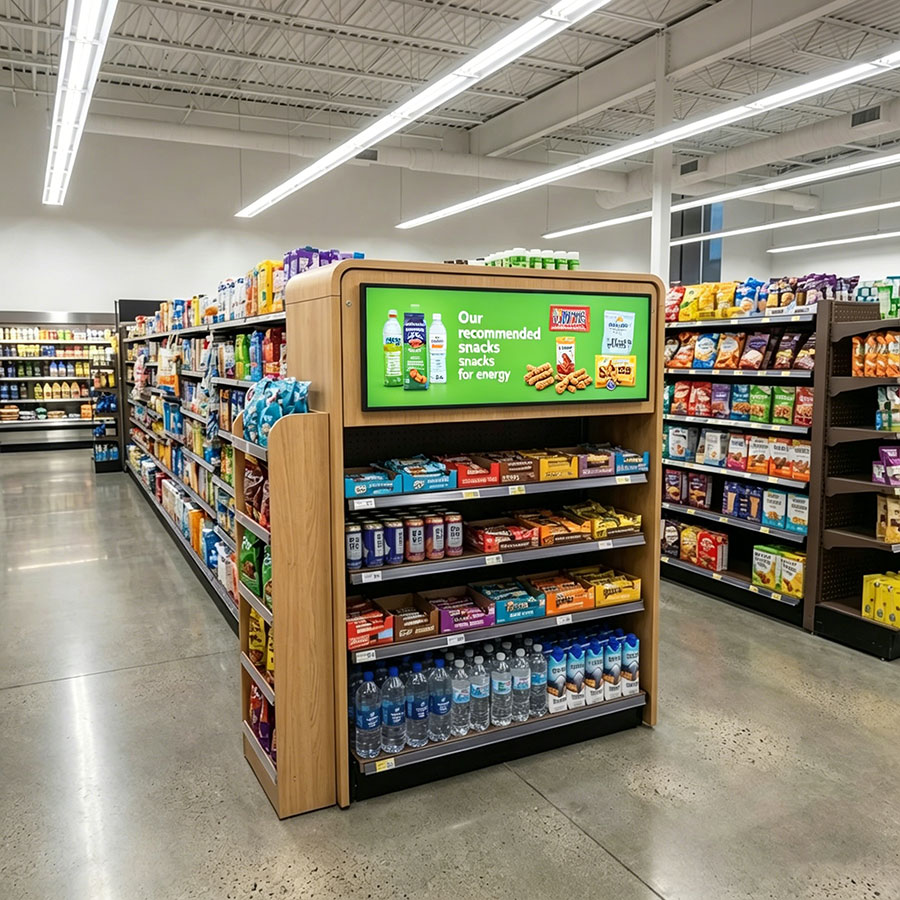

Recommended for: Retail Shelf Display / Product Information Screen

The 5:1 format provides a long horizontal display area with a relatively compact height, making it suitable for shelves, product racks, and retail fixtures.

Typical applications:

• Supermarket shelf advertising display

• Product price information screen

• Brand promotion display

• Retail cabinet embedded screen

Advantages:

• Fits limited vertical installation space

• Displays product name, price, promotion information clearly

• Easy integration into existing retail equipment

This ratio is ideal for retailers and equipment manufacturers who need continuous information display without replacing the entire cabinet structure.

2. 4:1 Stretched Display Solution

Recommended for: Self-Service Terminal / Smart Equipment

The 4:1 format provides a balanced viewing area between width and height, allowing more detailed content display.

Typical applications:

• Self-ordering machines

• Smart locker terminals

• Digital information kiosks

• Commercial automation equipment

Advantages:

• Supports larger fonts and icons

• Better readability at close viewing distance

• Suitable for touch screen integration

For interactive devices, the 4:1 ratio provides enough vertical space for operation instructions, buttons, and status information.

3. 3:1 Stretched Display Solution

Recommended for: Indoor Digital Signage / Menu Display

The 3:1 configuration offers a wider content area while maintaining higher image presentation quality.

Typical applications:

• Restaurant menu boards

• Elevator information displays

• Reception information terminals

• Indoor advertising systems

Advantages:

• Suitable for mixed content display

• Better image and video presentation

• Improved customer viewing experience

This configuration is commonly selected by commercial display integrators requiring both information readability and visual advertising performance.

Engineering Considerations for 21.5 Inch LCD Cutting

LCD cutting is not only a panel size adjustment. A successful OEM display solution requires consideration of the complete system design.

HITULCD engineering team evaluates:

Mechanical Dimensions

The customized panel size is designed according to the customer's enclosure structure, mounting method, and available installation space.

Support includes:

• Customized active display area

• Customized bezel dimension

• Open-frame structure design

• Embedded installation solution

Display Content Requirements

Different applications require different aspect ratios.

For example:

• Retail shelf displays mainly show price, product name, and promotional information, requiring a longer horizontal format.

• Self-service terminals require larger operating areas, so a wider height ratio is preferred.

• Menu boards require more visual content and benefit from a less aggressive stretched ratio.

HITULCD selects the appropriate cutting design based on actual usage scenarios.

Brightness and Operating Environment

Commercial equipment often operates under continuous lighting conditions.

The 21.5-inch stretched LCD can be configured with:

• 500 nits for standard indoor environments

• 700-1000 nits for bright retail environments

Optional improvements include:

• Anti-glare surface treatment

• Optical bonding

• Touch panel integration

• Enhanced thermal design

OEM/ODM Development Process

HITULCD supports complete customization from prototype to mass production.

Project Evaluation

Customers provide:

• Product drawings

• Installation dimensions

• Display requirements

• Application environment

Our engineers analyze the required cutting ratio and display configuration.

Prototype Development

We provide:

• Customized LCD samples

• Driver board matching

• Interface verification

• Mechanical fitting tests

Mass Production Support

For volume OEM projects, HITULCD provides:

• Stable supply chain management

• Quality inspection process

• Production consistency control

• Long-term technical support

21.5 Inch Stretched LCD Cutting Solution Applications

The customized 21.5-inch bar LCD is suitable for:

• Retail shelf digital signage

• Supermarket promotional displays

• Smart locker terminals

• Self-service kiosks

• Restaurant ordering systems

• Elevator information displays

• Commercial equipment interfaces

With flexible cutting options and OEM engineering support, HITULCD helps customers develop display products that match their hardware design instead of adapting their products to standard LCD sizes.

HITULCD Custom 21.5 Inch Bar LCD Solution

For OEM customers, the best display is not always the largest screen, but the screen that perfectly fits the product structure.

HITULCD provides customized 21.5-inch stretched LCD cutting solutions with professional engineering support, helping system integrators create compact, reliable, and differentiated commercial display products.
