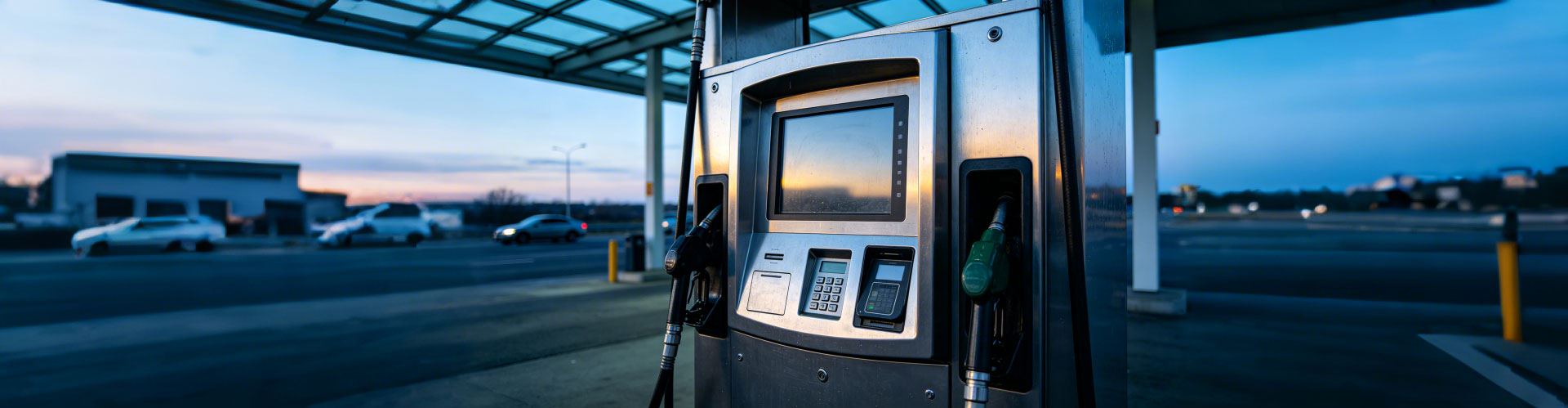

Outdoor Fuel Dispenser LCD Display Integration Solution
A turnkey display solution for major fuel dispenser OEMs (Gilbarco, Wayne, Dresser Wayne, Tokheim, Tatsuno and similar manufacturers), covering hardware design, environmental durability, and the full compliance/certification pathway required for the European and North American markets.
Industry pain points and challenges
Understand the core issues in this application scenario and how we can provide solutions through advanced display technology
core pain point
Industry Pain Points and Challenges
Fuel dispensers operate in fully exposed outdoor forecourt environments year-round. Their displays must simultaneously satisfy three demanding requirements — visibility, safety compliance, and metrological integrity — which sets them apart from ordinary industrial displays.
Core Pain Point 1: Poor Readability Under Direct Sunlight, With Glare Control at Night
Pain Point: Dispenser displays are exposed all day to direct sunlight, rain, snow, and dust. Standard TFT panels lose contrast dramatically at midday, making it hard for customers to read fuel price, transaction amount, or payment prompts. At night, excessive backlight brightness can cause glare, conflicting with forecourt lighting regulations such as EN 12464-2 in the EU. Technical Requirement: 800–1500 nits high brightness, sunlight-readable performance, optical bonding to eliminate air-gap reflection, and an ambient light sensor for automatic day/night dimming.
Core Pain Point 2: Stringent Explosion-Proof and Ingress Protection Requirements
Pain Point: Fuel dispensers sit within a classified hazardous area due to flammable vapors. Displays and their electrical components must carry explosion-proof certification, or the module cannot enter the supply chain of major Western dispenser OEMs. The unit must also withstand pressure washing, dust, and constant rain exposure. Technical Requirement: Explosion-proof certification: ATEX (EU Directive 2014/34/EU, Zone 1/2, Ex d / Ex ib), IECEx, UL/cUL 60079 series or UL913 (North America, Class I Division 1 or 2, Group C/D) Ingress protection: IP65/IP66 for the complete unit Housing materials resistant to fuel vapor exposure and UV degradation to prevent long-term embrittlement or cracking
Core Pain Point 3: Wide Temperature Stability and Long Service Life
Pain Point: Dispensers are deployed across every climate zone, from Nordic winters to Middle Eastern and North American desert heat. Displays must operate reliably from -30°C to +70°C or beyond. Field replacement is costly — it involves downtime and re-filing of certifications — so a single deployment is expected to remain stable for 8–10+ years. Technical Requirement: Industrial-grade wide-temperature panel (optional heater film), die-cast/anti-vibration structure, long-life LED backlight (≥50,000 hours), and shock/vibration resistance in line with IEC 60068-2 series testing.
Our technological advantages
We provide industry-leading display technology and customized solutions to meet the special requirements of this application scenario
High-Brightness Sunlight-Readable Display Technology
Highlight: Industrial-grade panels available from 800 to 1500 nits, combined with optical bonding and AG/AR coating to significantly reduce reflection, maintaining clear contrast even under direct midday sun. Ambient light sensing enables automatic dimming for both daytime visibility and nighttime glare control.
Pain Point Solved: Eliminates the "can't read the price/amount" issue in strong sunlight, while keeping the forecourt compliant with nighttime lighting regulations.
Explosion-Proof Certification Support and Hazardous Area Design
Highlight: Display panels and driver circuitry are designed to support customer certification under ATEX / IECEx / UL913 / UL60079, with intrinsically-safe-compatible low-power drive options. We provide the BOM, mechanical drawings, and thermal/voltage test reports needed to accelerate the OEM's full-unit certification process.
Pain Point Solved: Significantly shortens the certification cycle for the display module and reduces rework risk caused by non-compliant components during full-unit approval.
Industrial-Grade Protection and Weather-Resistant Structure
Highlight: The complete unit achieves IP65/IP66 protection. The front panel uses chemically strengthened glass for impact and scratch resistance, and housing materials pass salt-spray and UV aging tests to withstand coastal, desert, and high-altitude forecourt conditions.
Pain Point Solved: Reduces failure rates caused by sand, rain, and high-pressure washdown cleaning, lowering field maintenance frequency and spare-parts cost.
Wide-Temperature Operation and Long-Life Backlight
Highlight: Rated for -30°C to +70°C operation (optional heater module), using long-life industrial LED backlights (≥50,000 hours), and validated under the IEC 60068-2 series of vibration/shock testing to meet 8–10-year deployment cycles.
Pain Point Solved: Minimizes low-temperature display failures and high-temperature drift in extreme climates (Nordic, Middle East, North American Midwest), lowering total cost of ownership (TCO).
Metrology-Grade Color and Refresh Accuracy, Compatible With Dispenser Control Software
Highlight: Industrial wide-color-gamut panels with display calibration, paired with low-latency data refresh synchronized to the dispenser's metering controller (unit price, volume dispensed, transaction amount), so display response never lags behind the underlying metering data.
Pain Point Solved: Supports compliance with the EU MID (Measuring Instruments Directive) / OIML R117, and the US NTEP (National Type Evaluation Program) at the display layer, avoiding disputes caused by delayed or skipped digit updates.
Flexible Interfaces and System-Level Integration Compatibility
Highlight: HDMI, LVDS, RS232/485, and USB interface options; PCAP capacitive touch (glove-compatible) or non-touch configurations; compatible with mainstream dispenser control platforms (e.g., Gilbarco Encore series, Wayne Ovation series interface conventions); custom bezel, logo silk-screening, and cutout options available for OEM branding.
Pain Point Solved: Shortens the integration and validation cycle between the display module and the dispenser's electronic control unit, reducing cross-platform R&D cost for Western customers.
Full Compliance Documentation Package
Highlight: Every display module ships with CE, FCC, RoHS, and ISO 9001 certification documentation, and we support customers through the additional documentation required for explosion-proof (ATEX/IECEx/UL) and metrology certification — structural drawings, bill of materials, and reliability test reports.
Pain Point Solved: Meets the documentation rigor expected during supplier audits by major Western dispenser OEMs, speeding up Approved Vendor List (AVL) onboarding.

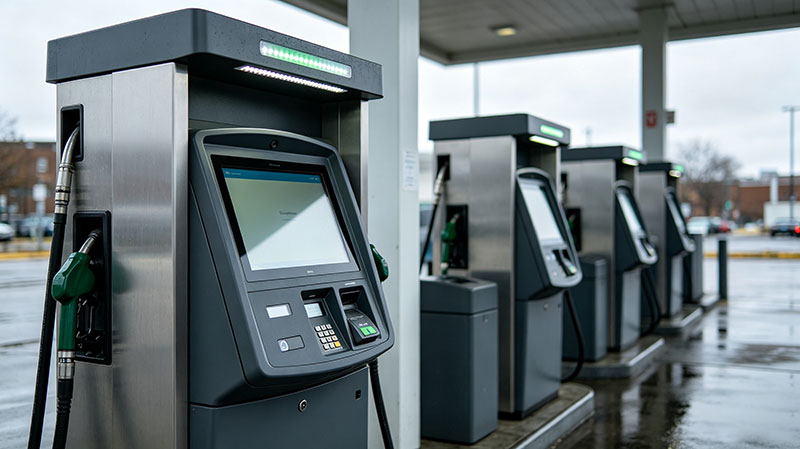

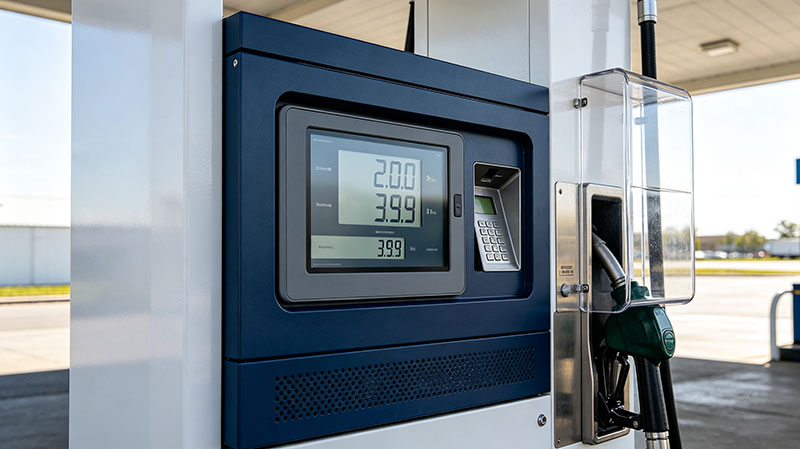

Application scenario display
Recommended product model
Selected industrial grade display products for this application scenario have been validated in multiple practical projects
">
1000 Nits
12.1 Inch 1000nits High Brightness TFT LCD Module Screen
model: HT121FHD-1000
">
1000 Nits
10.1 Inch Industrial High Brightness LCD Display (1000NITS)
model: HT101FHD-1000
">
2000 Nits
7 Inch Sunlight Readable LCD Screen Module (2000NITS)
model: HT070FHD-2000
