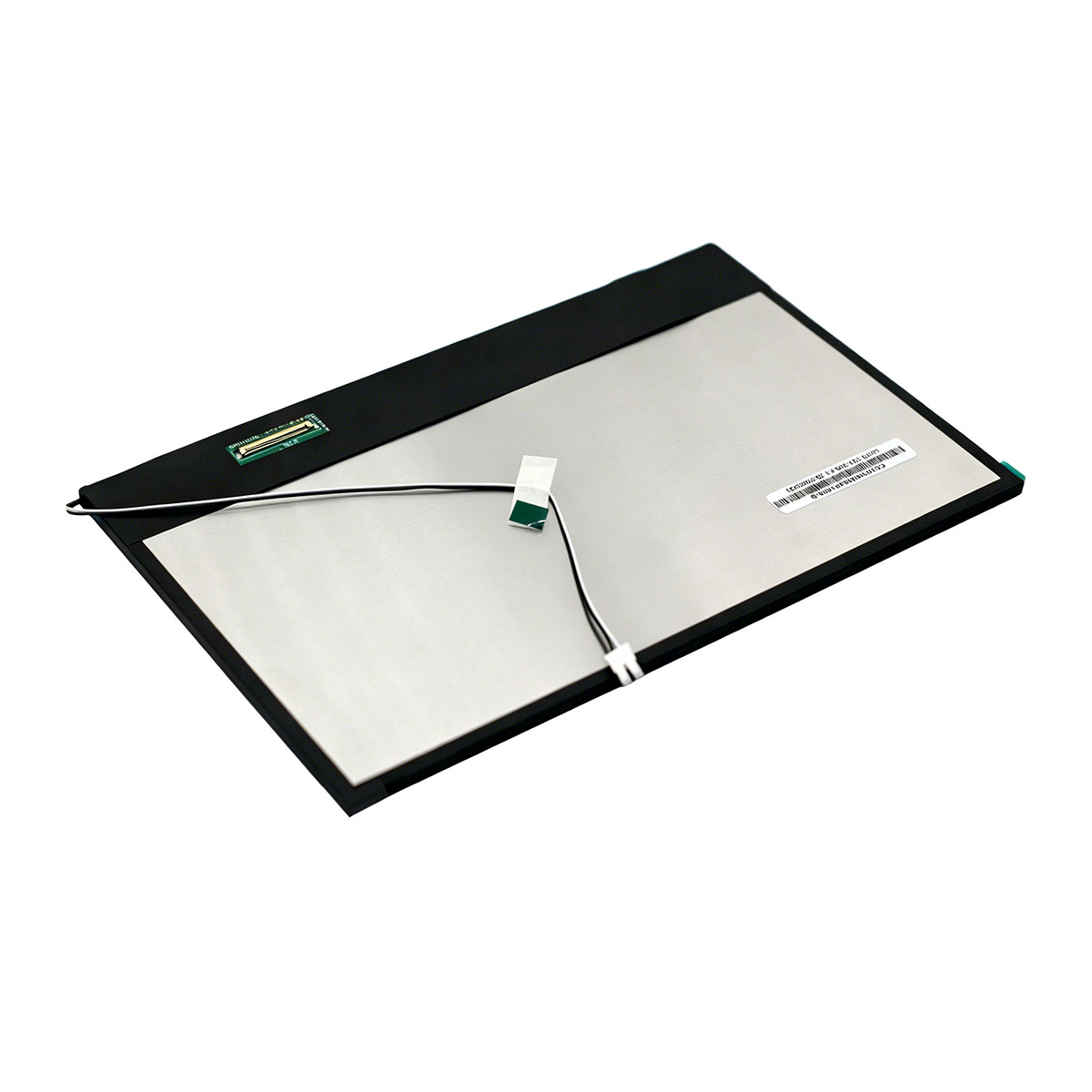

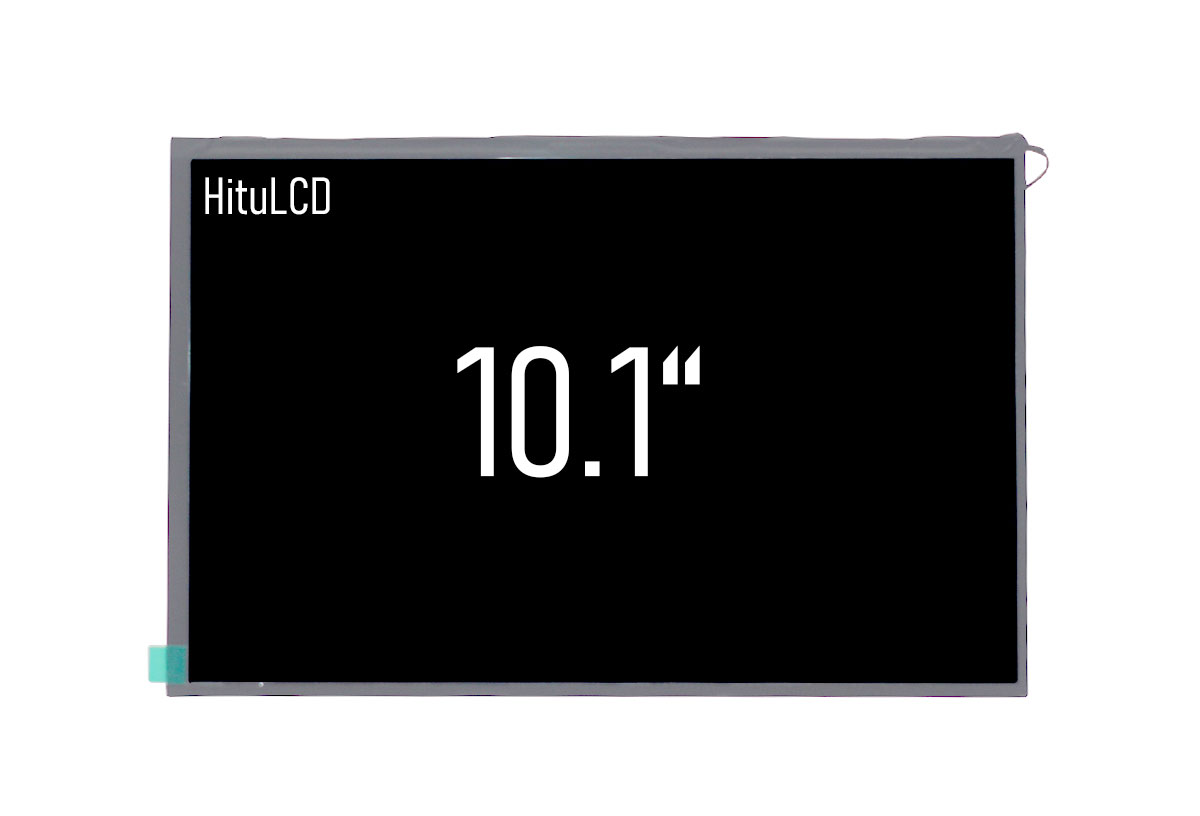

10.1 Inch Industrial High Brightness LCD Display (1000NITS)
model: HT101HDL-1000
Technical Highlights
- 1000cd/m² high brightness + AR/AG coating & optical bonding
- Wide temperature: -20℃ to +70℃ operation
- IPS 178° viewing angle + 50,000hrs LED backlight
certification standard
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesTechnical Specifications
| Parameter | Value |
| Panel Size | 10.1 inches |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1280(RGB)×800, WXGA, 16:10 |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 216.96(H)×135.6(V) mm |
| Panel Weight | 175±20g |
| Surface Treatment | - |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 900:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) Left/Right/Up/Down |
| Display Mode | ADS, Normally Black, Transmissive |
| Panel Technology | IPS Hard Panel: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich VA Soft Panel: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Viewing Direction | Full Viewing Angle |
| Response Time | 30 (Typ.)(Tr+Td) ms |
| Display Colors | 16.7M, 50% NTSC |
| Touch Screen | Non-Touch |
| Power Consumption | 4.2W (Max.) |
| Backlight | WLED, 30K hours, with LED Driver |
| Refresh Rate | 60Hz |
| Application | Industrial, Medical & Healthcare |
| Interface | LVDS (1 ch, 8-bit), 40 pins, Connector |
| Supply Voltage | 3.3V (Typ.) |
| Environment | Operating Temp: -20 ~ 70 °C, Storage Temp: -30 ~ 70 °C |
EV101WXM-N10
10.1-inch Industrial TFT-LCD Module | HituLCD
It features WLED backlight with integrated driver, non-touch design, and optimized performance for industrial and medical applications.
Display Specifications
Resolution: 1280(RGB)×800 (WXGA)
Aspect Ratio: 16:10
Pixel Configuration: RGB vertical stripe
Active Area: 216.96 × 135.6 mm
Outline Dimensions: 228.6 × 149.2 × 6.0 mm
Net Weight: 175±20g
Backlight
WLED side-lit backlight
Lifetime: 30,000 hours
Built-in LED driver
Electrical Interface
Interface: LVDS (1 ch, 8-bit)
Pins: 40 pins, connector type
Supply Voltage: 3.3V (Typ.)
Refresh Rate: 60Hz (Typ.)
Environmental
Operating Temperature: -20°C ~ 70°C
Storage Temperature: -30°C ~ 70°C
Production & Availability
Mass production started: Q4 2020
Current status: In mass production
Stable supply chain with sufficient inventory
