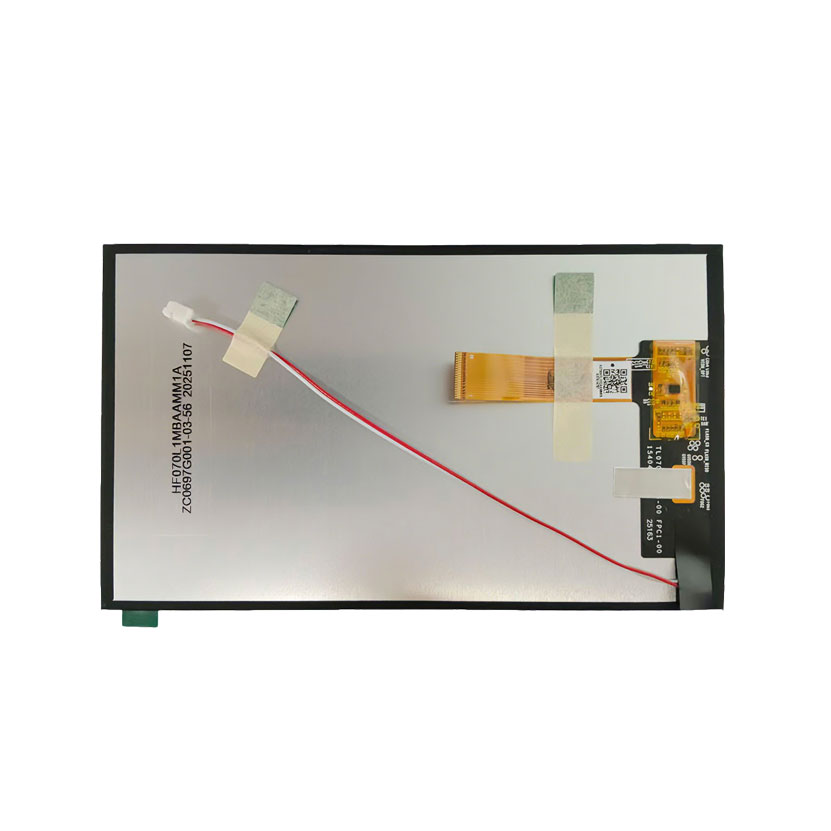

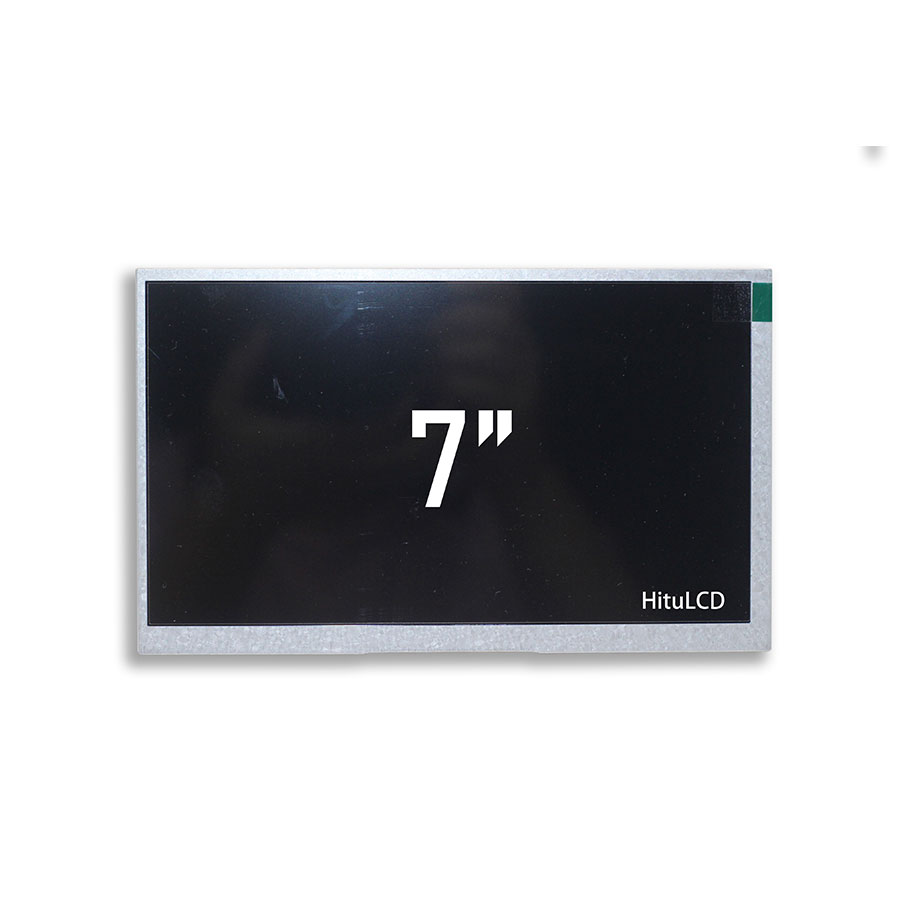

7 Inch Sunlight Readable LCD Screen Module (2000NITS)
MODEL: HT070FHD-2000
SERVICES
- Accountability: Every unit ships standard with CE/FCC/RoHS certification. UL/CCC/EAC certification can be arranged upon request — additional cost and lead time apply depending on the specific standard; please contact us for a quote before ordering.
- Return Policy: 12-month warranty with remote troubleshooting first, followed by free replacement and expedited reshipment once a hardware fault is confirmed.
- Lead Time: 2–3 weeks for standard products, 4–6 weeks for custom orders, and 6–8 weeks for bulk orders of 500+ units, with clear scheduling confirmed before order placement.
- Customer Support: 24/7 engineering support with a direct WhatsApp link on the website, ensuring fast responses across time zones without waiting on email.
- Production Capacity: Monthly production capacity: 12,000+ units (customizable specs), supporting both small-batch prototyping and large-volume orders.
- Inventory & Lead Time Assurance: We maintain safety stock of common panel sizes and standard components to buffer against supply chain fluctuations. For repeat orders, we offer scheduled/forecasted production slots to guarantee on-time delivery.
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesTechnical Specifications
| LCD PANEL PARAMETERS | HDMI/CONTROL BOARD SPECIFICATIONS | ||
|---|---|---|---|
| ITEM | DETAILS | ITEM | DETAILS |
| Description | HANNTU 7" QLED QUANTUM DOT HIGH COLOR GAMUT 350CD | Input Interface | HDMI, |
| Size | 7 | Power Input | DV12V2A |
| Display area (mm) | 154.368(H)x 86.832(V) | OSD KEYS | 5 KEYS (POWER SWITCH, MENU, +, -, EXIT) |
| Resolution | 1920*1080 | OSD CONTROL | BRIGHTNESS, COLOR, CONTRAST, AUTO ROTATION, H/V POSITION, ETC. |
| Aspect ratio | 16:9 | ||
| Contrast ratio | 1200:1 | ||
| Pixel per inch (PPI) | 316 | ||
| Viewing angle | 178(H),178(V) | ||
| Display Colors | 16.7M, 72% NTSC | ||
| Response time(Typical) | 8ms | ||
| Signal Type | MIPI (40P) | ||
| Backlight | WLED, 30K hrs, With LED Driver | ||
| Power consumption | 7W | ||
| Dimensions (mm) | 164.22x97.98x3.38 | ||
| Mounting | VESA | ||
| Bezel size (U/B/L/R) | 5/5/5/4 | ||
| Operating temperature | -20℃～+70℃ | ||
| Storage temperature | -30℃～+80℃ | ||
| Weight (Net) | 0.1KG | ||
OEM/ODM Product Description — HT070FHD-2000 (7" 2000nits)
7" 2000nits Sunlight-Readable LCD Module — Built for OEM Programs That Need a Verifiable Supplier
The HT070FHD-2000 is a 7-inch, 1920×1080 sunlight-readable LCD module engineered for OEM/ODM integration in vehicle, kiosk, and outdoor HMI applications where display failure isn't an option. At 2000 nits with a 178°/178° viewing angle and -20°C to +70°C operating range, it's built for the same harsh-environment category as our 5.5" module — but sized, powered, and rated differently for the mid-size HMI and dashboard use cases this form factor actually serves.
Sized for Direct 12V Integration
Unlike our 5.5" variant (AC 100–240V input), the HT070FHD-2000 runs on a DC 12V2A supply — the standard rail already present in most vehicle, EV charging, and industrial control cabinets at this size. If your enclosure already carries a 12V bus, this panel drops in without an added AC-DC conversion stage. Power draw is 7W, and the WLED backlight is rated at 30,000 hours — a figure we quote honestly rather than rounding up to match our other SKUs; ask us about the direct-lit 50K-hour variant if your application runs 24/7.
A Manufacturer You Can Verify Before You Inquire
We're not a trading company reselling panels — HITULCD is a registered manufacturer (Shenzhen Hantu Jiashi Technology Co., Ltd., Unified Social Credit Code 91440300306068446B, established 2014, 11+ years in operation), and our registered factory address is publicly searchable on Google Maps. Compliance documentation — RoHS, REACH, labor practices — is available on request for your ESG due diligence, and factory audits can be arranged before you place an order, not after a deposit.
Full-Chain OEM/ODM Customization
Resolution: HD, FHD, 2K, 4K options with custom pixel density
Brightness: Adjustable 500–5000 nits to match your deployment environment
Interface: HDMI, DP, VGA, USB, RS232, RJ45 — beyond the standard MIPI 40-pin signal
Mechanical: Open-frame or fully enclosed housing, custom dimensions, VESA-compatible mounting
Branding: Custom boot logo, UI skinning, firmware/software integration
Packaging: Private-label boxes, manuals, labeling for market-ready delivery
Commercial Terms Confirmed Before You Order, Not After
MOQ: 1 unit for standard specs (custom brightness/size adjusts MOQ — confirmed at quotation, not after deposit)
Lead time: 2–3 weeks standard / 4–6 weeks custom / 6–8 weeks for 500+ unit bulk orders
Shipping terms: EXW, FOB, or CIF — your choice
Payment protection: T/T, L/C, PayPal (buyer-protected for samples), or O/A for repeat partners
Production capacity: 12,000+ units/month, supporting both prototype runs and volume orders
Warranty: 12 months, with remote troubleshooting first, then free replacement + expedited reshipment on confirmed hardware faults
Certified & Traceable
ISO 9001, CE, FCC, RoHS, REACH, WEEE as standard; UL/CCC/EAC available on request (additional cost/lead time — quoted before ordering, not discovered after).
Ideal Applications: bus/subway vehicle information displays, EV charging pile HMIs, gas station terminals, construction/agricultural machinery cabs, outdoor self-service kiosks, marine instrumentation, and portable field/medical devices.
Send your enclosure power rail (AC or DC), duty cycle, and interface requirement — our engineering team confirms fit within one review, before you commit to a sample order.
Engineering Notes: HT070FHD-2000
The 7W power draw and DC 12V2A input are the two numbers your electrical engineer needs before the nits figure
This module runs on DC 12V2A rather than the AC 100–240V input used on our 7" variant — a deliberate choice for this size class, since 7" panels in vehicle, kiosk, and embedded HMI installs are more often wired directly into a 12V rail than an AC mains line. If your enclosure already has a 12V bus, this saves you a power conversion stage; if you're retrofitting into an AC-powered chassis, flag it to us early so we can quote the DC-DC conversion board alongside the panel.
The 7W consumption is roughly double our 7" module's 3W — expected at this display area, but worth budgeting for if you're running multiple units off a shared power supply in a fleet deployment (bus displays, EV charging banks).
30,000-hour backlight rating, not 50,000 — here's why, and when it matters
Larger panels dissipate heat differently than smaller ones, and at this size/brightness combination the WLED backlight is rated at 30,000 hours rather than the 50,000 hours we quote on the 7" module. In practical terms: at 24/7 continuous operation, that's roughly 3.4 years before you're planning a backlight refresh cycle versus 5.7 years on the smaller panel. For outdoor advertising or transit displays running daylight hours only, this stretches well past typical hardware refresh cycles anyway — it matters more for always-on industrial monitoring applications. If your project needs the longer figure, ask us about the direct-lit backlight variant.
316 PPI, not 400 — a legibility tradeoff, not a downgrade
At 1920×1080 across a larger 154.368 × 86.832mm active area, pixel density comes down to 316 PPI compared to 400 PPI on the 7" panel. For text-heavy HMI or fine iconography viewed at close range (handheld terminals), the 7" panel reads sharper. For 7" applications — which are typically viewed from 40cm+ in vehicle dashboards, kiosk panels, or wall-mounted control interfaces — 316 PPI is comfortably above the resolution the eye can distinguish at that distance, so this isn't a meaningful tradeoff for most 7" use cases. It only becomes relevant if you're designing a handheld device at 7" viewed at arm's length.
MIPI 40-pin signal — same interface family as our 7", different board design
Like the 7" module, this panel uses MIPI (40-pin) rather than a direct HDMI interface. If you're standardizing a product line across both sizes, your control board design can share the same MIPI driver IC — worth flagging to your hardware team if you're planning a multi-size product family rather than a single SKU.
What we can't tell you without your project specifics
The 178°/178° viewing angle and 8ms response time are panel-level constants at this size and won't change with customization. What we can adjust based on your application: brightness tuning below 2000 nits for indoor/semi-shaded deployments, backlight upgrade to the 50K-hour direct-lit variant for always-on installations, interface conversion off MIPI onto HDMI/RS232 control boards, and touch integration. Send us your power budget (AC or DC rail) and duty cycle (24/7 vs daylight-only) and we'll confirm within one engineering review whether the standard HT070FHD-2000 fits or needs a backlight/interface variant.
Know The Terms Before You Inquire.
No surprises after you send an inquiry. Shipping terms, order minimums and payment protection are all confirmed upfront.
|
01 — Shipping Terms
Incoterms Available
EXW
Ex Works — pick up from our factory
FOB
Free On Board — most common for ocean freight
CIF
Cost, Insurance & Freight — to your port
|
02 — Order Minimum
MOQ: 1 Units
Applies to standard specifications. Custom brightness, size-cutting or bezel design may adjust MOQ — confirmed at quotation stage, not after deposit.
Sample units available before bulk order
|
03 — Payment Protection
Multiple Secured Methods
|
A Real Factory. Publicly Verifiable.
Before you send an inquiry, check us out yourself. All the information below is on public record with Chinese government business registries.
|
Legal Company Name
Shenzhen Hantu Jiashi Technology Co., Ltd.
|
Unified Social Credit Code
91440300306068446B
|
|
Legal Representative
YUN CHEN
|
Registered Capital
RMB 2,000,000
|
|
Established
May 23, 2014 (11+ years in operation)
|
Business Status
● Active / In Operation
|
|
Registered Factory Address
Building B, Gangshen Innovation Park, Huaning Road, Dalang Sub-district, Longhua District, Shenzhen, Guangdong, China
|
|
Contact HITULCD
We'll respond via email within 24 hours. If you'd like to discuss details over WhatsApp or a call, please leave a preferred time and contact method in your message — we will never call you unannounced.
