A turnkey display solution for fuel dispenser OEMs and system integrators, covering panel selection, environmental hardening, and the certification pathway required to pass forecourt equipment approval in Europe, North America, and other regulated markets

Industry pain points and challenges

Understand the core issues in this application scenario and how we can provide solutions through advanced display technology

core pain point

Sunlight Washout and Nighttime Glare

Pain Point: Forecourt displays run 24/7 under direct sun, rain, and temperature swings. Standard TFT panels wash out at midday, making the unit price, pump status, or payment prompt unreadable from the driver's seat. After dark, an over-bright panel produces glare that both annoys customers and can put the site out of compliance with local outdoor-lighting ordinances. Technical Requirement: 700–1200 nit sunlight-readable panels, optical bonding to remove the air-gap reflection layer, an anti-glare/anti-reflective coating, and an ambient light sensor driving automatic day/night brightness control.

Hazardous-Area and Ingress Protection Compliance

Pain Point: The dispenser island is a classified hazardous location due to fuel vapor. A display or driver board that hasn't been engineered for this environment simply cannot be qualified into an OEM's bill of materials — regardless of how good the panel looks on the bench. The enclosure also has to survive pressure washing, blown dust, and years of rain. Technical Requirement: Component and circuit design compatible with hazardous-area certification frameworks (ATEX, IECEx, UL 60079 / UL 913 class I div. 1 or 2), IP65/IP66 sealing at the full-unit level, and housing materials that resist fuel-vapor exposure and UV embrittlement over a multi-year field life.

Temperature Extremes and Long Field Life

Pain Point: A single dispenser platform gets deployed everywhere from sub-zero Nordic winters to desert heat above 50°C ambient. Swapping a display in the field is expensive — it means site downtime, a service call, and in some jurisdictions re-filing paperwork with the weights-and-measures authority. Buyers plan around an 8–10 year service interval, not a 2–3 year commercial-panel lifespan. Technical Requirement: Wide operating temperature rating (typically −30°C to +70°C, with an optional heater film for cold-start regions), a reinforced or die-cast mounting structure, LED backlight rated for 50,000+ hours, and shock/vibration performance validated against IEC 60068-2.

Our technological advantages

We provide industry-leading display technology and customized solutions to meet the special requirements of this application scenario

Sunlight Readable Optical Design

High-brightness panels (700–1200 nit range) combined with optical bonding and AG/AR coating keep contrast legible under direct sun without the reflective "mirror" effect of an air-gapped panel. An ambient light sensor automatically steps brightness down at night for glare control.

Solves: The "can't read the pump display" complaint, while keeping brightness within acceptable nighttime limits.

Hazardous-Area Ready Circuit and Component Selection

Panel and driver electronics are designed around low-power, hazardous-area-compatible circuit topologies, with supporting documentation (BOM, schematics, thermal and voltage test data) that an OEM's compliance team can hand directly to their ATEX/IECEx/UL notified body.

Solves: Shortens the certification runway for the display subsystem and reduces the risk of a late-stage compliance rejection during full-unit type approval.

IP65/IP66 Sealed, Weather-Hardened Enclosure

Chemically strengthened cover glass resists impact and scratching from cleaning and vandalism; housing materials are validated through salt-spray and accelerated UV-aging cycles for coastal, desert, and high-altitude installs.

Solves: Fewer field failures from washdown, blown sand, and driving rain — lower truck-roll and spare-parts costs over the contract life.

Wide-Temperature Operation, Long-Life Backlight

Rated operation from −30°C to +70°C (heater-film option available), paired with a long-life LED backlight and vibration/shock testing to IEC 60068-2, supports the 8–10 year deployment cycle OEMs plan around.

Solves: Fewer cold-climate blackouts and hot-climate brightness drift, which lowers total cost of ownership across a multi-region fleet.

Metrology-Aligned Refresh and Data Integrity

Low-latency refresh synchronized to the dispenser's metering controller keeps unit price, volume, and transaction amount on-screen without lag or dropped digits.

Solves: Supports the display-layer expectations behind frameworks such as the EU Measuring Instruments Directive (MID) / OIML R117 and the US NTEP program, reducing the risk of a transaction dispute traced back to the screen.

Flexible Interfaces and Platform Integration

HDMI, LVDS, and RS232/485 interface options; PCAP capacitive touch (glove-compatible) or non-touch configurations; mechanical and interface layouts adaptable to common dispenser control-unit conventions; custom bezel, cutout, and branding options for OEM programs.

Solves: Shortens the integration and validation cycle between the display module and the dispenser's electronic control unit.

Complete Compliance Documentation Package

Every module ships with baseline CE, FCC, and RoHS documentation under an ISO 9001 quality system, plus the structural drawings, BOM, and reliability test reports needed to support the OEM's own ATEX/IECEx/UL and metrology filings.

Solves: Meets the documentation rigor expected in a supplier audit and speeds up Approved Vendor List (AVL) onboarding.

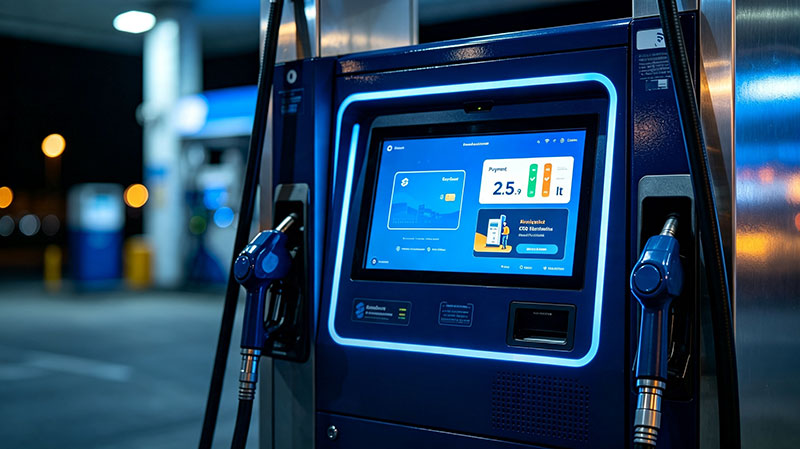

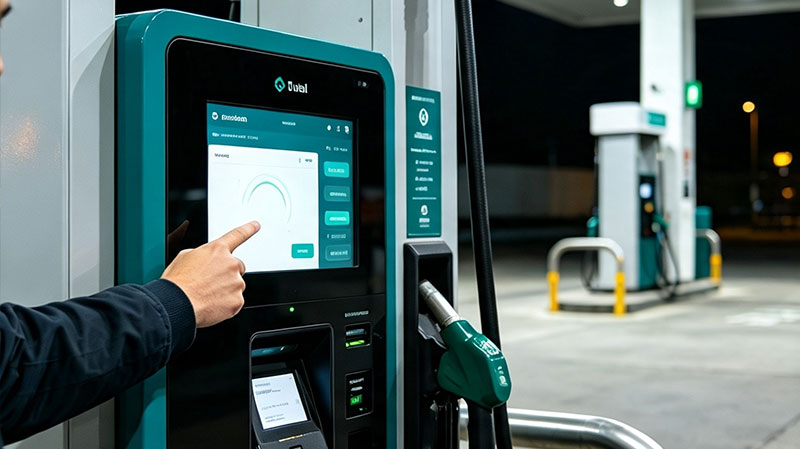

Application scenario display

Recommended product model

Selected industrial grade display products for this application scenario have been validated in multiple practical projects

12.1 Inch 1000nits High Brightness TFT LCD Module Screen"> 1000 Nits
5.5-27 Inch Industrial Control High Brightness Display Kits

12.1 Inch 1000nits High Brightness TFT LCD Module Screen

model: HT121FHD-1000

Exceptional Sunlight Readability with Optical Enhancement Industrial-Grade Durability for Mission-Critical Applications
10.1 Inch Industrial High Brightness LCD Display (1000NITS)"> 1000 Nits
5.5-27 Inch Industrial Control High Brightness Display Kits

10.1 Inch Industrial High Brightness LCD Display (1000NITS)

model: HT101FHD-1000

1000cd/m² high brightness + AR/AG coating & optical bonding Wide temperature: -20℃ to +70℃ operation
7 Inch Sunlight Readable LCD Screen Module (2000NITS)"> 2000 Nits
5.5-27 Inch Industrial Control High Brightness Display Kits

7 Inch Sunlight Readable LCD Screen Module (2000NITS)

model: HT070FHD-2000

2000 nits high brightness, sunlight readable Industrial-grade stability & wide temperature operation
