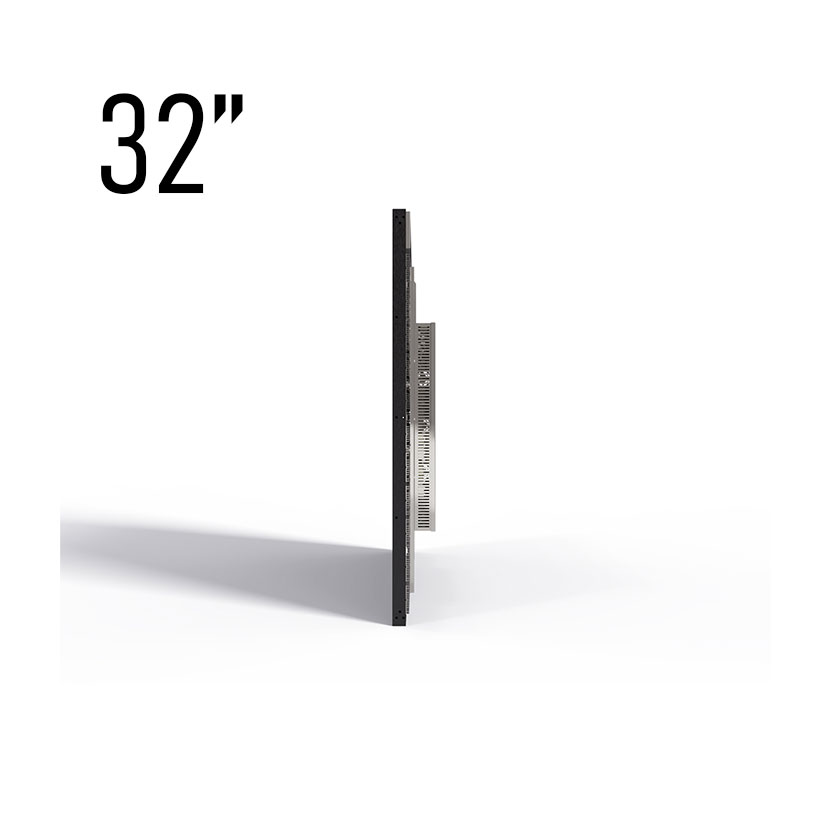

32 Inch High Brightness Open Frame LCD Display
MODEL: WD320D-M2
SERVICES
- Accountability: Every unit ships standard with CE/FCC/RoHS certification. UL/CCC/EAC certification can be arranged upon request — additional cost and lead time apply depending on the specific standard; please contact us for a quote before ordering.
- Return Policy: 12-month warranty with remote troubleshooting first, followed by free replacement and expedited reshipment once a hardware fault is confirmed.
- Lead Time: 2–3 weeks for standard products, 4–6 weeks for custom orders, and 6–8 weeks for bulk orders of 500+ units, with clear scheduling confirmed before order placement.
- Customer Support: 24/7 engineering support with a direct WhatsApp link on the website, ensuring fast responses across time zones without waiting on email.
- Production Capacity: Monthly production capacity: 12,000+ units (customizable specs), supporting both small-batch prototyping and large-volume orders.
- Inventory & Lead Time Assurance: We maintain safety stock of common panel sizes and standard components to buffer against supply chain fluctuations. For repeat orders, we offer scheduled/forecasted production slots to guarantee on-time delivery.
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesTechnical Specifications
| Model | WD320D-M2 (With Control Box) |
| Appearance | Color: Black panel & black bezel / Customizable |
| Dimensions: 721.8*416.3*72.3 (L*W*H) | |
| Material: Sheet metal | |
| Mounting Type: Wall-mounted, Floor-standing, Ceiling-mounted | |
| Packaging | Package Size: 85*24*54 cm |
| Weight: 7.2kg (Net), 12.2KG (Gross) | |
| Display | Screen Size: 32" TFT LED |
| Display Area / Aspect Ratio: 698.4mm x 392.9mm / 16:9 | |
| Max Resolution: 1920 x 1080 | |
| Brightness: 2500cd/m² with automatic linear light sensor | |
| Contrast Ratio: 1300:1 | |
| Viewing Angle (Up/Down/Left/Right): 89°/89°/89°/89° | |
| Response Time: 6ms | |
| Color Depth: 16.7M Colors | |
| Power & Power Consumption | 100V~240V AC, ≤105W |
| Main Board & Interfaces | RK3568, 4-Core CPU @1.8GHz, 4-Core Mali-T764 GPU; 2GB DDR3 RAM, 16GB Storage (Expandable); 2 External USB, 4 Built-in USB, 1 SD Card Slot, 1 RJ45 Port; 1 LVDS, 1 HDMI2.0 (Support 4K@60HZ output for customized version); Built-in WiFi & Bluetooth, expandable for 3G/4G |
| Functions | Operating System: Android 9 / Android 11 |
| Menu Language: Multi-language including Chinese, English, Russian, French, Spanish, etc. | |
| Video Formats: RM/RMVB, MKV, TS, FLV, AVI, VOB, MOV, WMV | |
| Audio Formats: MPEG-1 Layers I/II/III 2.0, MPEG-4 AAC-LC 5.1/HE-AAC 5.1/BSAC 2.0, WAV, 24-bit linear PCM 7.1 | |
| Image Formats: BMP, JPEG, PNG, GIF | |
| Other Supported Formats: PDF, PPT, SWF, Text, Real-time Stream | |
| Screen Layout: Video area, Image & text area, Scrolling subtitle, Logo area, Date area, Time area, Week area, Weather forecast area, Real-time image area, Real-time video area | |
| Firmware Update: Update via SD Card | |
| System Management: Centralized management, Group management, Multi-user management, Remote management, Timed power on/off | |
| Remote Control: Remote auto power on/off, Remote program editing & update, Remote status monitoring | |
| Playback Mode: Loop play, Timed play, Interrupt play and other modes | |
| System Architecture: Advanced B/S (Browser/Server) architecture | |
| Network Support: LAN, WAN, WiFi, 3G | |
| Speaker: Built-in dual mini speakers | |
| Others | Lifespan: 50000 hours |
| Operating Temperature: -10℃ ~ 50℃ | |
| Storage Temperature: -20℃ ~ 60℃ | |
| Operating Humidity: 5% ~ 90% | |
| Storage Humidity: 5% ~ 90% | |
| Security: Support hardware dongle, login password, control password and hierarchical user permission settings | |
| Environmental Standard: All components and packaging materials comply with international environmental standards |

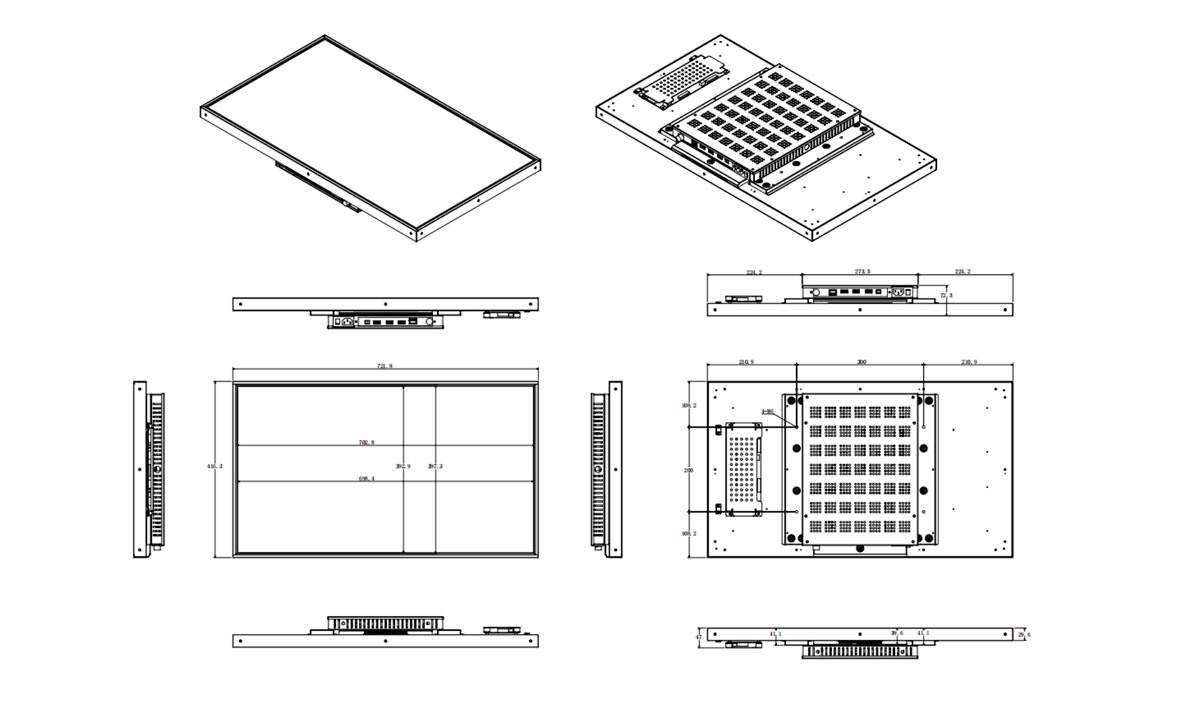

External Dimensions
32 Inch High Brightness Open Frame LCD Display — WD320D-M2 product detail page for B2B procurement
OPEN FRAME MONITOR · INDUSTRIAL GRADE
32" High Brightness Open Frame LCD Display
Model WD320D-M2 · 2500 cd/m² · Android OS · 24/7 Rated
BRIGHTNESS
2,500
cd/m² with auto light sensor
PANEL SIZE
32"
TFT LED, 1920×1080
PANEL LIFESPAN
50,000
hours rated
OPERATING TEMP.
−10–50
°C, 5–90% RH
Why 2,500 nits?
Standard consumer panels wash out in ambient light above 500 lux — typical retail, hospitality, and transit environments exceed 1,000 lux. At 2,500 nits with an integrated ambient light sensor, this display maintains full readability from direct overhead fluorescents to west-facing window light without manual adjustment.
Key design features
RK3568 quad-core SoC
1.8 GHz CPU with Mali-T764 GPU. Handles 4K decode, multi-zone layouts, and live stream inputs simultaneously.
Built-in WiFi + BT, 4G ready
WiFi and Bluetooth on-board. Expandable to 3G/4G cellular for deployments without on-site LAN infrastructure.
Multi-zone screen layout
Up to 10 independent content zones: video, image, ticker, weather feed, clock, and live RTSP stream.
Remote CMS management
Browser/Server (B/S) architecture. Push content, schedule playlists, monitor status, and reboot units remotely across any size network.
Auto brightness control
Linear ambient light sensor adjusts backlight automatically, extending panel life and reducing power draw in lower-light periods.

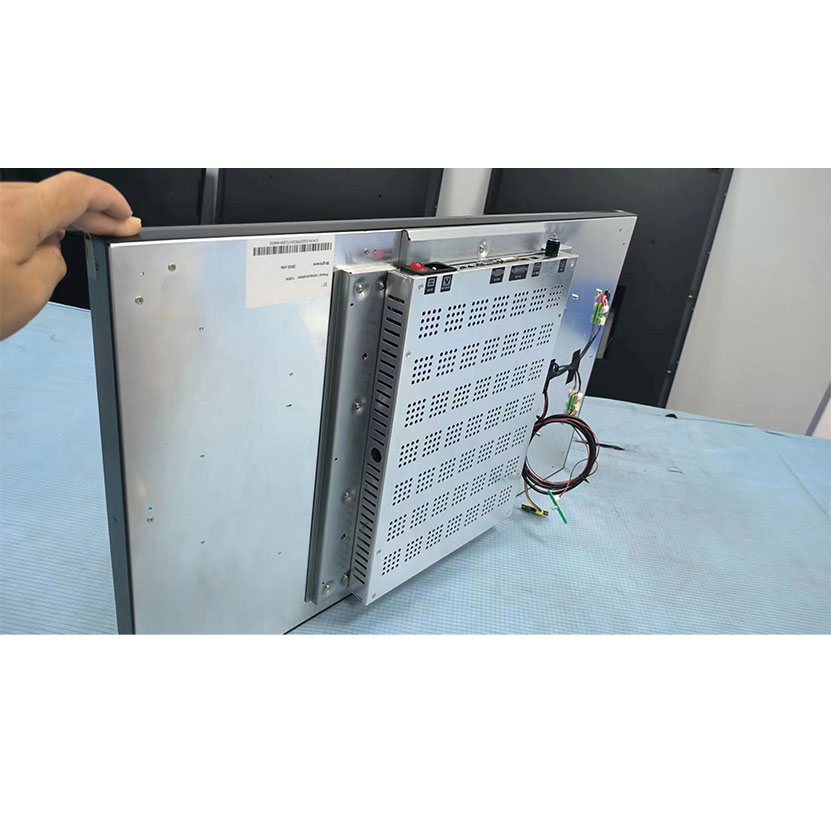

Open-frame chassis
Sheet metal frame without front housing. Designed for integration into kiosks, enclosures, and custom fabricated cabinetry.
Full technical specifications
| Panel | 32" TFT LED, 1920×1080 (FHD), 16:9 |
| Active area | 698.4 × 392.9 mm |
| Brightness | 2,500 cd/m² (with auto light sensor) |
| Contrast ratio | 1,300:1 |
| Viewing angles | 89°/89°/89°/89° (U/D/L/R) |
| Response time | 6 ms |
| Color depth | 16.7M colors |
| Processor | RK3568, 4-core @ 1.8 GHz + Mali-T764 GPU |
| Memory / storage | 2 GB DDR3 RAM / 16 GB eMMC (expandable) |
| Operating system | Android 9 / Android 11 |
| Connectivity | RJ45, 2× external USB, 4× internal USB, SD card, LVDS, HDMI 2.0 (4K@60Hz on custom build) |
| Wireless | Built-in WiFi + Bluetooth; 3G/4G expandable |
| Network protocols | LAN, WAN, WiFi, 3G/4G |
| Audio | Built-in dual speakers; MPEG-1, AAC-LC, HE-AAC, WAV, PCM 7.1 |
| Video formats | RM/RMVB, MKV, TS, FLV, AVI, VOB, MOV, WMV |
| Image formats | BMP, JPEG, PNG, GIF |
| Other formats | PDF, PPT, SWF, Text, Real-time stream |
| Firmware update | SD card; remote OTA via CMS |
| Power supply | 100–240V AC, ≤105W |
| Enclosure | Black panel + black bezel (custom color MOQ 20 pcs) |
| Dimensions (L×W×H) | 721.8 × 416.3 × 72.3 mm |
| Net / gross weight | 7.2 kg / 12.2 kg |
| Mounting | Wall, floor stand, ceiling (portrait or landscape) |
| Operating temp. | −10°C to +50°C |
| Storage temp. | −20°C to +60°C |
| Humidity (op/storage) | 5%–90% RH (non-condensing) |
| Panel lifespan | 50,000 hours |
| Security | Hardware dongle, login password, hierarchical user permission |
Typical deployment scenarios
Retail & QSR
Menu boards, endcap displays, and self-service kiosk panels in high-ambient-light store environments.
Transit & wayfinding
Passenger information boards, gate displays, and real-time schedule screens in stations and terminals.
Healthcare & waiting areas
Queue management, patient information, and ambient content displays in clinical or public-facing areas.
Industrial HMI
Integration into production line enclosures and control panels requiring 24/7 continuous operation.
Corporate signage
Lobby displays, conference room scheduling panels, and enterprise digital signage networks.
Certifications & compliance
All components and packaging materials comply with current international environmental standards. Documentation packages for UL, TÜV, or additional regional certifications are available on request for custom OEM builds.
Ordering & lead times
| Sample / NPI unit | Available; contact for pricing and lead time |
| Bulk order lead time | 10–15 business days (standard configuration) |
| Custom color (RAL) | MOQ 20 pcs, +15 business days |
| Custom brightness | 350–3,000 nits configurable; contact engineering |
| Packaging | Individual heavy-duty carton (85 × 24 × 54 cm) |
| Incoterms | EXW / FOB Shenzhen; DDU/DDP available |
