86 Inch 2500nits Sunlight Readable Open Frame Monitor
MODEL: WD860D-M2
SERVICES
- Accountability: Every unit ships standard with CE/FCC/RoHS certification. UL/CCC/EAC certification can be arranged upon request — additional cost and lead time apply depending on the specific standard; please contact us for a quote before ordering.
- Return Policy: 12-month warranty with remote troubleshooting first, followed by free replacement and expedited reshipment once a hardware fault is confirmed.
- Lead Time: 2–3 weeks for standard products, 4–6 weeks for custom orders, and 6–8 weeks for bulk orders of 500+ units, with clear scheduling confirmed before order placement.
- Customer Support: 24/7 engineering support with a direct WhatsApp link on the website, ensuring fast responses across time zones without waiting on email.
- Production Capacity: Monthly production capacity: 12,000+ units (customizable specs), supporting both small-batch prototyping and large-volume orders.
- Inventory & Lead Time Assurance: We maintain safety stock of common panel sizes and standard components to buffer against supply chain fluctuations. For repeat orders, we offer scheduled/forecasted production slots to guarantee on-time delivery.
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesTechnical Specifications
| Item | Specification |
|---|---|
| Model | WD860D-M2 (With Circuit Box) |
| Appearance | Color: Black panel & black bezel / Customizable |

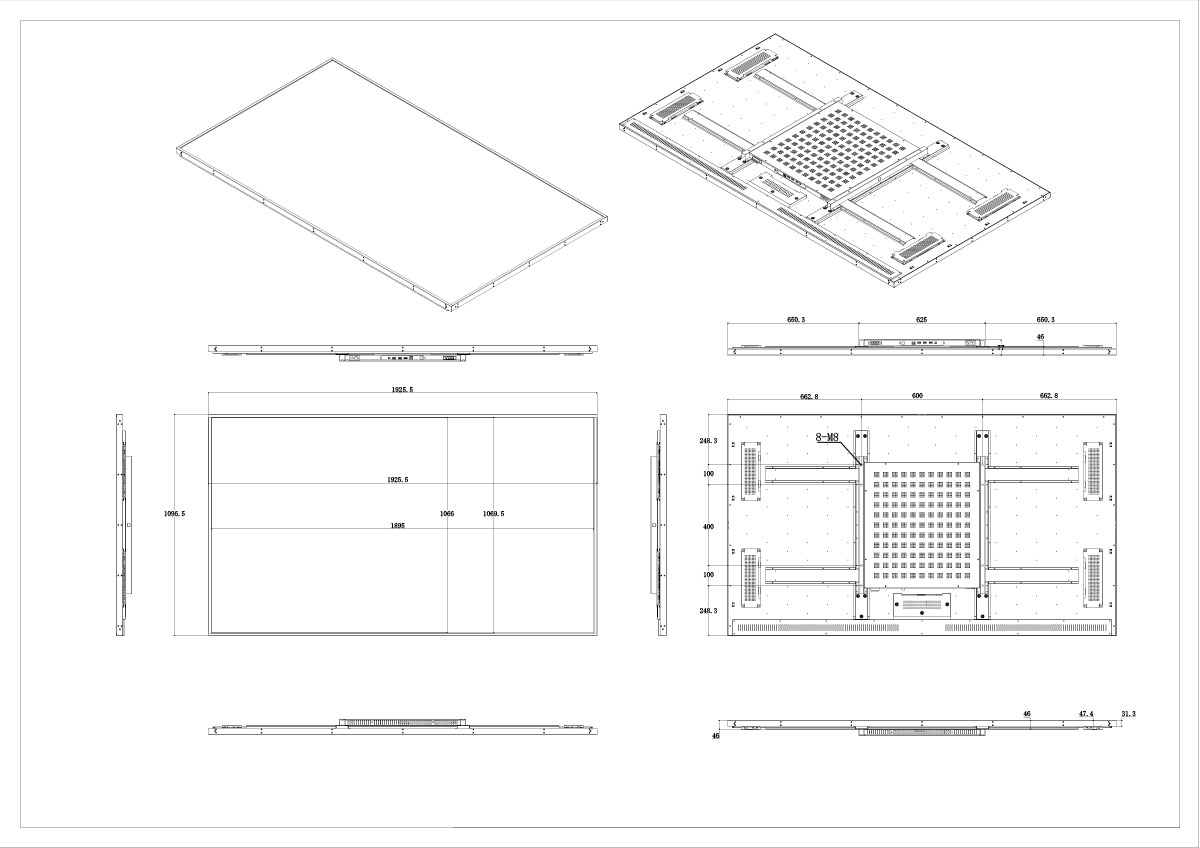

| Dimension (L*W*H): 1925.5*1096.5*72.3 mm | |
| Material: Sheet metal | |
| Installation | Wall-mounted, Floor-standing, Ceiling-mounted |
| Package | Package Size: 209*21*126 cm |
| Weight: Net 47.5kg / Gross 52.5kg | |
| Display | Screen Size: 86" TFT LED |
| Display Area / Aspect Ratio: 1895mm x 1066mm / 16:9 | |
| Max Resolution: 3840*2160 | |
| Brightness: 2500cd/m², Auto linear light sensor | |
| Contrast Ratio: 1300:1 | |
| Viewing Angle: Up/Down/Left/Right 89°/89°/89°/89° | |
| Response Time: 6ms | |
| Color: 16.7M Colors | |
| Power & Power Consumption | 100V~240V AC, ≤850W |
| Main Board & Interfaces | Chipset: RK3568, 4-Core CPU 1.8GHz, 4-Core Mali-T764 GPU RAM: 2GB DDR3, Storage: 16GB (Expandable) |
| 2 x External USB, 4 x Internal USB, 1 x SD Card Slot, 1 x RJ45 1 x LVDS, 1 x HDMI2.0 (Support 4K@60Hz, Customized) Built-in Wi-Fi / Bluetooth, Expandable 3G / 4G | |
| Functions | OS: Android 9 / Android 11 |
| Menu Language: Chinese, English, Russian, French, Spanish and other multi-languages | |
| Video Format: RM/RMVB, MKV, TS, FLV, AVI, VOB, MOV, WMV | |
| Audio Format: MPEG-1 Layers I/II/III 2.0, MPEG-4 AAC-LC 5.1/HE-AAC 5.1/BSAC 2.0, WAV, 24-bit linear PCM 7.1 | |
| Image Format: BMP, JPEG, PNG, GIF | |
| Other Formats: PDF, PPT, SWF, Text, Real-time data stream | |
| Screen Layout: Video area, Image & text area, Scrolling subtitle, LOGO area, Date, Time, Week, Weather forecast, Real-time image & video area | |
| Upgrade Mode: Update via SD card | |
| Management: Unified / Group / Multi-user / Remote management, Timing power on/off | |
| Remote Control: Remote power on/off, Program update & edit, Status monitoring Play Mode: Loop, Timing, Insert play Architecture: B/S (Browser/Server) Network: LAN, WAN, Wi-Fi, 3G Audio: Built-in dual mini speakers | |
| Others | Lifespan: 50000 hours |
| Operating Temperature: -10℃ ~ 50℃ | |
| Storage Temperature: -20℃ ~ 60℃ | |
| Operating Humidity: 5% ~ 90% | |
| Storage Humidity: 5% ~ 90% | |
| Security: Hardware dongle, Login & control password, Multi-level user permission Environmental Standard: All components & packaging comply with international environmental standards |
86" 2500nits Sunlight Readable Open Frame Monitor (WD860D-M2)
Engineered for outdoor and semi-outdoor B2B deployments, the WD860D-M2 delivers 2500cd/m² brightness with auto light-sensor dimming — built for European and North American transit hubs, retail storefronts, fuel stations, and industrial control rooms where ambient light is unpredictable.
Why B2B Buyers Choose This Display
| 4K UHD Resolution | 3840×2160 with 16:7 wide-format ratio — sharp, professional visuals for digital signage and control dashboards. |
| Industrial 24/7 Rated | 50,000-hour lifespan, -10°C to 50°C operating range — reliable for continuous-run commercial environments. |
| Compliance Ready | CE, FCC, RoHS, ISO9001 certified — meets EU and US import & regulatory requirements out of the box. |
| Flexible Mounting | Wall-mounted, floor-standing or ceiling-mounted sheet metal chassis fits diverse installation projects. |
| Smart Android System | RK3568 quad-core CPU, Android 9/11, built-in Wi-Fi/BT, expandable 4G — supports remote multi-screen management. |
Key Specifications
Model: WD860D-M2 (with circuit box)
Brightness: 2500 cd/m² with auto linear light sensor
Contrast Ratio: 1300:1 | Viewing Angle: 89°/89°/89°/89°
Response Time: 6ms | Color: 16.7M
Power: 100–240V AC, ≤850W
Storage: 2GB RAM / 16GB expandable
Net Weight: 47.5kg | Gross: 52.5kg
Dimensions: 1925.5 × 1096.5 × 72.3 mm
OEM/ODM & Custom Solutions for Trade Partners
We support full OEM/ODM customization for European and American distributors — custom bezel colors (MOQ 20pcs, 15-day lead time), custom branding/logo, alternative resolutions, brightness levels, and connectivity options (4G/LTE for North American carrier bands, multi-language OSD for EU markets).
Bulk order lead time: 10–15 days. Robust export packaging: individually boxed in heavy-duty carton, with reinforced honeycomb packaging for large-format units to minimize freight damage on ocean shipping.
Typical Applications
Ready to Scale Your Project?
Request a sample, technical datasheet, or custom quote — our engineering team responds within 24 hours.
