Open Frame Monitor CUSTOMIZABLE

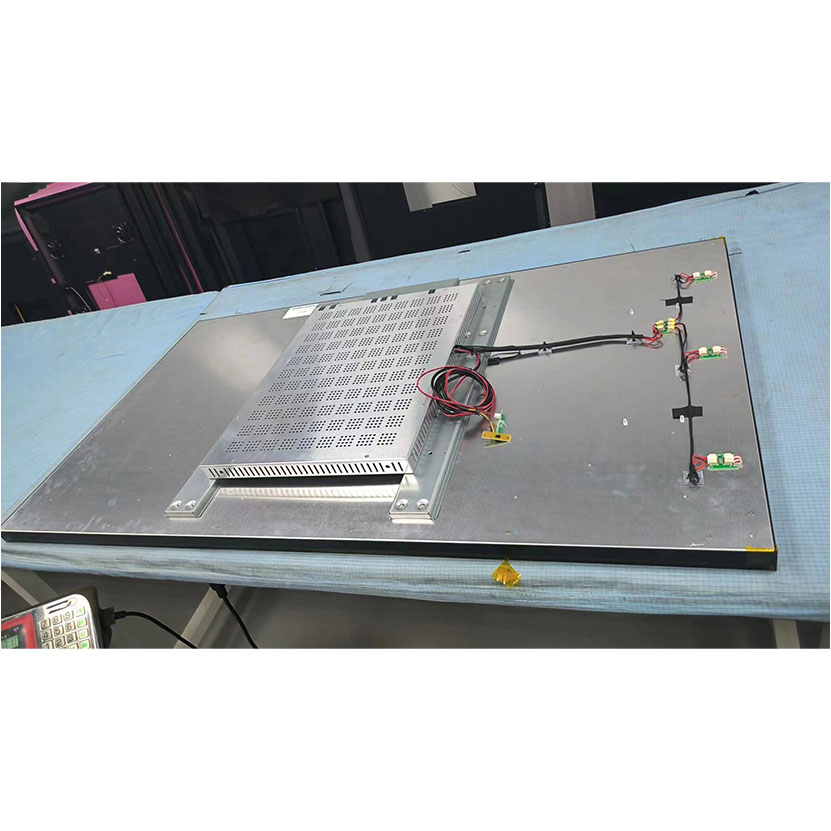

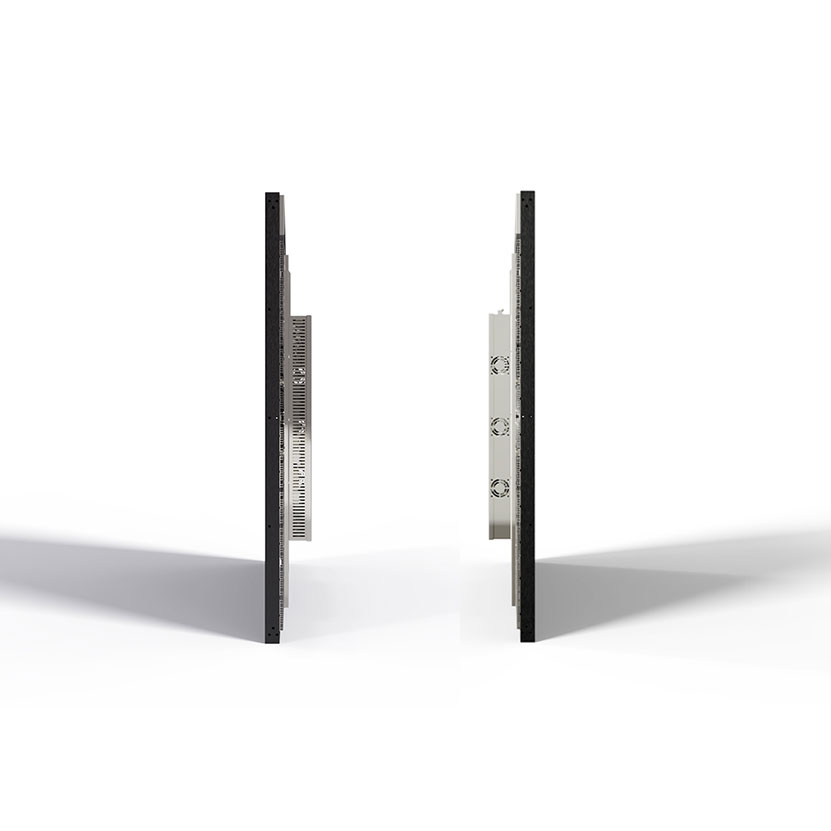

55 Inch High Brightness LCD Open Frame Monitor

MODEL: WD550D-M2

BRIGHTNESS 2500 nits
SIZE 55 inch
RESOLUTION 3840*2160
ASPECT RATIO 16：9

certification standard

ISO9001 CE ROSH FCC REACH WEEE
Contact The Manufacturer Download Specifications

Need customized solution?

Our engineering team is always ready to provide you with professional technical support and flexible customized services.

Understand light customization services
Manufacturer Direct

Built by us. Configured for you.

HITULCD supplies LCD modules and display solutions directly from our manufacturing operation, giving OEMs, integrators and distributors direct access to engineering, customization and production.

Direct
Supply
HITULCD Factory
→
Your Project
01
In-House Production
Assembly and testing managed through our own production process.
02
Custom Engineering
Size, brightness, interface, touch and mechanical integration.
03
OEM / ODM
From prototype samples to repeat production programs.
04
Engineering Access
Discuss specifications directly with the technical team.
12,000+
Units / Month
2–3 Weeks
Standard Lead Time
12 Months
Product Warranty
CE / FCC / RoHS
Compliance

Supplier Qualification

Verification
✓
Certifications: CE / FCC / RoHS standard; UL / CCC / EAC available on request.
✓
Quality Control: Production testing and inspection records available for review.
✓
Lead Time: 2–3 weeks standard; 4–6 weeks for custom projects.
✓
Warranty: 12-month product warranty with engineering support.
✓
Production Capacity: Supports prototype, small-batch and volume programs.
✓
ESG Compliance: RoHS and REACH compliant; documentation available on request.

Technical Specifications

ItemSpecification
ModelWD550D-M2 (With Circuit Box)
AppearanceColor: Black panel & black bezel / Customizable
Dimension (L*W*H): 1232.8*703.8*72.3 mm
Material: Sheet metal
InstallationWall-mounted, Floor-standing, Ceiling-mounted
PackagePackage Size: 134*24*81 cm
Net Weight: 16kg / Gross Weight: 21KG
DisplayPanel: 55" TFT LED
Display Area / Aspect Ratio: 1209.6mm x 680.4mm / 16:9
Max Resolution: 3840*2160
Brightness: 2500cd/m², Auto linear light sensor
Contrast Ratio: 1300:1
Viewing Angle (Up/Down/Left/Right): 89°/89°/89°/89°
Response Time: 6ms
Color: 16.7M Colors
Power & Power Consumption100V~240V AC, ≤260W
Main Board & InterfaceCPU: RK3568, 4-Core 1.8GHz; GPU: 4-Core Mali-T764
RAM: 2GB DDR3; Storage: 16GB (Expandable)
2 x External USB, 4 x Internal USB, 1 x SD Card Slot, 1 x RJ45
1 x LVDS, 1 x HDMI2.0 (Support 4K@60Hz, Customizable)
Built-in WiFi / Bluetooth, Expandable 3G / 4G
FunctionsOS: Android 9 / Android 11
Menu Language: Chinese, English, Russian, French, Spanish and other multi-languages
Video Format: RM/RMVB, MKV, TS, FLV, AVI, VOB, MOV, WMV
Audio Format: MPEG-1 Layers I/II/III 2.0, MPEG-4 AAC-LC 5.1/HE-AAC 5.1/BSAC 2.0, WAV, 24-bit linear PCM 7.1
Image Format: BMP, JPEG, PNG, GIF
Other Formats: PDF, PPT, SWF, Text, Real-time data stream
Screen Partition: Video area, Image & text area, Scrolling subtitle, LOGO, Date, Time, Week, Weather forecast, Real-time image & video area
Upgrade Mode: Update via SD card
Management & Playback: Unified/group/multi-user management, Remote management, Timing power on/off
Remote control: Remote power on/off, Program edit/update, Status monitoring
Play mode: Loop, Timing, Insert play; B/S architecture
Network: LAN, WAN, WiFi, 3G
Built-in mini dual speakers
OthersLifespan: 50000 hours
Operating Temperature: -10℃ ~ 50℃
Storage Temperature: -20℃ ~ 60℃
Operating Humidity: 5% ~ 90%
Storage Humidity: 5% ~ 90%
Security: Hardware dongle, Login & control password, Multi-level user permission
Environmental Standard: All components and packaging comply with international environmental standards

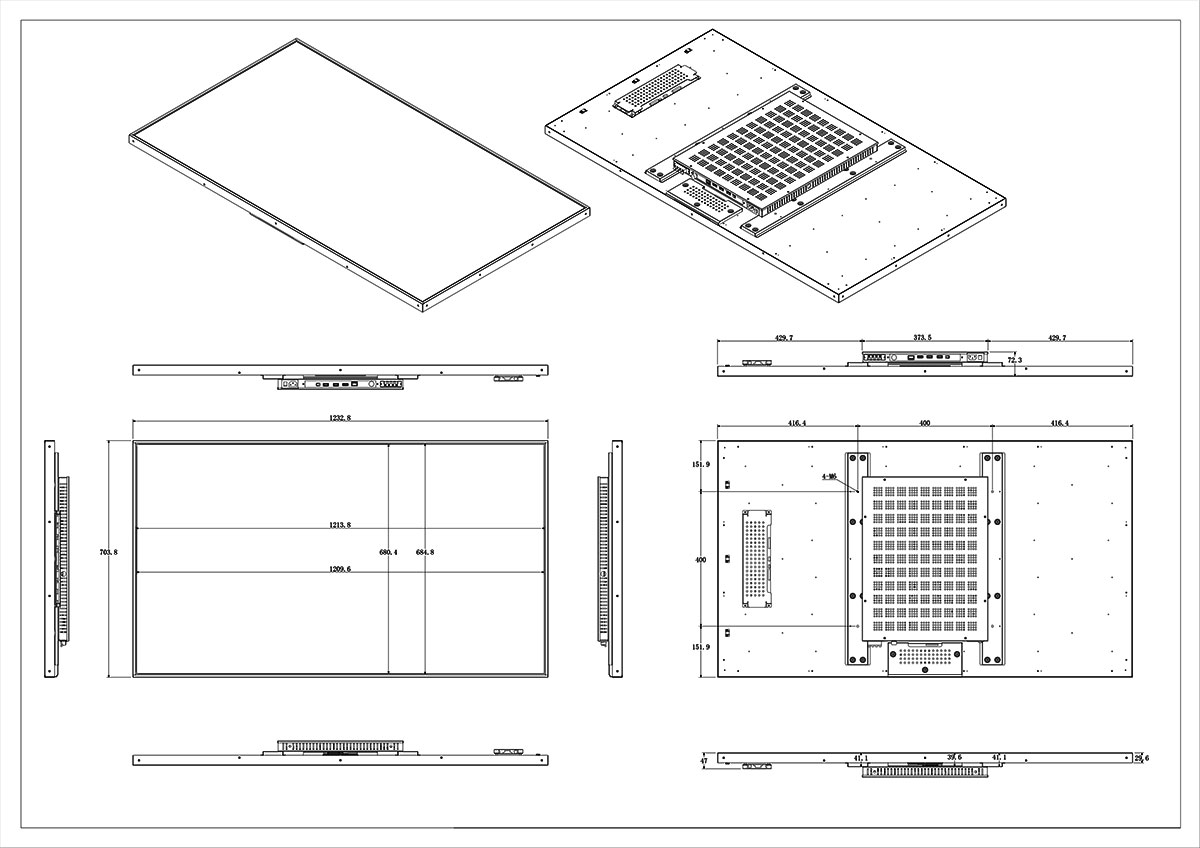

55-inch-open-frame-display


55-INCH
HIGH BRIGHTNESS
OPEN FRAME
LCD MONITOR

Model: WD550D-M2  /  4K UHD  /  Android 11

Built for integrators who need a display that disappears into the enclosure and keeps working. The WD550D-M2 delivers 2,500 cd/m² across a 55-inch 4K panel with an auto light sensor that maintains consistent readability from a sunlit lobby to a dim server room — without manual intervention on your end.

CEFCCRoHSISO 900124/7 Rated
2500
cd/m² peak brightness

Auto linear light sensor adjusts output in real time.
Maintains legibility in direct sunlight and under
high-ambient-light conditions without manual tuning.

Contrast Ratio1300:1
Viewing Angle (H/V)178° / 178°
Response Time6 ms
Color Depth16.7M
Panel Lifespan50,000 hrs


DEPLOYMENT SCENARIOS

WHERE THIS MONITOR
EARNS ITS PLACE

🏪
RETAIL KIOSKS & POS

Drop it into a freestanding kiosk chassis or checkout counter housing. The slim bezel and flexible mount options — wall, floor, ceiling — let the integrator's enclosure carry the brand identity without the monitor getting in the way.

🚉
TRANSIT & WAYFINDING

Airports, rail stations, and transit hubs expose displays to high ambient light and continuous operation. At 2,500 nits with a 50,000-hour lifespan, the WD550D-M2 handles shift-less 24/7 duty cycles without scheduling maintenance windows.

🏥
MEDICAL & CLINICAL

Non-touch configurations work inside equipment where certified touch overlays aren't needed. Wide operating temperature and full RoHS compliance satisfy procurement requirements in regulated environments across the EU and US.

🏭
INDUSTRIAL CONTROL

Sheet-metal housing tolerates vibration. Operating range from −10 °C to 50 °C covers unheated factory floors and outdoor machine enclosures. Feed signals over HDMI 2.0 or LVDS; RS-232 available for legacy control systems.

📢
SIGNAGE & DOOH

The built-in Android 11 CMS handles scheduling, looped playlists, live data feeds, and remote management over LAN/WiFi/4G — so your client's AV team can update content from a browser without touching the hardware.

🎰
GAMING & AMUSEMENT

High peak brightness eliminates screen wash-out in bright casino floors or arcade lighting. Fast 6 ms response keeps motion clean in interactive or video-heavy applications. Secure hardware dongle prevents unauthorized firmware changes.


TECHNICAL SPECIFICATIONS

EVERY NUMBER
THAT MATTERS

DISPLAY
Panel Type55″ TFT LED
Resolution3840 × 2160 (4K UHD)
Brightness2500 cd/m² (auto sensor)
Contrast Ratio1300:1
Viewing Angle89° / 89° / 89° / 89°
Response Time6 ms
Aspect Ratio16:9
Color Gamut16.7M colors
Active Area1209.6 × 680.4 mm
COMPUTE & OS
CPURK3568 Quad-Core 1.8 GHz
GPUQuad-Core Mali-T764
RAM2 GB DDR3
Storage16 GB (expandable)
OSAndroid 9 / Android 11
POWER
Input Voltage100 – 240 V AC
Max Consumption≤ 260 W
KEY PERFORMANCE FIGURES
4K
UHD RESOLUTION
6ms
RESPONSE TIME
178°
VIEWING ANGLE
50K
HOURS LIFESPAN
PHYSICAL
Dimensions1232.8 × 703.8 × 72.3 mm
Net Weight16 kg
Housing MaterialSheet Metal
Mount OptionsWall / Floor / Ceiling
MEDIA FORMAT SUPPORT
MP4MKVAVIMOVJPEGPNGPDFPPTLive StreamGIFAAC 5.1WAV

I/O & NETWORKING

FITS INTO
YOUR SIGNAL CHAIN

Designed for integrators who need to slot this into existing infrastructure — not rebuild it. All major interfaces are on board; 3G/4G expands by module.

HDMI 2.0
4K @ 60 Hz · Customizable
LVDS
1 × internal
USB 2.0
2 external · 4 internal
RJ45 LAN
Wired network control
Wi-Fi
Built-in · dual-band
Bluetooth
Built-in
3G / 4G
Expandable via module
SD Card Slot
1 × for storage / update
Remote Management
LAN / WAN / WiFi / 3G
CMS
B/S architecture · multi-user
Dual Speakers
Built-in mini stereo
Hardware Dongle
Anti-tampering security

ENVIRONMENTAL RATINGS

CONDITIONS IT
WORKS THROUGH

OPERATING TEMP
−10°
to 50°C
STORAGE TEMP
−20°
to 60°C
OP. HUMIDITY
5% – 90%
PANEL LIFESPAN
50,000 hrs
DUTY CYCLE
24 / 7

OEM / ODM & PROCUREMENT

FROM FIRST SAMPLE
TO BULK DELIVERY

CUSTOMIZATION OPTIONS

  • Bezel color and finish (custom color MOQ 20 pcs)

  • Brightness tiers: 350 – 3,000 nits depending on application

  • Touch overlay integration (PCT or IR, configurable)

  • Operating system: Android 9 or Android 11

  • Connectivity: HDMI spec, RS-232, RS-485, or 4G module

  • Private label / white label branding

  • Custom OSD menu languages and startup screens

CUSTOM COLOR LEAD TIME15 days
PACKAGING & LOGISTICS

  • 21.5 – 55″ units: individual heavy-duty corrugated carton

  • 65″ units: individual honeycomb carton

  • Package dimensions: 134 × 24 × 81 cm per unit

  • Gross weight: 21 kg per unit

  • FOB Shenzhen; DDP quotes available on request

  • All components and packaging meet RoHS & CE standards

BULK ORDER LEAD TIME10–15 days



Know The Terms Before You Inquire.

No surprises after you send an inquiry. Shipping terms, order minimums and payment protection are all confirmed upfront.
01 — Shipping Terms
Incoterms Available
EXW Ex Works — pick up from our factory
FOB Free On Board — most common for ocean freight
CIF Cost, Insurance & Freight — to your port
02 — Order Minimum
MOQ: 1 Units

Applies to standard specs. Custom brightness, cutting or bezel may adjust MOQ, confirmed at quotation.

Sample units available before bulk order
03 — Payment Protection
Multiple Secured Methods
T/T Bank transfer, bulk orders standard
L/C L/C for large-volume orders
PayPal Buyer-protected for samples
O/A Credit terms for long-term partners

A Real Factory. Publicly Verifiable.

Before inquiry, verify our public business records filed with Chinese government registries.
Legal Company Name
Shenzhen Hantu Jiashi Technology Co., Ltd.
Unified Social Credit Code
91440300306068446B
Legal Representative
YUN CHEN
Registered Capital
RMB 2,000,000
Established
May 23, 2014 (11+ years operation)
Business Status
● Active / In Operation
Registered Factory Address
Building B, Gangshen Innovation Park, Huaning Road, Dalang Sub-district, Longhua District, Shenzhen, Guangdong, China
