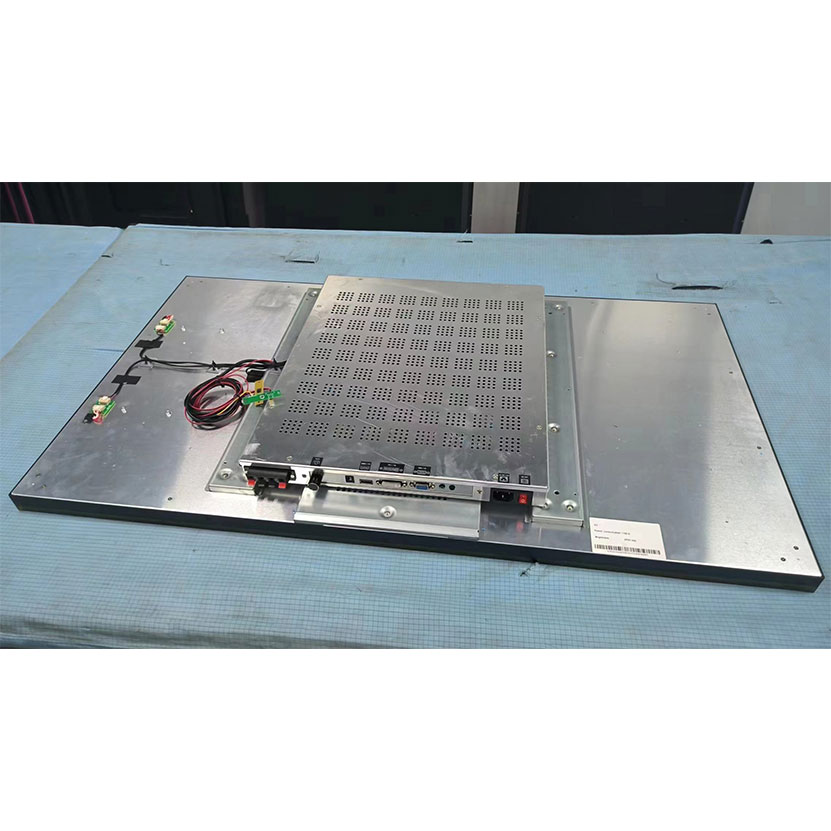

43 Inch Sunlight Readable Open Frame LCD Display
MODEL: WD430D-M2
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesBuilt by us. Configured for you.
HITULCD supplies LCD modules and display solutions directly from our manufacturing operation, giving OEMs, integrators and distributors direct access to engineering, customization and production.
Supply
Supplier Qualification
VerificationTechnical Specifications
| Item | Specification |
|---|---|
| Model | WD430D-M2 (With Circuit Box) |
| Appearance | Color: Black panel & black bezel / Customizable |
| Dimension (L*W*H): 964.8*552.8*72.3 mm | |
| Material: Sheet metal | |
| Installation: Wall-mounted, Floor-standing, Ceiling-mounted | |
| Package | Package Size: 109*24*69 cm |
| Net Weight: 11.2kg / Gross Weight: 16.2kg | |
| Display | Panel: 43" TFT LED |
| Display Area / Aspect Ratio: 941.2mm x 529.4mm / 16:9 | |
| Max Resolution: 1920 x 1080 | |
| Brightness: 2500cd/m², Auto linear light sensor | |
| Contrast Ratio: 1300:1 | |
| Viewing Angle (Up/Down/Left/Right): 89°/89°/89°/89° | |
| Response Time: 6ms | |
| Color: 16.7M Colors | |
| Power & Power Consumption | Input: 100V~240V AC, Power ≤155W |
| Main Board & Interface | CPU: RK3568, 4-Core 1.8GHz; GPU: 4-Core Mali-T764 |
| Memory: 2GB DDR3; Storage: 16GB (Expandable) | |
| Interfaces: 2 External USB, 4 Internal USB, 1 SD Card Slot, 1 RJ45 | |
| 1 LVDS, 1 HDMI2.0 (Support 4K@60Hz output, customized) | |
| Built-in WiFi & Bluetooth; Expandable 3G/4G | |
| Functions | OS: Android 9 / Android 11 |
| Menu Language: Chinese, English, Russian, French, Spanish and other multi-languages | |
| Video Format: RM/RMVB, MKV, TS, FLV, AVI, VOB, MOV, WMV | |
| Audio Format: MPEG-1 Layers I/II/III 2.0, MPEG-4 AAC-LC 5.1/HE-AAC 5.1/BSAC 2.0, WAV, 24-bit linear PCM 7.1 | |
| Image Format: BMP, JPEG, PNG, GIF | |
| Other Formats: PDF, PPT, SWF, Text, Real-time data stream | |
| Screen Split: Video area, Image & text area, Scroll subtitle, LOGO, Date, Time, Week, Weather forecast, Real-time image & video area | |
| System Update: Update via SD card | |
| Management: Unified management, Group management, Multi-user management, Remote management, Timing power on/off | |
| Remote Control: Remote power on/off, Remote program edit & update, Remote status monitoring | |
| Play Mode: Loop play, Timed play, Interrupt play, etc. | |
| System Architecture: B/S (Browser/Server) architecture | |
| Network | LAN, WAN, WiFi, 3G |
| Speaker | Built-in dual mini speakers |
| Others | Service Life: 50000 hours |
| Operating Temperature: -10℃ ~ 50℃ | |
| Storage Temperature: -20℃ ~ 60℃ | |
| Operating Humidity: 5% ~ 90% | |
| Storage Humidity: 5% ~ 90% | |
| Security: Hardware dongle, Login password, Control password, Multi-level user permission | |
| Environmental Standard: All components and packaging comply with international environmental standards |
43-inch sunlight readable open frame LCD display product page — model WD430D-M2
OPEN FRAME MONITOR · MODEL WD430D-M2
43" Sunlight-Readable Open Frame LCD Display
Industrial-grade 2500 nit panel engineered for direct sunlight, high-ambient, and 24/7 mission-critical environments. OEM/ODM-ready with Android 9/11, built-in WiFi, and full remote management.
WHY 2500 NITS MATTERS
Direct sunlight intensity can reach ~10 000 lux. A standard consumer panel (250–350 nits) loses contrast almost entirely above 2000 lux. The WD430D-M2 delivers a guaranteed 10:1 contrast ratio at full outdoor exposure, keeping content legible for self-service kiosks, transport hubs, and outdoor DOOH installations.
Auto linear light sensor adjusts brightness dynamically — extends backlight lifespan and reduces energy consumption in shaded conditions.
TECHNICAL SPECIFICATIONS
DISPLAY
| Panel technology | TFT LED, 43" |
| Active area | 941.2 × 529.4 mm |
| Aspect ratio | 16:9 |
| Max resolution | 1920 × 1080 |
| Brightness | 2500 cd/m² (auto sensor) |
| Contrast ratio | 1300:1 |
| Viewing angle H/V | 89° / 89° (all sides) |
| Response time | 6 ms |
| Color depth | 16.7M colors |

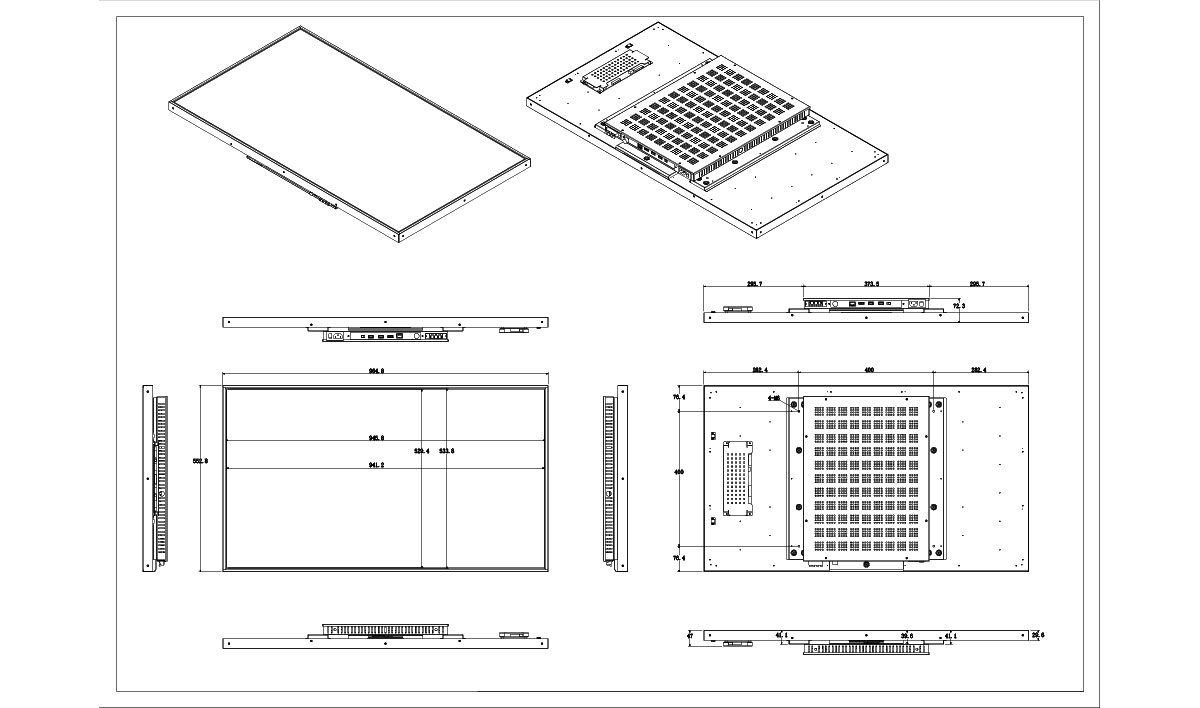

MECHANICAL
| Dimensions (L×W×H) | 964.8 × 552.8 × 72.3 mm |
| Net weight | 11.2 kg |
| Material | Sheet metal, black panel & bezel |
| Mounting | Wall, floor-stand, ceiling |
SYSTEM BOARD
| CPU | RK3568, 4-core 1.8 GHz |
| GPU | 4-core Mali-T764 |
| Memory / storage | 2 GB DDR3 / 16 GB (expandable) |
| OS | Android 9 / Android 11 |
| Interfaces | 2× USB (ext.), 4× USB (int.), SD, RJ45, LVDS, HDMI 2.0 |
| Wireless | WiFi + Bluetooth built-in; 3G/4G optional |
| Audio | Dual built-in speakers |
ENVIRONMENTAL
| Power input | 100–240 V AC, ≤155 W |
| Operating temp | −10°C to +50°C |
| Storage temp | −20°C to +60°C |
| Humidity | 5–90% RH (op. & storage) |
| Service life | 50 000 hours |
CONTENT & MANAGEMENT CAPABILITIES
TARGET APPLICATIONS
Retail & QSR kiosks
Storefront window displays and self-order terminals where sunlight washout is a persistent problem.
Transport & wayfinding
Departure boards, platform displays, and passenger information systems in daylit concourses.
Medical & clinical
Patient check-in, waiting-room signage, and OR scheduling boards where ambient lighting varies widely.
Industrial automation
Factory-floor HMI integration into custom enclosures — sheet metal chassis designed for direct embedding.
DOOH advertising
Semi-outdoor and covered-outdoor advertising structures needing high lux tolerance without full weatherproofing.
Gaming & amusement
Arcade cabinets, betting terminals, and redemption kiosks with vibrant, glare-free screens in mixed lighting.
OEM / ODM PROGRAM
The WD430D-M2 is engineered from the ground up as an integrator-friendly platform. Standard units ship in 10–15 days. Custom colour finishes (MOQ 20 pcs, 15-day lead time), brightness variants, connectivity modules, and enclosure modifications are available through HituLCD's engineering team.
Request a sample or technical brief
Engineering team responds within 24 hours. Samples and customisation quotes available on request.
