Custom Shape-Cutting Service for the 13.3" 1000nits Industrial LCD Panel (HT133FHD-1000)

For engineers, procurement managers, and project leads evaluating a non-standard panel size

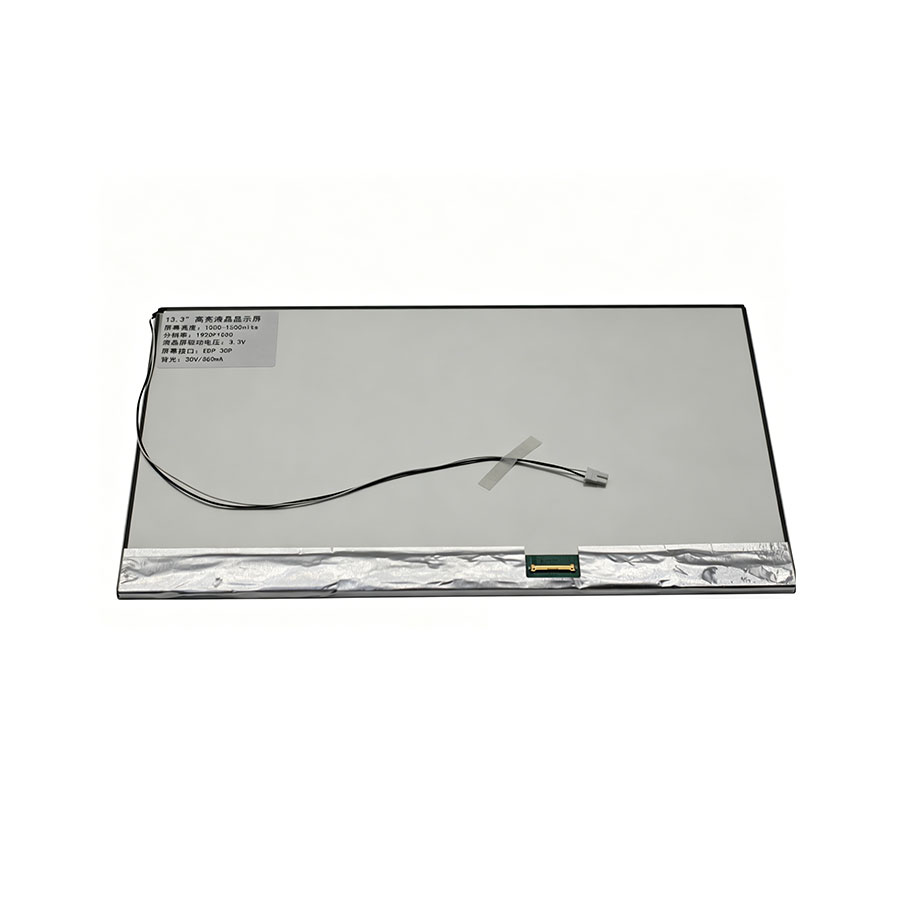

The HT133FHD-1000 (1920×1080, eDP interface, VESA mount) is a common starting point for customers who need a trimmed or reshaped panel to fit an existing HMI, kiosk, or vehicle-cab enclosure. Below is what our engineering team typically walks OEM/ODM customers through before, during, and after a custom-cutting project on this panel.

1. Process Feasibility: Can This Panel Be Cut the Way You Need?

Cutting method. Depending on your target dimension, tolerance, and how close the cut-line sits to the active area, we recommend either mechanical wheel scribing (lower cost, suited to straight-line trims with looser tolerance) or ultra-fast laser cutting (tighter tolerance, cleaner edge, required near the Gate/Source driving circuitry or for notched/curved profiles). At 1920×1080 resolution the pixel pitch is fine enough that cut-line placement relative to the active area matters more than on a lower-resolution panel — this is one of the first things our engineers check.

Circuit clearance check. Before quoting, our engineers map your requested cut-line against the HT133FHD-1000's Gate/Source trace layout and TFT array boundary to confirm the cut won't interrupt active circuitry or eDP signal integrity. To run this check quickly, please send us:

• A dimensioned drawing (DWG/DXF preferred) of the target outline, referenced to the panel's existing datum/origin

• The mounting or bezel constraint driving the cut (the standard bezel is 6/6/6/6mm, so we can flag early if your target dimension eats into that margin)

• Any keep-out zone your enclosure requires

Edge finish standard. After cutting, edges are inspected against our internal flatness and micro-crack tolerance before proceeding to sealing. Panels with crack propagation beyond spec are rejected at this stage — they do not move forward to sealing or final assembly.

2. Reliability After Cutting: Will the Sealed Edge Hold Up?

Sealing process. A cut edge exposes the panel to moisture ingress and liquid-crystal leakage risk. We apply a secondary sealing step — typically UV-cure edge dispensing — matched to the cut-line geometry, to restore a moisture and leakage barrier along the new edge.

Reliability testing. Cut-and-sealed samples go through the same reliability program as our standard product line, scaled to industrial-grade requirements given the HT133FHD-1000's -20°C to +70°C operating range: double-85 (85°C/85%RH) high-temperature/humidity soak, thermal shock cycling, and structural drop testing. We're glad to share pass/fail benchmark data from comparable prior cutting projects on request — this is usually the fastest way for a customer's reliability engineer to sign off internally.

Optical performance at the cut edge. The main risk at a modified edge is light leakage or Mura (color shift/unevenness) near the new border, usually from backlight scatter or uneven sealant thickness. We inspect every cut sample under standard viewing conditions before it's approved for sign-off, and flag any edge-zone Mura before you see the sample.

3. Cost, Yield, and Lead Time: What to Budget and Expect

NRE and sampling. Custom cutting carries an NRE (non-recurring engineering) cost that varies with cut complexity — a straight trim is priced differently from a laser-cut notch near active circuitry. A first sample run (commonly ~20 pcs) typically takes a defined number of weeks from drawing confirmation to sample shipment; we provide an exact quote and timeline once we've reviewed your drawing, rather than a generic figure that won't reflect your actual cut geometry.

Mass production expectations. Yield in volume production depends on cut-line proximity to the active area and the tightness of your dimensional tolerance — simpler trims run close to standard-panel yield, while cuts near circuitry carry a wider range. We share realistic yield expectations, not best-case numbers, once we've reviewed your specific geometry, along with the MOQ that applies to your custom spec (note: custom cutting can shift MOQ upward from our standard 1-unit minimum — this is confirmed at the quotation stage, before any deposit).

Next Step

Send us your target outline drawing and mounting constraint, and we'll return a feasibility assessment, recommended cutting method, and a sampling quote — usually within a few business days.
