Custom-Size TFT Panel Cutting Service — Technical & Commercial Guide

From HITULCD (Shenzhen Hantu Jiashi Technology Co., Ltd.)

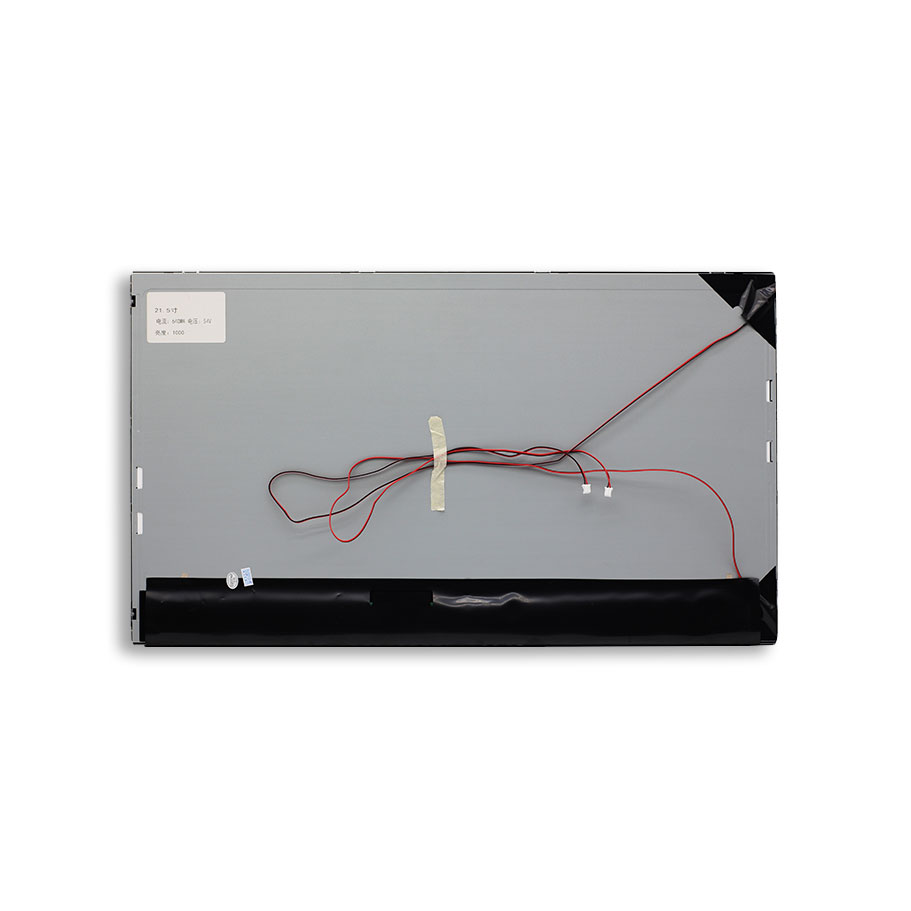

Whether you're integrating a 21.5" HT215FHD-1000 module (1920×1080, 1000 nits, VESA mount) into a control panel, or need a non-standard aspect ratio for a kiosk or embedded HMI, custom glass cutting is one of the most technically sensitive requests in TFT sourcing. Below, our engineering team answers the questions we hear most often from overseas buyers before they commit to a cutting project.

1. Process Feasibility & Engineering Review

What cutting method do you recommend for my target dimensions and tolerance?The right method depends on your final size, tolerance class, and edge-quality requirements. For simple straight-line reductions with looser tolerances, mechanical wheel scribing is faster and more cost-effective. For tighter tolerances, complex or curved profiles, or panels where micro-crack risk must be minimized, ultra-fast laser cutting is the safer choice — at a higher NRE and per-unit cost. We'll recommend the appropriate method once we see your target drawing.

Will the new dimensions interfere with the Gate/Source traces or the active TFT array?This is the first thing our engineers check. Every panel has a defined active display area, a Gate/Source driver trace zone, and a COF/FPC bonding region — cutting into any of these will disable the panel or cause dead zones. We map your requested cut line against the panel's internal layout before quoting feasibility.

What do you need from us to confirm feasibility at the review stage?To run a proper DFM (Design for Manufacturing) check, please provide:

• Target outline dimensions with tolerance (±mm)

• A 2D drawing (DXF/DWG preferred) showing the desired cut line relative to the current active area

• Mounting/VESA hole positions if applicable

• Any keep-out zones around connectors, driver ICs, or FPC tails

What edge-quality standard do you control to after cutting?We inspect cut edges for flatness and micro-crack propagation under magnification before a panel proceeds to sealing. Panels with visible chipping, edge lift, or crack propagation beyond our internal threshold are rejected before they reach the sealing stage — they don't get shipped as "good enough."

2. Reliability & Edge Sealing

How do you prevent liquid crystal leakage and moisture ingress after cutting?Once a panel is cut, the exposed edge no longer has factory-original sealant, so we apply a secondary sealing process — typically UV-cure adhesive dispensing along the cut edge, selected for compatibility with the LC material and the panel's operating temperature range. For panels headed into humid or outdoor-adjacent environments, we can discuss additional edge protection on request.

Can cut panels still pass standard reliability testing? Do you have reference data from similar projects?Yes — cut-and-resealed panels are tested against the same tier of reliability standards as the base panel (consumer or industrial grade, depending on your application). We can share environmental test references from comparable cutting projects, including double-85 (85°C/85%RH) humidity testing, high/low temperature cycling, thermal shock, and structural drop testing, so you can benchmark against your own qualification requirements.

Does edge sealing introduce light leakage or color shift (Mura) near the cut line?It can, if the sealing process or backlight optical stack isn't handled correctly. We control dispensing width and backlight masking specifically to avoid light leakage and color-shift Mura at the edge — this is one of the main reasons we recommend a physical first-article sample rather than approving cutting projects on drawings alone.

3. Cost, Yield & Lead Time

What's the NRE for a custom cutting project, and how long for first samples?NRE and sample lead time depend on panel size, cutting method (mechanical vs. laser), and tooling complexity — we'll quote both once we've reviewed your target drawing. As a general guide, first-article samples (around 20 pcs) typically take a few weeks from design confirmation; we'll give you a firm date at quotation stage, not after your deposit.

What yield can we expect in mass production, and what's your MOQ?Cutting yield varies with cut-line complexity and how close the new outline sits to the active array — tighter cuts near sensitive zones naturally run lower yield than simple edge trims. We'll give you a realistic yield range based on your specific drawing, not a generic number. Standard-spec MOQ starts at 1 unit; custom cutting, brightness, or bezel changes may adjust the MOQ, and this is confirmed at the quotation stage — before any deposit is requested.

Why Source This Through HITULCD

• Direct from manufacturer — no agent markup, engineers accessible directly

• In-house line — panels are cut, sealed, and tested on our own production floor, not subcontracted

• Certifications: ISO9001, CE, FCC, RoHS, REACH (UL/CCC/EAC available on request)

• 12-month warranty with remote troubleshooting first, followed by free replacement

• Verifiable factory: Shenzhen Hantu Jiashi Technology Co., Ltd., established 2014, registered address publicly searchable

Next step: Send us your target outline drawing (DXF/DWG) and current panel model — we'll return a feasibility assessment, sealing method recommendation, and budgetary quote.
