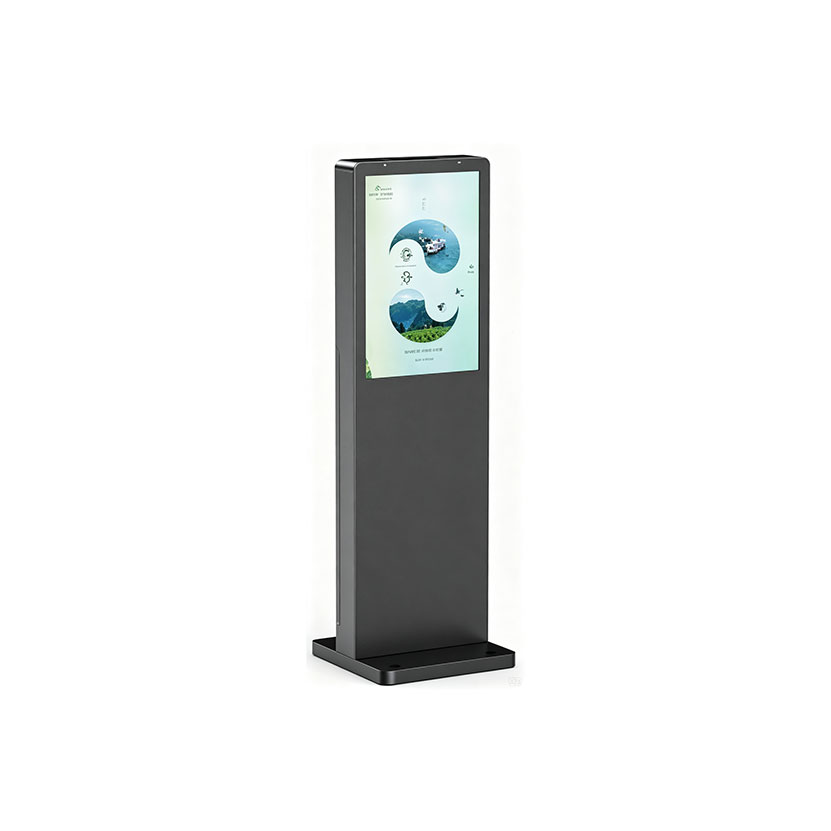

21.5 Inch Floor To Ceiling Outdoor LCD Digital Signage
MODEL: HT215L-1500
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesDirect from Manufacturer Zero Middlemen.
Route
|
01
Owned Line
Built and tested in‑house, not subcontracted.
|
02
Direct Pricing
Quoted from cost, no agent commission.
|
03
Engineer Access
Talk to the people who design your panel.
|
04
Verifiable
Certs & factory audit available on request.
|
OUR CORE SERVICES
- Certifications: Standard CE/FCC/RoHS; UL/CCC/EAC available on demand.
- 12‑Month Warranty: Remote support + free hardware replacement.
- Lead Time: 2–3w standard, 4–6w custom, 6–8w bulk ≥500pcs.
- 24/7 Support: Global WhatsApp engineering service.
- Capacity: 12,000+ units/month, small & mass orders supported.
- Stock Assurance: Safety stock & reserved production slots.
Technical Specifications
| Display parameters | Structural parameter description | ||
| LCD size | 21.5 " | Installation method: | Floor‑to‑ceiling installation |
| Panel type | TFT‑LED | External dimensions: | See the external dimension diagram |
| Aspect ratio | 16:9 | Color: | Black/White/Red/Silver Grey/Dark Grey/Customized |
| Display size | 475.97 * 267.73 (mm) | Material: | 1.5mm galvanized steel sheet,Baking lacquer process |
| Physical resolution | 2K 1920(RGB)*1080(FHD) | Protection level: | IP65 |
| Refresh rate | 60Hz | Waterproof: | Three‑layer composite sealing strip |
| Brightness | 1500cd/㎡ | Dust prevention: | 3M high air volume filter |
| Contrast | 3000:1 | Anti theft: | three‑level door lock protection, hidden screw design |
| Response time | 6ms | Explosion proof: | 6mm full tempered high explosion‑proof glass |
| Perspective | 178°/178°/178°/178° | Anti rust and anti‑corrosion: | High‑strength galvanized steel sheet |
| Display protection | 6mm full tempered high explosion‑proof glass | Heat dissipation method description | |
| Backlight life | 50000 hours | Heat dissipation method: | intelligent temperature controlled air cooling system |
| Brilliance control | Light sensing sensor(Energy saving) | Temperature protection: | supports high temperature protection |
| Motherboard configuration/interface | Fan: | Industrial grade high air volume silent fan, supporting speed regulation and noise reduction (energy‑saving) | |
| CPU: | RK‑3288 Cortex‑A17,4‑core, 1.8GHz | Touch (optional) | |
| Operating system: | Android 7.1 | Touch type | G+G capacitive waterproof touch |
| Running memory: | 2GB | Point count | 10 points |
| Storage: | 32G | Touch accuracy | 99% accuracy |
| Storage Expansion: | Supports up to 32GB SD card expansion | Operating system | Windows/Android/MacOS/Linux/HarmonyOS |
| Network: | LAN/WiFi/4G module (optional) | Working temperature | -30 ℃ ~60 ℃ |
| Bluetooth: | optional | work environment | |
| Interface: | USB2.0 * 2 HDMI Out * 1 HDMI In (optional) MicroPhone * 1 Audio output * 1 SD card * 1 Horn: 8 Ω 10W * 2 | Working temperature: | -10℃‑50℃ (if the ambient temperature is below ‑10℃, it is recommended to choose a heater) |
| Packaging specifications | Working humidity: | 5%‑90% | |
| Product weight: | 16.5KG | Storage temperature: | -20 ℃‑60 ℃ |
| Packaging specifications: | Mainly based on physical products (standard packaging is made of pearl cotton) wooden case packing: mainly based on physical objects | Storage humidity: | 10%‑85% |
| power | |||
| Input voltage: | AC110‑220V | ||
| Working power consumption: | ≤ 70W | ||
| Standby power consumption: | <3W | ||
OEM & ODM Industrial Display Manufacturing Services
From Design to Mass Production — Your Display Partner for Global Projects.
HITULCD has supported industrial and commercial display projects since 2014, delivering to 38+ export markets with an annual production capacity of 120,000+ units. We support both full-spec ODM development and OEM re-branding or modification of existing product lines, giving engineering teams, project managers, and distributors a single manufacturing partner from concept to deployment.
What We Offer
1. Full ODM Product Development
We design display hardware from the ground up to match your mechanical, electrical, and environmental specifications — including custom enclosure design, brightness and panel selection, interface configuration, and structural engineering for your specific installation environment.
2. OEM Re-Branding & Modification
Already have a product spec or reference design? We manufacture to your requirements, apply your branding, and adjust existing platforms (housing, interface, firmware, packaging) to match your product line without starting from zero.
3. Core LCD Module Production
Our automated COG/FOG bonding lines support custom LCD module development with precise alignment and stable signal transmission:
JYD-I900E Full-Automatic COG Bonding Series
JYD-F900E / F900A Atomization Bonding System
Micron-level alignment control
4. Custom Assembly & Structural Integration
From backlight modules to complete open-frame monitors, our automated cutting, gluing, and assembly lines support flexible customization at stable mass-production scale:
GH-1111 High-Precision Laser Cutting Machine (7.5KW)
OC-1200A Precision Glass Cutting Machine
Full-Automatic Laminating & Gluing Production Line
5. Reliability Testing & Quality Assurance
Every OEM/ODM project goes through full-process quality control before shipment:
Dimensional inspection with 2D measuring instruments
High/low temperature environmental simulation chambers
Microscope and visual inspection systems
Aging testing to meet global industrial standards
Product Categories Available for OEM/ODM Customization
| Category | Specification Range |
|---|---|
| Industrial Control Displays | 5.5"–27", for automation systems, HMI panels, embedded devices |
| Edge-Lit LED Display Kits | 32"–55", 350–800 nits, indoor digital signage |
| Direct-Lit LED Display Kits | 43"–86", 1000–1500 nits, semi-outdoor use |
| Ultra High-Brightness Kits | 32"–86", 2000–3000 nits, sunlight-readable outdoor applications |
| Stretched Bar Displays | Ultra-wide format for shelves, transportation, elevators, retail |
| Open Frame Monitors | Embedded solutions for kiosks, control systems, self-service equipment |
| Window / Outdoor Displays | High-brightness signage for storefronts and outdoor advertising |
| OLED / E-Paper / Touch Solutions | Advanced panel technologies for custom project requirements |
Production Process
Our manufacturing workflow is fully visualized from raw material input to final inspection, ensuring consistent quality across every production run:
Cell Feeding
Vacuum Quenching
ACF Attachment
IC Alignment & Pre-Bonding
FOG Electrical Test
FPC Main Bonding
FPC Alignment & Pre-Bonding
IC Main Bonding
ITO Encapsulation
High-Temperature Adhesive & Label Attachment
Visual Inspection
Precision Production Equipment
| Equipment | Model | Function |
|---|---|---|
| Laser Cutting Machine | GH-1111 (7.5KW) | High-precision fiber laser cutting for smooth, burr-free panel edges |
| OC Glass Cutting Machine | OC-1200A | Precision cutting of OC glass for consistent bonding quality |
| Laser Marking Machine | LS-900Pro | High-precision marking, cutting, and micro-processing |
| Automatic Mounter | PT-A12-B (5.5KW) | High-speed, high-precision surface mounting |
| Temperature & Humidity Test Chamber | HYC-TH-80DH | Reliability testing under extreme environmental conditions |
| ACF Laminating Machine | F6-AS120 | High-precision conductive film lamination for stable circuit connection |
Manufacturing takes place in ISO 14644-1 certified cleanroom facilities with automated production lines and strict in-process quality control.
Global Compliance & Certifications
| Certification | Scope | Status |
|---|---|---|
| CE | European Conformity | Valid through Dec 2027 |
| FCC | US Federal Communications Commission Compliance | Valid through Dec 2027 |
| RoHS | Restriction of Hazardous Substances | Valid through Dec 2027 |
| ISO 9001:2015 | Quality Management System | Active |
| ISO 14001:2015 | Environmental Management System | Active |
| IATF 16949:2016 | Automotive Quality Management | Active |
| UL Certification | Product Safety | Active |
| REACH | Chemical Compliance (EU) | Active |
| WEEE | Waste Electrical and Electronic Equipment Directive | Active |
All products are tested in our certified laboratories to confirm compliance with international safety and environmental standards before shipment.
Why Global Clients Choose HITULCD for OEM/ODM
11+ years of industrial display manufacturing experience (est. 2014)
38+ export markets served, with proven experience meeting Western regulatory and quality expectations
120,000+ units annual production capacity, supporting both prototype runs and mass-production orders
Owned production line — no subcontracted assembly, direct engineering access, no agent markup
Full-process quality control, from incoming material inspection to final visual inspection before packing
Certified cleanroom manufacturing environment for consistent bonding and assembly quality
How to Start an OEM/ODM Project With Us
Share your requirements — target application, environment, size, brightness, interface, and any reference specs or existing designs
Engineering consultation — our team reviews feasibility and proposes a technical solution, including component and structural recommendations
Sample development — a working sample or prototype is produced for your evaluation before committing to bulk production
Mass production — once specifications are confirmed, your order moves into scheduled production with full QC documentation
Ongoing support — ongoing engineering access for future revisions, line extensions, or new product development
Ready to discuss your project?Whether you need a full custom ODM build or OEM modification of an existing platform, our engineering team is ready to review your specifications and provide a technical quotation.
Contact our engineering team to request a quote.

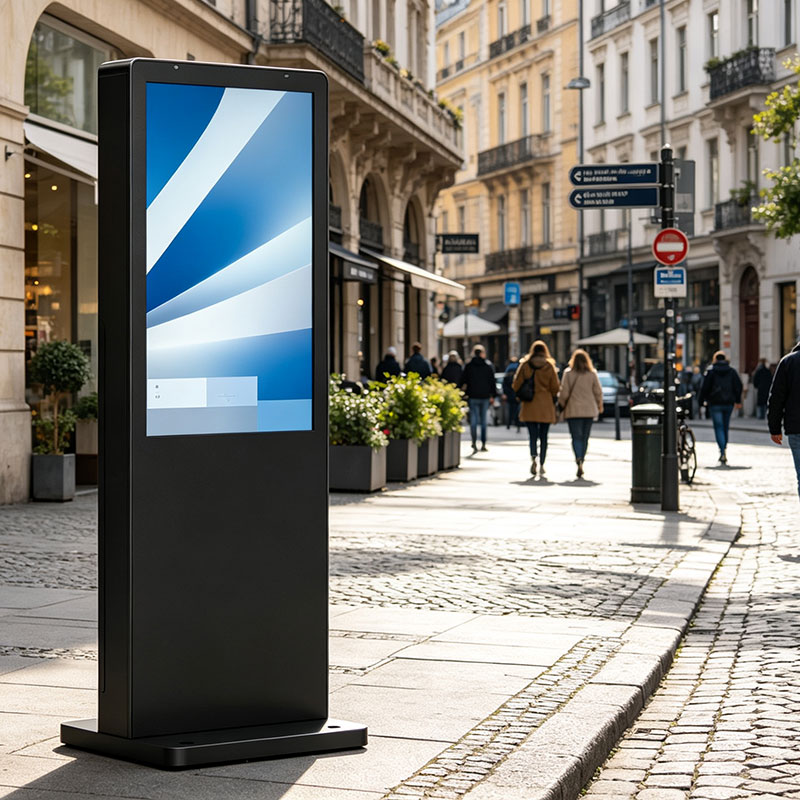

21.5" Floor-to-Ceiling Outdoor LCD Digital Signage — HT215L-1500
Engineered for permanent outdoor deployment. Built to withstand weather, impact, and 24/7 duty cycles.
Overview
The HT215L-1500 is a 21.5" floor-standing outdoor digital signage unit designed for permanent installation in transit hubs, retail entrances, fuel stations, and public infrastructure projects. With 1500 nits of sunlight-readable brightness, IP65 sealing, and 6mm tempered explosion-proof glass, it is built to perform in environments where indoor-rated signage fails within months.
Every unit is manufactured on our own production line — no subcontracted assembly, no agent markup. What you see in the specification sheet is what our engineers design, build, and test in-house.
Why Engineers Specify This Unit
Built for the elements
IP65-rated enclosure with three-layer composite sealing strips
6mm full tempered explosion-proof glass display protection
IK10 impact resistance rating (protection against forced impact and vandalism, per IEC 62262)
Intelligent temperature-controlled air cooling with industrial-grade silent fans
Operating temperature range: -30°C to 60°C (heater module recommended below -10°C)
Structural wind load rating: up to 150 km/h (Beaufort Scale Force 12 equivalent), engineered per EN 1991-1-4 wind action guidance
1.5mm galvanized steel housing with baking-lacquer finish, high anti-corrosion rating
Security by design

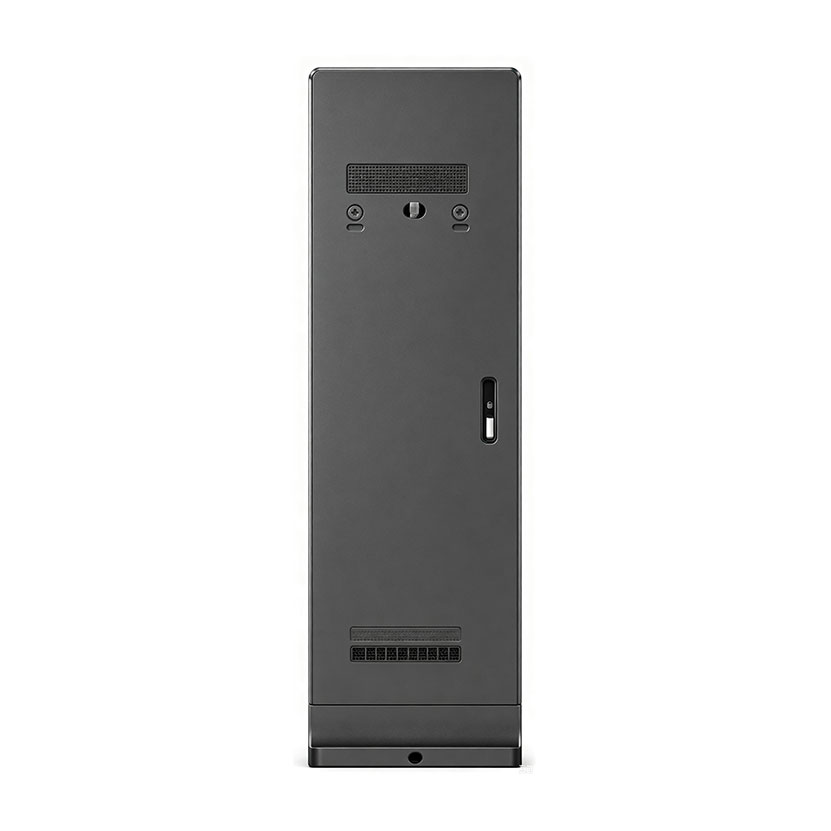

Three-level door lock protection with hidden screw design (anti-theft/anti-vandalism)
3M high-airflow dust filter for reliable operation in high-traffic outdoor zones
Runs unattended
50,000-hour backlight lifespan
Light-sensing brightness control for energy efficiency
Standby power draw under 3W; working power ≤70W
Energy efficiency aligned with ENERGY STAR digital signage guidelines
Structural & Installation Specifications
| Parameter | Detail |
|---|---|
| Installation method | Floor-to-ceiling standing, ground-anchored |
| Material | 1.5mm galvanized steel, baking lacquer finish |
| Color options | Black / White / Red / Silver Grey / Dark Grey / Custom RAL color matching |
| Protection level | IP65 |
| Impact resistance | IK10 |
| Anchor specification | M12 expansion anchor bolts (4x), embedded steel base plate compatible with standard concrete flooring per ASTM C1512 anchoring guidance |
| Cable routing | Bottom-entry conduit access, rear cable management chamber |
| Product weight | 16.5 KG |
| External dimension drawings | Available in DWG / DXF / PDF format upon request |
Display & Hardware
| Parameter | Detail |
|---|---|
| Screen size | 21.5" (475.97 × 267.73 mm) |
| Resolution | 1920×1080 (FHD) |
| Brightness | 1500 cd/㎡ |
| Contrast ratio | 3000:1 |
| Viewing angle | 178°/178°/178°/178° |
| Response time | 6ms |
| Refresh rate | 60Hz |
| CPU | RK3288 Cortex-A17, quad-core, 1.8GHz |
| Memory / Storage | 2GB RAM / 32GB internal (expandable via 32GB SD card) |
| Operating system | Android-based, with custom OS upgrade options available on request |
| Connectivity | LAN / WiFi / 4G module (optional), Bluetooth (optional) |
| Interfaces | USB 2.0 ×2, HDMI Out ×1, HDMI In (optional), Microphone ×1, Audio Out ×1, SD card ×1, 8Ω 10W speakers ×2 |
| Touch (optional) | G+G capacitive waterproof touch, 10-point multi-touch, 99% accuracy |
| Touch-compatible OS | Windows / Android / macOS / Linux / HarmonyOS |
| Touch mounting height | Configurable to ADA-compliant reach ranges (15"–48" / 380mm–1220mm) for public accessibility installations |
Content Management & Remote Operation
Supports remote content scheduling and push updates via LAN, WiFi, or 4G connectivity
Compatible with third-party CMS platforms and open API integration for custom back-end systems
Remote device monitoring: online/offline status, temperature, and operating hour tracking
Supports standard digital signage content formats: video, image, HTML5/web content, and live streaming input
Optional cloud dashboard for fleet management across multiple sites
Certifications & Compliance
Standard certifications: CE · FCC · RoHS · ISO 9001Available on request: UL 62368-1 · CCC · EAC · REACH · WEEE
All standard certificates are available as downloadable PDF documents with verifiable certificate numbers upon request. Factory audit reports (SGS / Bureau Veritas) available for buyer due diligence.
ESG & Responsible ManufacturingOur factory complies with local labor laws — no child labor, no forced labor, fair working hours. All products meet RoHS and REACH standards, and recyclable packaging is used wherever possible. Full compliance documentation, including third-party audit reports, is available for ESG due diligence review.
Warranty, Lead Time & Support
| Warranty | 12 months — includes remote technical support and free hardware replacement |
| Lead time | 2–3 weeks (standard) / 4–6 weeks (custom) / 6–8 weeks (bulk orders ≥500 units) |
| Support | 24/7 WhatsApp engineering support with direct access to design engineers |
| Production capacity | 12,000+ units/month — small-batch and mass-production orders supported |
| Stock policy | Safety stock maintained; production slots reservable for repeat and long-term orders |
Ordering Terms
| MOQ | 1 unit for standard specification. Custom brightness, panel cutting, or bezel configuration may adjust MOQ — confirmed at quotation |
| Incoterms | EXW / FOB / CIF |
| Payment methods | T/T (bank transfer) · L/C (large-volume orders) · PayPal (buyer-protected, samples) · O/A (long-term partners) |
| Sample availability | Sample units available before bulk order commitment |
A Real Factory. Publicly Verifiable.
Legal Company Name: Shenzhen Hantu Jiashi Technology Co., Ltd. Established: May 23, 2014 (11+ years in operation) Business Status: Active / In Operation Factory Address: Building B, Gangshen Innovation Park, Huaning Road, Dalang Sub-district, Longhua District, Shenzhen, Guangdong, China
Business registration details are publicly filed with Chinese government registries and available for independent verification before you place an inquiry.
Talk to the Engineers Who Build It
Send us your project specifications — mounting environment, ambient temperature range, expected duty cycle, and local compliance requirements — and our engineering team will confirm the right configuration before you commit to an order.
Contact our engineering team for a technical consultation and quotation.
Know The Terms Before You Inquire.
|
01 — Shipping Terms
Incoterms Available
EXW
Ex Works — pick up from our factory
FOB
Free On Board — most common for ocean freight
CIF
Cost, Insurance & Freight — to your port
|
02 — Order Minimum
MOQ: 1 Units
Applies to standard specs. Custom brightness, cutting or bezel may adjust MOQ, confirmed at quotation. Sample units available before bulk order
|
03 — Payment Protection
Multiple Secured Methods
|
A Real Factory. Publicly Verifiable.
|
Legal Company Name
Shenzhen Hantu Jiashi Technology Co., Ltd.
|
Unified Social Credit Code
91440300306068446B
|
|
Legal Representative
YUN CHEN
|
Registered Capital
RMB 2,000,000
|
|
Established
May 23, 2014 (11+ years operation)
|
Business Status
● Active / In Operation
|
|
Registered Factory Address
Building B, Gangshen Innovation Park, Huaning Road, Dalang Sub-district, Longhua District, Shenzhen, Guangdong, China
|
|
Contact HITULCD
We'll respond via email within 24 hours. If you'd like to discuss details over WhatsApp or a call, please leave a preferred time and contact method in your message — we will never call you unannounced.
Related solutions
This product is suitable for the following industry application scenarios
Related Products
You may also be interested in the following products
