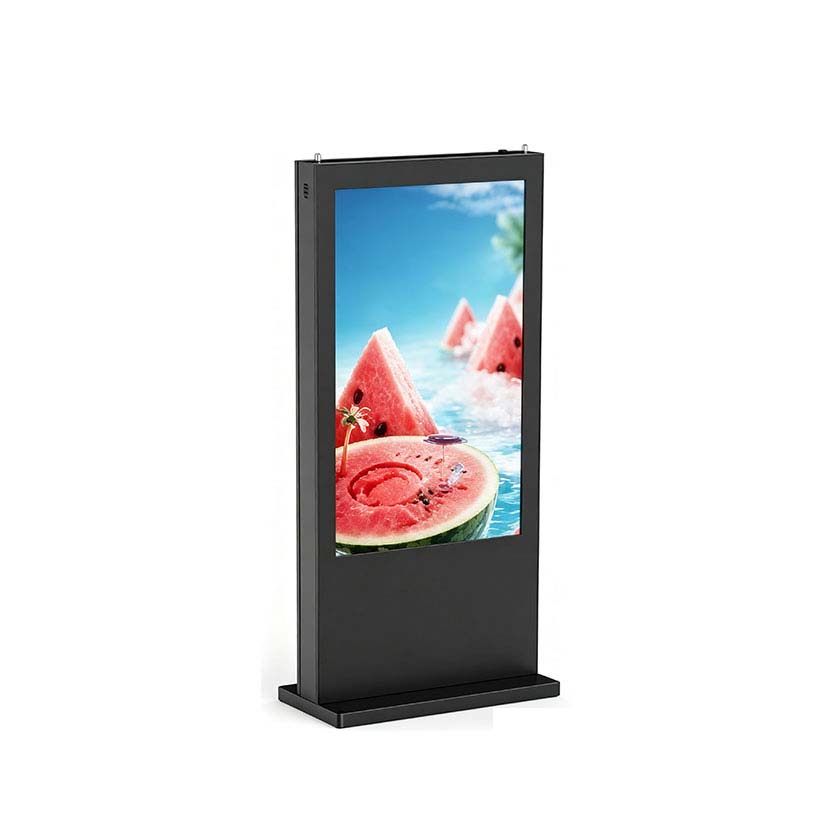

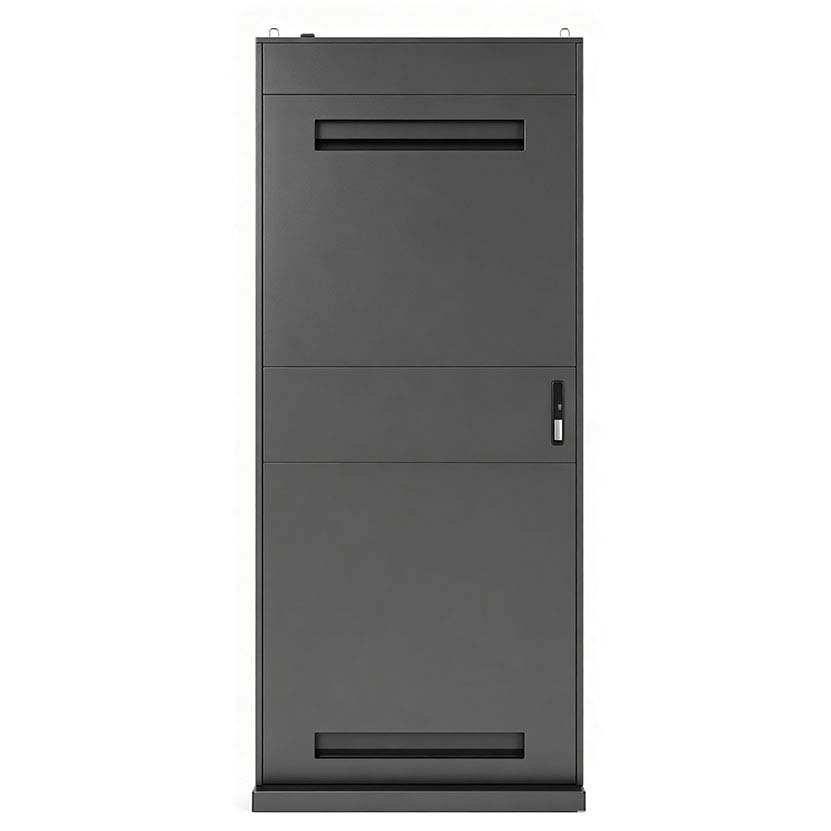

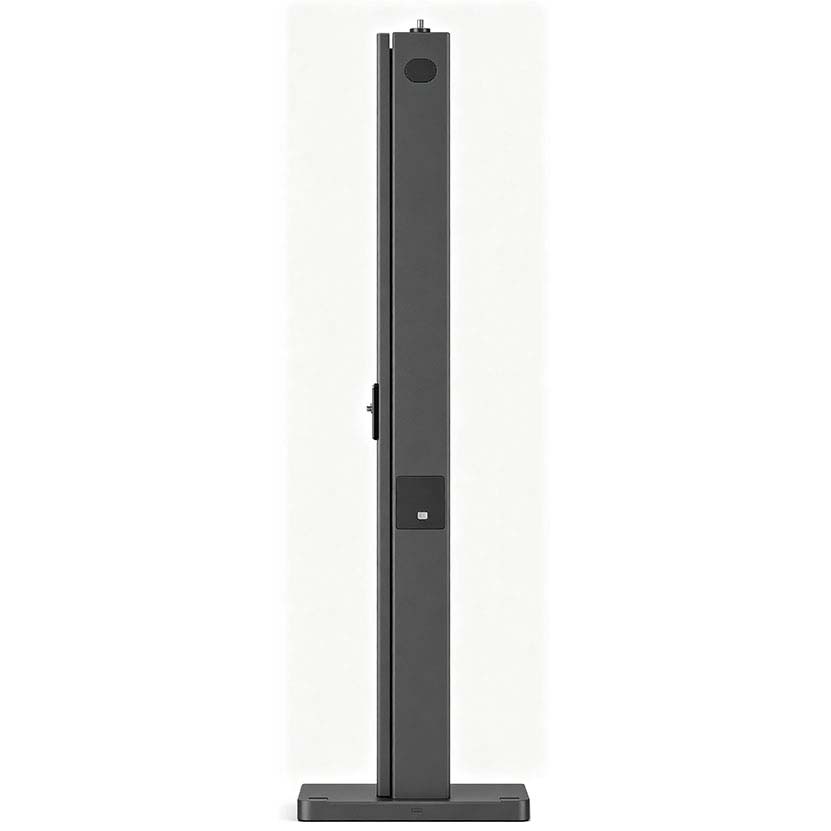

65 Inch High Brightness Outdoor Digital Signage for Shopping Malls
MODEL: HT650L-2000
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesDirect from Manufacturer Zero Middlemen.
Route
|
01
Owned Line
Built and tested in‑house, not subcontracted.
|
02
Direct Pricing
Quoted from cost, no agent commission.
|
03
Engineer Access
Talk to the people who design your panel.
|
04
Verifiable
Certs & factory audit available on request.
|
OUR CORE SERVICES
- Certifications: Standard CE/FCC/RoHS; UL/CCC/EAC available on demand.
- 12‑Month Warranty: Remote support + free hardware replacement.
- Lead Time: 2–3w standard, 4–6w custom, 6–8w bulk ≥500pcs.
- 24/7 Support: Global WhatsApp engineering service.
- Capacity: 12,000+ units/month, small & mass orders supported.
- Stock Assurance: Safety stock & reserved production slots.
Technical Specifications
| Display parameters | Structural parameter description | ||
| LCD size | 65 " | Installation method: | Floor‑to‑ceiling installation |
| Panel type | TFT‑LED | External dimensions: | See the external dimension diagram |
| Aspect ratio | 16:9 | Color: | Black/White/Red/Silver Grey/Dark Grey/Customized |
| Display size | 1438.97*809.42(mm) | Material: | 1.5mm galvanized steel sheet,Baking lacquer process |
| Physical resolution | 2K 1920(RGB)*1080(FHD)/4K(optional) | Protection level: | IP65 |
| Refresh rate | 60Hz | Waterproof: | Three‑layer composite sealing strip |
| Brightness | 2000cd/㎡ | Dust prevention: | 3M high air volume filter |
| Contrast | 1500:1 | Anti theft: | three‑level door lock protection, hidden screw design |
| Response time | 6ms | Explosion proof: | 6mm full tempered high explosion‑proof glass |
| Perspective | 178°/178°/178°/178° | Anti rust and anti‑corrosion: | High‑strength galvanized steel sheet |
| Display protection | 6mm full tempered high explosion‑proof glass | Heat dissipation method description | |
| Backlight life | 50000 hours | Heat dissipation method: | intelligent temperature controlled air cooling system |
| Brilliance control | Light sensing sensor(Energy saving) | Temperature protection: | supports high temperature protection |
| Motherboard configuration/interface | Fan: | Industrial grade high air volume silent fan, supporting speed regulation and noise reduction (energy‑saving) | |
| CPU: | RK‑3288 Cortex‑A17, 4‑core, 1.8GHz | Touch (optional) | |
| Operating system: | Android 7.1 | Touch type | G+G capacitive waterproof touch G+F nano waterproof touch |
| Running memory: | 2GB | Point count | 10 points |
| Storage: | 32G | Touch accuracy | 99% accuracy |
| Storage Expansion: | Supports up to 32GB SD card expansion | Operating system | Windows/Android/MacOS/Linux/HarmonyOS |
| Network: | LAN/WiFi/4G module (optional) | Working temperature | -30 ℃ ~60 ℃ |
| Bluetooth: | optional | work environment | |
| Interface: | USB2.0 * 2 HDMI Out * 1 HDMI In (optional) MicroPhone * 1 Audio output * 1 SD card * 1 Horn: 8 Ω 10W * 2 | Working temperature: | -10℃‑50℃ (if the ambient temperature is below ‑10℃, it is recommended to choose a heater) |
| Packaging specifications | Working humidity: | 5%‑90% | |
| Product weight: | 98KG | Storage temperature: | -20 ℃‑60 ℃ |
| Packaging specifications: | Mainly based on physical products (standard packaging is made of pearl cotton) wooden case packing: mainly based on physical objects | Storage humidity: | 10%‑85% |
| power | |||
| Input voltage: | AC110‑220V | ||
| Working power consumption: | ≤ 490W | ||
| Standby power consumption: | <3W | ||
OEM/ODM Display Manufacturing Services
Custom Industrial & High-Brightness LCD Solutions — Design to Mass Production
Overview
HITULCD (Shenzhen Hantu Jiashi Technology Co., Ltd., est. 2014) is a direct factory offering both OEM (rebrand/modify an existing platform) andODM (full custom design from your specification) display manufacturing services — with no trading-company markup.
12+ years in optical bonding and high-brightness backlight engineering
38+ export markets served
120,000+ units/year production capacity
ISO 14644-1 certified cleanroom production lines
This page is written for distributors, project managers, and hardware engineers evaluating us as a manufacturing partner — covering exactly what we customize, how the process works, what you receive at each stage, and where the commercial terms sit.
OEM vs. ODM — Which Service Do You Need?
| OEM (rebrand/modify) | ODM (full custom design) | |
|---|---|---|
| Starting point | Existing HITULCD platform (e.g. this 65" floor-standing unit) | Your specification / mechanical drawing / use case |
| Typical changes | Logo, housing color, packaging, firmware boot screen, interface selection | Full mechanical redesign, custom PCB, custom enclosure tooling |
| Design ownership | N/A — using existing design | [Confirm IP terms — see "IP & Confidentiality" below] |
| Typical lead time | Faster — see table below | Longer, depends on tooling |
| Best for | Distributors who want their own brand on a proven product | Integrators/OEMs with a defined product spec or unique form factor |
What We Customize
| Category | Options |
|---|---|
| Screen size | 5.5" to 98" |
| Brightness | 350–3000 nits (edge-lit and direct-lit backlight kits) |
| Touch technology | Capacitive (G+G), nano (G+F), resistive, IR — up to 10-point |
| Enclosure material/color | Galvanized steel, aluminum; black/white/red/silver grey/dark grey/custom RAL code |
| Mounting | Wall-mount, floor-to-ceiling, embedded/open-frame, kiosk-integrated |
| Interface/IO | HDMI, VGA, DP, USB, LAN/Wi-Fi/4G, custom AD board for HDMI/DP/VGA signal switching |
| Compute platform | Android / Windows / Linux / HarmonyOS-compatible boards, custom CPU/RAM/storage tier |
| Branding | Custom logo (hardware silkscreen + boot logo), color packaging, private-label user manual & warranty card |
| Firmware | Custom boot animation, pre-installed APK/CMS client, language localization |
| Structural | Custom bezel width, cable routing, anti-theft lock design, IP rating up to IP65 |
[If there are size/brightness/material combinations outside this table that you do NOT support, list exclusions here to set accurate expectations up front.]
Our Production Capability
Real equipment and process currently deployed on our lines:
LCD module bonding: JYD-I900E full-automatic COG series, JYD-F900E/F900A atomization bonding system, micron-level alignment control
Structural assembly: GH-1111 laser cutting machine (7.5KW), OC-1200A glass cutting machine, automatic laminating & gluing lines
SMT: PT-A12-B automatic mounter (5.5KW)
Reliability testing: HYC-TH-80DH temperature & humidity test chamber, 2D measuring instruments, microscopes & visual inspection systems
Standard production flow: Cell feeding → vacuum quenching → ACF attachment → IC alignment & pre-bonding → FOG electrical test → FPC main bonding → FPC alignment & pre-bonding → IC main bonding → ITO encapsulation → high-temperature adhesive & label attachment → visual inspection.
Development Process & Lead Times
| Stage | What Happens | What You Receive | Typical Duration |
|---|---|---|---|
| 1. Requirement review | You share spec/drawing/use case; we run a DFM (Design for Manufacturability) review | Feasibility confirmation, technical clarification questions | 2–5 business days |
| 2. Quotation & NRE (ODM only) | Engineering quote including any tooling/mold cost | Formal quote, NRE breakdown | [Confirm typical NRE range/policy] |
| 3. Sample development | Engineering sample built to spec | 1–2 physical samples + test data | [Confirm — standard products ship samples before bulk order; custom builds typically take longer, e.g. 2–4 weeks — set actual figure] |
| 4. Sample validation | You test the sample against your application requirements | Sample sign-off or revision round | Buyer-dependent |
| 5. First Article Inspection (FAI) | First production-run unit inspected against agreed spec | FAI report | [Confirm] |
| 6. Mass production | Standard: 2–3 weeks / Custom: 4–6 weeks / Bulk ≥500 units: 6–8 weeks | Production units | Per order |
| 7. Outgoing quality control | Final inspection before shipment | QC/inspection report, packing list | Included |
Quality Documentation Available on Request
For engineers and QA teams performing supplier qualification:
Certificate of Conformance (CoC) per shipment
First Article Inspection (FAI) report
Outgoing Quality Control (OQC) inspection report — AQL sampling per ANSI/ASQC Z1.4 (or your specified sampling plan)
Environmental/reliability test reports — high/low temperature chamber data per [confirm applicable IEC 60068 test series used, e.g. IEC 60068-2-1/2/14/30]
Burn-in / aging test report [confirm standard duration, e.g. 48–72 hours, per product line]
Factory audit report / on-site verification available on request
Certifications
| Certification | Status |
|---|---|
| ISO 9001:2015 | Quality management system |
| ISO 14001:2015 | Environmental management system |
| IATF 16949:2016 | Automotive-grade quality system |
| CE | EU conformity |
| FCC | US compliance |
| RoHS | Hazardous substances restriction |
| REACH | EU chemical safety |
| WEEE | EU e-waste compliance |
| UL | Available — [confirm scope: component recognition vs. full listing] |
For OEM/ODM buyers reselling under your own brand: we can support certification transfer or provide test reports referencing your product model/brand name where the underlying hardware is unchanged.[Confirm exact policy — this is a frequent question from distributors planning to register the product for sale under their own brand in the EU/US, and directly affects their time-to-market.]
IP & Confidentiality
[This section needs your explicit policy before publishing — it is one of the top concerns Western OEM/ODM buyers raise before committing engineering resources to a design.]
NDA availability: [confirm — do you sign buyer-provided NDAs before design discussions?]
Design exclusivity: [confirm — for ODM projects, is the resulting design exclusive to the buyer, or may it be offered to other clients after a period? State the policy plainly.]
Tooling/mold ownership: [confirm — does the buyer own the mold after paying NRE, or is it factory-owned with buyer-exclusive use?]
Custom firmware/source code ownership: [confirm]
Order Terms
| Item | Detail |
|---|---|
| MOQ — OEM (rebrand only) | Typically same as standard product MOQ; confirmed at quotation |
| MOQ — ODM (custom tooling) | Higher, driven by mold/tooling amortization — [confirm typical threshold, e.g. 500–1000 units] |
| Sample availability | Yes, prior to bulk commitment |
| Incoterms | EXW / FOB / CIF |
| Payment terms | T/T, L/C (large volume), PayPal (samples), O/A (long-term partners) |
| Warranty | 12 months standard — [confirm if OEM/private-label products carry different warranty terms] |
After-Sales Support for OEM/ODM Partners
24/7 WhatsApp engineering support
Remote troubleshooting support
Spare parts supply under your part numbering/branding — [confirm lead time for spares shipped independently of full units]
RMA process for end-customer returns routed through your distribution channel — [confirm process/turnaround]
What to Prepare Before You Contact Us
To get an accurate quote and timeline on your first inquiry, please have ready:
Target application & installation environment (indoor/outdoor, temperature range, IP rating needed)
Screen size and brightness requirement
Target volume (initial order + annual forecast, for MOQ/tooling planning)
Branding requirements (logo, packaging, boot firmware)
Required certifications for your target market (CE / FCC / UL / ETL / CCC / EAC)
Existing mechanical drawing or reference product, if available
Contact
Email: chenhua@hitulcd.com Tel: +86 18682328732 WhatsApp: +86 181 7337 3517
65" High-Brightness Outdoor Digital Signage — Floor-to-Ceiling
Model: HT650L-2000 | For Shopping Malls, Retail Streets & Public Spaces
Overview
The HT650L-2000 is a 65" floor-standing outdoor digital signage display engineered for 24/7 unattended operation in exposed public environments — mall entrances, retail high streets, transit plazas, and outdoor pedestrian corridors.
Built on an IP65-rated steel enclosure with 2000cd/m² sunlight-readable brightness, the unit is designed to survive continuous outdoor exposure while remaining serviceable by a single technician in the field — a key requirement for distributors and system integrators managing multi-site rollouts.
This unit is manufactured in-house (not subcontracted) by Shenzhen Hantu Jiashi Technology Co., Ltd. (HITULCD), established 2014, Unified Social Credit Code 91440300306068446B.
Key Specifications
| Category | Parameter | Value |
|---|---|---|
| Screen size | LCD size | 65" |
| Display | Physical resolution | 1920×1080 (FHD) / 4K optional |
| Display | Brightness | 2000 cd/m² |
| Display | Contrast ratio | 1500:1 |
| Display | Viewing angle | 178°/178° (H/V) |
| Display | Backlight lifespan | 50,000 hours |
| Protection | Ingress protection | IP65 |
| Protection | Front glass | 6mm tempered anti-explosion glass |
| Protection | Impact resistance (IK rating) | [TBD — confirm per IEC 62262, e.g. IK08/IK10] |
| Structural | Enclosure material | 1.5mm galvanized steel, baking-lacquer finish |
| Structural | Wind load rating | [TBD — confirm per EN 1991-1-4 or ASCE 7, e.g. rated for XX m/s / XX mph sustained] |
| Structural | Seismic/anti-tip rating | [TBD — confirm anchor-bolt pull-out test data] |
| Environmental | Operating temperature | -10°C to 50°C (heater module recommended below -10°C) |
| Environmental | Operating humidity | 5%–90% RH |
| Electrical | Input voltage | AC 110–220V, 50/60Hz |
| Electrical | Power consumption | ≤ 490W (working) / <3W (standby) |
| Electrical | Surge protection | [TBD — confirm SPD class per IEC 61643-11, e.g. Type II] |
| Compute | CPU / OS | RK3288 Cortex-A17 quad-core 1.8GHz / Android 7.1 |
| Compute | Memory / storage | 2GB RAM / 32GB (expandable to 32GB SD) |
| Connectivity | Network | LAN / Wi-Fi / 4G module (optional) |
| Touch (optional) | Type | G+G capacitive waterproof / G+F nano waterproof, 10-point |
| Weight | Product weight | 98 kg (net) |
| Dimensions | Display area | 1438.97 × 809.42 mm |
Certifications & Compliance
| Certification | Status | Scope |
|---|---|---|
| CE | ✅ Standard | EU electromagnetic & safety compliance |
| FCC | ✅ Standard | US electromagnetic compliance |
| RoHS | ✅ Standard | Restriction of hazardous substances |
| REACH | ✅ Standard | EU chemical safety |
| ISO 9001 | ✅ Standard | Factory quality management system |
| WEEE | ✅ Standard | EU e-waste compliance |
| UL 62368-1 | Available on request | US/CA electrical safety (recommended for North American public installations) |
| ETL | Available on request | Third-party safety verification, commonly required by North American mall/property management |
| CCC | Available on request | China compulsory certification (for domestic distribution) |
| EAC | Available on request | Eurasian Economic Union compliance |
Note to distributors/engineers: Certificate PDFs with certificate numbers are available for download upon request, or can be provided pre-bundled with your RFQ package for tender submission. [Insert direct certificate download links here once digitized — this significantly shortens tender-response time.]
Software & Content Management
[This section requires factory confirmation — currently the single largest gap for B2B buyers evaluating this product. Recommended structure below; fill in actual capabilities before publishing.]
Onboard CMS: [Specify — proprietary software name, or "supports Android APK sideloading for third-party CMS"]
Third-party CMS compatibility: [Confirm compatibility with industry-standard platforms such as BrightSign, Scala, Xibo, or SignageOS — this is one of the first questions distributors ask before quoting to their own clients]
Remote device management: [Confirm — SNMP support, remote reboot/screenshot, brightness scheduling, fault alert push notification]
SDK / API access: [Confirm availability for integrators building custom content-delivery pipelines]
Content update method: [USB / network push / cloud CMS]
Structural & Durability Testing
Outdoor floor-standing signage is exposed to continuous UV, precipitation, wind loading, and — in high-traffic pedestrian zones — accidental impact. The following data points are standard requirements in European and North American municipal/mall tender documentation. Confirm and publish actual test results:
Wind load / structural stability: Test report per EN 1991-1-4 (Eurocode) or ASCE 7 (US) — [attach report or state design wind speed rating]
Impact resistance: IK rating per IEC 62262 — [confirm tested rating]
Anti-corrosion / salt spray test: Per ASTM B117 or ISO 9227 — [attach test report; relevant for coastal or high-humidity deployments]
Glass safety standard: Tempered safety glass tested per EN 12600 (Europe) or ANSI Z97.1 (US) — [confirm applicable standard and certificate]
Surge/lightning protection: SPD rating per IEC 61643-11 — [confirm]
Anchor/foundation loading plan: CAD drawing with bolt pattern, foundation depth recommendation, and load-bearing calculation — [attach downloadable PDF/DWG]
Installation & Documentation
Installation method: Floor-to-ceiling, permanent foundation mount
Downloadable CAD drawings (dimensional + foundation/anchor layout): [insert link]
Installation manual (PDF): [insert link]
Wiring/power schematic: [insert link]
Recommended installer qualification: licensed electrician for AC mains connection; structural engineer sign-off recommended for wind-exposed sites
Warranty & After-Sales
| Item | Coverage |
|---|---|
| Whole-unit warranty | 12 months, parts & remote technical support |
| Display panel warranty | **[Confirm — panel warranty period is often specified |
| separately from whole-unit warranty by panel manufacturer, e.g. 24 months on | |
| panel, 12 months on enclosure/electronics]** | |
| Dead-pixel policy | **[Confirm acceptable dead-pixel count before replacement, |
| per ISO 9241-307 pixel-fault classification]** | |
| Support channel | 24/7 WhatsApp engineering support |
| Spare parts availability | **[Confirm lead time for replacement PCB/panel/PSU |
| shipped independently of full-unit RMA]** |
Order Terms
| Item | Detail |
|---|---|
| MOQ | 1 unit (standard spec) — custom brightness/cutting/bezel may adjust MOQ, confirmed at quotation |
| Incoterms | EXW / FOB / CIF |
| Lead time | 2–3 weeks (standard) / 4–6 weeks (custom) / 6–8 weeks (bulk ≥500 units) |
| Payment terms | T/T, L/C (large volume), PayPal (samples), O/A (long-term partners) |
| Sample availability | Yes, prior to bulk order |
| Production capacity | 12,000+ units/month |
Logistics Reference (for landed-cost calculation)
[Complete before publishing — distributors need this to estimate freight without contacting sales]
HS Code: [insert]
Packaging: pearl-cotton standard / wooden crate option
Gross weight (packed): [insert, net weight is 98kg]
Packed dimensions (L×W×H): [insert]
Volume (CBM): [insert]
Compliance & Responsible Manufacturing
Manufactured in a factory compliant with local labor law (no child labor, no forced labor, fair working hours). Products meet RoHS and REACH standards; recyclable packaging used where possible. Full ESG/compliance documentation available on request for procurement due diligence.
Factory audit reports and business registration documents available for verification prior to order.
Reference Projects
[Add 2–4 real case studies with location type (e.g. "Shopping mall entrance installation, Southeast Asia, 40 units, deployed 2025"), photos of completed installations, and — where permitted — a client testimonial or logo. This is one of the highest-converting content blocks for project-manager buyers and is currently missing from the product page.]
Contact for RFQ
For a formal quotation including certificate package, CAD drawings, and logistics cost estimate to your destination port, please provide:
Installation location & quantity
Required certifications (CE / UL / ETL / CCC / EAC)
CMS/software integration requirements (if any)
Preferred Incoterm (EXW / FOB / CIF)
Email: chenhua@hitulcd.com | Tel: +86 18682328732
Know The Terms Before You Inquire.
|
01 — Shipping Terms
Incoterms Available
EXW
Ex Works — pick up from our factory
FOB
Free On Board — most common for ocean freight
CIF
Cost, Insurance & Freight — to your port
|
02 — Order Minimum
MOQ: 1 Units
Applies to standard specs. Custom brightness, cutting or bezel may adjust MOQ, confirmed at quotation. Sample units available before bulk order
|
03 — Payment Protection
Multiple Secured Methods
|
A Real Factory. Publicly Verifiable.
|
Legal Company Name
Shenzhen Hantu Jiashi Technology Co., Ltd.
|
Unified Social Credit Code
91440300306068446B
|
|
Legal Representative
YUN CHEN
|
Registered Capital
RMB 2,000,000
|
|
Established
May 23, 2014 (11+ years operation)
|
Business Status
● Active / In Operation
|
|
Registered Factory Address
Building B, Gangshen Innovation Park, Huaning Road, Dalang Sub-district, Longhua District, Shenzhen, Guangdong, China
|
|
Contact HITULCD
We'll respond via email within 24 hours. If you'd like to discuss details over WhatsApp or a call, please leave a preferred time and contact method in your message — we will never call you unannounced.
Related solutions
This product is suitable for the following industry application scenarios
Bus Passenger Information Stretched Bar Display Solution
A rugged, ultra-wide stretched bar display solutio...
view
Shelf Bar LCD Display Solution
Ultra-wide stretched bar displays engineered for s...
view
Refrigerator Bar LCD Display Solution
Purpose-built stretched bar LCD displays for open-...
viewRelated Products
You may also be interested in the following products
2500 Nits
98 Inch Large-Format Outdoor Digital Signage for Transit & Commercial Advertising
2500 Nits
86 Inch Large Outdoor Digital Signage for Transportation & Retail
2500 Nits
