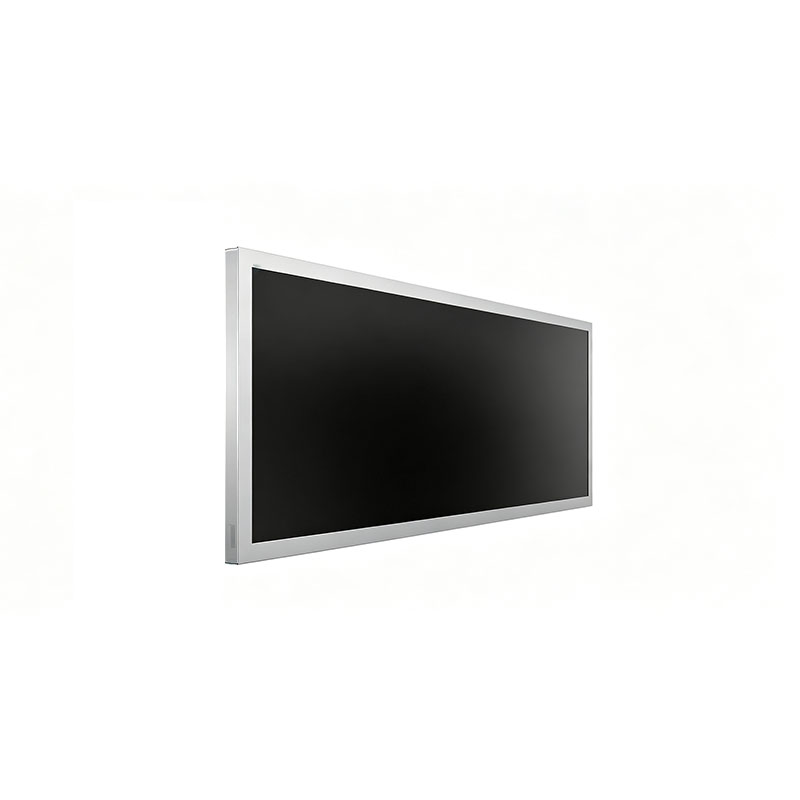

17.2" 1000-nit Stretched Bar LCD Module — Cuttable, OEM/ODM-Ready

High-brightness ultra-wide TFT-LCD module for retail shelf-edge, transit, elevator, vending and industrial-terminal integration. Custom size cutting, sealing and interface engineering from 20 pcs.

✅ CE / FCC / RoHS compliant · ✅ 1,000 nits · ✅ 24/7 duty-cycle rated · ✅ OEM/ODM from 20 units · ✅ Free engineering review (DFM)

Request a Quote · Order Samples · Download Datasheet (PDF)

1. Product Overview

The 17.2" stretched bar LCD module is a high-brightness, ultra-wide-format display engineered for system integrators and OEMs who need a display that fits the product, rather than a product designed around a standard display size.

Stretched bar panels are derived from standard-format TFT-LCD panels that are precision-cut to an ultra-wide aspect ratio. This gives you a strip-format viewing area with a native, non-scaled image, ideal for shelf-edge, header, ticker and status-bar applications.

Why buyers choose this module

2. Key Specifications

⚠️ Publishing note: items in [brackets] must be replaced with the values on your final datasheet before going live.

3. Typical Applications

• Retail: shelf-edge and gondola-end displays, supermarket and pharmacy price/promo strips, refrigerated-cabinet door fronts

• Transportation: station and platform information strips, bus and rail interior displays, wayfinding

• Elevators & lobbies: cabin headers, floor-information and advertising bars

• Vending & gaming terminals: top-mounted attract screens, banners and status strips on vertical chassis

• Industrial HMI & control panels: wide status bars, machine dashboards, smart-appliance fronts

4. Custom Cutting Engineering — Answers to the Questions Engineers Ask First

Custom-size cutting is the core of the stretched bar concept, and it is where technical risk sits. Below is how we approach the topics our engineering and procurement customers raise most often.

4.1 Cutting Method, Tolerance & Feasibility

Which cutting method do we use?We select the process by panel structure, target size and edge-quality requirement. Options include mechanical wheel scribing and break, and ultrafast laser cutting for tighter tolerances or complex contours. [Confirm which methods your factory runs in-house.] The method is agreed with you during the DFM stage, not after tooling.

Dimension and tolerance

• Standard cutting tolerance: [± ___ mm]

• Tighter tolerance: available on request, subject to method and panel type

Will the cut interfere with the TFT array, Gate or Source routing?This is the first thing we check. Cutting is only feasible along zones that do not intersect the active area, Gate/Source fan-out, or driver-IC bonding regions. Cutting lines are placed strictly within the available margin of the original panel design.

What we need from you for a feasibility check

Typical outcome: within [__ working days] of receiving the above, we return a feasibility report with a proposed cutting line, tolerance, risk points and an indicative timeline.

4.2 Edge Quality & Micro-Crack Control

Glass edge condition determines both long-term reliability and light-leakage behavior. Our process controls include:

• Post-cut edge inspection under magnification for chipping and micro-cracks

• Edge grinding / chamfer treatment where required

• Acceptance criteria: [chip size ≤ ___ mm, no crack propagating toward the active area] (replace with your QC standard)

5. Sealing & Reliability

5.1 Secondary Edge Sealing

A cut edge exposes the liquid-crystal cell structure, so sealing is a critical process, not an afterthought.

• Sealing process: [UV-cure adhesive dispensing / other, please confirm]

• Purpose: prevent liquid-crystal leakage and block moisture ingress at the cut edge

• Process controls: adhesive dispensing accuracy, UV curing verification, post-cure visual and leak inspection

5.2 Reliability Validation

Cut modules are validated against standard consumer- and industrial-grade test methods. Typical test plan (conditions are a reference and can be aligned with your specification):

📎 Test reports from comparable cutting projects are available under NDA on request.

5.3 Optical Performance After Cutting

We evaluate the edge zone specifically for:

• Light leakage at the cut boundary

• Color shift and Mura near the sealed edge

• Brightness uniformity across the panel, including edge regions

Where needed we adapt the light-shielding / bezel design to control edge-area optical defects. Customers have reported good edge brightness uniformity on our cuttable series.

6. Cost, Lead Time & Volume

Customer feedback: a 20-unit order of a comparable large-format bar panel shipped in 18 days.

7. OEM / ODM Services

• DFM review and cutting-line feasibility study

• Custom brightness, backlight drive frequency and dimming curve

• Custom interface: connector, cable length, driver / AD board

• Touch overlay (capacitive), cover glass bonding, AR / anti-glare

• Mechanical adaptation: bezel, bracket, heat-spreader guidance

• Private-label labeling and packaging

• Pre-shipment inspection and traceable batch records

Integration tip: for high-brightness modules, allow roughly 2–3 mm clearance around panel edges for thermal expansion and cable routing, and provide ventilation or heat-spreader contact. If a cover glass or AR glass is added, plan for a small luminance loss and choose backlight brightness accordingly.

8. Compliance & Quality

• CE — conforms to EU safety, health and environmental requirements

• FCC Part 15 — electromagnetic interference compliance for North America

• RoHS — free of restricted substances including lead, mercury, cadmium and hexavalent chromium

• Quality management system certified covering design, production and delivery (state the certificate, e.g. ISO 9001, once confirmed)

9. Frequently Asked Questions

Can you cut to my exact dimensions?Yes, subject to a feasibility check against the panel's active area and routing. Send your drawing and we will confirm the cutting line.

Is 1,000 nits enough for my site?It suits high-ambient-light indoor, transit and semi-outdoor covered sites. For direct sunlight, we can propose higher-brightness options. Cover glass reduces luminance, so we can advise based on your enclosure.

Can you supply the driver board and touch?Yes. Driver / AD boards and capacitive touch are available as options.

Do you support portrait orientation?Yes. Orientation can be configured at the design stage.

Can I get a sample before committing?Yes. Samples and small pilot runs are available, and our engineering team supports the evaluation.

Can you sign an NDA?Yes. We can sign an NDA before receiving drawings.

10. Request a Quote {#contact}

To receive a feasibility assessment and quotation within [24–48 hours], please send:

1. Target dimensions and tolerance (drawing if available)

2. Interface and operating environment

3. Brightness and touch / cover-glass requirements

4. First-order and annual quantities

📧 Email: [sales@hitulcd.com] 🌐 Website: www.hitulcd.com 👉 Get an Instant Quote

Our technical team responds fast, with full engineering advice before you order.
