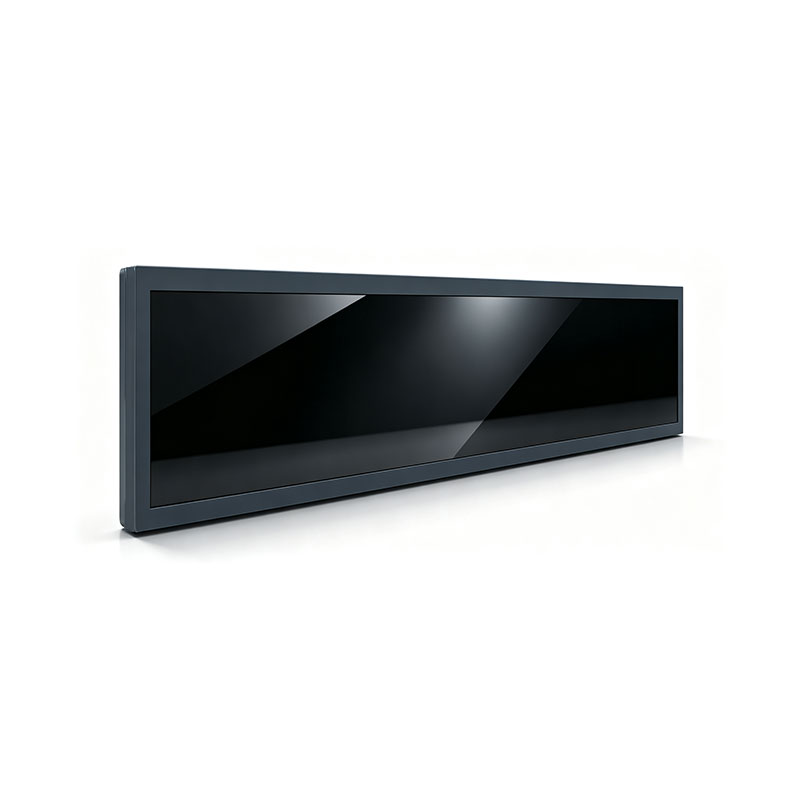

58.4" Bar LCD Module for Commercial & Industrial Equipment

Ultra-Wide Stretched Bar Display | Custom-Cut TFT Technology | Sunlight-Readable

Prepared for: Overseas engineering teams, procurement managers & project owners evaluating custom bar-type LCD modules for embedded/OEM integration.

1. Product Overview

The 58.4" Bar LCD Module is an ultra-wide, low-profile TFT display designed for embedded integration into commercial equipment such as digital signage shelving, elevator/transit information panels, self-service kiosks, vending machines, and control-room status bars. Its stretched aspect ratio delivers a long, narrow viewing area that fits spaces standard 16:9 panels cannot — without sacrificing brightness, contrast, or long-term reliability.

This module can be supplied either as a standard bar-format panel or as a custom-cut panel derived from a larger mother-glass TFT array, allowing us to match non-standard dimensions to your mechanical enclosure.

2. Key Specifications

⚠️ Note to reader: The values below reflect the standard performance class for 58.4" bar-format TFT modules in this product family. Please request our signed datasheet / sample for the exact production spec, as brightness, interface, and mechanical tolerances can be tuned to your project.

3. Custom-Cutting Capability (For Non-Standard Bar Sizes)

Many of our overseas partners don't need a stock size — they need a panel cut to match an existing mechanical cavity or replace a legacy stretched display. We support precision panel cutting from standard TFT mother glass as an engineering service, addressing the concerns our clients' teams most frequently raise:

3.1 Cutting Process & Feasibility

• Cutting method: Selected per glass thickness, cut-line location, and tolerance requirement — either mechanical wheel scribing (cost-efficient, standard tolerances) or ultra-fast laser cutting (tighter tolerance, cleaner edge, lower micro-crack risk for tight cut-lines).

• Circuit clearance check: Before quoting, we map the proposed cut-line against the Gate/Source trace routing and active TFT array to confirm no functional circuits are interrupted.

• What we need from you to assess feasibility: the original panel's model number or full dimensional/CAD drawing, the desired final active area, and the target cut-line position relative to the panel's driver ICs/FPC.

• Edge quality standard: Post-cut edge flatness and micro-crack control are held to internal QC limits validated by microscopic edge inspection prior to sealing.

3.2 Reliability & Edge Sealing

• Sealing process: A secondary edge-sealing step (UV-cure dispensing, with alternative resin sealing available depending on panel structure) is applied along the cut edge to prevent moisture ingress and liquid crystal leakage.

• Reliability validation: Cut modules can be qualified against standard consumer or industrial-grade reliability protocols, including double-85 (85°C/85%RH) high-temp/humidity soak, thermal shock cycling, and mechanical drop testing. Benchmark data from prior cutting projects is available under NDA for your reference.

• Optical performance after sealing: Edge regions are inspected for light leakage and color-shift (Mura) as part of final QC before shipment.

3.3 Cost, Yield & Lead Time

• NRE (engineering setup): Project-dependent — scoped after reviewing your target dimensions and drawings; we'll quote this alongside first-sample lead time.

• First sample (typical qty: 20 pcs): Lead time confirmed after feasibility review — typically several weeks, depending on cutting method and sealing/testing scope.

• Mass production yield: Based on our production history for comparable cutting projects, yield ranges are shared once the exact cut geometry is reviewed.

• MOQ: Available for both standard and custom-cut configurations — contact us with your target volume for a tailored quote.

4. Typical Applications

• Retail shelf-edge and digital signage displays

• Elevator, subway & transit information bars

• Self-service kiosks and vending machines

• Control-room / NOC status and KPI bars

• Reception and lobby information displays

5. Why Work With Us

• Engineering-first quoting — every custom-cut inquiry starts with a circuit/feasibility review, not just a price quote.

• Documented reliability data — environmental and drop-test benchmarks available for prior cutting projects.

• Flexible interface integration — HDMI / DVI-D / DisplayPort input boards to match your existing system architecture.

• Scalable from prototype to volume — sample support through to production MOQ.

6. Next Steps

To receive a formal quotation and feasibility assessment, please share:

1. Target application & enclosure drawing (or the original panel model, if replacing an existing display)

2. Desired active area / cut-line dimensions and tolerance

3. Required interface (HDMI/DVI-D/DP) and brightness level

4. Estimated annual volume

Contact our engineering team to start your feasibility review and receive sample lead-time & NRE quotation.

Disclaimer: Specifications in Section 2 are reference values for this display class and should be confirmed against the final signed datasheet prior to order placement.
