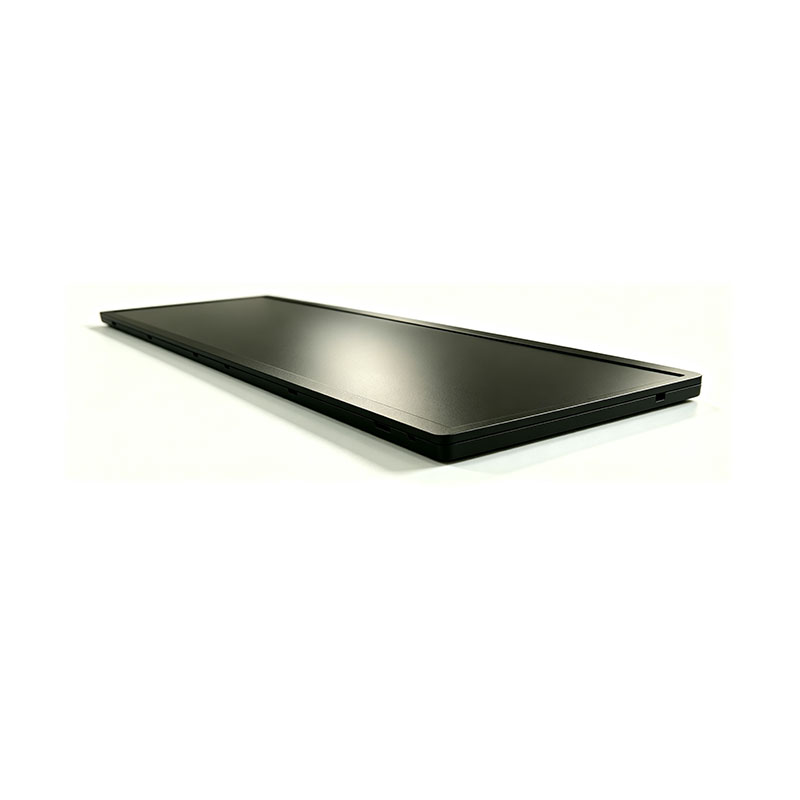

37" Ultra-Wide TFT LCD Module (P370IVN03.1)

Technical & Sourcing Brief for Overseas Engineers, Procurement Managers & Project Owners

This brief is written to pre-answer the questions that engineering and sourcing teams typically raise before committing to a stretched-bar display supplier — process feasibility, sealing/reliability, and cost/yield/lead time. It's structured to be dropped into an RFQ package or shared internally with your engineering team.

Product Snapshot

1. Technical Process & Feasibility

Is this panel cut from a standard-size TFT, or natively manufactured?This is a native stretched-bar panel, built to the 3.56:1 aspect ratio at the array/cell stage — it is not a standard panel that has been mechanically or laser-cut down to size afterward. This removes the entire category of risk associated with post-cutting conversion:

• No cut line running through the Gate/Source driver traces or active TFT array — the panel is designed and fabricated at this exact size from the outset, so there's no risk of trace interference or dead-zone artifacts near an edge.

• No secondary edge-grinding or polishing step is needed, since the glass edge is a factory-finished edge rather than a cut edge — this removes the micro-crack and edge-chip variability that comes with post-production cutting (mechanical wheel or laser).

• Because there is no cut edge, there is nothing to reseal — the standard factory lamination and frame sealing already provide the same moisture/dust protection as any of our standard-size modules; no supplementary UV dispensing step is required for this SKU.

What do we need from you to confirm feasibility for a custom variant?If your project calls for a different size, brightness tier, touch overlay, or bezel/mechanical bracket on this platform, our engineering team typically needs:

• Target dimensions/aspect ratio and any keep-out zones (bezel, mounting holes, connector access)

• Interface preference (LVDS/HDMI/VGA/USB touch) and control board location constraints

• Environmental spec (operating temp range, IP rating if outdoor/washdown, vibration/shock exposure)

• Expected order volume and target unit cost, so we can advise whether a native-panel or modified-cut approach is more cost-effective for your case

2. Reliability & Sealing

Since this SKU uses a native panel rather than a cut-and-resealed one, reliability performance tracks our standard production line, not a modified/secondary process:

• Environmental testing: Standard qualification includes high/low temperature storage and operation, temperature-humidity (damp heat) cycling, and thermal shock, consistent with industrial-grade display qualification practice. Test reports for the base panel platform can be shared under NDA on request.

• Mechanical: Structural drop and vibration testing is available for bracket/enclosure-integrated configurations — let us know your mounting method (embedded, VESA, rack) so we test the actual mechanical interface you'll deploy.

• Optical performance: Because there's no cut edge, there is no cut-edge light leakage or edge Mura risk — brightness and color uniformity are consistent to the panel's outer frame, same as a standard-size module.

• IP/environmental rating: Base module is rated for -20°C to 60°C operating/storage. If your application needs a sealed front assembly (dust/washdown), we integrate a front bezel + gasket kit at the module-assembly stage — this is a mechanical/bezel-level seal, not a glass-edge seal.

3. Cost, Yield & Lead Time

Because the P370IVN03.1 is a standard native-bar catalog item (not a made-to-order cut conversion), you avoid the NRE, extended sampling cycle, and yield variability that typically come with panel-cutting programs — while still getting engineering support if you need a custom bracket, brightness tier, or touch layer added on top of this platform.

Shipping, MOQ & Payment Terms

• Incoterms: EXW, FOB, CIF

• MOQ: 1 unit standard; adjusted for custom configurations

• Payment: T/T (bulk), L/C (large volume), PayPal (buyer-protected samples), O/A (long-term partners)

Supplier Verification

• Legal entity: Shenzhen Hantu Jiashi Technology Co., Ltd. (Unified Social Credit Code 91440300306068446B), established May 2014, active status

• Certifications: CE / FCC / RoHS standard; UL / CCC / EAC available on request

• Quality control: Production testing and inspection records available for review

For DFM review, sample requests, or a project-specific quotation (custom size, brightness, touch, or bezel), contact HITULCD engineering directly via the inquiry form or WhatsApp: +86 181 7337 3517.
