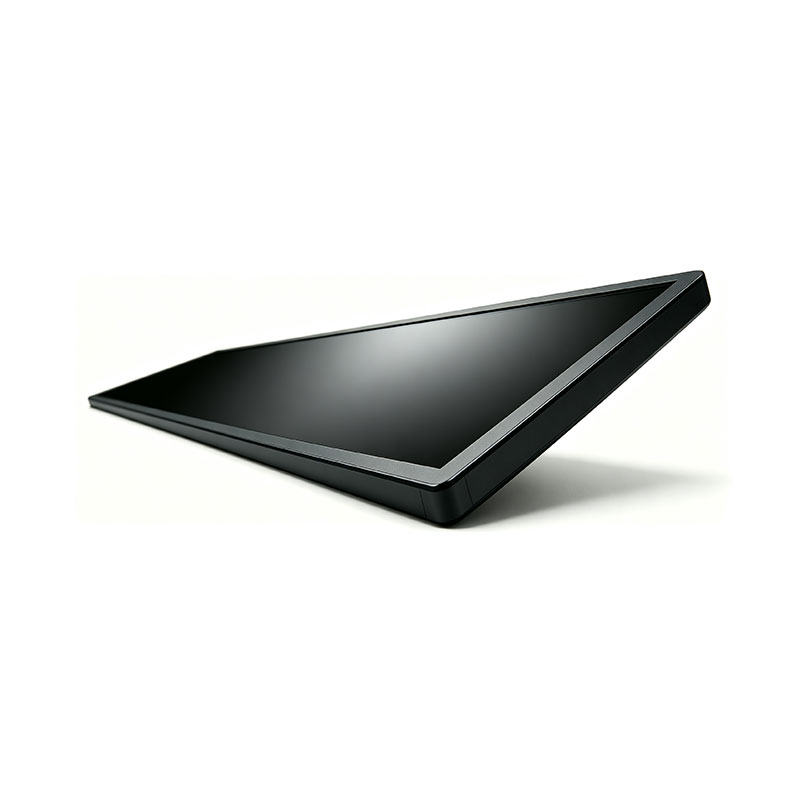

43″ Embedded Bar LCD Module for Industrial Systems

Model: DV430FBM-N20 | Cut-Type Stretched Bar Display | 3840×720 @ 700 nits

Overview

The DV430FBM-N20 is a 43″ ultra-wide stretched bar LCD module, precision-cut from a standard TFT panel to a 5.33:1 aspect ratio (3840×720). It is engineered for OEMs and system integrators who need a slim, wide-format display for embedded industrial enclosures — control panels, kiosks, digital signage bars, vehicle information strips, and machine HMI systems — where a standard 16:9 panel simply doesn't fit the mechanical envelope.

Because this is a cut-panel product, not a native bar-format panel, HITULCD's engineering process — cutting, edge sealing and reliability validation — is the core of the product, not an afterthought. Below is exactly how we address the technical questions our engineering customers raise most often before committing to a design-in.

Key Specifications

Engineering FAQ — What Buyers Ask Before Placing an Order

1. Cutting Process & Design Feasibility

Which cutting method do you use — mechanical wheel scribing or laser cutting?We select the cutting method based on the target dimension, panel generation, and tolerance requirement. Fine-pitch or tight-tolerance cuts near active circuitry are handled with ultra-fast laser cutting to minimize micro-crack propagation; standard bar dimensions with more forgiving tolerances can use mechanical wheel scoring for faster turnaround and lower cost. We confirm the recommended method during DFM review, not before.

Will the cut line interfere with the Gate/Source traces or TFT array?Every custom cut goes through a keep-out zone check against the source panel's Gate driver IC placement, Source PCB routing and active array boundary before we quote. To run this check we need: (1) your target cut dimension and aspect ratio, (2) preferred mounting orientation, and (3) any bezel/mechanical drawing (DXF/DWG or PDF) showing the enclosure cutout. We'll return a feasibility report noting the minimum safe margin from the active area.

What's your edge flatness and micro-crack control standard?Post-cut edges are inspected under magnification against an internal AQL for chip size, edge flatness and crack propagation length. Panels outside spec are rejected before sealing — we don't rely on sealing to mask a bad cut.

2. Reliability & Edge Sealing

How do you seal the cut edge against moisture and liquid crystal leakage?Cut edges receive a secondary sealing process — UV-cure edge dispensing along the exposed glass boundary — to restore the moisture/liquid barrier that the original panel's frame seal provided. Dispensing path and cure parameters are set per panel thickness and cut geometry.

Can the cut module still pass standard reliability testing?Yes — cut-and-sealed modules go through the same test battery as standard panels (tier selectable: consumer or industrial grade, confirmed at quotation): high-temp/high-humidity (60°C/90%RH type "double 85"), thermal shock/cold-hot cycling, and mechanical drop/vibration per the target application profile. We can share environmental and drop-test summary data from comparable cut-bar programs on request — ask your sales contact for the relevant test report.

Does the sealed edge cause light leakage or Mura/color shift at the border?This is the main visual risk in any cut-panel project. We control it through backlight light-guide trimming and edge-seal dispensing width calibrated to the cut margin; final units are 100% optically inspected for edge light leakage and color shift under darkroom conditions before shipment.

3. Cost, Yield & Lead Time

What's the NRE and first-sample lead time for a custom cut project?NRE covers cutting fixture/jig setup, edge-seal process qualification and optical inspection setup. First sample batch (typically 20 pcs) is generally available within 2–4 weeks of drawing confirmation — final quote and timeline depend on cut complexity and whether laser or mechanical cutting is used.

What yield should we expect at volume, and what's the MOQ?Mass-production yield for validated cut geometries typically stabilizes in the 90%+ range after process qualification; tighter tolerances or cuts closer to the active array reduce this. Standard-spec MOQ starts at 1 unit for sampling; custom brightness, cutting or bezel changes may raise MOQ, confirmed at quotation.

Commercial Terms

Supplier Verification

• Legal Entity: Shenzhen Hantu Jiashi Technology Co., Ltd.

• Unified Social Credit Code: 91440300306068446B

• Established: May 23, 2014 (11+ years in operation)

• Registered Capital: RMB 2,000,000

• Factory Address: Building B, Gangshen Innovation Park, Huaning Road, Dalang Sub-district, Longhua District, Shenzhen, Guangdong, China

• Certifications: ISO9001, CE, FCC, RoHS, REACH, WEEE (UL / CCC / EAC available on request)

Recommended Applications

Industrial equipment control panels · Embedded machine HMI · Digital signage bars · Vehicle passenger information displays · Gas station terminals · Convenience store shelf/checkout displays

Next Step for Engineering Evaluation

To receive a formal cutting feasibility report and quotation, please share:

1. Target cut dimension and tolerance

2. Mounting/bezel drawing (DXF/DWG or PDF)

3. Target reliability test tier (consumer / industrial)

4. Expected annual volume
