Custom-Cut & Stretched Bar LCD Solutions

Technical Capability Brief for Overseas Engineers, Procurement Managers & Project Owners

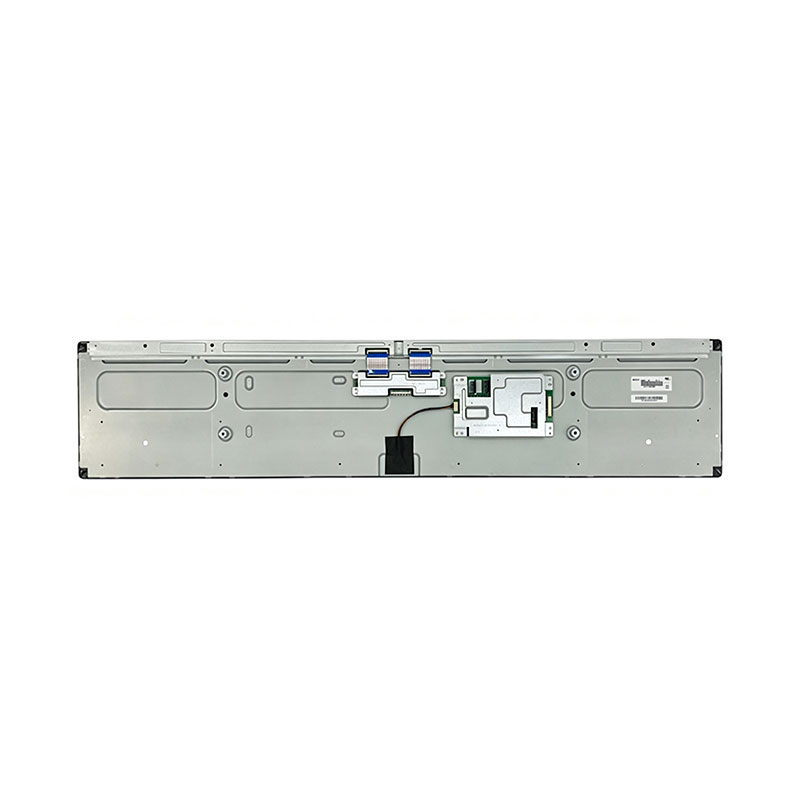

Reference product: 43" Stretched LCD Module for Industrial Control Systems (Model: S430AJ1-A01) | HITULCD (Shenzhen Hantu Jiashi Technology Co., Ltd.)

1. Why This Matters to You

When sourcing a non-standard or custom-cut LCD/TFT module, the real risk isn't the display itself — it's what happens after the panel is cut or reshaped: edge sealing failures, light leakage, unclear reliability data, and unpredictable yield at scale. This brief answers the questions our overseas partners consistently ask before committing to a project, using the same structure engineering and procurement teams typically use in their RFQ process.

Reference model on this page:

This specific model ships as a native stretched-bar panel direct from the cell fab — it is not a cut-down standard panel. For projects requiring a non-standard cut from an existing panel format, the process and questions below apply.

2. Technical Process & Cutting Feasibility

Q: What cutting method do you recommend, and how do you control tolerance?Two approaches are available depending on panel thickness, target tolerance, and edge quality requirements:

• Mechanical wheel scribing — lower cost, suited to straight-line cuts with standard tolerance (±0.3–0.5 mm typical), higher throughput for volume runs.

• Ultrafast laser cutting — higher precision, cleaner edge with minimal micro-cracking risk, recommended when the cut line is close to the active display area or when tight tolerance (±0.1 mm class) is required.

The recommendation depends on your target dimension, cut-line location relative to the panel's active area, and volume. We confirm the appropriate method during DFM (Design for Manufacturability) review once drawings are received.

Q: Will the cut interfere with the Gate/Source traces or TFT array?This is assessed case by case against the source panel's internal layout (COF/Gate driver position, Source line routing, active area boundary). To confirm feasibility before cutting, we typically request:

• Target outline dimensions and tolerance requirements

• Preferred mounting / bezel interface (if any)

• Source panel model (if buyer-specified) or intended base panel size

• Sample quantity for first article evaluation

Q: What are your edge flatness and micro-crack control standards?Post-cut edges are inspected for flatness and micro-crack presence under standard optical/microscopic inspection prior to sealing. Specific acceptance criteria (e.g., chip size limits, edge roughness) are confirmed per project and documented in the first-article inspection report.

3. Reliability & Edge-Sealing Assurance

Q: How do you prevent moisture ingress and liquid crystal leakage after cutting?Cut edges go through a secondary sealing process (UV-cure dispensing or equivalent edge encapsulation, depending on panel structure) to restore the barrier the original cell edge provided. This step is validated before the module proceeds to functional test.

Q: Can the cut module pass standard reliability testing — consumer or industrial grade?Modules built on this process are evaluated against the applicable reliability program for the target market segment (consumer vs. industrial), which typically includes:

• High-temperature / high-humidity storage (e.g., 85°C/85% RH)

• Thermal shock / cold-hot cycling

• Mechanical drop / vibration testing (for enclosure-mounted applications)

Specific pass/fail data and test reports from comparable prior cutting projects are available on request under NDA, so you can benchmark against your own qualification requirements.

Q: Does sealing introduce light leakage or Mura/color shift near the edge?This is the primary optical risk in any post-cut panel and is managed through backlight edge masking and sealant selection. We recommend requesting sample units for visual/optical inspection under your actual operating brightness and viewing conditions before sign-off, particularly for edge-lit constructions where light leakage risk is higher than direct-lit.

4. Cost, Yield & Program Timeline

Q: What's the NRE cost and timeline for a first sample run?NRE (tooling/engineering setup) and sample lead time depend on cut complexity, tolerance class, and whether a new fixture is required. As a general framework:

• Standard cut, existing panel family: lower NRE, faster turnaround

• New cut-line geometry or first-time panel source: higher NRE to cover fixture/process qualification

Exact NRE and a sample quotation (e.g., for a 20-piece first-article batch) are issued after drawing review — please share target specs via the inquiry form below for a firm number.

Q: What yield can we expect at volume, and what's your MOQ?Cutting yield stabilizes as the process is qualified against a specific panel/cut-line combination; realistic mass-production yield ranges are shared once the pilot run data is available for your specific configuration, rather than quoted generically. For reference, this facility runs standard production at:

5. Ordering & Compliance Reference

6. Next Step

To get a feasibility assessment and firm quotation for your cutting/customization project, please send us:

1. Target outline dimensions and tolerance

2. Source panel model (or target diagonal/resolution if open to sourcing)

3. Mounting/bezel interface requirements

4. Target reliability standard (consumer / industrial) and application environment

5. Estimated annual volume

Our engineering team reviews drawings directly and responds with a DFM assessment before quoting.

Contact: chenhua@hitulcd.com | +86 18682328732
