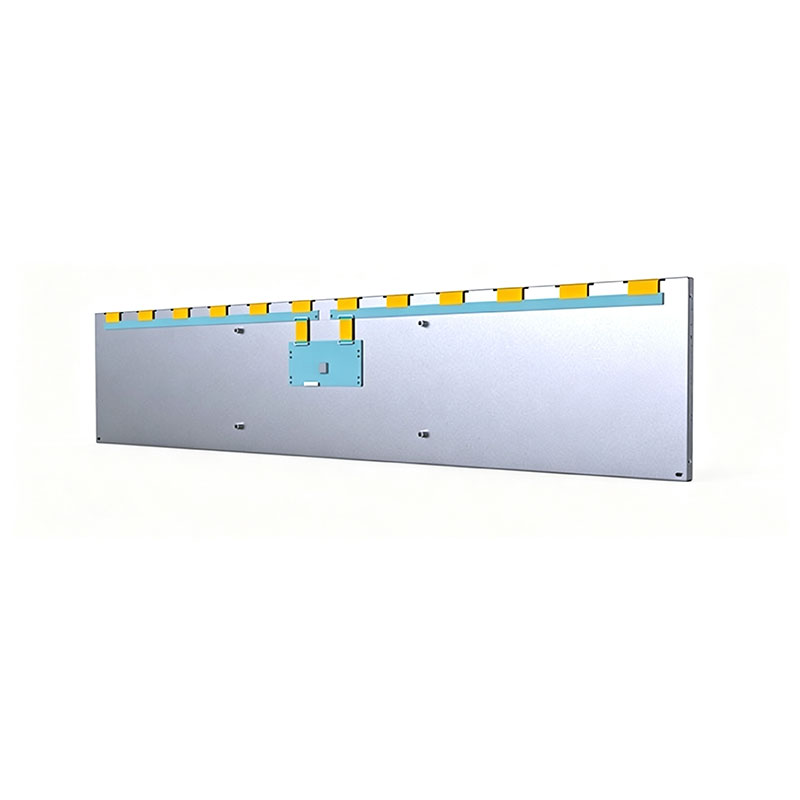

43.8 Inch Custom Display Module for Industrial Control Equipment
MODEL: DV438FBD-N50
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesBuilt by us. Configured for you.
HITULCD supplies LCD modules and display solutions directly from our manufacturing operation, giving OEMs, integrators and distributors direct access to engineering, customization and production.
Supply
Supplier Qualification
VerificationTechnical Specifications
| LCD PANEL PARAMETERS | HDMI/CONTROL BOARD SPECIFICATIONS | ||
|---|---|---|---|
| ITEM | DETAILS | ITEM | DETAILS |
| Model Number | DV438FBD‑N50 | Input Interface | Require Special V‑by‑One Driver Board |
| Manufacturer | HITULCD | Power Input | DC 12V‑5A |
| Diagonal Size | 43.8" | OSD KEYS | N/A(Depend on driver board) |
| Resolution | 3840(RGB) × 1080 DFHD, 3.56:1 | OSD CONTROL | N/A(Depend on driver board) |
| Panel Type | a‑Si TFT‑LCD, FOB Open‑Cell(Glass+COF IC, w/o Backlight) | ||
| Pixel Arrangement | RGB Vertical Stripe | ||
| Display Area(A.A) | 1056.36(W)×286.32(H) mm | ||
| FOB Glass Outline | 1084(W)×314.88(H)×1.35(D) mm | ||
| LCM Overall Dimension(Est.) | 1084(W)×314.88(H)×24~30(D) mm (with custom‑backlight) | ||
| Substrate Thickness | 0.50+0.50 mm | ||
| Panel Weight | 3.8Kgs | ||
| Surface Treatment | Matte (Haze 25%) | ||
| Contrast Ratio | 1000:1 (Typ.)(Transmissive) | ||
| Transmittance | 4.2% (Typ.)(with polarizer) | ||
| Typical Brightness | 700 NITS | ||
| Response Time | 14 (Typ.)(G‑to‑G) ms | ||
| LCD Technology | ADS, Normally Black, Transmissive | ||
| Viewing Angle | 89°/89°/89°/89°(Typ.)(CR≥10) | ||
| Viewing Direction | Full Viewing Angle | ||
| Display Colors | 1.07B Colors | ||
| Refresh Rate | 60Hz | ||
| Backlight Type | Not‑Included(FOB); Custom WLED 50K Hrs(Est.,Require external‑driver) | ||
| Driver IC | COF Bonded, 12 source chips | ||
| Power Consumption | TBD (Depends on custom‑backlight assembly) | ||
| Signal Interface | 51 pins,0.5 mm V‑by‑One 8‑lanes (Special interface, NOT LVDS) | ||
| Supply Voltage | 12.0V (Typ.) | ||
| Touch Panel | Without Touch Function | ||
| Application Fields | Digital Signage (For custom‑LCM assembly only) | ||
| Operating Temperature | 0 ~ 50 °C | ||
| Storage Temperature | -20 ~ 60 °C | ||
