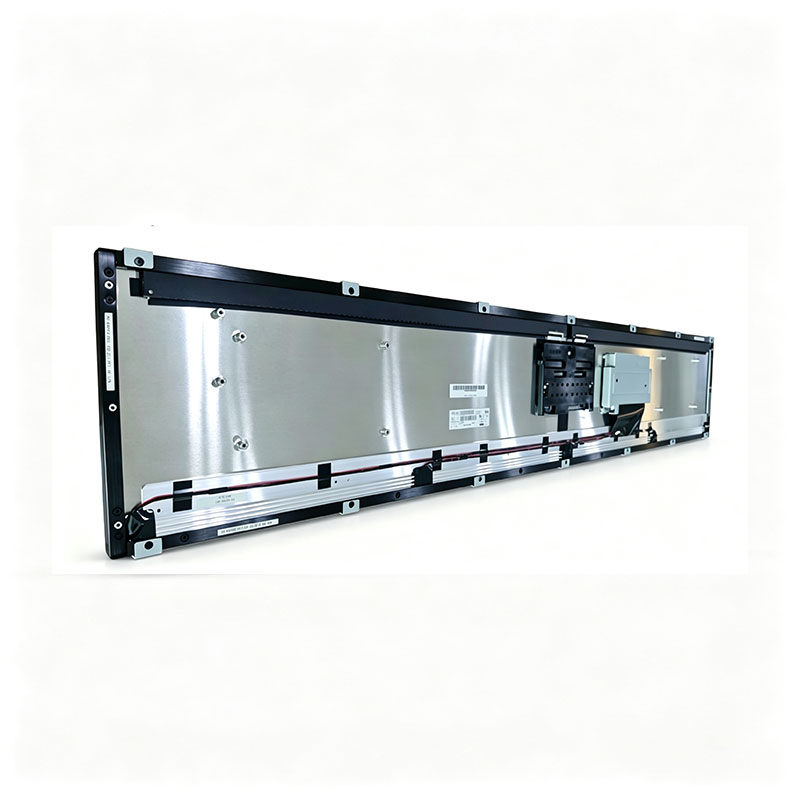

48.3" Custom Stretched Bar Display for Transit & Signage Applications

Model: DV483FBM-N10 | Native Ultra-Wide TFT-LCD Module

Overview

The DV483FBM-N10 is a 48.3-inch ultra-wide bar-type TFT-LCD module purpose-built for transit passenger information systems, retail shelf-edge signage, and industrial bar-display integration. Unlike panels produced by cutting a standard rectangular TFT into a bar shape, the DV483FBM-N10 is manufactured as a native stretched-bar panel — the cell is built to its final 6:1 aspect ratio from the array/cell stage, with no secondary glass-cutting step.

This distinction matters to engineers evaluating long-term reliability: there is no cut edge, no re-sealing process, and no cut-induced Mura risk to qualify. What you are evaluating is a standard production LCM with an unusual — but factory-native — form factor.

1. Engineering Feasibility & Integration Support

Interface compatibility — This module runs on a V-by-One 8-lane interface, not LVDS. Confirm your driver/control board selection early in the design cycle; HITULCD provides the matched V-by-One controller board recommendation and pin-out documentation on request to avoid a signal-mismatch redesign.

Mechanical drawings for evaluation — To assess fit into your chassis, bezel, or housing, our engineering team requests: target cut-out/bezel drawing, mounting method (VESA, bracket, or frame-bonded), installation orientation, and any front-glass or optical-bonding requirements. We return a DWG/STEP outline drawing and mechanical fit confirmation before sampling.

Optical bonding & cover lens — If your application (e.g., outdoor bus stop signage, kiosk) requires a cover lens, we support open-cell supply for your own bonding process, or full optical bonding (OCA) done in-house — confirm which at RFQ stage, as it affects lead time and MOQ.

Custom bar sizes — For projects requiring a different bar length, aspect ratio, or resolution outside our standard range, our engineering team evaluates array-layout and gate/source driving constraints at the design stage and shares a feasibility report, including estimated NRE, before committing to tooling.

2. Reliability, Environmental Testing & Optical Quality

• No cut-edge sealing required on the standard DV483FBM-N10 — the panel ships as a fully sealed, factory-native cell, eliminating the leakage and moisture-ingress risks associated with post-cut UV-glue sealing processes.

• Environmental qualification: standard reliability testing includes high/low temperature storage and operation (per the -20°C~60°C / -30°C~80°C ratings above), damp heat (double-85) testing, thermal shock cycling, and vibration/drop testing appropriate to transit and industrial duty cycles. Full test reports are available for review under NDA.

• Optical consistency: because there is no cut edge, there is no cut-induced light leakage or localized color shift at the panel boundary — brightness and color uniformity are qualified across the full active area under standard incoming-quality inspection.

• For projects that do require custom-cut or reworked panels (e.g., modifying an existing standard-size panel), our team can separately quote a cut-panel engineering path — including cutting method (mechanical wheel-cut vs. laser-cut), edge tolerance, and re-sealing process — as a distinct SKU with its own reliability data set.

3. Cost, Lead Time & Production Scale

For fully custom configurations (non-standard bar length, custom cutting, custom optical stack), NRE and first-sample lead time are quoted per project after the mechanical/electrical feasibility review in Section 1 — typically confirmed within the same RFQ cycle as the drawing exchange. Expected production yield and volume MOQ for custom-cut configurations are shared at quotation once cutting method and panel source are confirmed.

4. Certifications & Compliance

CE · FCC · RoHS (standard) — UL / CCC / EAC available on request. REACH and WEEE documentation provided for EU import compliance. Production test and inspection records available for buyer review prior to shipment.

5. Commercial Terms

• Incoterms: EXW / FOB / CIF

• Payment: T/T (standard for bulk orders), L/C (large-volume), PayPal (buyer-protected samples), O/A (long-term partners)

• Supplier of record: Shenzhen Hantu Jiashi Technology Co., Ltd. (Est. 2014) — business registration and legal representative available for verification against Chinese government registries.

Typical Applications

Bus / rail passenger information displays · digital signage stretched bars · retail shelf-edge and floor information bars · industrial control panel integration · gas station terminal displays.

Next Step for Engineering Teams

Send your target bezel/cut-out drawing, required interface (confirming V-by-One controller compatibility), brightness/optical requirements, and target volume. HITULCD's engineering team returns a mechanical fit review and formal quotation, typically within the same RFQ cycle.
