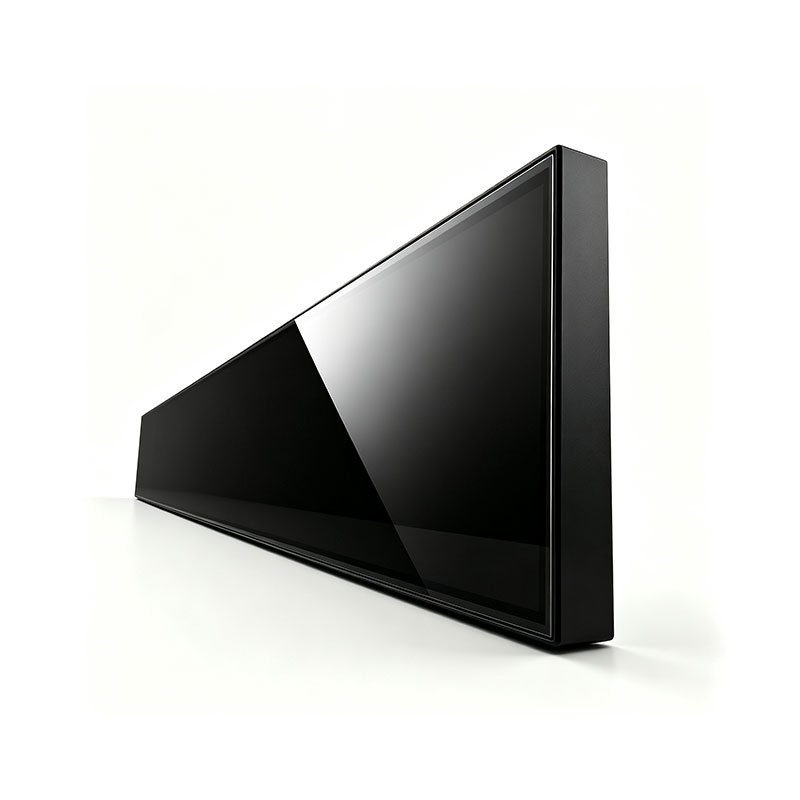

48.5" Stretched Bar TFT LCD for Transit Display Systems

Custom-Cut Ultra-Wide Panel | 1920×360 | High-Brightness | OEM/ODM

1. Product Overview

The 48.5" Stretched Bar TFT LCD is an ultra-wide, high-brightness display panel engineered for public transportation applications — bus and rail arrival boards, in-vehicle passenger information displays (PIDs), platform screens, airport gate strips, and digital wayfinding signage. Its elongated 48:9-class aspect ratio (1920×360) fits narrow architectural and vehicle-mounted recesses where a standard 16:9 panel cannot be installed, while preserving full HD-equivalent horizontal resolution for text and route information.

This panel is available as a cuttable/resizable base model, allowing us to trim the glass on one axis to match a customer's exact enclosure dimensions — a common requirement for transit operators replacing legacy displays or standardizing on non-catalog form factors.

2. Why Transit Integrators Choose This Panel

• Fits where standard panels can't — purpose-built for bus interiors, rail platform recesses, elevator door headers, and station signage channels.

• Sunlight-readable performance — 1,000-nit baseline covers covered platforms and shop-window-level ambient light; higher-brightness direct-lit variants are available for uncovered, direct-sun installations.

• Engineered for continuous duty — rated for 24/7 operation without thermal throttling, matching the uptime requirements of public transit infrastructure.

• OEM-ready customization — cuttable on one axis to match your exact chassis or enclosure dimensions; custom aspect ratios are available for OEM orders of 50+ units.

3. Technical Feasibility & Custom-Cutting Process

We understand that engineering teams evaluating a custom-cut panel need clear answers before committing to a design. Below is how we approach the technical questions our overseas partners most commonly raise during the RFQ stage.

3.1 Cutting Method & Tolerance

• Two cutting technologies are available depending on target dimension, tolerance, and edge-quality requirements:

• Mechanical wheel (scribe-and-break) cutting — cost-effective for straightforward, larger-tolerance cuts.

• Ultra-fast laser cutting — recommended for tight-tolerance cuts, thinner glass, or cut lines close to the active display area, as it produces a cleaner edge with reduced micro-crack risk.

• Final tolerance and recommended method are confirmed after reviewing the customer's target outline dimensions and mechanical drawing.

3.2 Trace & Circuit Clearance Review

• Before confirming feasibility, our engineering team checks whether the proposed cut line intersects the panel's Gate/Source driving lines or the active TFT array area.

• To complete this review, please provide:

• Target cut dimensions (with tolerance) and desired active area, ideally as a dimensioned drawing (DWG/DXF/PDF acceptable)

• Mounting/bezel constraints and viewing-area requirements

• Interface requirements (LVDS/VGA/HDMI) and connector orientation, if cutting near the FPC/driver side

• Based on this input, we return a feasibility confirmation indicating whether the cut is achievable without impacting active pixels, and where the practical cut-line boundary sits.

3.3 Edge Quality Standard

• Post-cut edges are inspected against defined flatness and chip/micro-crack tolerance limits before proceeding to sealing.

• Edges falling outside spec at inspection are rejected prior to the sealing stage, protecting downstream reliability performance.

4. Sealing Process & Reliability Assurance

4.1 Edge Sealing (Anti-Leakage / Moisture Protection)

• Cut edges undergo a secondary sealing process to protect against liquid-crystal leakage and moisture ingress — typically UV-cure dispensed sealant applied along the cut edge, with process parameters adjusted to panel thickness and cut-edge geometry. Alternative sealing methods can be discussed for specific customer reliability targets.

4.2 Reliability Testing

• Cut-and-sealed modules can be qualified against consumer-grade or industrial-grade reliability protocols, depending on the target deployment environment. Typical benchmark testing includes:

• 85°C/85% RH (double-85) high-temperature, high-humidity soak testing

• High/low temperature cycling (thermal shock)

• Structural drop testing

• Test reports and benchmark data from comparable cut-panel projects are available for review under NDA upon request — please let us know your target test standard (e.g., IEC/EN transit or industrial display standards) so we can match reference data accordingly.

4.3 Optical Performance After Cutting/Sealing

• Cut-and-sealed edge zones are inspected for light leakage and color shift (Mura) as part of final optical QC, to confirm the sealing process has not introduced visible non-uniformity at the panel border.

5. Cost, Yield & Lead Time

Exact NRE, sample lead time, yield benchmark, and MOQ figures are confirmed once we receive your target dimensions, tolerance, and drawing — we're happy to provide a written quotation and project timeline against your specification.

6. Applications

• Bus & rail arrival/departure information displays

• In-vehicle passenger information displays (PIDs)

• Platform and station wayfinding signage

• Elevator door header displays

• Airport gate and concourse status strips

• Retail shelf-edge and drive-through menu boards (shared platform, non-transit use)

7. Next Steps for Your Project

To move your project from inquiry to feasibility confirmation, please share:

1. Target outline dimensions and active area (drawing preferred: DWG/DXF/PDF)

2. Required tolerance and mounting/enclosure constraints

3. Brightness and operating environment (indoor / covered outdoor / direct-sun outdoor)

4. Target reliability standard and sample quantity for first article

5. Expected annual volume, for MOQ and pricing guidance

Our engineering team will return a feasibility assessment, recommended cutting method, and project timeline based on your specification.

This document is intended for engineering and procurement evaluation purposes. Final specifications, test data, and commercial terms are confirmed in a formal quotation following technical review.
