43~75 Inch Single/Double Sided Hanging High Brightness Window Display
MODEL: WD(430-750)T-3
SERVICES
- Accountability: Every unit ships standard with CE/FCC/RoHS certification. UL/CCC/EAC certification can be arranged upon request — additional cost and lead time apply depending on the specific standard; please contact us for a quote before ordering.
- Return Policy: 12-month warranty with remote troubleshooting first, followed by free replacement and expedited reshipment once a hardware fault is confirmed.
- Lead Time: 2–3 weeks for standard products, 4–6 weeks for custom orders, and 6–8 weeks for bulk orders of 500+ units, with clear scheduling confirmed before order placement.
- Customer Support: 24/7 engineering support with a direct WhatsApp link on the website, ensuring fast responses across time zones without waiting on email.
- Production Capacity: Monthly production capacity: 12,000+ units (customizable specs), supporting both small-batch prototyping and large-volume orders.
- Inventory & Lead Time Assurance: We maintain safety stock of common panel sizes and standard components to buffer against supply chain fluctuations. For repeat orders, we offer scheduled/forecasted production slots to guarantee on-time delivery.
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesTechnical Specifications
43~75 Inch Single/Double Sided Hanging Window LCD Display
| Product Name | Size(Inch) | Model No. | Product Image | Color & Lead Time Remark | Hardware Spec Description |
|---|---|---|---|---|---|

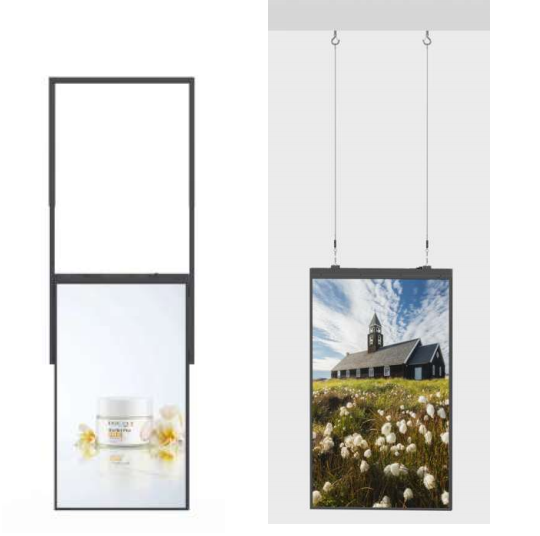

| High Brightness Window Digital Signage Single/Double Side Hanging OD10 Version T-3 Series | 43 | WD430T-3 |  | 1. Color option: 43"/55" available in RAL7024 Gray + Gloss Black + Gloss White; 49"/65" only RAL7024 Gray. 2. 20 sets panel in stock. 3. 7~10 days lead time after customer mainboard confirmation. 4. Custom other colors: MOQ 20pcs, lead time 15 days. 5. 75" no stock available. | 1. OD10 backlight solution, brightness:700±250 nits 2. Total unit thickness:57mm 3. Wide temperature glass recommended for high brightness surface 4. Customer-supplied mainboard is recommended 5. Two hanging options: aluminum profile mount or steel wire suspension 6. Without tempered glass |
| 49 | WD490T-3 | ||||
| 55 | WD550T-3 | ||||
| 65 | WD650T-3 | ||||
| 75 | WD750T-3 |

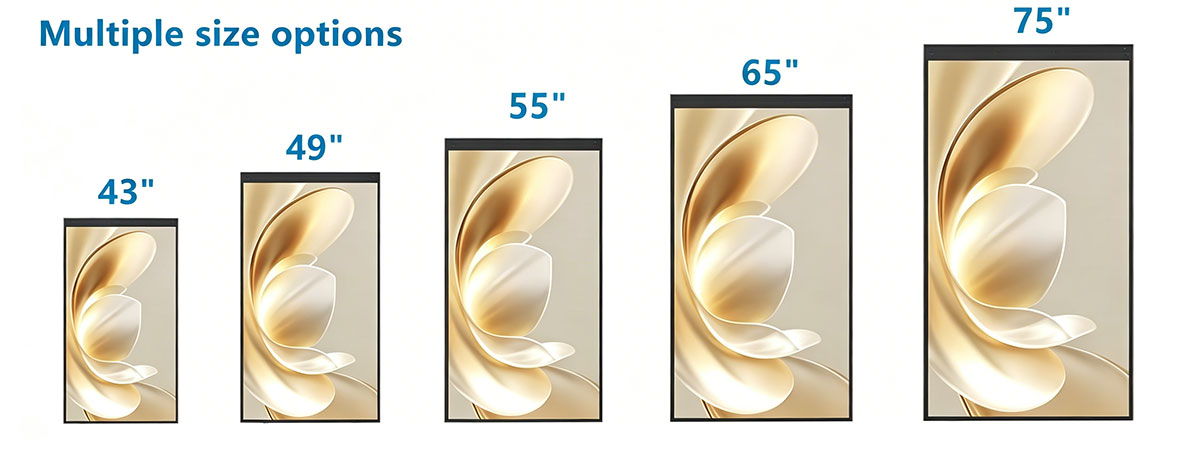

43~75" Specifications
| Specifications | Model: T-3 | |||||
|---|---|---|---|---|---|---|
| Category | Item | 43" | 49" | 55" | 65" | 75" |
| Panel | Display Size(inch) | 43" | 49" | 55" | 65" | 75" |
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 3840×2160 | 3840×2160 | |
| Active Display Area(mm) | 942×530.4 | 1075×605 | 1210×680.8 | 1429×804 | 1651.2×930.2 | |
| Aspect Ratio | 16:09 | 16:09 | 16:09 | 16:09 | 16:09 | |
| Brightness(cd/m²) | 700+3000nit | 700+3000nit | 700+3000nit | 700+3000nit | 700+3000nit | |
| Contrast Ratio(Typ.) | 1200:1 | 1200:1 | 1200:1 | 1200:1 | 1200:1 | |
| Viewing Angle(H/V) | 178/178 | 178/178 | 178/178 | 178/178 | 178/178 | |
| Color | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | |
| Response Time(G-to-G) | 6ms | 6ms | 6ms | 6ms | 6ms | |
| Operation Hour | 24/7 | 24/7 | 24/7 | 24/7 | 24/7 | |
| Sound | Loud Speaker | 5W, 8Ω (2 sets) | 5W, 8Ω (2 sets) | 5W, 8Ω (2 sets) | 5W, 8Ω (2 sets) | 5W, 8Ω (2 sets) |
| Power | Type | Internal | Internal | Internal | Internal | Internal |
| Power Supply | AC 100 - 240 V~ (+/-10%),50/60 Hz | |||||
| Max Power Consumption[W/h] | 280 | 320 | 430 | 590 | 650 | |
| Sleep Mode Power | less than 0.5W | less than 0.5W | less than 0.5W | less than 0.5W | less than 0.5W | |
| Off Mode Power | less than 0.5W | less than 0.5W | less than 0.5W | less than 0.5W | less than 0.5W | |
| Mechanical Spec | Protection Glass | NO | NO | NO | NO | NO |
| Dimension(mm, L×W×H) | 1750*618.6*570(EX460) | 1887*693.6*570(EX460) | 2137*769.6*570(EX290) | 2301*892.6*640(EX280) | 2521.2*1019.1*640(EX287) | |
| Package Size(mm) | 1190*250*815 | 1340*250*890 | 1470*250*960 | 1660*230*1075 | 1880*235*1190 | |
| Net Weight(kg) | 21 | 33 | 35 | 46 | 56 | |
| Gross Weight(kg) | 28 | 41 | 44 | 58 | 70 | |
| Environmental | Screen Surface Temp Resistance | 100°C | 105°C | 110°C | 110°C | 110°C |
| Operating Temperature | 0°C ~ 50°C | 0°C ~ 50°C | 0°C ~ 50°C | 0°C ~ 50°C | 0°C ~ 50°C | |
| Operating Humidity | 10% ~ 80% | 10% ~ 80% | 10% ~ 80% | 10% ~ 80% | 10% ~ 80% | |
| Storage Humidity | 5% ~ 95% | 5% ~ 95% | 5% ~ 95% | 5% ~ 95% | 5% ~ 95% | |
| Android Media Player | Processor | RK3568 (2.0 GHz, octa core) | ||||
| RAM | 4G | |||||
| Flash | 32G | |||||
| USB | USB2.0 HOST(X2) | |||||
| LAN | 10M/100M Ethernet(Network version screen only) | |||||
| External Memory Option | 16G/32G/64G | |||||
| Multimedia Format | Video(MPG,AVI,MP4,RM,RMVB,TS),Audio(MP3,WMA),Image(JPG,GIF,BMP,PNG) | |||||
| Media Resolution | 1920*1080 / 3840*2160 | |||||
| Wi-Fi | 802.11b/g/n Ethernet(Network version screen only) | |||||
| Operating System | Android 11 | |||||
| Certification | Safety Certificates | CE, ROHS, IP66, PSE | ||||
| Accessories | Items Included | Scheduling software, Remote control, Key, Power cable, SD card | ||||
| Quality Assurance | 1 Year (2-3 years optional) | |||||
| Packaging Type | Carton box/honeycomb box + wooden case | |||||
CUSTOM DISPLAY SOLUTIONS
We can customizeyour features based onyour reguirements.
Standard Package
1. st layer: plastic protective film,
2.nd layer: Honeycomb carton;
3. rd layer: wooden box

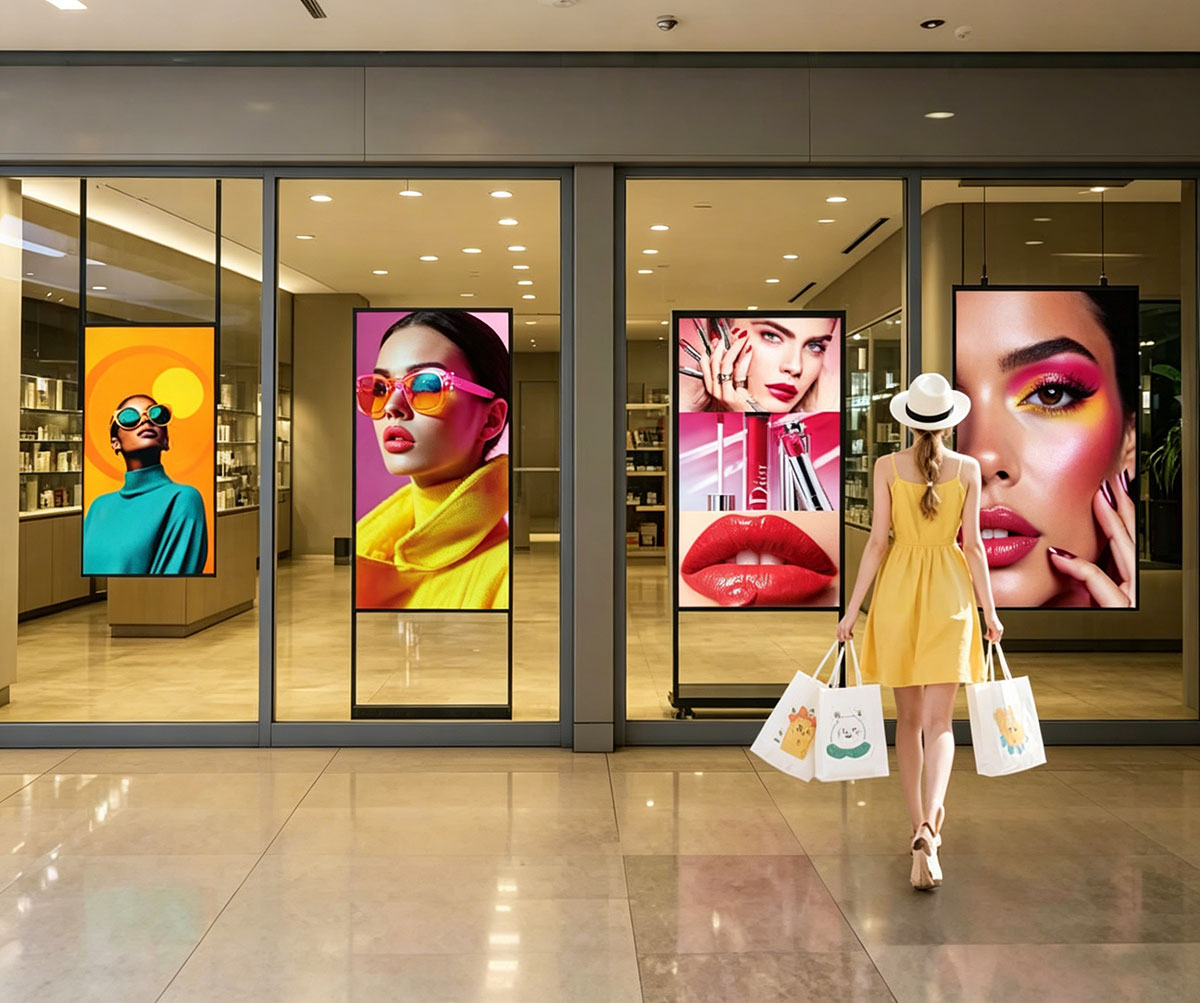

Double Sided High Brightness Window LCD Display
Double-Sided Display
Visual Innovation and Traffic Engine for Street-Facing Scenes
Designed specifically for the shop window, this double-sided display completely redesigns the interactive logic of commercial display by colliding art aesthetics with cutting-edge technology.
It is not only a “strong display” capable of handling complex lighting environments,
but also transforms the window from a static display into a dynamic flow entrance,
injecting core kinetic energy into the retail scene for efficient customer engagement and conversion.
Breakthrough Double-Sided Design
Redefining the Visual Experience

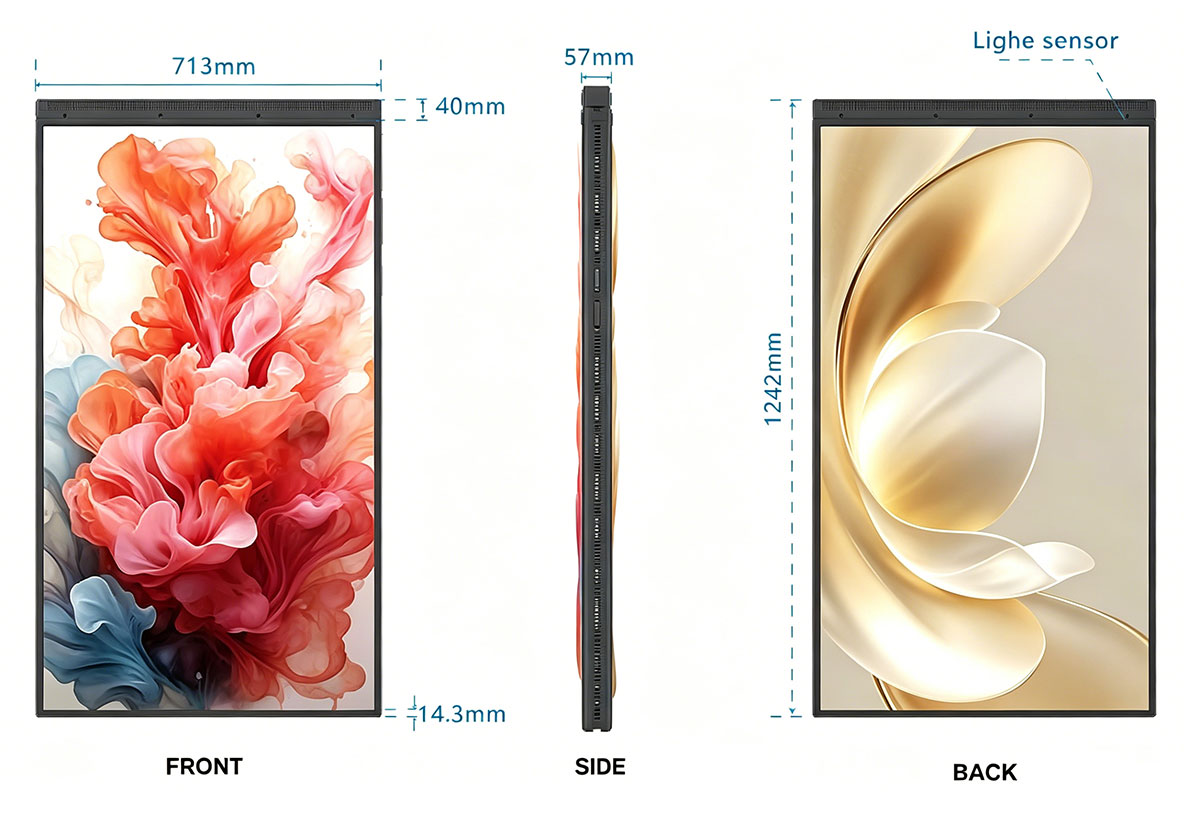

The breakthrough double-sided design reshapes the visual experience. The ultra-thin body thickness of only 57mm and ultra-narrow frame outline the integrated smooth lines.
The dual screen inside and outside realizes flexible scene presentation
Covers multiple use scenarios and broadens the audience dimension
Becomes the high-end benchmark of window display

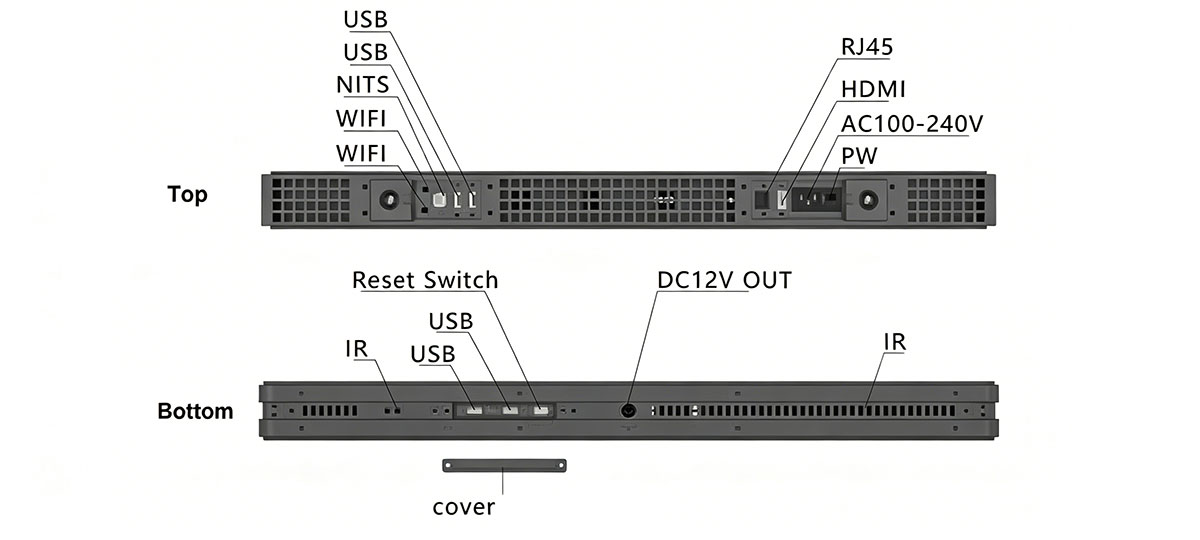

CONNECTIVITIES
The interface is rich and compatible with most of the market's motherboard models, facilitating function expansion for customers.
Premium Aluminum Structure
The core structure of the fuselage is made of high-purity aluminum, offering the advantages of efficient heat conduction, excellent heat dissipation, and lightweight portability.
The surface is polished with a high-quality bright powder spraying process, creating a finish that is mirror-transparent with a delicate and smooth touch.
Special coating provides super scratch resistance
Effectively resists daily wear and long-term use
Maintains the original premium texture over time
Every detail reflects Seiko-inspired high-end craftsmanship

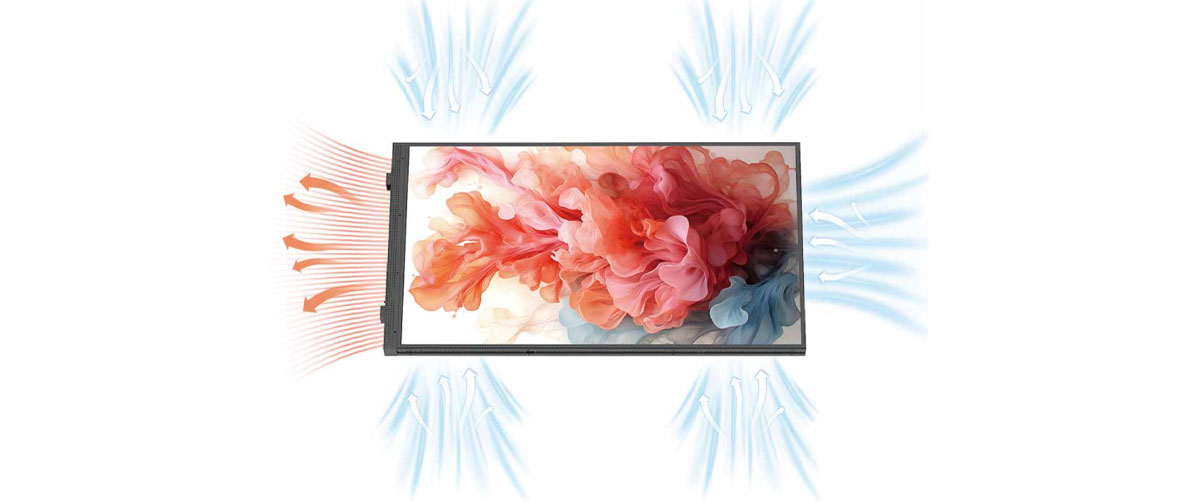

Intelligent Temperature Control System
The system builds a precise temperature control mechanism: when the body temperature reaches 45℃, the fan automatically starts, while the ultra-low noise design ensures a quiet and undisturbed operating environment.
If the temperature rises to 65℃, the power board automatically switches to 70% power output, achieving thermal balance through intelligent control of the backlight temperature. When the temperature drops, the power immediately returns to normal, ensuring stable and safe operation.

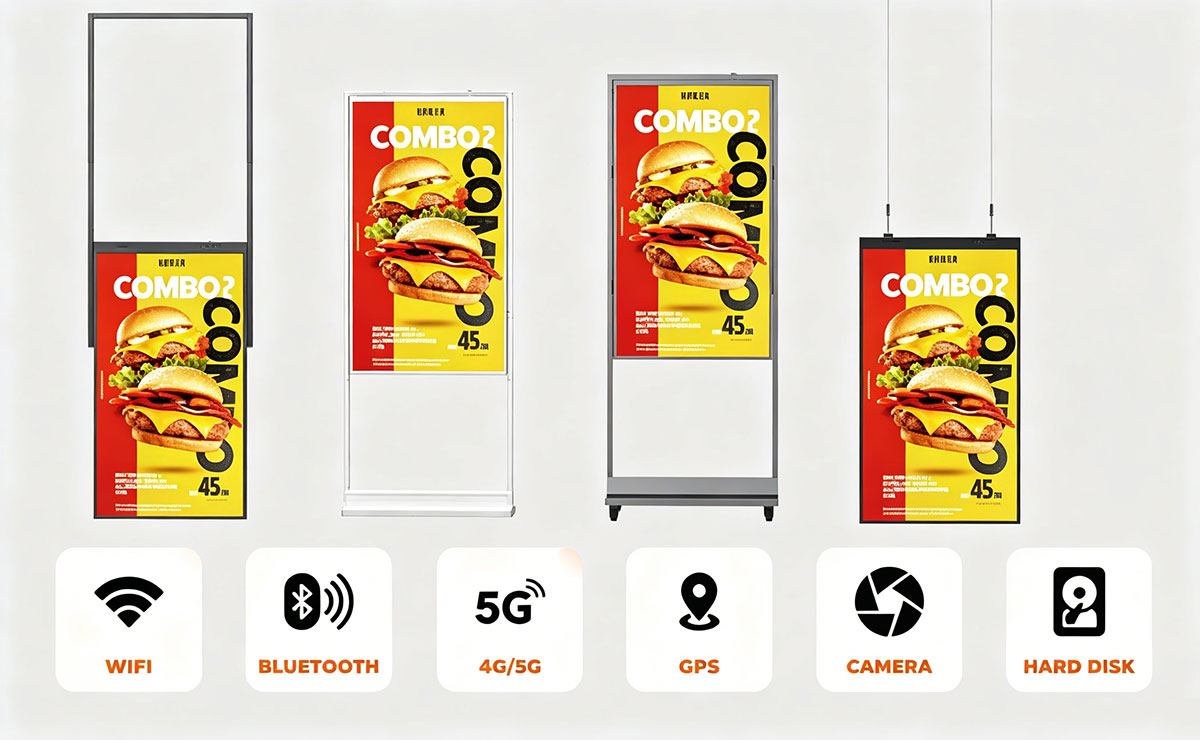

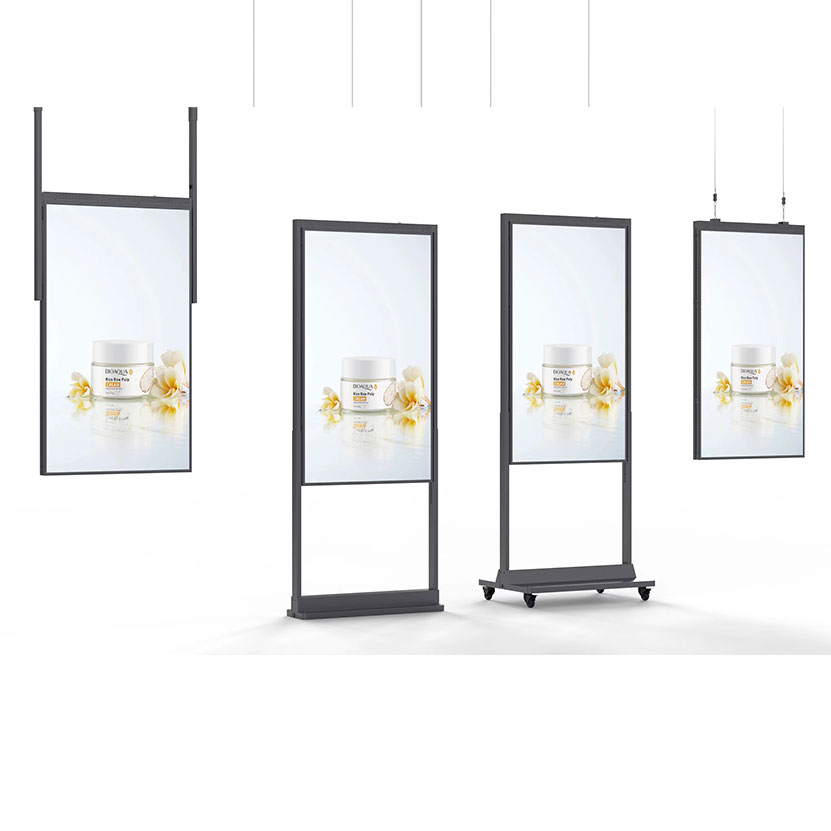

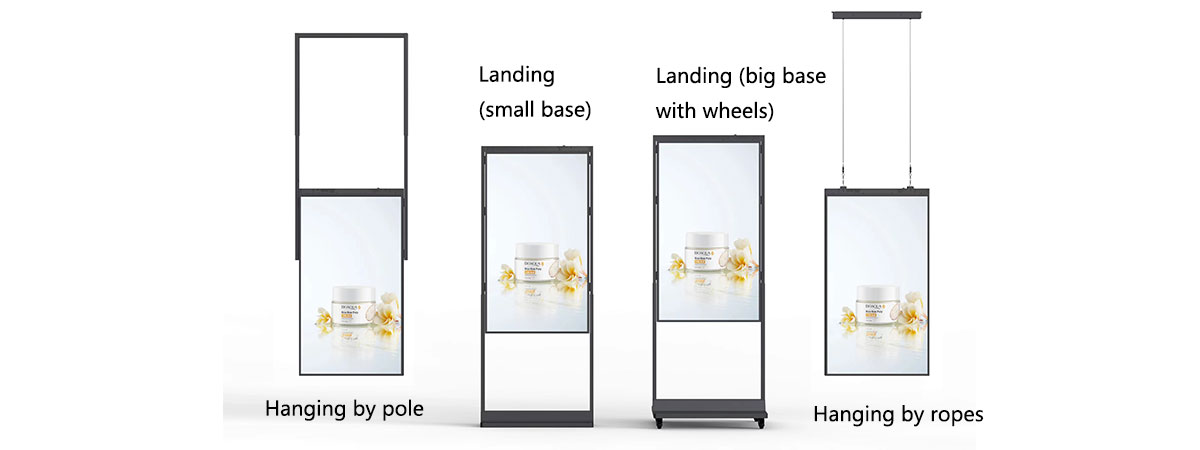

Flexible Installation Solutions

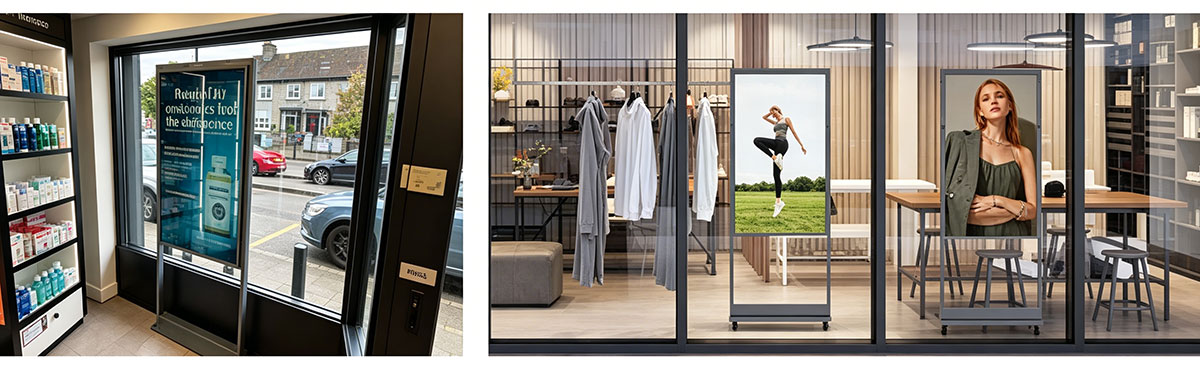

Multiple installation options seamlessly adapt to commercial windows, art galleries, and more.
Supports stable ground placement
Compatible with wall-mounted extension
Enables airborne suspension installation
Every angle and structure is designed to maximize display impact
Digital visuals blend technological precision with aesthetic charm, breaking spatial boundaries and delivering a unique visual presence across all application scenarios.

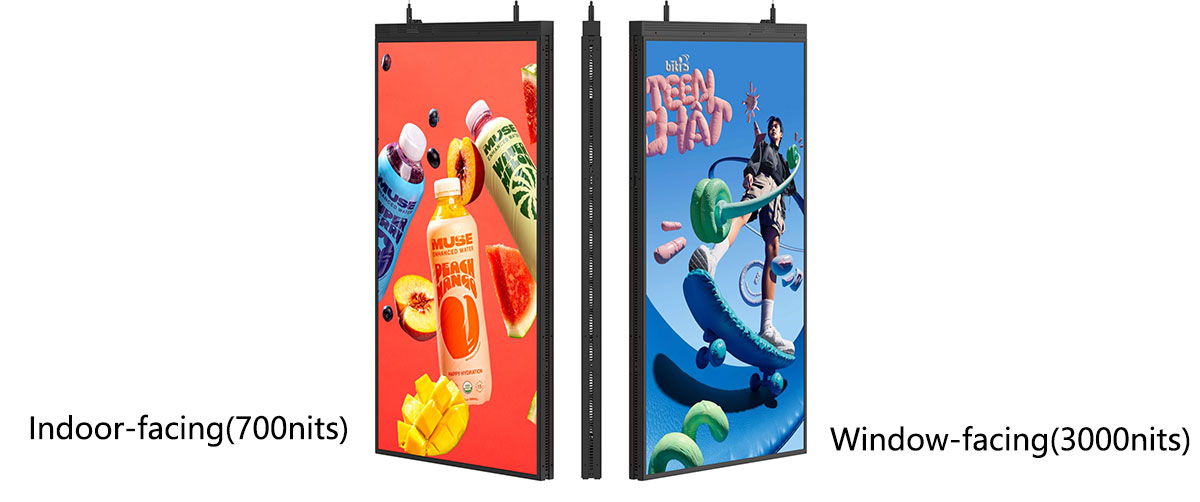

High Visibility Under Strong Sunlight
The window display features an outstanding 3000 nits ultra-high brightness, ensuring that content remains clear, vivid, and highly visible even under strong sunlight conditions.
Delivers excellent readability in outdoor and street-facing environments
Effectively attracts the attention of passers-by and potential customers
Enhances storefront exposure and improves visual marketing impact
