55 Inch Stretched Bar LCD Cutting Solution for OEM Custom Display Integration

Customized LCD Cutting Technology for Ultra-Wide Display Applications

In many commercial display projects, standard LCD panels cannot meet the installation requirements due to limited space, special viewing angles, or unique product designs.

HITULCD provides professional 55 inch LCD cutting solutions for OEM and ODM customers who require customized ultra-wide display formats. By precisely cutting and modifying large-size LCD panels, we help system integrators transform conventional displays into stretched bar LCD modules suitable for retail signage, transportation displays, industrial equipment, and custom digital signage applications.

Our engineering team supports the complete development process, including display dimension analysis, panel selection, cutting feasibility evaluation, electrical adaptation, structural integration, and mass production.

Why LCD Cutting Is Required for Custom Display Projects

Many applications require a display ratio that is not available from standard LCD manufacturers.

Common challenges include:

• Limited installation height but sufficient horizontal space

• Need for ultra-wide advertising content

• Integration into existing mechanical structures

• Replacement of multiple small displays with one seamless screen

• Custom display dimensions for OEM products

A 16:9 commercial display often creates unnecessary unused space in specialized environments. A stretched bar LCD solution allows manufacturers to maximize the visible area while maintaining a slim and integrated product design.

HITULCD 55 Inch LCD Cutting Process

1. Original Panel Evaluation

Before starting a cutting project, HITULCD engineers analyze the original LCD panel structure, including:

• Glass substrate size

• Active display area

• TFT layout

• Driver IC position

• FPC connection location

• Backlight structure

• Optical performance requirements

Not every LCD panel is suitable for cutting. Our engineering team selects panels based on application requirements and production feasibility.

2. Precision LCD Panel Cutting

The cutting process requires high accuracy to maintain display reliability.

Key engineering considerations include:

• Cutting position accuracy

• Edge processing quality

• Glass stress control

• Protection against panel cracking

• Dust and contamination prevention

After cutting, the display area is optimized according to the customer's required aspect ratio and mechanical dimensions.

3. Driver and Electronics Adaptation

After LCD modification, the display electronics may require adjustment.

HITULCD supports:

• T-CON board customization

• Timing parameter adjustment

• LVDS/eDP interface adaptation

• Signal compatibility testing

• Firmware configuration

This ensures the customized bar display works correctly with the customer's existing control system.

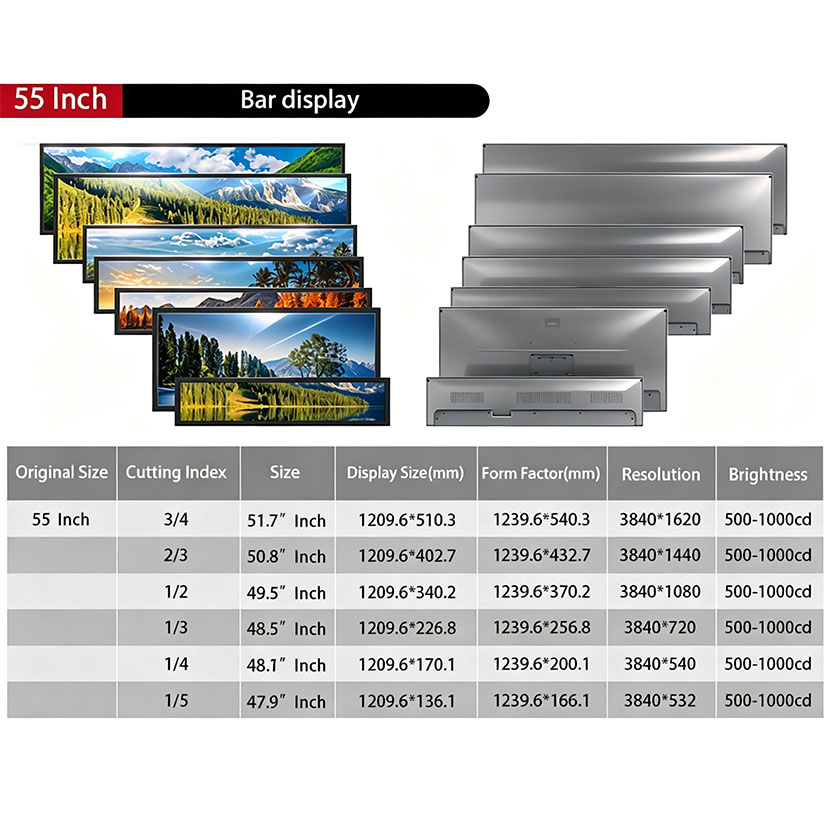

Customized 55 Inch Stretched Bar Display Options

Based on different project requirements, HITULCD can provide various customization options:

Aspect Ratio Customization

Available formats include:

• 3:1 ultra-wide display

• 4:1 stretched display

• 8:1 panoramic display

• Customer-defined dimensions

The final display size depends on the original panel structure and application requirements.

Brightness Enhancement

For bright environments such as storefront windows and transportation areas, standard LCD brightness may not be sufficient.

HITULCD can provide:

• 700 nits

• 1000 nits

• 1500 nits+

• Custom high brightness solutions

Options include customized LED backlight systems and optical enhancement.

Mechanical Integration

For OEM equipment manufacturers, the LCD module can be customized with:

• Open frame structure

• Metal frame assembly

• Custom mounting holes

• Protective glass

• Touch panel integration

• Complete display housing

This allows customers to directly integrate the display into their final products.

Applications of 55 Inch LCD Cutting Solutions

Retail Digital Signage

Used for:

• Storefront window advertising

• Shelf-top promotional displays

• Brand information systems

• Shopping mall advertising platforms

The ultra-wide format provides a cleaner visual experience compared with multiple small displays.

Transportation Information Display

Suitable for:

• Airport information boards

• Railway station displays

• Metro information systems

• Passenger guidance terminals

The stretched format matches many long horizontal installation spaces.

Industrial Equipment Display

Applications include:

• Factory monitoring systems

• Industrial control terminals

• Machine interfaces

• Automation equipment displays

Customized dimensions help equipment designers maintain compact product structures.

Smart Kiosk Solutions

For kiosk manufacturers, LCD cutting technology enables:

• Customized screen placement

• Unique product appearance

• Improved user interaction design

• Reduced enclosure limitations

OEM Development Workflow

Project Requirement Analysis

Customers provide:

• Required display dimensions

• Installation environment

• Brightness requirements

• Interface requirements

• Annual quantity forecast

HITULCD engineers evaluate technical feasibility.

Prototype Verification

Before production:

• Engineering samples are produced

• Display parameters are tested

• Mechanical compatibility is verified

• Customer approval is completed

Mass Production

After approval:

• Production specifications are fixed

• Quality standards are established

• Assembly consistency is controlled

• Long-term supply support is provided

Engineering Considerations for LCD Cutting Projects

LCD cutting is not simply a mechanical process. A successful customized display requires coordination between:

• LCD panel structure

• Optical design

• Driver electronics

• Mechanical integration

• Thermal management

• Production reliability

HITULCD combines display engineering experience with OEM manufacturing capability to provide reliable stretched bar LCD solutions for global industrial and commercial customers.

Develop Your Customized 55 Inch Stretched Display With HITULCD

If your project requires a non-standard display size, ultra-wide format, or special installation design, HITULCD can evaluate the feasibility and provide a complete OEM/ODM solution.

From initial concept verification to volume production, our engineering team supports customers with customized LCD cutting, display optimization, and integration services.
