High Brightness Display Solution

For Projects Where Display Quality Is Part of the Product

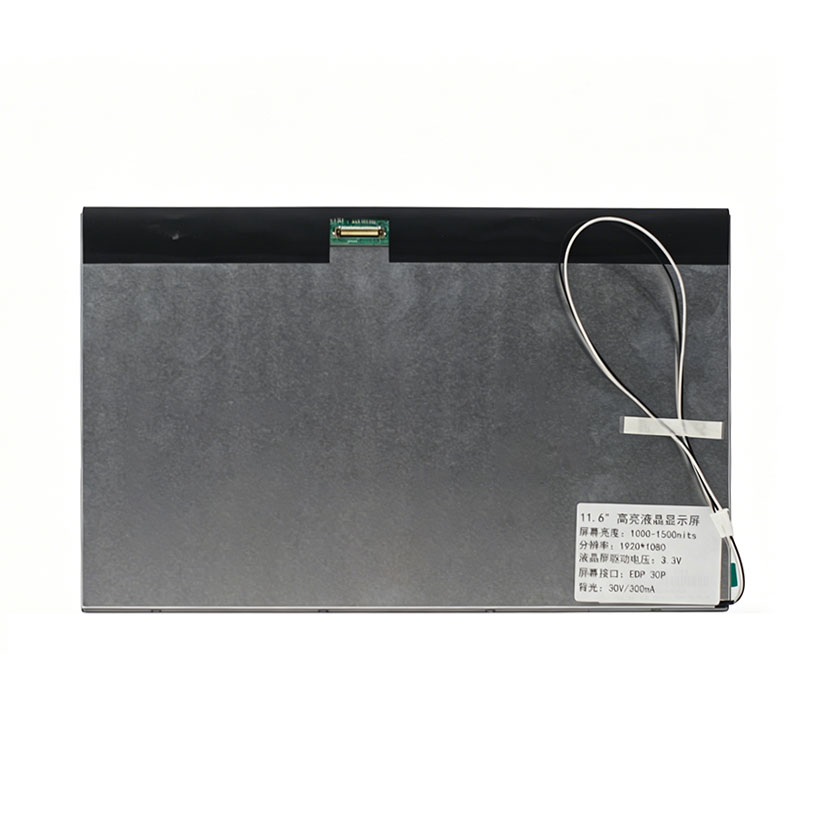

Reference Platform: HT116FHD-1000 — 11.6" High-Brightness TFT LCD (1000 nits, FHD, 190 PPI)

The Problems You're Actually Solving For

Most "high brightness display" sourcing requests are about surviving harsh light. This one is often about something harder to spec on a datasheet: the screen is the first thing the end customer touches, and it has to look premium — while still surviving outdoor or industrial-adjacent conditions.

None of these are "how bright is it" problems. They're perceived quality and integration fit problems — and they're what this platform is built to solve.

How the Platform Solves Each One

1. Full HD resolution at 190 PPI — display quality that reads as premium1920×1080 resolution at 11.6" delivers meaningfully sharper text and graphics than the lower-PPI panels typical of industrial-grade displays at this size — relevant anywhere the display is customer-facing or data-dense.

2. 72% NTSC color gamut — accurate, vivid renderingNoticeably better color fidelity than standard-gamut industrial LCDs, supporting applications where color accuracy affects usability (medical readouts, diagnostic displays) or brand perception (retail, self-service terminals).

3. 6.1mm panel profile, 0.5KG weight — fits where thicker panels can'tSlim mechanical footprint supports modern, space-constrained enclosure designs and portable equipment without forcing an industrial-design compromise around the display module.

4. eDP interface with HDMI / VGA / DP input supportCompatible with current-generation controller boards and graphics sources, reducing integration friction versus legacy LVDS-only panels.

5. 8W power consumptionLower thermal and power footprint than comparable high-brightness panels, relevant for battery-assisted, portable, or thermally-constrained equipment.

Application Case Studies

Case 1 — Premium Self-Service Retail Terminal

Challenge: A retail kiosk manufacturer needed a display sharp and color-accurate enough to represent a premium consumer brand, while still holding up to window-facing ambient light in-store.Approach: FHD panel specified for crisp UI rendering, 1000-nit brightness for window-facing readability, and slim mechanical profile integrated into a custom housing matched to the brand's industrial design language.Outcome: Display quality matched the brand's consumer-facing standard without a compromise on outdoor-adjacent readability.

Case 2 — Medical/Diagnostic Secondary Display

Challenge: A medical device integrator needed a secondary readout display sharp enough for detailed diagnostic data, in a housing too space-constrained for a thicker industrial panel.Approach: High-PPI FHD panel selected for readout clarity, 6.1mm profile integrated into the existing device housing without a mechanical redesign, and eDP interface matched to the device's controller architecture.Outcome: Diagnostic data legibility improved without requiring a larger enclosure.

Case 3 — Portable Field Equipment Display Upgrade

Challenge: A field equipment manufacturer's handheld unit needed better outdoor readability, but the existing panel's weight and power draw were already limiting battery life.Approach: Lightweight (0.5KG), low-power (8W) panel specified to replace the existing display without a battery capacity increase, with 1000-nit brightness added for outdoor field visibility.Outcome: Outdoor readability improved while preserving the unit's existing battery runtime.

Case 4 — Modern HMI Panel Upgrade

Challenge: An equipment OEM upgrading from an older LVDS-based control panel to a current-generation controller board needed a display interface that matched the new hardware without a custom adapter board.Approach: eDP-interface panel specified to match the new controller's native output, with DP/HDMI input options confirmed against the OEM's development hardware during spec review.Outcome: Interface compatibility confirmed before production, avoiding an unplanned adapter-board design cycle.

(Case narratives above are representative deployment scenarios based on this platform's technical profile — available with reference details on request.)

Why This Approach Reads as Professional to Your Stakeholders

• Spec decisions tied to actual requirements — resolution, color gamut, and interface choices map to a stated problem, not a catalog checkbox

• Design-conscious engineering — mechanical footprint treated as a real constraint, not an afterthought to brightness

• No certification ambush — compliance scope agreed before commitment

• Verifiable manufacturer — factory registration, ISO9001, and audit access on request

• Terms in writing before deposit — Incoterms, MOQ, and payment protection confirmed at quotation stage
