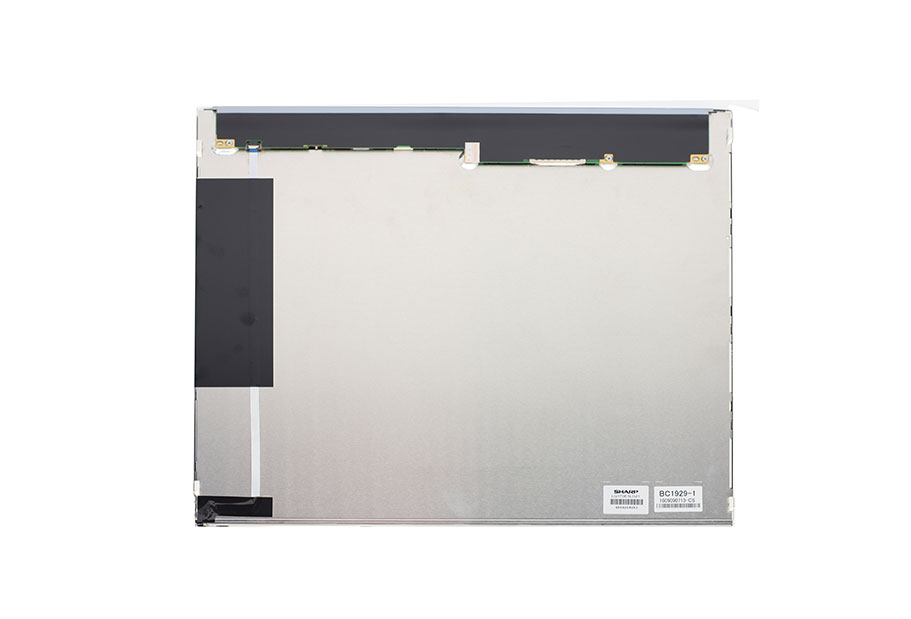

17 Inch 1000nits High Brightness Embedded Display Screen
MODEL: HT170FHD-1000
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesBuilt by us. Configured for you.
HITULCD supplies LCD modules and display solutions directly from our manufacturing operation, giving OEMs, integrators and distributors direct access to engineering, customization and production.
Supply
Supplier Qualification
VerificationTechnical Specifications
| LCD PANEL PARAMETERS | HDMI/CONTROL BOARD SPECIFICATIONS | ||
|---|---|---|---|
| ITEM | DETAILS | ITEM | DETAILS |
| Description | HITULCD 17" QLED QUANTUM DOT HIGH COLOR GAMUT 350CD | Input Interface | HDMI, VGA, |
| Size | 17 | Power Input | DC 12V-3A |
| Display area (mm) | 337.92×270.336 mm (H×V) | OSD KEYS | 5 KEYS (POWER SWITCH, MENU, +, -, EXIT) |
| Resolution | 1280*1024 | OSD CONTROL | BRIGHTNESS, COLOR, CONTRAST, AUTO ROTATION, H/V POSITION, ETC. |
| Aspect ratio | 5:4 | ||
| Contrast ratio | 1000:1 | ||
| Pixel per inch (PPI) | 96 | ||
| Viewing angle | 160(H),160(V) | ||
| Display Colors | 16.2M, 72% NTSC | ||
| Response time(Typical) | 8ms | ||
| Signal Type | LVDS (2 ch, 8-bit) 30pins | ||
| Backlight | WLED, 30K hrs, With LED Driver | ||
| Power consumption | 25W | ||
| Dimensions (mm) | 358.5×296.5×13.4 mm (H×V×D) | ||
| Mounting | VESA | ||
| Bezel size (U/B/L/R) | 10/10/13/13 | ||
| Operating temperature | -20℃~+70℃ | ||
| Storage temperature | -30℃~+70℃ | ||
| Weight (Net) | 1.2KG | ||
OEM/ODM Display Solutions
Full-Scope Customization, Engineered In-House
Not a Reseller. A Manufacturing Partner.
Most "custom display" suppliers are trading companies routing your specs through a factory they don't own. HITULCD is the factory. Every stage — panel sourcing, optical bonding, backlight design, driver board development, mechanical enclosure, and final assembly — happens on our own production line in Shenzhen. When your engineering team sends a spec, it goes directly to the people who build the product, not through a sales layer that has to relay questions back and forth for a week.
This matters most when a project doesn't fit a datasheet. If you need a non-standard brightness, a custom cutout, a specific connector pinout, or a mechanical fit that no catalog product will ever match, that's an OEM/ODM conversation — and it's the core of what we do.
What "Full Customization" Actually Covers
Optical & Panel Level
Brightness engineering from standard panels up to 3000nits, achieved through backlight redesign rather than simple overdriving — so long-term reliability isn't sacrificed for peak nits.
Custom sizing via mechanical wheel cutting or ultra-fast laser cutting, with pre-cut feasibility review against the panel's Gate/Source routing and TFT array before any commitment is made.
Cover lens and touch panel optical bonding (OCA/OCR), anti-glare, anti-reflective, and anti-fingerprint coatings, and sunlight-readable optical stacks for outdoor deployment.
Aspect ratio, resolution, and color gamut selection across LCD, QLED (quantum dot), and OLED panel technologies.
Electrical & Interface Level
Driver/control board redesign for HDMI, VGA, DisplayPort, LVDS, eDP, and MIPI interfaces, including projects that require re-binding or IC changes after custom cutting.
Power input customization (voltage range, connector type, PoE where applicable) to match your existing chassis or power architecture rather than forcing you to adapt to ours.
Touch technology selection — capacitive (PCAP), resistive, or IR touch — matched to gloved-hand, wet-environment, or industrial-glove use cases.
Mechanical & Structural Level
Custom bezel dimensions, VESA mounting patterns, embedded/open-frame/enclosed housing formats, and IP-rated sealing for dust or moisture exposure.
Structural design for shock and vibration environments — transportation, kiosks, outdoor terminals — validated against drop-test and vibration benchmarks before mass production.
Firmware & OSD Level
OSD menu customization (brightness, color, contrast, rotation, language) and logo/boot-screen branding.
Auto-brightness sensor integration for ambient-light-adaptive displays in transportation, retail, and outdoor advertising applications.
Engineering Process, Not Just a Quote
A recurring frustration we hear from procurement teams is being asked to commit before anyone has actually confirmed the design is feasible. Our process is built to front-load that risk instead of hiding it in the contract:
Feasibility Review — Send your drawings, target spec, and (for cut-panel projects) the original panel's outline drawing. Our engineering team reviews routing conflicts, mechanical fit, and optical impact before quoting, typically within 1–2 business days.
NRE & Sample Quotation — A clear, itemized quote covering tooling, driver board redesign (if applicable), and sample cost — not a placeholder number that changes after deposit.
First Sample Build — Small-batch samples (commonly ~20 units for cut-panel or structurally modified projects) for your team to validate against real-world integration, not just a spec sheet.
Reliability Validation — Environmental and structural testing (double 85°C/85%RH humidity, thermal shock, drop test) run at the same tier as your end product, with data shared under NDA so your quality team can sign off with evidence, not assurances.
Pilot Run → Mass Production — Yield and cost are re-confirmed after pilot run, before final MOQ and production scheduling are locked in.
Manufacturing Scale That Backs the Engineering
Design capability means little without the capacity to deliver it on schedule.
| Monthly production capacity | 12,000+ units, spanning small-batch prototyping to large-volume orders |
| MOQ | As low as 1 unit for standard specs; custom brightness, size-cutting, or bezel design confirmed at quotation — not after deposit |
| Lead time | 2–3 weeks standard products / 4–6 weeks custom orders / 6–8 weeks bulk orders (500+ units) |
| Safety stock | Maintained on common panel sizes and standard components to buffer supply chain disruption |
| Repeat orders | Scheduled/forecasted production slots available to guarantee on-time delivery |
Compliance Your Buyers Can Rely On
Every unit ships standard with CE / FCC / RoHS certification. UL, CCC, and EAC can be arranged on request where your target market requires it — quoted separately, confirmed before order placement, so there's no certification gap discovered after the container has shipped. ISO9001-certified manufacturing, REACH and WEEE compliance, and factory audit documentation are available for your ESG and supplier due diligence.
We're a registered manufacturing entity in China (Shenzhen Hantu Jiashi Technology Co., Ltd.), operating since 2014, with our registered address and business status publicly verifiable through Chinese government business registries — not just a self-reported "About Us" page.
Who This Is Built For
Design engineers who need a partner that can review a mechanical drawing and tell you why something won't work before you've spent three weeks on it.
Procurement managers who need firm NRE, MOQ, and lead time numbers in writing before a deposit — not a range that expands once you're committed.
Project leads integrating displays into transportation, medical, retail, outdoor advertising, or industrial equipment, where a catalog panel is close but not close enough.
Start With Your Drawing, Not a Sales Call
Send your target specification — size, brightness, interface, mechanical constraints, and (for panel modification projects) the original panel's outline drawing. Our engineering team will respond with a feasibility assessment within 1–2 business days, directly, in writing.
