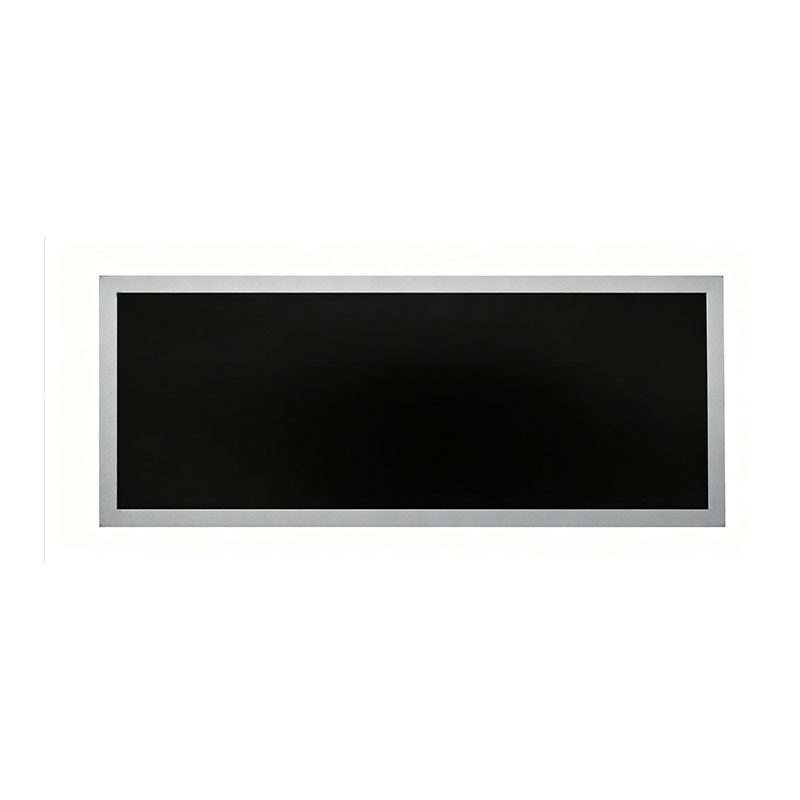

19.5 Inch Ultra Narrow Wide Aspect TFT Module
MODEL: HT195HBM
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesBuilt by us. Configured for you.
HITULCD supplies LCD modules and display solutions directly from our manufacturing operation, giving OEMs, integrators and distributors direct access to engineering, customization and production.
Supply
Supplier Qualification
VerificationTechnical Specifications
| LCD PANEL PARAMETERS | DRIVER BOARD SPECIFICATIONS | ||
|---|---|---|---|
| ITEM | DETAILS | ITEM | DETAILS |
| Model Number | HT195HBM | Input Interface | LVDS, 60 Pins |
| Brand | HITULCD | Signal Type | LVDS |
| Product Series | 21.5" Cut Panel Series | OSD KEYS | Depends on LVDS controller |
| Diagonal Size | 19.5" Cut Stretched Bar (Cut from 21.5" Panel, 1/2 Cut) | OSD CONTROL | Depends on LVDS controller |
| Resolution | 1920 × 540, Aspect Ratio 3.56:1 (>3:1) | ||
| Product Category | Graphic Type Display | ||
| Panel Type | a‑Si TFT‑LCD, Complete LCM Module | ||
| Physical Shape | Flat Rectangle | ||
| Display Area (A.A) | 476.64(W) × 134.06(H) mm | ||
| Overall Dimension | 506.64(W) × 164.06(H) mm | ||
| Max Thickness | 20 mm | ||
| LCD Technology | IPS, Transmissive Polarizer | ||
| Typical Brightness | 1000 NITS (Customizable: 300~1000 NITS) | ||
| Transmissive Contrast Ratio | Not specified | ||
| Viewing Angle | 89°/89°/89°/89°(Min.)(L/R/U/D) | ||
| Viewing Direction | Full Viewing Angle | ||
| Display Colors | 16.7M Colors | ||
| Backlight Type | WLED | ||
| Touch Panel | Without Touch Function | ||
| Application Fields | Digital Signage, Cut Stretched Bar Displays | ||
| Operating Temperature | 0 ~ 50 °C | ||
| Storage Temperature | -20 ~ 70 °C | ||
OEM / ODM Custom Bar LCD Display Solutions — Cut to Your Exact Size
Your space is not standard. Your display shouldn't be either.We turn standard TFT-LCD panels into custom-size stretched bar displays, engineered around your enclosure, your environment and your project schedule — from first drawing to volume delivery.
Custom cut-to-size bar LCDs · 8" to 88" platform range · Up to 1,000 nits · OEM/ODM from 20 pcs · CE / FCC / RoHS
1. The Problem We Solve
Standard monitors come in a handful of fixed shapes. Real projects don't.
| Your challenge | What usually happens | What we deliver |
|---|---|---|
| The recess, shelf edge or door is only 60–120 mm tall | No off-the-shelf panel fits | A bar display cut to your exact length and aspect ratio |
| Custom panel development takes 6–12 months and high tooling cost | Project delays, budget overruns | Cut-to-size on a proven panel platform, in weeks |
| Low or medium volume (tens to a few hundred units) | Panel makers refuse the MOQ | OEM/ODM from 20 pcs |
| Harsh environment: transit, outdoor-adjacent, cold storage | Consumer-grade screens fail | Industrial-grade brightness, temperature and sealing options |
In short: any bar size your project needs, within the physical limits of the panel platform — engineered, validated and delivered with documentation.
2. What "Any Size" Means in Practice
We start with a mainstream TFT-LCD panel and re-shape it to your target dimensions.
| Dimension | Capability |
|---|---|
| Base panel range | 8" – 88" (platform dependent) |
| Bar diagonal / length | Custom, cut on one axis to your target active area |
| Aspect ratio | From approx. 4:1 up to 32:1 and beyond, subject to feasibility |
| Orientation | Landscape or portrait |
| Cutting tolerance | ±0.2 mm (mechanical) / ±0.1 mm (ultra-fast laser), typical |
| Resolution | Native panel resolution on the retained area, or custom timing and scaling via the control board |
Each request is reviewed by an engineer. If your target is beyond what the panel routing allows (Gate/Source lines, TFT array, seal-line, driver IC position), we tell you early and propose the closest workable alternative — before you commit to any cost.
3. Our OEM / ODM Service Scope
OEM — Build to Your Specification
You provide the drawing and requirements; we manufacture to print.
Cut-to-size panel, custom bezel, private label, custom packaging
Your brand on the product, carton and documentation
Controlled BOM with change-notification and long-term supply planning
ODM — We Engineer It With You
You describe the application; we design the solution.
Feasibility review and recommended panel/backlight/cutting method
Mechanical design: frame, brackets, cabinet-embedding low-profile structure
Electrical design: driver board, interface, power, touch and media player integration
Thermal, optical and reliability engineering, including cover glass and bonding selection
Configurable options
| Category | Options |
|---|---|
| Brightness | 500 / 700 / 1,000 nits; direct-lit high-brightness series for sunlight-readable use |
| Touch | Projected capacitive, multi-touch, glove/water-tolerant |
| Glass & bonding | Tempered cover glass, AR / AG / AF coating, optical bonding |
| Interfaces | HDMI, LVDS, eDP, USB, RS-232, RJ45, DC IN |
| Compute | Android / Linux media player board, CMS-ready, remote content management |
| Environment | Standard, wide-temperature (-20 °C to 70 °C), high-humidity variants |
| Mechanical | Custom outline, color, mounting, thin bezel, cabinet-embedding profile |
4. Cutting Technology & Quality Control
Two validated cutting methods
| Method | Advantages | Best for |
|---|---|---|
| Mechanical wheel scribing & breaking | Mature, cost-efficient, high throughput | Volume projects with standard tolerance |
| Ultra-fast (picosecond) laser cutting | Minimal micro-cracking, tight tolerance, clean edge | Precision, narrow-bezel and shaped-edge designs |
Protection of the panel after cutting
Layout check: the cut line is verified to avoid Gate/Source routing, TFT array and seal-line regions
Edge inspection: magnified check for chipping and micro-cracks
Secondary sealing: UV-curable, low-outgassing sealant dispensed on the cut edge to protect against moisture and liquid crystal leakage
Optical check: light leakage, color shift and Mura verified at multiple gray levels
Reliability plan (typical reference)
| Test | Condition |
|---|---|
| High temperature / high humidity | 85 °C / 85% RH, 500 h |
| Thermal shock | -30 °C ↔ 80 °C, 100 cycles |
| High / low temperature storage | 80 °C / -30 °C, 240 h |
| Vibration | 10–500 Hz, 3 axes |
| Drop / shock | Packaged, per ISTA / IEC 60068-2-31 |
Project-specific test reports are available on request.
5. From Idea to Mass Production — Our Process
| Step | What happens | Typical time |
|---|---|---|
| 1. Inquiry | Send drawing, target size, brightness, interface, quantity | Day 0 |
| 2. Feasibility review | Engineer confirms cut line, method, panel choice | 3–5 working days |
| 3. Quotation & approval drawing | Price, NRE, 2D/3D drawing, spec sheet | With step 2 |
| 4. Engineering samples | Sample lot (e.g. 20 pcs) built and tested | 15–25 working days |
| 5. Customer validation | You test fit, optics and reliability; we adjust if needed | Customer-defined |
| 6. Pilot run | Process and yield verification | 1–2 weeks |
| 7. Mass production | Batch production, 100% functional test, QC report | 30–45 days after PO |
| 8. Delivery & support | Export packaging, shipping, warranty and after-sales | Per Incoterms |
6. Commercial Terms
| Item | Typical terms |
|---|---|
| MOQ | OEM/ODM from 20 pcs; custom aspect ratios from ~50 pcs |
| NRE | Project-based, quoted after drawing review; usually waived or credited against qualifying volume |
| Sampling | Free feasibility review; paid or credited engineering samples |
| Design yield target | ≥ 95% for cutting and sealing stages, verified in pilot run |
| Warranty | 12–24 months, by agreement |
| Payment | T/T, L/C or as agreed |
| Incoterms | EXW, FOB, CIF, DAP, DDP |
| Documents | Datasheet, approval drawing, RoHS/CE/FCC certificates, test report, packing list |
| Confidentiality | NDA available before drawings are shared |
7. Applications Where Custom Bar Displays Win
Retail: shelf-edge price and promo strips, refrigerated-door displays, checkout signage
Public transport: bus, metro, tram and rail passenger information headers
Elevators & buildings: car and lobby advertising, pillar and wall-recess signage
Industrial HMI: machine status bars, control-panel and instrument strips
Vending, kiosk & ATM: slim promotional and information displays
Hospitality & entertainment: hotel, casino, gym and exhibition signage
8. Why Partner With Us
Engineering first: feasibility and drawings before any commitment
Low barrier: OEM/ODM from 20 pcs, no minimum "big-brand" volume required
Speed: cut-to-size on proven panel platforms avoids long custom-panel development
Documented quality: in-process inspection, reliability data and traceability
Compliance-ready: CE, FCC and RoHS certified; additional certificates supported
One-stop: panel, cutting, sealing, driver board, touch, bonding and assembly under one roof
9. FAQ
Q1. Can you really make any size?We can cut to virtually any length on the free axis of a suitable panel. The limit is the panel's internal routing and driver-IC position, not a fixed size list. We confirm feasibility in writing before you pay for tooling.
Q2. What do you need to start?A mechanical drawing or target dimensions, required brightness and interface, operating environment, annual volume and target date.
Q3. Is a cut panel as reliable as a standard panel?With proper edge inspection and UV secondary sealing, cut panels follow the same reliability plan as our standard bar displays, including 85/85 and thermal shock. Reports are available on request.
Q4. Is there an NRE charge?Custom projects normally include a one-time NRE, usually waived or credited against mass-production orders.
Q5. Can you support my own brand and packaging?Yes. Private label, custom color, logo, manual and carton are all available.
Q6. Can you sign an NDA?Yes, before any drawings or product plans are exchanged.
Q7. Do you support small trial batches?Yes. Start from 20 pcs and scale up after validation.
10. Send Us Your Drawing — Get a Feasibility Report in 3–5 Days
Tell us the size you need. We'll tell you how to build it.
Email: sales@hitulcd.comWebsite: www.hitulcd.com
Please include: project name · target dimensions or drawing · brightness · interface · quantity · application · destination country.
All specifications are typical and subject to change without notice. Final performance data is defined by the signed product specification and approval drawing.
19.5" Stretched Bar LCD Display — Cuttable, High-Brightness, OEM/ODM Ready
Engineered for engineers, procurement teams and project managers who need a non-standard form factor with predictable quality, documented processes and a clear path from sample to mass production.
CE / FCC / RoHS certified · Up to 1,000 nits · Industrial-grade operating range · OEM/ODM from 20 pcs · Free sample evaluation available
1. Product Overview
The 19.5" Stretched Bar LCD Display is an ultra-wide, TFT-based bar-type panel built for spaces where a standard 16:9 monitor simply does not fit: shelf edges, vehicle interiors, elevator fascias, cabinet doors, narrow architectural recesses and control-panel strips.
Based on a cuttable-panel platform, the display can be trimmed on one axis to a customer-defined length while keeping the same industrial driver board, backlight architecture and mechanical design language. This lets you achieve a project-specific aspect ratio without a fully new panel development.
Typical applications
| Sector | Use case |
|---|---|
| Retail | Shelf-edge price/promo strips, refrigerated-door displays, in-store digital signage |
| Transportation | Bus, metro, train and tram information headers; route and next-stop tickers |
| Vertical / Building | Elevator car and lobby advertising, pillar and wall recess signage |
| Industrial | Machine HMI strips, status/monitoring bars, control-panel integration |
| Vending & Kiosk | Slim promotional and information strips, ATM/POS accent displays |
2. Key Specifications
| Parameter | Standard Configuration |
|---|---|
| Diagonal size | 19.5 inch (bar format) |
| Typical resolution | 1920 × 540 (customizable) |
| Typical aspect ratio | 32:9 (custom ratios available for OEM projects) |
| Panel type | TFT-LCD, IPS/ADS wide-angle |
| Viewing angle | 178° / 178° (H/V) |
| Brightness | 500 nits standard; 700 / 1,000 nits optional |
| Contrast ratio | 1,000:1 – 3,000:1 (typical) |
| Color depth | 16.7M colors (8-bit) |
| Backlight | LED, edge-lit; typical lifetime ≥ 50,000 h |
| Input interfaces | HDMI / LVDS / eDP (per configuration) |
| Control / I/O options | USB, RS-232, RJ45, DC IN |
| Power supply | DC 12 V (typical) |
| Operating temperature | 0 °C to 50 °C standard; -20 °C to 70 °C industrial option |
| Storage temperature | -30 °C to 80 °C |
| Operating humidity | 10% – 90% RH, non-condensing |
| Orientation | Landscape or portrait, 24/7 operation supported |
| Optional features | Capacitive touch, optical bonding, AR/AG tempered cover glass, Android/Linux media player board, custom bezel & color |
| Certifications | CE, FCC, RoHS |
Specifications are typical values. Final values are confirmed in the product datasheet and approval drawing issued for your project.
3. Cutting Feasibility & Technical Process
Custom-length bar displays are only reliable if the cutting process is engineered around the panel — not applied on top of it. Below is how we approach every custom project.
3.1 Recommended cutting method
| Method | Best for | Notes |
|---|---|---|
| Mechanical wheel scribing & breaking | Standard cuttable panels, cost-sensitive volume projects | Mature, high throughput; typical dimensional tolerance ±0.2 mm |
| Ultra-fast (picosecond) laser cutting | Tight-tolerance, narrow-bezel or shaped-edge requirements | Minimal heat-affected zone and micro-cracking; typical tolerance ±0.1 mm; higher unit cost |
The method is selected during engineering review based on your target length, tolerance, bezel width and volume. Both are validated on your sample lot before mass-production release.
3.2 Gate / Source routing & TFT array protection
Cutting is only permitted on the panel axis that is free of active-area routing. During feasibility review our engineers verify that the requested cut line:
Does not intersect Gate or Source fan-out routing
Stays outside the TFT array and the seal-line (sealant) region with a defined safety margin
Keeps the cut edge at a controlled distance from the driver IC / COF bonding area
Cuttable panel models are pre-selected for compatible layout (cut-on-one-axis architecture), which is why custom lengths can be achieved without redesigning the array.
3.3 Information we need to confirm feasibility
To issue a feasibility report and approval drawing (typically within 3–5 working days), please send:
Target outline dimensions and tolerance (mechanical drawing in PDF / DWG / STEP)
Required active area (AA) and resolution / aspect ratio
Preferred interface, input voltage and brightness
Operating environment (temperature, humidity, vibration, sunlight exposure)
Touch, bonding, cover glass or enclosure requirements
Estimated annual volume and target launch date
3.4 Edge quality standards
After cutting, glass edges are inspected under magnification against internal acceptance criteria:
Edge chipping and flatness controlled to typical limits of ≤ 0.2 mm chipping and no chip entering the seal or active area
No visible micro-cracks propagating toward the seal line (100% visual/AOI check in sample stage, sampling in mass production)
Optional edge grinding / polishing for exposed-edge designs and safer handling
4. Sealing & Reliability Assurance
4.1 Edge sealing process
A freshly cut glass edge exposes the cell gap, so moisture and liquid-crystal integrity must be protected. Our standard process:
Secondary sealing with UV-curable, low-outgassing sealant applied by automated dispensing
Controlled bead height and coverage, followed by UV cure and thermal post-cure
100% visual inspection of sealant continuity; leak and moisture-ingress checks on sample lots
4.2 Environmental & mechanical reliability testing
Cut-and-sealed modules follow the same reliability plan as our standard bar displays. Reference test conditions used for qualification:
| Test | Typical condition | Typical criteria |
|---|---|---|
| High temperature / high humidity (85/85) | 85 °C / 85% RH, 500 h | No display defect, no seal delamination or fluid leakage |
| High-temperature storage | 80 °C, 240 h | Functional pass, no visible change |
| Low-temperature storage | -30 °C, 240 h | Functional pass |
| Thermal shock | -30 °C ↔ 80 °C, 30 min dwell, 100 cycles | No cracks, no delamination, no Mura |
| Vibration | 10–500 Hz, random, 3 axes (transit profile) | Functional pass |
| Drop / mechanical shock | Packaged drop per ISTA / IEC 60068-2-31 | No glass cracking |
Project-specific test plans and full reports (including cutting-edge samples) are provided on request, and can be aligned with your own validation standard.
4.3 Optical performance after cutting
Light leakage: Edge light-leak is controlled with a light-shielding bezel/tape design and a defined backlight-to-cut-edge offset
Color shift and Mura: Every sample is checked at low, mid and high gray levels, full-white and full-black, with special attention to the cut-edge region
Bonding-ready: Optional optical bonding improves contrast and sunlight readability and provides additional edge protection
5. NRE, Sampling, Lead Time & Volume
| Item | Typical terms |
|---|---|
| Feasibility review & approval drawing | Free of charge, 3–5 working days |
| NRE (tooling / cutting fixture / engineering) | Project-based; quoted after drawing review. Usually waived or refunded against qualifying volume |
| Sample quantity | From 1 pc for evaluation; engineering sample lot of 20 pcs for custom cuts |
| Sample lead time | Approx. 15–25 working days after drawing approval |
| Mass-production lead time | Approx. 30–45 days after PO and pre-production approval |
| MOQ | OEM/ODM projects from 20 pcs; custom aspect ratio from ~50 pcs |
| Expected production yield | Design target ≥ 95% for cutting and sealing stages, verified on the pilot run |
| Warranty | 12–24 months, subject to agreement |
6. Customization Options
Size & aspect ratio: cut-to-length on one axis, custom AA and outline
Brightness: 500 / 700 / 1,000 nits; higher-brightness direct-lit series available for direct-sunlight use
Touch: projected capacitive, multi-touch, glove/water-tolerant options
Bonding & glass: optical bonding, AR / AG / AF coating, tempered cover glass
Control board: HDMI, LVDS, eDP, RS-232, RJ45, USB; Android or Linux media player
Mechanical: custom bezel, color, mounting brackets, cabinet-embedding low-profile frame
Environment: wide-temperature and high-humidity variants for transit and industrial
7. Why Buyers Choose Us
Engineering-led approach: feasibility and drawing review before any tooling commitment
Low barrier to start: OEM/ODM from 20 pcs and free sample evaluation
Documented quality: in-process inspection, reliability data and traceability on request
Compliance: CE, FCC and RoHS certified; further certificates supported
Supply reliability: stable panel sourcing, long-term availability planning and export-ready packaging
8. FAQ
Q1. Can you cut the display to any length?Within the feasible range set by the panel's routing and driver-IC location. We confirm the exact limits in the feasibility report.
Q2. Will the cut panel pass 85 °C / 85% RH testing?Yes, with the secondary UV sealing process described above. We share the test conditions and results for similar projects on request.
Q3. Do I need to pay NRE?Custom cutting projects normally carry a one-time NRE, which is usually waived or credited against mass-production orders.
Q4. Can the display run in portrait orientation and 24/7?Yes. Both orientations and continuous 24/7 operation are supported.
Q5. What documents can you provide during evaluation?Datasheet, approval drawing (2D/3D), test report, RoHS/CE/FCC certificates and packaging specification.
Q6. Which Incoterms and shipping options are available?EXW, FOB, CIF, DAP and DDP; air, sea and express, in export-standard cartons with foam protection.
9. Request a Quote or Free Sample
Send us your drawing, target dimensions, brightness, interface and quantity. Our engineers will reply with a feasibility assessment, approval drawing and quotation within 3–5 working days.
Email: sales@hitulcd.comWebsite: www.hitulcd.com
Please include: project name · target size / drawing · quantity · application · delivery country.
All specifications are typical and subject to change without notice. Final performance data is defined by the signed product specification and approval drawing.
Know The Terms Before You Inquire.
|
01 — Shipping Terms
Incoterms Available
EXW
Ex Works — pick up from our factory
FOB
Free On Board — most common for ocean freight
CIF
Cost, Insurance & Freight — to your port
|
02 — Order Minimum
MOQ: 1 Units
Applies to standard specs. Custom brightness, cutting or bezel may adjust MOQ, confirmed at quotation. Sample units available before bulk order
|
03 — Payment Protection
Multiple Secured Methods
|
A Real Factory. Publicly Verifiable.
|
Legal Company Name
Shenzhen Hantu Jiashi Technology Co., Ltd.
|
Unified Social Credit Code
91440300306068446B
|
|
Legal Representative
YUN CHEN
|
Registered Capital
RMB 2,000,000
|
|
Established
May 23, 2014 (11+ years operation)
|
Business Status
● Active / In Operation
|
|
Registered Factory Address
Building B, Gangshen Innovation Park, Huaning Road, Dalang Sub-district, Longhua District, Shenzhen, Guangdong, China
|
|
Contact HITULCD
We'll respond via email within 24 hours. If you'd like to discuss details over WhatsApp or a call, please leave a preferred time and contact method in your message — we will never call you unannounced.
Related solutions
This product is suitable for the following industry application scenarios
Floor Information Bar LCD Display Solution
Ultra-wide, high-brightness stretched bar LCD disp...
view
Convenience Store Bar LCD Display Solution
Ultra-slim, high-brightness stretched bar LCD disp...
view
Bus Passenger Information Stretched Bar Display Solution
A rugged, ultra-wide stretched bar display solutio...
viewRelated Products
You may also be interested in the following products
