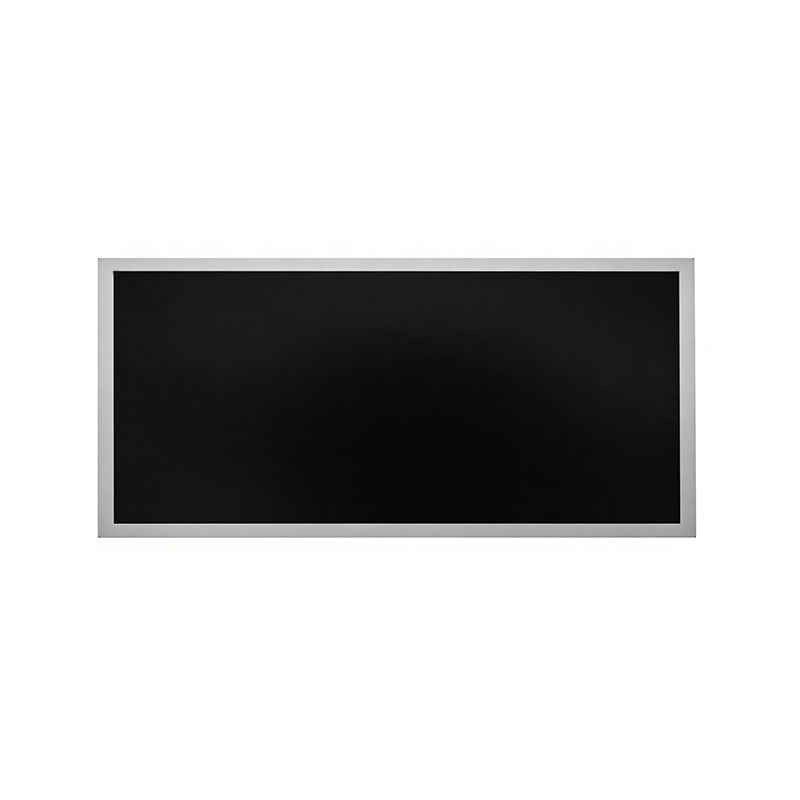

20 Inch Stretched LCD TFT Module
MODEL: HT200HBM
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesBuilt by us. Configured for you.
HITULCD supplies LCD modules and display solutions directly from our manufacturing operation, giving OEMs, integrators and distributors direct access to engineering, customization and production.
Supply
Supplier Qualification
VerificationTechnical Specifications
| LCD PANEL PARAMETERS | DRIVER BOARD SPECIFICATIONS | ||
|---|---|---|---|
| ITEM | DETAILS | ITEM | DETAILS |
| Model Number | HT200HBM | Input Interface | LVDS, 30 Pins |
| Brand | HITULCD | Signal Type | LVDS |
| Product Series | 21.5" Cut Panel Series | OSD KEYS | Depends on LVDS controller |
| Diagonal Size | 20" Cut Stretched Bar (Cut from 21.5" Panel, 2/3 Cut) | OSD CONTROL | Depends on LVDS controller |
| Resolution | 1920 × 720, Aspect Ratio 8:3 | ||
| Product Category | Graphic Type Display | ||
| Panel Type | a‑Si TFT‑LCD, Complete LCM Module | ||
| Physical Shape | Flat Rectangle | ||
| Display Area (A.A) | 476.64(W) × 178.74(H) mm | ||
| Overall Dimension | 506.64(W) × 208.74(H) mm | ||
| Max Thickness | 20 mm | ||
| LCD Technology | IPS, Transmissive Polarizer | ||
| Typical Brightness | 1000 NITS (Customizable: 300~1000 NITS) | ||
| Transmissive Contrast Ratio | Not specified | ||
| Viewing Angle | 89°/89°/89°/89°(Min.)(L/R/U/D) | ||
| Viewing Direction | Full Viewing Angle | ||
| Display Colors | 16.7M Colors | ||
| Backlight Type | WLED | ||
| Touch Panel | Without Touch Function | ||
| Application Fields | Digital Signage, Cut Stretched Bar Displays | ||
| Operating Temperature | 0 ~ 50 °C | ||
| Storage Temperature | -20 ~ 70 °C | ||
OEM / ODM Display Integration Solutions
Any Size. Any Shape. One Engineering Partner, from Panel to Finished Display Module.
Off-the-shelf displays rarely match your enclosure, your brightness target or your interface. We do not ask you to redesign your product around a catalog part. We build the display around your product.
From a 5.5-inch industrial HMI to an 88-inch signage panel, and from a standard 16:9 screen to a 32:1 stretched bar, our engineering team designs, cuts, bonds, tests and delivers display solutions to your exact specification.
1. Why OEM / ODM Customers Choose Us
| Your challenge | Our answer |
|---|---|
| Standard sizes do not fit the enclosure | Custom-cut and custom-dimension displays, including ultra-wide stretched bar formats |
| Sunlight readability or outdoor use | High-brightness backlights up to 1,000 nits and beyond, with optical bonding |
| Harsh or variable environments | Wide-temperature configurations, anti-condensation bonding, reinforced sealing |
| Multiple suppliers to coordinate | One partner for panel, backlight, touch, cover glass, driver board and assembly |
| Long qualification cycles | Early DFM review, fast sampling, project-specific reliability validation |
| Supply continuity concerns | Stable panel sourcing, lot traceability and long-term supply planning |
| Compliance requirements in EU / US | CE, FCC Part 15, RoHS documentation; ISO 9001 quality system |
2. Size Range: Truly Custom
| Category | Typical range | Notes |
|---|---|---|
| Small / medium industrial displays | 5.5" – 27" | HMI, instruments, medical, kiosk, vending |
| Commercial displays | 18.5" – 55" | Retail, transit, elevator, cuttable bar formats |
| Large-format signage | 55" – 88" | Digital signage, video walls, high-brightness kits |
| Custom dimensions | Any active area and outline your design needs | Cut-to-size TFT, stretched bar and non-standard aspect ratios, subject to panel feasibility review |
Final size and aspect ratio depend on the source panel and a feasibility check of the routing, seal and driver areas. If your target size is not directly feasible, we propose the closest workable alternative.
3. What We Can Integrate
Display Core
TFT-LCD modules: IPS / ADS wide viewing angle, TN, custom resolution
Custom-cut and stretched bar LCD: aspect ratios 5:1 to 32:1
Open-cell and panel-level customization
Optical and Environmental Performance
High brightness: 300 to 1,000+ nits, edge-lit or direct-lit backlight redesign
Optical bonding (OCA / OCR): higher contrast, less reflection, no internal fogging
Anti-glare (AG), anti-reflective (AR), anti-fingerprint (AF) coatings
Wide-temperature versions for industrial and semi-outdoor use
Touch and Cover Glass
Projected capacitive (PCAP) touch: gloves, wet-finger and water-rejection tuning available
Chemically strengthened or tempered cover glass, 1.1 to 3.0 mm
Custom ink colors, logos, cut-outs and shapes
Electronics and Interface
Interfaces: LVDS, eDP, MIPI DSI, RGB, HDMI, VGA, AV
Custom driver / controller boards, including Android and Linux-ready boards
Custom FPC, cables and connectors; custom firmware and EDID / OSD settings
Mechanical and System Integration
Custom bezels, brackets and metal / plastic frames
Complete display kits and finished monitor-level assemblies
Private-label labeling, packaging and documentation
4. Typical OEM / ODM Applications
Retail and F&B: shelf-edge displays, cooler-door displays, self-order kiosks
Transportation: bus, metro, rail and station passenger information displays
Elevators and buildings: narrow-format fascia and architectural signage
Industrial automation and HMI: control panels, machine displays, test equipment
Medical and healthcare: monitors and equipment displays (requirements assessed per project)
Vending, ticketing and payment terminals
Outdoor-adjacent and vehicle-mounted displays: high brightness and wide-temperature designs
Digital signage and advertising: stretched, high-brightness and multi-panel installations
5. OEM vs. ODM: Choose Your Level of Support
| OEM (build to your design) | ODM (we design with you) | |
|---|---|---|
| You provide | Complete drawings and specifications | Application requirements and target specs |
| We provide | Manufacturing to your design with your branding | Concept, mechanical / optical / electrical design, prototype and production |
| Best for | Established product with a fixed design | New products, or existing products that need a better display |
| Ownership | Your design and your brand | Joint or customer-owned per agreement, under NDA |
Both models include private-label packaging, documentation and traceable production.
6. Our Development Process
Requirement review. Send drawings, size, resolution, brightness, interface, environment and volume.
DFM and feasibility (about 3 working days). We check the routing, seal margin, cutting method, backlight and mechanical fit.
Proposal and quotation. Proposal drawing, specification, NRE (if any) and unit price.
Prototype (samples from 20 pcs). Typically 15 to 20 working days after drawing approval; project dependent.
Validation. Optical, electrical and reliability testing on your protocol or ours.
Pilot run and mass production. Lot traceability, IQC / IPQC / final inspection.
After-sales and long-term support. Warranty service, change control and supply planning.
7. Quality, Compliance and Reliability
Certifications and compliance: CE (EU), FCC Part 15 (US), RoHS; ISO 9001 quality management
Reliability validation (reference profile, project specific): high / low temperature storage, 85 °C / 85% RH humidity, thermal shock, vibration and drop tests
Process control: 100% electrical and visual inspection; edge inspection for cut panels; secondary sealing (UV adhesive / moisture-barrier epoxy) for cut edges
Documentation: datasheet, drawings, RoHS / REACH declarations and test reports on request; NDA available
8. Commercial Terms
| Item | Information |
|---|---|
| Sample MOQ | From 20 pcs |
| Mass production MOQ | Flexible by project and volume tier |
| NRE / tooling | Quoted per project; often credited against production orders |
| Sample lead time | Typically 15–20 working days |
| Mass production lead time | Typically 4–6 weeks |
| Trade terms | EXW / FOB / CIF / DDP |
| Payment | T/T (other terms by agreement) |
| Warranty | 12 months standard; extended terms available |
| Confidentiality | NDA signed before drawings are exchanged |
9. FAQ
Q1. Can you really supply any size?We cover standard sizes from 5.5" to 88" and custom-cut dimensions and aspect ratios. Feasibility depends on the source panel, and we confirm it within about 3 working days of receiving your drawing.
Q2. Do you handle the whole display system, or only the panel?Both. We can supply a bare module, or a complete assembly with backlight, touch, cover glass, bonding, driver board and bezel.
Q3. What is the minimum order?Samples start at 20 pcs. Mass production MOQ is flexible.
Q4. Will you protect our design and IP?Yes. We sign an NDA before receiving drawings, and ownership terms are set in the project agreement.
Q5. Can you support our own qualification tests?Yes. We can run your test protocol during sampling and share the reports.
Q6. Do you support private label?Yes: labels, packaging, firmware defaults and documentation.
Start Your Custom Display Project
Send us your drawing, target size and application. Our engineers will reply within one business day with a feasibility assessment.
📧 Email: [your-email@example.com] 🌐 Website: www.hitulcd.com 💬 WhatsApp / WeChat: [your number]
[Request a Quote] | [Get a Free Sample Evaluation] | [Talk to an Engineer]
Specifications, lead times and terms are typical values and are confirmed in the project quotation and approved specification.
20-inch Stretched Bar LCD TFT Module
Custom-Cut, Ultra-Wide TFT Display for Retail, Transit, Elevator & Industrial OEM Projects
A stretched bar display delivers a panoramic, ultra-wide format (typically 5:1 to 32:1) in places where a standard 16:9 monitor simply will not fit: shelf-edge signage, bus and train interior information strips, elevator media, control-panel fascias and narrow architectural recesses.
Our 20-inch stretched bar TFT LCD module is engineered as a custom-dimension, engineering-supported solution. Active area, outline, brightness, interface and bonding are configured to your enclosure and environment. Every project starts with a DFM review by our engineering team, so mechanical, optical and reliability risks are identified before samples are built.
1. Key Features
Custom aspect ratio and active area: cut and re-engineered to your drawing (bar formats from 5:1 to 32:1)
Brightness options: standard 300–500 nits, high-brightness up to 1,000 nits
Wide viewing angle: IPS / ADS technology, 178° typical (H/V)
Interfaces: LVDS (typical) or eDP / MIPI DSI on request; HDMI / VGA / AV driver boards available
Touch options: projected capacitive (PCAP) with optical bonding, or non-touch
Optical bonding / air-gap options for sunlight readability and anti-condensation
Wide-temperature versions for industrial and outdoor-adjacent use
Compliance: CE, FCC Part 15, RoHS; produced under an ISO 9001 quality management system
Private label: custom firmware, bezel, packaging and labeling available
2. Technical Specifications
Values marked (typ.) are industry-standard reference values for this class of product. Final values are fixed in the customer-approved specification and datasheet for each project.
| Parameter | Specification |
|---|---|
| Base panel size | 20-inch class (custom-cut to customer active area) |
| Display type | TFT-LCD, a-Si TFT |
| Aspect ratio | Custom, 5:1 to 32:1 (typ.) |
| Resolution | Custom, matched to active area (e.g. 1920 × 360 / 1920 × 480, customer-defined) |
| Panel mode | IPS / ADS, Normally Black |
| Viewing angle | 178° / 178° (typ.) |
| Brightness | 300 / 500 / 1,000 cd/m² (option) |
| Contrast ratio | 1000:1 (typ.) |
| Color depth | 16.7M colors (8-bit RGB) |
| Response time | 25 ms (typ.) |
| Backlight | LED, edge-lit or direct-lit, ≥ 30,000 h (typ.) |
| Interface | LVDS (typ.); eDP / MIPI DSI (option) |
| Operating temperature | 0 to +50 °C (standard); −20 to +70 °C (wide-temp option) |
| Storage temperature | −30 to +80 °C (typ.) |
| Touch | None / PCAP (option) |
| Surface treatment | Anti-glare (AG) / Anti-reflective (AR) / Anti-fingerprint (AF) options |
| Cover glass | Optional 1.1–3.0 mm chemically strengthened or tempered glass |
| Certification | CE, FCC, RoHS |
| Warranty | 12 months standard (extended terms available) |
3. Custom-Cut Engineering: Answers to the Questions Engineers Ask Most
3.1 Process Feasibility and Cutting Method
Which cutting method do you use?The method is chosen per project based on glass thickness, tolerance and edge-quality requirements:
| Mechanical wheel cutting | Ultrafast laser cutting | |
|---|---|---|
| Typical use | Standard bar formats, cost-sensitive volume | Tight tolerance, narrow border, complex contours |
| Cut tolerance (typ.) | ±0.2 mm | ±0.05–0.1 mm |
| Edge quality | Good, followed by edge grinding | Very smooth, low micro-crack risk |
| Cost | Lower | Higher |
Will the cut interfere with the Gate / Source routing or TFT array area?This is the first thing we verify. The cut line must stay clear of the gate/source fan-out, the seal line and the driver-IC / COF bonding areas. Cutting is only feasible on the non-routing side, keeping a defined safety margin from the seal (typically ≥ 1 mm, confirmed per panel model). We will tell you clearly if your requested dimension is not feasible and propose the nearest workable alternative.
What do we need from you to confirm feasibility?
Mechanical drawing with target outline and active area (DXF / DWG / PDF / STEP)
Target resolution, aspect ratio and interface
Tolerance requirements and mounting scheme (bezel, frame, bonding)
Brightness, temperature range and environment (indoor, semi-outdoor, transit)
Touch / cover glass / optical bonding requirements
Estimated annual volume and target launch date
We return a feasibility report and a proposal drawing, typically within 3 working days.
Edge quality control
Edge chipping and micro-crack inspection under microscope (AOI plus sampling), with a defined chip-size acceptance limit per drawing
Edge grinding / chamfering where required to remove stress concentration
100% electrical and visual inspection after cutting
3.2 Sealing and Reliability
How is the cut edge sealed?After cutting, the exposed cell edge is protected with a secondary sealing process: precision-dispensed UV-curable adhesive, or a moisture-barrier epoxy where required, followed by full curing and inspection. This closes the cut edge against moisture ingress and liquid crystal leakage, and adds mechanical protection.
Reliability testingCut modules are validated against industrial-grade test profiles. Typical reference profile:
| Test | Typical condition | Criteria |
|---|---|---|
| High temperature storage | +80 °C, 240 h | No functional or cosmetic defect |
| Low temperature storage | −30 °C, 240 h | No functional or cosmetic defect |
| High temp. / high humidity ("85/85") | +85 °C / 85% RH, 240 h (or 60 °C / 90% RH, 500 h) | No edge delamination, mura or leakage |
| Thermal shock | −30 °C ↔ +80 °C, 100 cycles | No functional failure |
| Vibration | Random vibration per IEC 60068-2-64 | No structural or optical damage |
| Drop / shock | Packaged and unpackaged drop per project requirement | No breakage or leakage |
Project-specific test reports and data on comparable cutting projects are available under NDA on request. We can also run your own test protocol during the sampling stage.
Optical performance at the cut edgeLight leakage and color shift are controlled through edge polarizer alignment, light-shielding tape / black edge sealing, and backlight (light-guide and reflector) re-design for the new outline. Optical quality (edge light leakage, mura, uniformity) is checked and signed off on the first sample, before mass production release.
3.3 Cost, Lead Time and Production
| Item | Information |
|---|---|
| Sample MOQ | 20 pcs |
| Sample lead time | Typically 15–20 working days after drawing approval (project dependent) |
| NRE / tooling | Quoted per project based on cutting method and backlight / mechanical changes. Often credited against the mass-production order. |
| Mass production MOQ | Flexible; contact us for your volume tier |
| Target production yield | ≥ 95% (typ. for mature bar-format cutting; confirmed after pilot run) |
| Mass production lead time | Typically 4–6 weeks |
| Payment / trade terms | T/T, EXW / FOB / CIF / DDP available |
4. Typical Applications
Retail: shelf-edge displays, refrigerator and cooler-door strips, digital price labels
Transportation: bus, metro and train passenger information displays, station signage
Elevators and building signage: elevator fascia media and narrow architectural recesses
Industrial and HMI: control-panel status bars, machine information displays
Vending and kiosks: ticket and payment machines
Advertising: stretched digital signage and multi-panel installations
5. Customization Options
Size and aspect ratio, resolution and active area
Brightness up to 1,000 nits, custom backlight design
Interface and driver board (LVDS, eDP, HDMI, VGA, Android board)
Touch (PCAP), cover glass, optical bonding, AG / AR / AF coatings
Wide-temperature configuration
Bezel, frame, connector position and cable length
Private-label packaging and firmware
6. Quality and Compliance
CE: meets EU safety, health and environmental requirements for commercial and industrial use
FCC Part 15: electromagnetic interference compliance for North America
RoHS: free of restricted substances (lead, mercury, cadmium, hexavalent chromium, etc.)
ISO 9001: quality management covering design, production and delivery
Inspection: IQC, IPQC and 100% final inspection, with traceability by lot
7. How to Start Your Project
Send your requirements: drawing, size, resolution, brightness, interface and volume
Feasibility review (≈ 3 working days): we check the routing, seal margin and cutting method
Quotation and proposal drawing: clear specification, NRE and unit price
Sampling (20 pcs): with optical and electrical verification
Reliability validation: on your protocol or ours
Mass production and shipment: with lot traceability and after-sales support
Request a Quote or Free Sample Evaluation
📧 Email: [your-email@example.com] 🌐 Website: www.hitulcd.com 💬 WhatsApp / WeChat: [your number]
Please include your drawing and target application. Our engineers will reply within one business day.
FAQ
Q1. Can you cut a standard 20-inch panel to my exact dimensions?Yes, provided the cut does not intersect the gate/source routing, seal line or driver areas. We confirm feasibility from your drawing first.
Q2. Will cutting affect reliability?With controlled cutting, edge treatment and secondary sealing, cut modules are validated to industrial-grade environmental tests. Test data is available under NDA.
Q3. What is the minimum order quantity?Samples start at 20 pcs. Mass production MOQ is flexible by project.
Q4. Can I get high brightness and touch together?Yes. Up to 1,000 nits with PCAP touch and optical bonding is available.
Q5. Do you support private label and custom packaging?Yes, including labeling, firmware, bezel and packaging.
Q6. What are the typical sample lead times?Typically 15–20 working days after drawing approval.
Specifications are subject to change without notice. Final parameters are defined in the approved customer specification and datasheet.
Know The Terms Before You Inquire.
|
01 — Shipping Terms
Incoterms Available
EXW
Ex Works — pick up from our factory
FOB
Free On Board — most common for ocean freight
CIF
Cost, Insurance & Freight — to your port
|
02 — Order Minimum
MOQ: 1 Units
Applies to standard specs. Custom brightness, cutting or bezel may adjust MOQ, confirmed at quotation. Sample units available before bulk order
|
03 — Payment Protection
Multiple Secured Methods
|
A Real Factory. Publicly Verifiable.
|
Legal Company Name
Shenzhen Hantu Jiashi Technology Co., Ltd.
|
Unified Social Credit Code
91440300306068446B
|
|
Legal Representative
YUN CHEN
|
Registered Capital
RMB 2,000,000
|
|
Established
May 23, 2014 (11+ years operation)
|
Business Status
● Active / In Operation
|
|
Registered Factory Address
Building B, Gangshen Innovation Park, Huaning Road, Dalang Sub-district, Longhua District, Shenzhen, Guangdong, China
|
|
Contact HITULCD
We'll respond via email within 24 hours. If you'd like to discuss details over WhatsApp or a call, please leave a preferred time and contact method in your message — we will never call you unannounced.
Related solutions
This product is suitable for the following industry application scenarios
Floor Information Bar LCD Display Solution
Ultra-wide, high-brightness stretched bar LCD disp...
view
Convenience Store Bar LCD Display Solution
Ultra-slim, high-brightness stretched bar LCD disp...
view
Bus Passenger Information Stretched Bar Display Solution
A rugged, ultra-wide stretched bar display solutio...
viewRelated Products
You may also be interested in the following products
