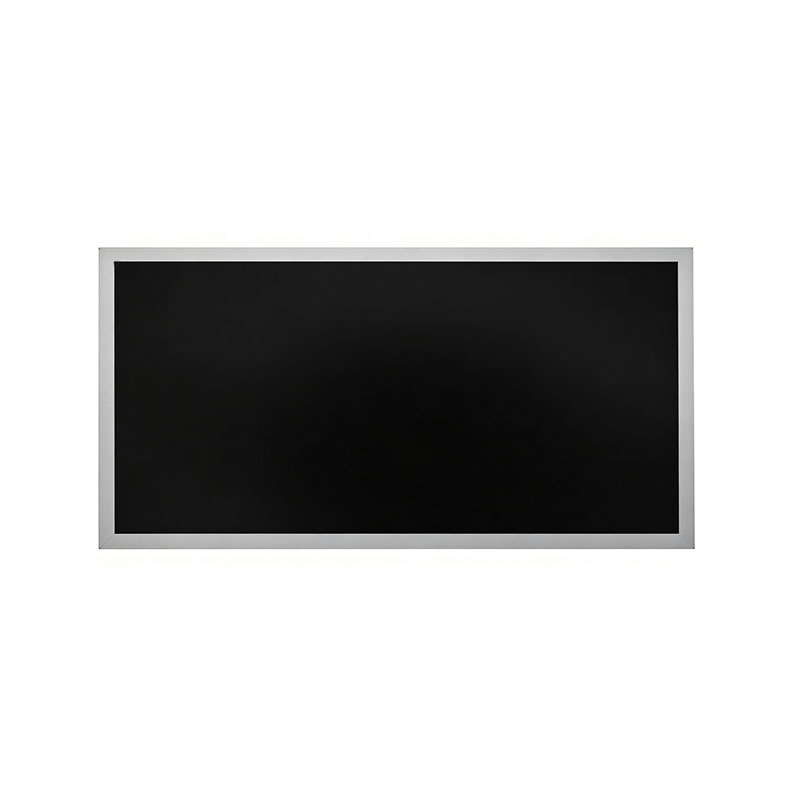

20.3 Inch Elongated TFT LCD Module
MODEL: HT203HBM
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesBuilt by us. Configured for you.
HITULCD supplies LCD modules and display solutions directly from our manufacturing operation, giving OEMs, integrators and distributors direct access to engineering, customization and production.
Supply
Supplier Qualification
VerificationTechnical Specifications
| LCD PANEL PARAMETERS | DRIVER BOARD SPECIFICATIONS | ||
|---|---|---|---|
| ITEM | DETAILS | ITEM | DETAILS |
| Model Number | HT203HBM | Input Interface | LVDS, 30 Pins |
| Brand | HITULCD | Signal Type | LVDS |
| Product Series | 21.5" Cut Panel Series | OSD KEYS | Depends on LVDS controller |
| Diagonal Size | 20.3" Cut Stretched Bar (Cut from 21.5" Panel, 3/4 Cut) | OSD CONTROL | Depends on LVDS controller |
| Resolution | 1920 × 810, Aspect Ratio 21:9 | ||
| Product Category | Graphic Type Display | ||
| Panel Type | a‑Si TFT‑LCD, Complete LCM Module | ||
| Physical Shape | Flat Rectangle | ||
| Display Area (A.A) | 476.64(W) × 201.08(H) mm | ||
| Overall Dimension | 506.64(W) × 231.08(H) mm | ||
| Max Thickness | 20 mm | ||
| LCD Technology | IPS, Transmissive Polarizer | ||
| Typical Brightness | 500 NITS (Customizable: 300~1000 NITS) | ||
| Transmissive Contrast Ratio | 1000:1 (Typ.) | ||
| Viewing Angle | 89°/89°/89°/89°(Min.)(L/R/U/D) | ||
| Viewing Direction | Full Viewing Angle | ||
| Display Colors | 16.7M Colors | ||
| Backlight Type | WLED | ||
| Touch Panel | Without Touch Function | ||
| Application Fields | Digital Signage, Cut Stretched Bar Displays | ||
| Operating Temperature | 0 ~ 50 °C | ||
| Storage Temperature | -20 ~ 70 °C | ||

OEM & ODM Custom Display Solutions | Any Size, Any Aspect Ratio, Fully Integrated
Your product defines the screen, not the other way around. From a single stretched bar module to a complete display subsystem, we design, build and supply custom displays that fit your enclosure, your interface and your schedule.
Start Your Custom Project · Send Us Your Drawing · Request 20 pcs Engineering Samples
Why Standard Panels Don't Fit Modern Products
Standard 16:9 and 4:3 panels were designed for monitors and TVs, not for elevator fascias, shelf edges, EV chargers, medical carts or rack-mount equipment. Forcing a standard panel into a non-standard enclosure means wasted space, cropped user interfaces, oversized bezels and compromised industrial design.
Our OEM and ODM programs solve this at the source. We start from your mechanical envelope and use case, then build the display that fits it.
| The Problem | Our Solution |
|---|---|
| Enclosure has a non-standard shape | Custom outline, stretched bar and ultra-wide formats |
| Screen must be readable in sunlight or bright retail lighting | High-brightness backlight and optical bonding |
| Product runs 24/7 in harsh environments | Wide-temperature, industrial-grade validation |
| Integration takes too many suppliers | Panel, touch, cover glass, driver board and cabling from one source |
| Supply must stay stable for years | Long-term supply planning and formal change control |
Custom Size Capability: From Compact Strips to Large-Format Bars
We support customized displays across a wide size range, from compact 8-inch modules up to 88-inch large-format bar displays, with aspect ratios from 5:1 up to 32:1 and beyond, in both landscape and portrait orientation.
| Capability | Range |
|---|---|
| Diagonal Size | Compact to large format, approx. 8" to 88" (project-specific) |
| Aspect Ratio | Standard, 16:9 to 32:9, 16:3, 16:4.5, custom ultra-wide bar formats |
| Orientation | Landscape, portrait, or custom mounting angle |
| Resolution | Standard and custom, matched to your UI and content |
| Brightness | 300 to 1,500+ cd/m² depending on size and thermal design |
| Touch | Non-touch, PCAP (projected capacitive), optional IR |
| Bonding | Air bonding, OCA and OCR optical bonding |
| Temperature Grade | Commercial, extended, industrial wide-temperature |
Final size, resolution and brightness combinations depend on available glass, backlight and thermal feasibility. Our engineers confirm the best-fit configuration during the feasibility review, and propose alternatives whenever a requested combination is not practical.
What We Integrate: One Partner, Full Display Stack
Instead of coordinating five suppliers, work with one engineering team that owns the whole display subsystem.
1. LCD Panel and Backlight
Custom-cut or natively manufactured bar-format TFT-LCD cells, with backlights designed for uniform brightness from edge to edge and thermal control for slim, sealed enclosures.
2. Touch and Cover Glass
PCAP touch with glove and wet-finger tuning, chemically strengthened cover glass, custom ink printing, anti-glare (AG), anti-reflective (AR) and anti-fingerprint (AF) coatings.
3. Optical Bonding
OCA and OCR bonding to improve sunlight readability, reduce internal reflections and protect against condensation and dust ingress.
4. Driver and Control Board
LVDS, eDP, MIPI DSI, HDMI, DP and VGA options; custom OSD; auto-dimming; Android or Linux board integration where a complete embedded solution is required.
5. Mechanical Integration
Custom bezels, brackets, frames and heat-spreader plates; open-frame, panel-mount or enclosed designs; custom cable length and connector.
6. Branding and Packaging
Private-label labeling, serial number traceability, custom packaging and kitting for your assembly line.
Where Our Custom Displays Are Used
Our OEM and ODM displays are deployed across industries where form factor, reliability and long-term supply matter.
| Industry | Typical Applications | Key Requirements |
|---|---|---|
| Retail & Supermarkets | Shelf-edge displays, price strips, promotional signage | Ultra-wide format, slim profile, high brightness |
| Transportation | Bus and rail passenger information, platform strips, in-vehicle displays | Wide temperature, vibration resistance, 24/7 duty |
| Elevators & Building Systems | Floor indicators, lobby strips, cabinet-embedded displays | Portrait bar format, optical bonding, thin depth |
| EV Charging & Vending | Charger status bars, vending fascias, kiosks | Sunlight readable, outdoor-rated options, touch |
| Industrial Automation | Control panels, status bars, rack-mount equipment | Industrial temperature, long lifecycle, stable supply |
| Medical & Healthcare | Equipment panels, carts, diagnostic instruments | Grayscale and color stability, cleanable cover glass |
| Hospitality & Corporate | Reception, wayfinding, meeting-room signage | Premium look, slim bezel, custom finish |
| Automotive & Marine | Dashboards, instrument clusters, helm displays | Wide temperature, anti-glare, high reliability |
OEM vs. ODM: Choose the Model That Fits Your Team
| OEM: Build to Your Design | ODM: Designed by Us, Branded by You | |
|---|---|---|
| You provide | Full drawings, specifications and BOM | Application requirements and target size |
| We provide | Manufacturing, testing, supply chain and quality control | Design, engineering, prototyping, manufacturing and testing |
| Best for | Companies with in-house hardware teams | Teams that want faster time to market and lower R&D cost |
| Intellectual property | Yours | Agreed per project; private-label available |
| Typical starting point | Drawing and specification review | Concept discussion and feasibility study |
Not sure which fits? Tell us your goal and we'll recommend the lower-risk path.
Our Development Process: From Idea to Volume Production
| Stage | What Happens | Typical Timing* |
|---|---|---|
| 1. Requirement Review | You share drawings, use case, environment and volume estimate | Day 0 |
| 2. Feasibility & DFM | Engineers review size, routing, thermal, optical and interface feasibility; you receive a preliminary drawing and quotation | 3–5 working days |
| 3. Design Confirmation | Approval drawing, specification and test plan signed off | 1–2 weeks |
| 4. Engineering Samples | First-article build (typically 20 pcs) with inspection report | 2–4 weeks |
| 5. Validation | Reliability and environmental testing to your target grade | 2–6 weeks |
| 6. Pilot Run | Small-batch build to confirm yield and process stability | 2–4 weeks |
| 7. Mass Production | Scheduled volume supply with lot traceability | 4–6 weeks per order |
| 8. Lifecycle Support | Change control (ECN/PCN), long-term supply planning, after-sales support | Ongoing |
*Timing depends on customization level and is confirmed in your project plan.
Engineering Support You Can Count On
Feasibility before commitment. We tell you early if a requested size or combination is risky, and propose alternatives, before you spend on tooling.
Dedicated project engineer. One point of contact in English for technical questions, from first drawing to mass production.
Design-in assistance. Interface timing, power sequencing, EMC and thermal advice for your system.
Documentation for your team. Datasheet, approval drawing (PDF, DXF, STEP), pinout, timing and test reports.
Flexible collaboration. Standard NDA available before any drawing exchange.
Quality, Reliability and Compliance
ISO 9001 quality management covering design, production and delivery
CE and FCC Part 15 support for EU and North American deployment
RoHS-compliant materials (free of Pb, Hg, Cd, Cr6+ and other restricted substances)
Reliability validated to your target grade: high/low temperature, 85 °C / 85% RH damp heat, thermal shock, vibration, shock/drop and ESD
100% functional and optical inspection before shipment
Lot traceability and serial number labeling
Formal engineering change notification (ECN / PCN) for long-running programs
Commercial Terms at a Glance
| Item | Detail |
|---|---|
| Engineering Samples | From 1 pc (standard) / typically 20 pcs (custom builds) |
| NRE | Low or none for standard variations; quoted after feasibility review for fully custom outlines, and creditable against volume orders where applicable |
| MOQ (production) | Typically 50 to 100 pcs; flexible for pilot programs |
| Incoterms | EXW, FOB, CIF, DAP, DDP |
| Payment | T/T, L/C for volume orders, PayPal for samples |
| Warranty | 12 months standard; extended terms available for OEM programs |
| Packaging | ESD-safe export packaging; private-label and kitting available |
Frequently Asked Questions
Can you really make any size?We support a very wide range of custom sizes and aspect ratios, from compact modules to large-format bar displays. The exact limit depends on available glass, backlight and thermal design. Send us your target dimensions and we'll confirm feasibility, usually within 3 to 5 working days, and suggest the closest practical alternative if needed.
What do I need to send to get a quote?A 2D drawing or 3D STEP file with active area and mounting requirements, target resolution, brightness, interface, touch needs, operating environment and estimated annual volume. If you only have a concept, our ODM team can start from your use case.
Do you sign NDAs?Yes. We are happy to sign your NDA before receiving any drawings or specifications.
Can you provide a complete solution including the control board and software?Yes. We can supply the panel alone, the panel with a driver board, or a complete embedded display module with Android or Linux and custom OSD.
How do you ensure long-term supply?We plan materials against your forecast, maintain change-control procedures, and notify you in advance of any component changes that could affect form, fit or function.
Can we use our own brand and packaging?Yes. Private-label labeling, custom packaging and serial number formats are standard OEM services.
Start Your Project
Tell us your size, your use case and your timeline. Our engineering team will respond with a feasibility review and quotation within 24 to 48 hours.
Please include: target size or outline drawing, resolution, brightness, interface, touch requirement, operating temperature, estimated annual volume and target schedule.
📧 Email: sales@yourdomain.com 🌐 Website: www.hitulcd.com 📄 Capability Brochure: Download PDF
Send Your Requirements →
Capabilities and specifications are subject to change without notice and are confirmed per project in the approval drawing and datasheet.
20.3" Elongated TFT LCD Module | Custom Stretched Bar Display for OEM & Industrial Integration
A purpose-built ultra-wide TFT-LCD module for space-constrained products. Customizable brightness, interface, touch and bonding, with full DFM support from prototype to volume production.
Request a Quote · Download Datasheet (PDF) · Request 20 pcs Engineering Samples
Product Overview
The 20.3-inch Elongated TFT LCD Module is a stretched bar display engineered for equipment where a standard 16:9 panel simply does not fit. Its ultra-wide aspect ratio delivers a panoramic viewing area in a slim, low-profile form factor, ideal for shelf-edge signage, elevator and transportation information strips, EV chargers, vending fascias, rack-mount equipment, medical carts and industrial control front panels.
Unlike repurposed standard panels, our bar-type modules are designed around the elongated geometry. The backlight, driver board and LCD glass are optimized together to deliver uniform brightness from edge to edge, with controlled edge sealing and stable long-term reliability.
Why Engineers and Sourcing Teams Choose This Module
Fits where standard panels can't. Panoramic layouts for timelines, dashboards, wayfinding and multi-zone content in a single, slim display.
Engineered, not just cut. Custom bar-format modules are validated as a complete system (glass, backlight, driver, sealing), not adapted after the fact.
Customizable to your BOM. Brightness, interface, touch, cover glass, bonding and mechanical outline can be adapted to your project.
Production-ready supply chain. Engineering samples, structured DFM review, change control and long-term supply planning for OEM programs.
Compliance-ready documentation. Support for CE, FCC Part 15 and RoHS documentation packages for EU and North American deployment.
Key Specifications
The table below lists standard configuration values. Final values depend on the selected variant and are confirmed in the customer-specific datasheet and approval drawing.
| Parameter | Standard Specification |
|---|---|
| Display Type | TFT-LCD, a-Si, transmissive, normally black |
| Diagonal Size | 20.3 inch (approx. 515 mm) |
| Format / Aspect Ratio | Elongated bar format (ultra-wide, custom ratio available) |
| Resolution | Standard bar-format resolution; custom resolution on request |
| Viewing Angle (H/V) | 178° / 178° (IPS / ADS technology) |
| Brightness | 500 to 1,000 cd/m² (standard); high-brightness options available |
| Contrast Ratio | 1000:1 (typical) |
| Color Depth | 16.7M colors (8-bit) |
| Color Gamut | 72% NTSC (typical) |
| Response Time | 25 ms (typical) |
| Backlight | LED, edge-lit or direct-lit depending on variant |
| Backlight Lifetime | 50,000 hours (typical, at 25 °C, half of initial brightness) |
| Video Interface | LVDS (standard); eDP / MIPI / HDMI driver board optional |
| Driver Board | Optional HDMI / DP / VGA controller board with OSD |
| Touch Options | Non-touch, PCAP (projected capacitive), optional IR |
| Surface Treatment | Anti-glare (AG), optional AR / AF coating |
| Optical Bonding | Optional (OCA / OCR) |
| Operating Temperature | 0 to +50 °C (standard) / -20 to +70 °C (wide-temperature option) |
| Storage Temperature | -20 to +60 °C (standard) / -30 to +80 °C (wide-temperature option) |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Power Supply | 12 V DC (typical, depends on driver board) |
| Duty Cycle | 24/7 continuous operation supported |
| Compliance | CE, FCC Part 15, RoHS; ISO 9001 certified manufacturing |
Customization Options (OEM / ODM)
Our engineering team works with your project team to fit the display to your product, rather than the other way around.
| Category | Available Options |
|---|---|
| Size & Outline | Custom bar dimensions, mechanical outline, bezel and mounting holes |
| Brightness | Standard, high brightness (1,000+ cd/m²), sunlight-readable variants |
| Interface | LVDS, eDP, MIPI DSI, HDMI, DP, VGA; custom cable length and connector |
| Touch | PCAP with glove / wet-touch tuning, custom cover glass and ink printing |
| Bonding | Air bonding, OCA optical bonding, OCR (liquid) bonding |
| Temperature Grade | Commercial, extended, industrial wide-temperature |
| Control Board | Custom OSD, Android / Linux board integration, brightness auto-dimming |
| Branding | Private-label packaging, custom labeling, serial number traceability |
Typical Applications
Retail: Shelf-edge displays, price-tag strips, in-store promotional signage
Transportation: Bus and rail passenger information displays, platform strips, in-vehicle displays
Elevators & Buildings: Floor indicators, lobby information strips, cabinet-embedded displays
EV Charging & Vending: Charger status bars, vending machine fascias
Industrial & Medical: Control panel status bars, rack-mount equipment, instrument cluster displays
Hospitality & Corporate: Reception, meeting-room and wayfinding signage
Engineering FAQ
Answers to the questions we hear most from design engineers, project managers and procurement teams during evaluation.
1. Technical Process and Feasibility
What cutting methods do you use, and how do you decide between them?We select the process based on your target dimensions, tolerance and panel structure. Mechanical wheel scribing and breaking is used for standard straight-line cuts and offers a cost-effective, mature process. Ultra-fast laser cutting is used where tighter tolerances, cleaner edges or more complex outlines are needed. Our engineers recommend the method during the feasibility review and confirm it with a sample build.
What tolerances can be achieved?Typical glass outline tolerance is ±0.2 mm for standard cutting, with tighter tolerance available for laser-cut projects. Final tolerance is confirmed on the approval drawing.
Will cutting interfere with gate/source routing or the TFT array?Cutting position is always defined against the panel's fan-out, seal line and active-area layout, so the cut does not enter the routing zone or damage the array. Where a requested dimension would reach a critical area, we tell you during evaluation and propose an alternative, instead of building a sample that will fail.
What do you need from us for a feasibility review?To give you a reliable answer quickly, please provide:
Target outline drawing (2D / 3D STEP) with active area, bezel and mounting requirements
Target resolution, brightness, interface and touch requirements
Operating environment (temperature, humidity, vibration, outdoor exposure)
Estimated annual volume and project schedule
Any source panel model number, if you already have a preferred base panel
Our engineering team typically returns a feasibility response, with a preliminary drawing, within 3 to 5 working days.
What are your standards for glass edge quality and micro-crack control?Cut edges are inspected under magnification for chipping, flatness and micro-cracks. Edges are then processed and sealed to prevent crack propagation. Inspection criteria are agreed with you and documented in the approval specification, so incoming inspection on your side matches our outgoing quality standard.
2. Reliability and Edge Sealing
How are the cut edges sealed against moisture and liquid crystal leakage?After cutting, exposed cell edges are re-sealed with a controlled dispensing process using UV-curable and thermal-curable sealant, with cure parameters and dispensing volume monitored in production. The sealed edge is inspected for coverage, bubbles and adhesion.
Will the module pass standard reliability tests?Yes. Modules are validated against industry-standard environmental tests, tailored to your target grade (consumer, commercial or industrial). A typical validation plan includes:
| Test | Typical Condition |
|---|---|
| High-temperature operation | +50 °C to +70 °C, 500 to 1,000 h, depending on grade |
| Low-temperature operation | 0 °C to -20 °C, 500 to 1,000 h, depending on grade |
| High-temperature / high-humidity (85/85) | +85 °C / 85% RH, 240 to 500 h |
| Thermal shock | -30 °C ↔ +80 °C, 100 cycles (dwell 30 min) |
| Vibration | Sine / random, per IEC 60068-2-6 / -2-64 |
| Mechanical shock / drop | Per IEC 60068-2-27; packaged drop test per ISTA |
| ESD | ±8 kV contact / ±15 kV air, per IEC 61000-4-2 |
Test reports for comparable bar-format projects are available under NDA on request. Test plans for your project are agreed at kickoff and reports are delivered with the samples.
Is there a risk of light leakage or color shift at the cut edge?Edge light leakage and Mura are controlled through three measures: optimized light-shielding and bezel design at the cut edge, backlight and polarizer alignment matched to the new outline, and 100% optical inspection at defined gray levels. Where the design allows, we recommend a light-blocking edge tape or frame to eliminate residual edge glow.
3. Cost, Yield and Lead Time
What are the NRE costs for a custom project?NRE depends on how far the design departs from a standard configuration: outline only, added driver board, cover glass, touch or bonding. Standard variations of this module often carry low or no NRE. Fully custom outline projects include a one-time engineering and tooling charge that is quoted after the feasibility review, and can be credited against volume orders in many cases.
How long do engineering samples take?A first sample run of 20 pcs is typically delivered in 2 to 4 weeks from drawing approval, depending on customization level.
What yield and MOQ should we plan for?Yield depends on the process and outline, and is validated during the pilot run. We report measured yield on the pilot lot and agree on a target with you before mass production. Standard MOQ is 50 to 100 pcs for production orders; sample quantities from 1 pc are available for evaluation. Mass-production lead time is typically 4 to 6 weeks, and schedules for forecast programs are agreed in advance.
Quality, Compliance and Documentation
ISO 9001 quality management covering design, production and delivery
CE: EU safety, health and environmental protection requirements
FCC Part 15: electromagnetic interference compliance for North America
RoHS: free of restricted substances (Pb, Hg, Cd, Cr6+ and others)
100% functional and optical inspection before shipment
Lot traceability and serial number labeling
Engineering change notification (ECN / PCN) process for OEM programs
What You Receive
Datasheet and approval drawing (PDF, DXF, STEP)
Interface pinout and timing documentation
Sample test report and inspection record
RoHS declaration and compliance documents on request
Application support from a dedicated engineer
Ordering and Logistics
| Item | Detail |
|---|---|
| Samples | From 1 pc (standard) / 20 pcs (custom engineering samples) |
| MOQ (production) | 50 to 100 pcs |
| Incoterms | EXW, FOB, CIF, DAP, DDP available |
| Payment | T/T, PayPal (samples), L/C for volume orders |
| Packaging | ESD-safe, shock-resistant export carton; private-label available |
| Shipping | Express (DHL / FedEx / UPS) for samples; air / sea freight for volume |
| Warranty | 12 months standard; extended terms available for OEM programs |
Request a Quote
Tell us about your project and receive a feasibility review and quotation within 24 to 48 hours.
Please include: target size and outline drawing, resolution, brightness, interface, touch requirement, operating temperature, estimated annual volume, and target schedule.
📧 Email: sales@yourdomain.com 🌐 Website: www.hitulcd.com 📄 Datasheet: Download PDF
Send Your Requirements →
Specifications are subject to change without notice. Contact our sales team to receive the latest datasheet and approval drawing for your configuration.
Know The Terms Before You Inquire.
|
01 — Shipping Terms
Incoterms Available
EXW
Ex Works — pick up from our factory
FOB
Free On Board — most common for ocean freight
CIF
Cost, Insurance & Freight — to your port
|
02 — Order Minimum
MOQ: 1 Units
Applies to standard specs. Custom brightness, cutting or bezel may adjust MOQ, confirmed at quotation. Sample units available before bulk order
|
