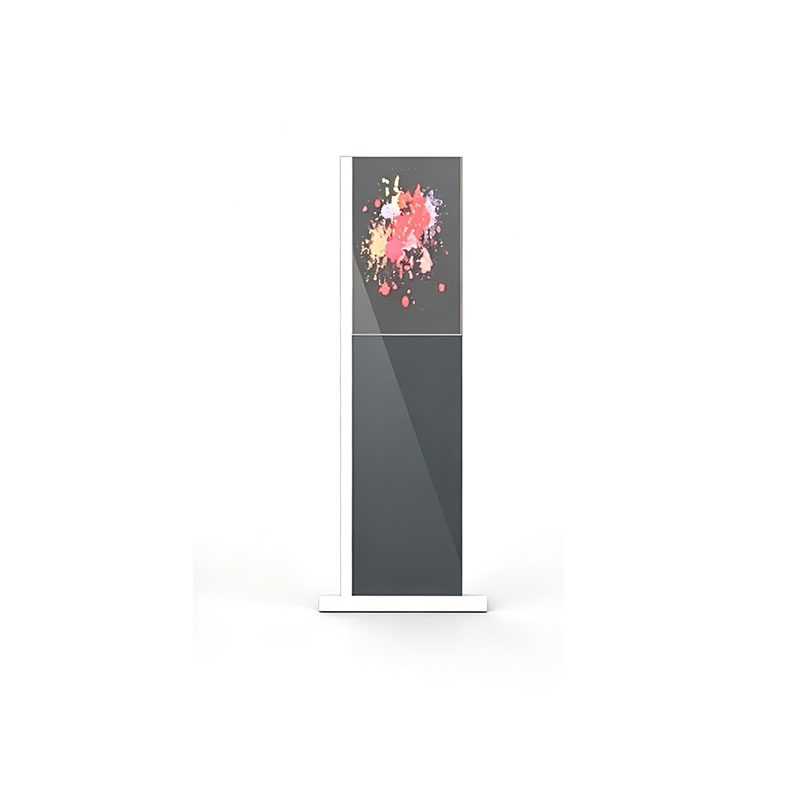

30" Transparent OLED Touch Display | Industrial OEM Manufacturer
MODEL: HT300OL-D01
SERVICES
- Accountability: Every unit ships standard with CE/FCC/RoHS certification. UL/CCC/EAC certification can be arranged upon request — additional cost and lead time apply depending on the specific standard; please contact us for a quote before ordering.
- Return Policy: 12-month warranty with remote troubleshooting first, followed by free replacement and expedited reshipment once a hardware fault is confirmed.
- Lead Time: 2–3 weeks for standard products, 4–6 weeks for custom orders, and 6–8 weeks for bulk orders of 500+ units, with clear scheduling confirmed before order placement.
- Customer Support: 24/7 engineering support with a direct WhatsApp link on the website, ensuring fast responses across time zones without waiting on email.
- Production Capacity: Monthly production capacity: 12,000+ units (customizable specs), supporting both small-batch prototyping and large-volume orders.
- Inventory & Lead Time Assurance: We maintain safety stock of common panel sizes and standard components to buffer against supply chain fluctuations. For repeat orders, we offer scheduled/forecasted production slots to guarantee on-time delivery.
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesTechnical Specifications
| I、Technical parameters | |
| Display parameters | |
| Panel size | 30" |
| Panel type | OLED |
| Display area | 664.29 mm * 373.48 mm |
| Overall dimensions | 676.09mm x 387.48mm x 1.6mm (width x height x thickness) |
| Transmittance | 43% |
| Viewing Angle | 178 °, 178 ° |
| Static contrast | 100,000:1 (Typ.) transmission |
| Dynamic contrast | 200,000:1 (Typ.) transmission |
| Splice seams | Single side 5.9mm, double side 12mm, overall single side patchwork 5.9/5.9/5.9/8.1(left/right/top/bottom) |
| Screen scale | 16:9 |
| Brightness | 200‑600 nit |
| Best resolution | 1366 * 768 |
| Screen Life | ≥ 30,000 hours |
| Power | ≦150W |
| Display colors | 10‑bit, 1.07B (1B= billion) |
| Speakers | 8 Ω / 5 w * 2 |
| Gross screen weight | Screen weight 1.04kg |
| Gross weight of the machine | To be determined |
| Operating temperature | 1℃~45℃ |
| Working humidity | 30% ~ 80% |
| Run time | 18 hours X7 days |
| Ambient height (Altitude) | 0~5000m |
| Response time | 8ms |
| Operating voltage | 100V‑240VAC,50/60Hz |
| Fit method | Frame sticker |
| Fitting method (optional) | Full fit |
| Drive board card | |
| Input interface | HDMI IN, USB 2.0, DP IN |
| Weight in | 0.4 kg |
| Control signal IN | RS232 serial port (RJ45) |
| Control signal OUT | RS232 serial port (RJ45) |
| Features | |
| ‑ | Band splice function; Anti‑residual shadow, anti‑burn, repair function |
| Touch screen parameters: Capacitors optional | |
| Touch technology | Capacitive touch technology |
| Positioning accuracy | 3mm |
| Mounting method | Built‑in one‑piece |
| Writing style | Fingers ≥5mm |
| Touch count | 10 point touch writing |
| Writing screen Media | 5‑8mm tempered high permeability glass |
| Response speed | ≤5ms |
| Computer drive | no‑drive |
| Means of communication | USB |
| Service life | ≥60 million times |
| PC Configuration (optional) | |
| Motherboard | Intel Core |
| CPU | 4th / 6th / 7th / 8th / 10th generation ‑ Core i3/i5/i7 (optional) |
| Memory | 4G/8G/ 16G‑DDR3 (optional) |
| Hard drive | SSD120G/240G/480‑HDD500G/1T/2T (optional) |
| Core Display | Intel HD Graphics 4000 |
| Backplane I/O | 1 x DC_IN power port, 1 x HDMI port, 1 x VGA port, 2 x USB3.0 port, 1 x LAN_RJ port, 2 x USB2.0 port, 1 x Mic (input), 1 x PHONE (output) |
| Operating system | Windows7/ Windows10 operating system |
| Android configuration (optional) | |
| Motherboard model | 3288/3399 |
| Memory | 2G/4G/8G optional |
| Storage | 8G/16G/32G/64 optional |
| Ports | 1 x USB2.0, 1 x USB3.0, 1 x HDMI_OUT, 1 x LAN_RJ 1 x WIFI |
| Name | Specs | Quantity | Remarks |
| Transparent display | 30 "OLED transparent screen | 1 piece | |
| System | Customized to actual needs (built in) | 1 set | With PC/Android |
| Remote control | Universal version (without battery) | 1 | |
| Power cord | Gb 1.5 m | 1 piece | |
| HDMI extension cable | Optional | 1 stick | |
| Touch USB extension cable | assorting | 1 stick | |
| HDMI signal cable | Optional | 1 stick | |
| Warranty Card Certificate of qualification | Chinese Version | 1 sheet |
Note: HDMI extension cable, HDMI cable and touch USB extension cable are optional items, the final packing list is subject to the actual shipment of the customer, you can choose whether to configure the extension cable according to the customer's demand, remarks matching will produce the corresponding cost, please confirm the price of shipment.
OEM/ODM Display Manufacturing — From Your Drawing to Your Production Line
HITULCD | Shenzhen Hantu Jiashi Technology Co., Ltd.
Note: figures marked with an asterisk (*) are typical/reference values for this product class. Please request written confirmation from our engineering team before finalizing a custom project spec.
We Don't Just Sell Displays. We Build to Your Drawing.
Most display suppliers offer a catalog and a few color options. HITULCD runs an in-house engineering line that takes a customer-supplied drawing, spec sheet, or even a rough sketch and turns it into a production-ready panel — mechanically, electrically, and thermally validated before the first unit ships.
If you have a DXF, STEP, IGES, or even a dimensioned PDF, our engineers can quote against it directly. No "closest standard SKU" compromise.
What We Customize
| Category | Customization Scope |
|---|---|
| Panel size & cutting | Non-standard sizes, panel cutting/re-sizing within supported range, bezel width down to customer spec* |
| Optical performance | Brightness (200–3,000 nit range across product lines), transmittance, contrast tuning, anti-glare/anti-reflective coating |
| Touch technology | Capacitive (PCAP), resistive, infrared (IR) — point count, glove/wet-finger mode, positioning accuracy tuning |
| Mounting & structure | VESA pattern, embedded/open-frame/full-fit, custom bracket & bezel tooling, IP-rated front glass assembly |
| Interface & control | Custom I/O layout (HDMI/DP/USB/RS232/RS485/LAN), custom RS232/RS485 command protocol to match your existing control system |
| Compute platform | Windows / Android / Linux motherboard integration, customer-specified CPU/RAM/storage tier, OEM BIOS splash & boot logo |
| Firmware & OSD | Custom boot logo, OSD menu language/branding, remote monitoring protocol integration (SNMP/MQTT on request) |
| Enclosure & branding | Customer logo, nameplate, packaging design, private-label carton & manual (English/multi-language) |
| Cable & accessory kit | Custom cable length/connector type, region-specific power cord & plug standard (US/EU/UK/AU) |
Design-to-Manufacture Workflow
Drawing / Spec Intake — Send DXF, STEP, PDF, or written spec. NDA signed before any drawing review if required — standard mutual NDA template available on request.
DFM Review (Design for Manufacturability) — Our engineering team reviews your drawing within 2–3 working days*, flags any tolerance, thermal, or assembly conflicts, and proposes adjustments before quoting.
Engineering Sample (EQ Sample) — First-article sample built to your exact drawing, typically 10–15 working days* depending on tooling requirements.
Sample Validation — Customer tests fit, function, and environmental performance. Revisions incorporated at this stage at no re-tooling cost if within original scope.
Pilot Run / PPAP-style Documentation — Small batch (typically 10–50 units*) with full test report, dimensional report, and process documentation package.
Mass Production — Scheduled production slot confirmed in writing, with milestone photos/videos at key stages (SMT, assembly, burn-in, packing).
Pre-shipment Inspection (PSI) — AQL 2.5 sampling* or 100% inspection on request, third-party inspection (SGS/BV/TÜV) coordination available.
Export Documentation & Shipment — Commercial invoice, packing list, Certificate of Origin, and any destination-specific compliance docs prepared in-house.
Engineering & Tooling Capability
| Capability | Detail |
|---|---|
| In-house engineering team | Mechanical, electrical, and firmware engineers on staff — not outsourced |
| Mold/tooling development | New bezel/bracket tooling: 15–25 working days* depending on complexity; tooling cost quoted transparently, amortized into unit price or charged separately per customer preference |
| PCB/drive board customization | Custom control board layout for non-standard interface requirements* |
| Prototyping | 3D-printed mockups available within 3–5 days* for form-fit review before committing to metal tooling |
| Environmental testing | Thermal chamber, humidity chamber, vibration/drop testing available in-house* |
| Software/firmware customization | In-house firmware team for OSD, boot logo, communication protocol adaptation |
Quality Control at Every Stage
Incoming Quality Control (IQC) on raw panels and components
In-process Quality Control (IPQC) during SMT and assembly
100% functional test (display, touch, I/O) before packing
Burn-in test — standard 24–48 hours* per unit before shipment
Final Quality Control (FQC) against approved sample and drawing
Full traceability: each unit's production batch and test record retained for warranty reference
IP Protection & Confidentiality
We understand your drawing is your competitive advantage.
Mutual NDA available and encouraged before any drawing is shared
Customer drawings and specs are not reused, referenced, or shown to other clients without written permission
Tooling built for your project is not shared across other production runs unless explicitly agreed
Export Capability — Built for Overseas Buyers From Day One
Monthly production capacity: 12,000+ units (customizable specs)
Regions regularly served: North America, EU, UK, Middle East, Southeast Asia*
Incoterms supported: EXW / FOB / CIF, with freight forwarder coordination available on request
Region-specific compliance support: CE (EU), FCC (US), UL/CCC/EAC on request — additional cost and lead time confirmed before ordering
Power/plug localization: Voltage and plug standard adapted to destination market (US/EU/UK/AU) as standard practice, not a special request
Documentation: Commercial invoice, packing list, Certificate of Origin, and REACH/RoHS declarations prepared per shipment
Customs classification support: HS code guidance provided per product configuration — final classification to be confirmed with your customs broker
Minimum Order for Custom Projects
| Project Type | Typical MOQ |
|---|---|
| Cosmetic customization (logo, cable, packaging) | 1 unit |
| Firmware/OSD customization | 1 unit |
| Interface/electrical customization (no new tooling) | 10–20 units* |
| New mechanical tooling (bezel, bracket, enclosure) | 50–100 units*, negotiable for strategic/repeat partners |
Sample units available before committing to bulk tooling investment.
Why Engineering Teams Choose to Build With Us
Owned production line — not subcontracted, so your drawing stays under one roof from DFM to shipment
Direct engineer-to-engineer communication — no sales layer translating (and diluting) your technical requirements
Transparent tooling cost — quoted upfront, no hidden NRE fees added later
11+ years in operation, publicly verifiable business registration (Unified Social Credit Code: 91440300306068446B)
Start Your Custom Project
Send us your drawing, spec sheet, or even a napkin sketch with rough dimensions — our engineering team will respond with DFM feedback and a quotation timeline within 24 hours.
Submit Your Drawing / Request Engineering Quotation →Sign NDA First →
Fields marked with an asterisk () are typical industry reference values pending confirmation from HITULCD engineering. Please request written confirmation at quotation stage before relying on these figures for project planning.*
30" Transparent OLED Touch Screen — Industrial Splicing Display
Model: HT300OL-D01
Note: values marked with * are typical/reference values based on common industry standards for this display class. Please confirm exact figures with our engineering team at quotation stage — final test reports will be issued against your PO.
Overview
The HT300OL-D01 is a 30" transparent OLED touch panel built for industrial and commercial splicing applications — retail window displays, control-room signage, transportation information walls, and interactive kiosks. Unlike consumer-grade transparent displays, this unit is engineered for continuous industrial duty cycles, with anti-burn-in protection, seamless multi-panel splicing, and a drive board designed for 24/7 signal stability.
Core Specifications
| Parameter | Value |
|---|---|
| Panel size | 30" |
| Panel type | OLED (transparent) |
| Display area | 664.29 mm × 373.48 mm |
| Overall dimensions | 676.09 × 387.48 × 1.6 mm (W×H×T) |
| Transmittance | 43% |
| Viewing angle | 178° / 178° |
| Static contrast | 100,000:1 (Typ.) |
| Brightness | 200–600 nit |
| Resolution | 1366 × 768 |
| Aspect ratio | 16:9 |
| Screen lifespan | ≥ 30,000 hours |
| Power consumption | ≤ 150 W |
| Response time | 8 ms |
| Operating voltage | 100–240 VAC, 50/60 Hz |
| Operating temperature | 1°C ~ 45°C |
| Working humidity | 30% ~ 80% RH, non-condensing |
| Altitude | 0–5,000 m |
| Splice seam | Single side 5.9 mm / double side 12 mm |
Engineering Reference Data (for integration & structural design)
| Parameter | Value | Notes |
|---|---|---|
| Mounting standard | VESA 400×400 mm* | Confirm against final bezel design |
| Max structural load | ≤ 15 kg per panel* | For wall/frame bracket sizing |
| Ingress protection | IP54 (front panel)* | Suitable for indoor dust/splash exposure; IP65 front kits available on request |
| Cooling method | Passive heat-sink + convection venting* | No active fan under 45°C ambient; forced-air kit available for enclosed cabinets |
| EMC compliance | EN 55032 (Emission), EN 55024 (Immunity), IEC 62368-1 (Safety)* | Full test report issued with CE certificate on request |
| MTBF | ≥ 50,000 hours* | Based on accelerated aging test at typical duty cycle |
| Anti-burn-in mechanism | Pixel-shift every 4 hours of static content*, automatic brightness compensation curve, logo/taskbar dimming | Configurable via drive board firmware |
| Sunlight/high-ambient readability | Not recommended for direct sunlight exposure; recommended ambient illuminance ≤ 1,500 lux for optimal image contrast* | Due to inherent transmittance trade-off of transparent OLED |
| RS232 protocol | 9600 bps, 8N1, ASCII command set* | Full command list provided in integration manual |
| HDMI/DP input | HDMI 1.4 (up to 1920×1080@60Hz), DP 1.2* | EDID plug-and-play supported |
| Drive board firmware updates | USB-based field update supported | No factory return required |
CAD & mechanical drawings: DXF/STEP files and full integration manual (PDF) available for download after NDA or upon quotation request — [Request Technical Package →]
Compliance & Certification
CE / FCC / RoHS standard on every unit. UL / CCC / EAC available on request (additional cost & lead time — confirm before ordering).
ISO 9001 (factory quality system)
CE (EN 55032, EN 55024, IEC 62368-1)*
FCC Part 15B
RoHS 2.0 (2011/65/EU + amendment 2015/863)
REACH (SVHC declaration available on request)
WEEE
Full test reports and third-party audit summary (SGS factory audit)* available for download — no need to request by email.
Commercial Terms
| Item | Detail |
|---|---|
| Reference price (standard spec) | USD 2,200–2,800 / unit* FOB Shenzhen, depending on brightness tier and PC/Android configuration — confirmed at quotation, no hidden fees |
| MOQ | 1 unit (standard spec); custom brightness/size may adjust MOQ |
| Sample lead time | 7–10 working days* |
| Sample cost | Charged at unit price, deposit credited toward bulk order upon confirmation |
| Payment terms | 30% deposit by T/T, 70% before shipment against B/L copy* (negotiable for repeat partners under O/A) |
| AQL / inspection standard | AQL 2.5 (General Level II)*, third-party inspection (SGS/BV) coordination available on request |
| HS Code | 8528.59.00* (LCD/OLED monitors, non-TV) — confirm with your customs broker for final classification |
| Incoterms | EXW / FOB / CIF available |
| Lead time | 2–3 weeks standard, 4–6 weeks custom, 6–8 weeks bulk (500+ units) |
| Warranty | 12 months, remote troubleshooting first, then free replacement + expedited reshipment on confirmed hardware fault |
Delivery Process Timeline (for project scheduling)
Inquiry & technical clarification — 24 hours to first response
Formal quotation & terms confirmation — 1–2 business days
Sample production (if required) — 7–10 working days
Sample approval & PO confirmation
Deposit received → production start — same week
Production — 2–3 weeks (standard) / 4–8 weeks (custom/bulk)
QC & pre-shipment inspection — 2–3 days, photos/video report provided
Shipment & documentation — B/L, packing list, CO if required
NDA available on request prior to sharing detailed engineering drawings or project-specific customization discussions.
Typical Applications
Retail window/storefront interactive displays
Transportation hub information walls (airports, metro stations)
Control room / SCADA visualization panels
Museum & exhibition interactive installations
Corporate lobby digital signage
About the Manufacturer
Shenzhen Hantu Jiashi Technology Co., Ltd. (Unified Social Credit Code: 91440300306068446B), established 2014, registered capital RMB 2,000,000. Factory address: Building B, Gangshen Innovation Park, Huaning Road, Dalang Sub-district, Longhua District, Shenzhen, Guangdong, China. Direct factory pricing, no middlemen — engineer-to-engineer communication available.
Contact
24/7 engineering support via WhatsApp | Email response within 24 hours |Request a Quote →
Fields marked with an asterisk () are typical industry reference values pending confirmation from HITULCD engineering. Please request written confirmation at quotation stage before relying on these figures for final system design.*
Know The Terms Before You Inquire.
No surprises after you send an inquiry. Shipping terms, order minimums and payment protection are all confirmed upfront.
|
01 — Shipping Terms
Incoterms Available
EXW
Ex Works — pick up from our factory
FOB
Free On Board — most common for ocean freight
CIF
Cost, Insurance & Freight — to your port
|
02 — Order Minimum
MOQ: 1 Units
Applies to standard specifications. Custom brightness, size-cutting or bezel design may adjust MOQ — confirmed at quotation stage, not after deposit.
Sample units available before bulk order
|
03 — Payment Protection
Multiple Secured Methods
|
A Real Factory. Publicly Verifiable.
Before you send an inquiry, check us out yourself. All the information below is on public record with Chinese government business registries.
|
Legal Company Name
Shenzhen Hantu Jiashi Technology Co., Ltd.
|
Unified Social Credit Code
91440300306068446B
|
|
Legal Representative
YUN CHEN
|
Registered Capital
RMB 2,000,000
|
|
Established
May 23, 2014 (11+ years in operation)
|
Business Status
● Active / In Operation
|
|
Registered Factory Address
Building B, Gangshen Innovation Park, Huaning Road, Dalang Sub-district, Longhua District, Shenzhen, Guangdong, China
|
|
Contact HITULCD
We'll respond via email within 24 hours. If you'd like to discuss details over WhatsApp or a call, please leave a preferred time and contact method in your message — we will never call you unannounced.
Related solutions
This product is suitable for the following industry application scenarios
Related Products
You may also be interested in the following products
