55" Transparent OLED Display | Factory Direct, Customizable Brightness | Model HT550OL-B01

Overview

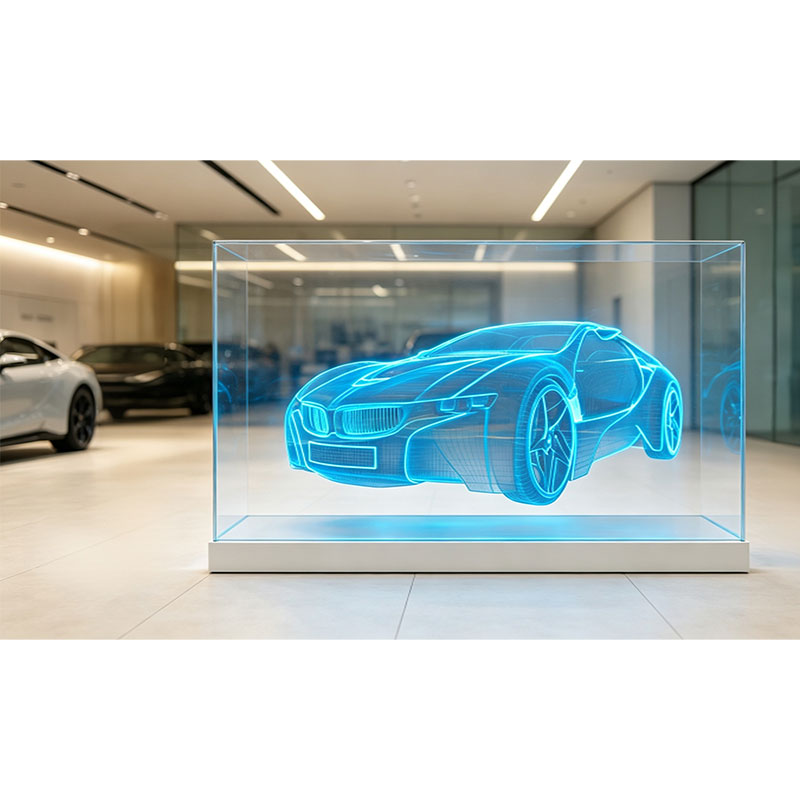

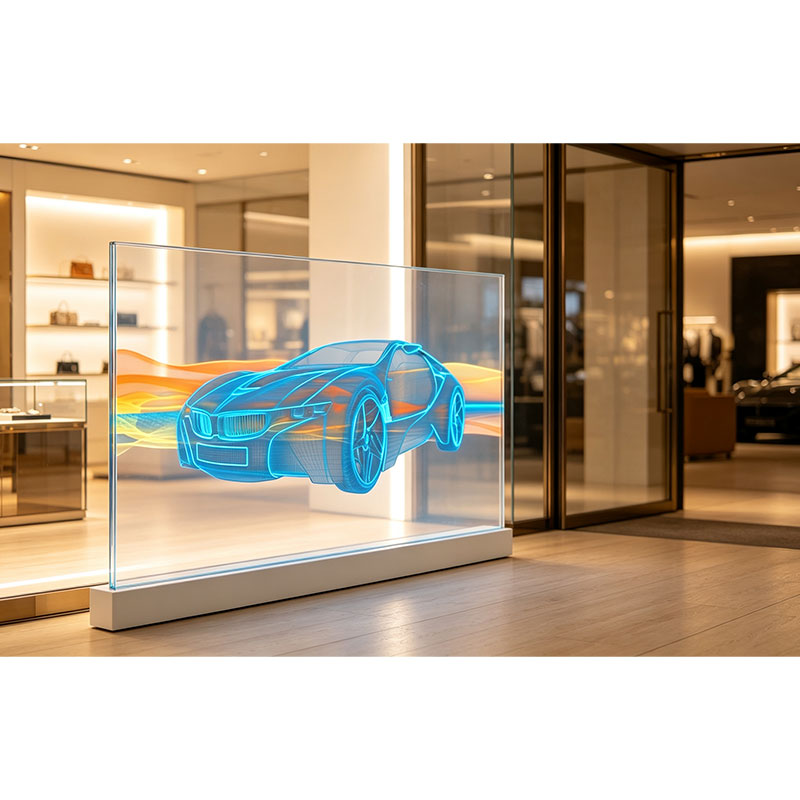

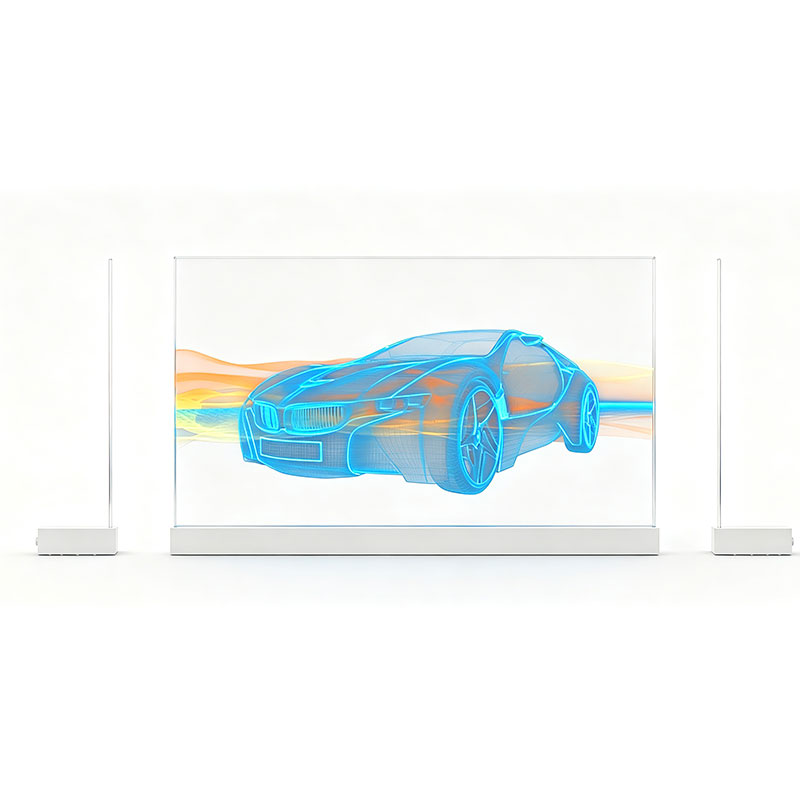

The HT550OL-B01 is a 55" transparent OLED display engineered for digital signage, retail windows, museum exhibits, control-room overlays, and branded architectural installations. Unlike standard LCD panels retrofitted with a transparent film, this is a true OLED emissive panel — self-lit pixels, 178°/178° viewing angle, and a 43% optical transmittance that keeps the space behind the glass genuinely visible.

Every unit is built and tested on our own production line — not subcontracted — so specifications on this page match what ships, and every customization request goes through the same engineers who designed the base panel.

Quick specs:

• Panel size: 55" / Panel type: OLED

• Resolution: 1920 × 1080 (16:9)

• Brightness: 150–400 nit (customizable within this range)

• Transmittance: 43% | Contrast: 100,000:1 static / 200,000:1 dynamic

• Display colors: 10-bit, 1.07B

• Screen life: ≥30,000 hours

• Power consumption: ≤190W | Input: 100–240VAC, 50/60Hz (EU/US/UK-ready, plug type configurable)

[Download full datasheet (PDF)] · [Request CAD/STEP files] · [Request a quote]

Built for Engineers: The Data You Actually Need Before You Spec This

We know a spec sheet with adjectives doesn't get a panel through your design review. Here's what we provide so you don't have to chase it after your PO is already signed:

• Mechanical drawings on request — dimensioned 2D drawings (DWG/PDF) with cutout dimensions, mounting hole positions, and interface port locations, plus 3D models (STEP/IGES) for direct import into your enclosure design. [Actual files must be prepared and linked by your team — a reference value can't substitute for a real drawing here.]

• Interface layout: HDMI IN, USB 2.0, DP IN for video; RS232 (RJ45) IN/OUT for daisy-chain control and splicing, using a standard ASCII/HEX command set (power on/off, input switch, brightness, volume) consistent with common Chinese display-controller protocols — full command table available on request for SI/programmatic integration.

• Anti-burn-in protection: pixel-shift and anti-residual-shadow functions are built into the drive board. Based on internal accelerated aging testing, luminance decay is held under 10% across the rated ≥30,000-hour screen life under standard duty cycle (18h/day). Full test report available on request.

• Environmental rating: operating temperature 1–45°C, humidity 30–80% RH, altitude 0–5000m, rated for continuous 18-hour/7-day duty cycles. IP rating: IP20 (standard indoor frame-sticker mounting); IP54 available on request for semi-outdoor/sealed-cabinet configurations. ESD immunity: ±4kV contact discharge / ±8kV air discharge per IEC 61000-4-2.

• Touch option: 10-point capacitive touch, ≥60 million touch life, driver-free, 3mm positioning accuracy, 5–8mm tempered glass cover.

• Weight: screen 2.4kg, control board 0.4kg, gross unit weight (assembled, excluding packaging) approx. 18kg.

Built for Procurement: Cost, Compliance, and Logistics Up Front

No one wants to negotiate basic terms after a deposit is on the table. Here's what's fixed before you inquire:

Pricing — [Add an indicative starting price or price band, e.g. "Starting from $X,XXX per unit at MOQ, final price depends on brightness spec and touch option." Publishing zero price signal is the single biggest reason EU/US buyers bounce before contacting sales.] Volume pricing available at 10+, 100+, and 500+ unit tiers — ask for the tiered price sheet with your RFQ.

Compliance & documentation

• Standard on every unit: CE, FCC, RoHS certification

• Available on request (added cost/lead time): UL, CCC, EAC

• Also held: ISO9001, REACH, WEEE

• CE Declaration of Conformity issued per shipment on request

• HS Code: [Add — required by your customs broker to estimate duty before quoting.]

Logistics for cost estimation

• Export packing: [Add carton/crate dimensions and gross weight per unit — needed for freight quoting.]

• Loading capacity: [Add units per 20GP / 40HQ container.]

• Incoterms: EXW, FOB, CIF

• MOQ: 1 unit for standard specification. Custom brightness, size-cutting, or bezel design may raise MOQ — this is confirmed at quotation stage, before any deposit.

• Sample units available before bulk order. [Add: sample price, sample lead time, and whether sample cost is credited against a bulk order — currently only "samples available" is stated with no terms.]

Payment protection: T/T, L/C, PayPal (sample orders), O/A (repeat partners). All terms confirmed in writing on your quotation before any deposit is requested.

Quality control: [Add — AQL sampling standard used, pre-shipment inspection checklist, and whether third-party inspection (SGS/BV/TÜV) is supported if the buyer wants to commission one.]

Built for Project Managers: What Happens After You Say Yes

A panel spec sheet doesn't tell you if this vendor can hit your install date. Here's the process:

1. Inquiry & technical review — send your requirement, our engineers confirm brightness/size/touch configuration and issue final quotation

2. Sample / pre-production approval (optional, recommended for first orders)

3. Production — 2–3 weeks standard spec, 4–6 weeks custom orders, 6–8 weeks for bulk orders of 500+ units, monthly capacity 12,000+ units

4. Quality inspection before shipment

5. Shipment under agreed Incoterm

6. Installation support — [Add: do you provide an installation guide/manual, remote installation support call, or on-site commissioning for large projects?]

7. Warranty period — 12 months, remote troubleshooting first, then free replacement with expedited reshipment once a hardware fault is confirmed

8. Post-warranty support — [Add: spare parts pricing and how many years after end-of-production you'll still supply spare parts/control boards. This is the long-tail risk every PM asks about for equipment with a multi-year deployment lifespan.]

24/7 engineering support via direct WhatsApp — no waiting on email across time zones.

Real-World Performance, Not Just a Studio Shot

[This entire section needs real content — currently the product page only shows clean studio product photography, which reads as a rendering rather than a delivered installation.]

• [Add: photos of the panel installed in an actual retail window, museum case, or control-room environment]

• [Add: a short video showing the transparency effect in a lit environment — static photos undersell what makes transparent OLED different from a standard display]

• [Add: 1–2 short case studies — industry, panel configuration used, and outcome]

OLED vs. Traditional High-Brightness LCD: Which Fits Your Project

[Add a short comparison table — this helps a PM justify the OLED choice internally rather than defaulting to a familiar LCD spec. Suggested rows: transmittance, contrast ratio, viewing angle, power draw, lifespan, cost per unit, best-fit use case.]

Verifiable Manufacturer

Shenzhen Hantu Jiashi Technology Co., Ltd. — established May 23, 2014, Unified Social Credit Code 91440300306068446B, registered capital RMB 2,000,000, active status, factory address in Longhua District, Shenzhen — fully searchable on Chinese government business registries and Google Maps before you ever send an inquiry.

We comply with local labor law (no child labor, no forced labor, fair working hours), meet RoHS/REACH standards, use recyclable packaging where possible, and provide compliance documentation on request for your ESG due diligence.

[Contact The Manufacturer] · [Download Specifications] · [Request CAD/Mechanical Drawings] · [Request Sample]
