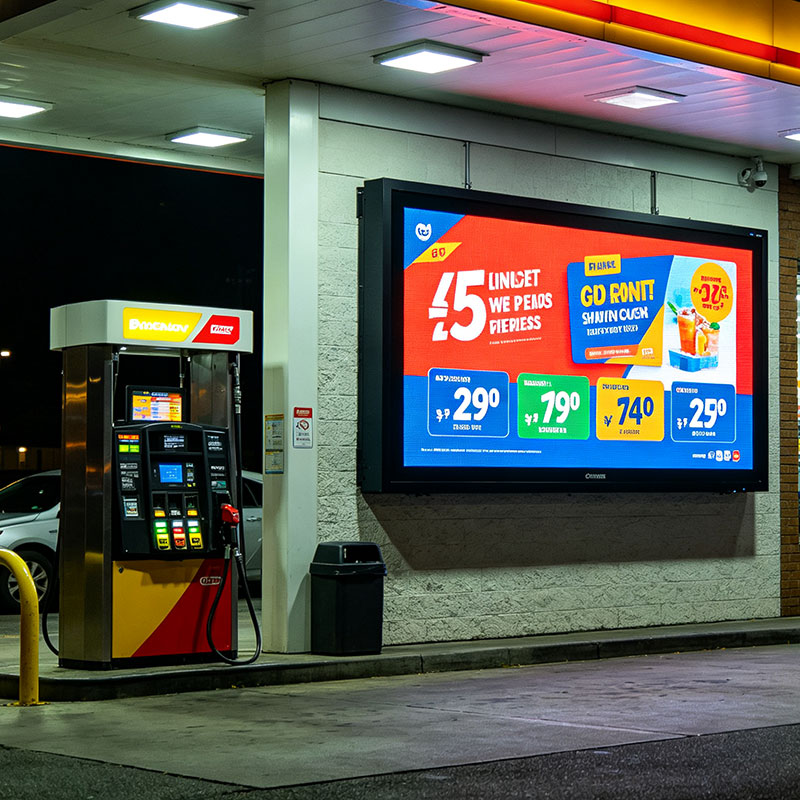

65 Inch Wall Mounted Gas Station Digital LCD Display
MODEL: HT650A-2000
BRIGHTNESS
2000
nits
SIZE
65
inch
RESOLUTION
1920*1080
ASPECT RATIO
16：9
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesDirect from Manufacturer Zero Middlemen.
We are committed to responsible manufacturing. Our factory complies with local labor laws — no child labor, no forced labor, fair working hours. All products meet RoHS and REACH standards, and we use recyclable packaging wherever possible. Compliance documentation is available upon request for your ESG due diligence.
HITULCD
Route
Route
HITULCD Factory
You
|
01
Owned Line
Built and tested in‑house, not subcontracted.
|
02
Direct Pricing
Quoted from cost, no agent commission.
|
03
Engineer Access
Talk to the people who design your panel.
|
04
Verifiable
Certs & factory audit available on request.
|
OUR CORE SERVICES
- Certifications: Standard CE/FCC/RoHS; UL/CCC/EAC available on demand.
- 12‑Month Warranty: Remote support + free hardware replacement.
- Lead Time: 2–3w standard, 4–6w custom, 6–8w bulk ≥500pcs.
- 24/7 Support: Global WhatsApp engineering service.
- Capacity: 12,000+ units/month, small & mass orders supported.
- Stock Assurance: Safety stock & reserved production slots.
Technical Specifications
| Display parameters | Structural parameter description | ||
|---|---|---|---|
| LCD size | 65 " | Installation method: | wall mounted |
| Panel type | TFT‑LED | External dimensions: | See the external dimension diagram |
| Aspect ratio | 16:9 | Color: | Black/White/Red/Silver Grey/Dark Grey/Customized |
| Display size | 1438.97*809.42 (mm) | Material: | 1.5mm galvanized steel sheet Baking lacquer process |
| Physical resolution | 2K 1920 (RGB) * 1080 (FHD) /4K(optional) | Protection level: | IP65 |
| Refresh rate | 60Hz | Waterproof: | Three‑layer composite sealing strip |
| Brightness | 2000cd/㎡ | Dust prevention: | 3M high air volume filter |
| Contrast | 1500:1 | Anti theft: | three‑level door lock protection, hidden screw design |
| Response time | 6ms | Explosion proof: | 6mm full tempered high explosion‑proof glass |
| Perspective | 178°/178°/178°/178° | Anti rust and anti‑corrosion: | High‑strength galvanized steel sheet |
| Display protection | 6mm full tempered high explosion‑proof glass | Heat dissipation method description | |
| Backlight life | 50000 hours | Heat dissipation method: | intelligent temperature controlled air cooling system |
| Brilliance control | Light sensing sensor(Energy saving) | Temperature protection: | supports high temperature protection |
| Motherboard configuration/interface | Fan: | Industrial grade high air volume silent fan, supporting speed regulation and noise reduction (energy‑saving) | |
| CPU: | RK‑3288 Cortex‑A17, 4‑core, 1.8GHz | Touch (optional) | |
| Operating system: | Android 7.1 | Touch type | G+G capacitive waterproof touch G+F nano waterproof touch |
| Running memory: | 2GB | Point count | 10 points |
| Storage: | 32G | Touch accuracy | 99% accuracy |
| Storage Expansion: | Supports up to 32GB SD card expansion | Operating system | Windows/Android/MacOS/Linux/HarmonyOS |
| Network: | LAN/WiFi/4G module (optional) | Working temperature | -30 ℃‑60 ℃ |
| Bluetooth: | optional | work environment | |
| Interface: | USB2.0 * 2 HDMI Out * 1 | Working temperature: | -10℃‑50℃ (if the ambient temperature is below ‑10℃, it is recommended to choose a heater) |
| HDMI In (optional) MicroPhone * 1 | Working humidity: | 5%‑90% | |
| Audio output * 1 SD card * 1 | Storage temperature: | -20 ℃‑60 ℃ | |
| Horn: | 8 Ω 10W * 2 | Storage humidity: | 10%‑85% |
| Packaging specifications | power | ||
| Product weight: | 98KG | Input voltage: | AC110‑220V |
| Packaging specifications: | Mainly based on physical products (standard packaging is made of pearl cotton) | Working power consumption: | ≤ 490W |
| wooden case packing: mainly based on physical objects | Standby power consumption: | <3W | |
Know The Terms Before You Inquire.
No surprises after you send an inquiry. Shipping terms, order minimums and payment protection are all confirmed upfront.
|
01 — Shipping Terms
Incoterms Available
EXW
Ex Works — pick up from our factory
FOB
Free On Board — most common for ocean freight
CIF
Cost, Insurance & Freight — to your port
|
02 — Order Minimum
MOQ: 1 Units
Applies to standard specs. Custom brightness, cutting or bezel may adjust MOQ, confirmed at quotation. Sample units available before bulk order
|
03 — Payment Protection
Multiple Secured Methods
|
A Real Factory. Publicly Verifiable.
Before inquiry, verify our public business records filed with Chinese government registries.
|
Legal Company Name
Shenzhen Hantu Jiashi Technology Co., Ltd.
|
Unified Social Credit Code
91440300306068446B
|
|
Legal Representative
YUN CHEN
|
Registered Capital
RMB 2,000,000
|
|
Established
May 23, 2014 (11+ years operation)
|
Business Status
● Active / In Operation
|
|
Registered Factory Address
Building B, Gangshen Innovation Park, Huaning Road, Dalang Sub-district, Longhua District, Shenzhen, Guangdong, China
|
|
Contact HITULCD
We'll respond via email within 24 hours. If you'd like to discuss details over WhatsApp or a call, please leave a preferred time and contact method in your message — we will never call you unannounced.
Related solutions
This product is suitable for the following industry application scenarios
Related Products
You may also be interested in the following products
2000 Nits
Wall Mounted Outdoor Digital Signage
65 Inch Wall Mounted Gas Station Digital LCD Display
2000 Nits
Wall Mounted Outdoor Digital Signage

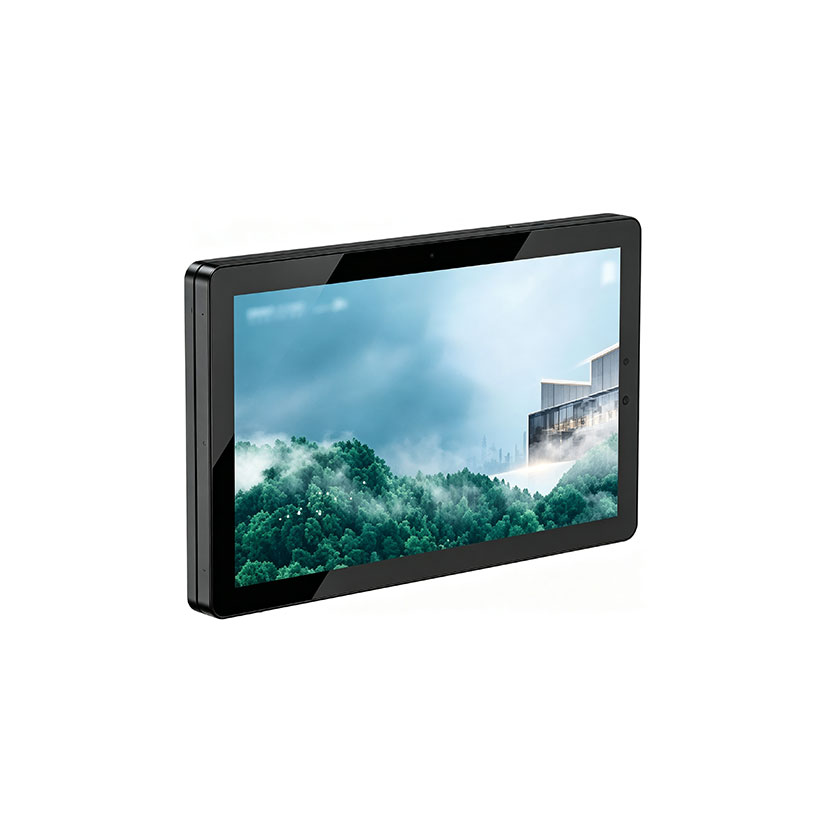

55 Inch 2000 nits Wall Mounted Digital Signage System Integrator
