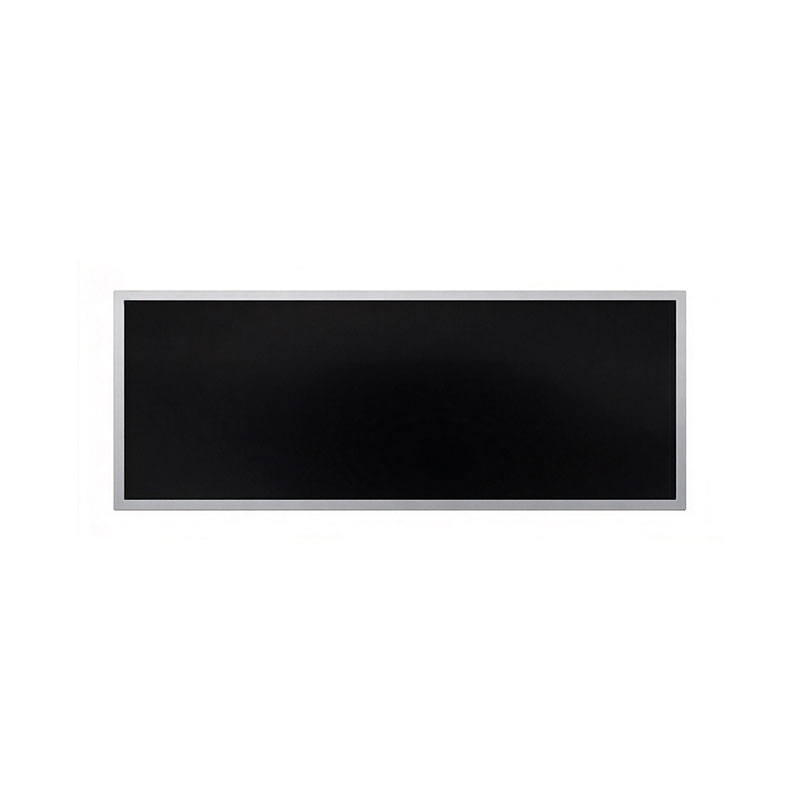

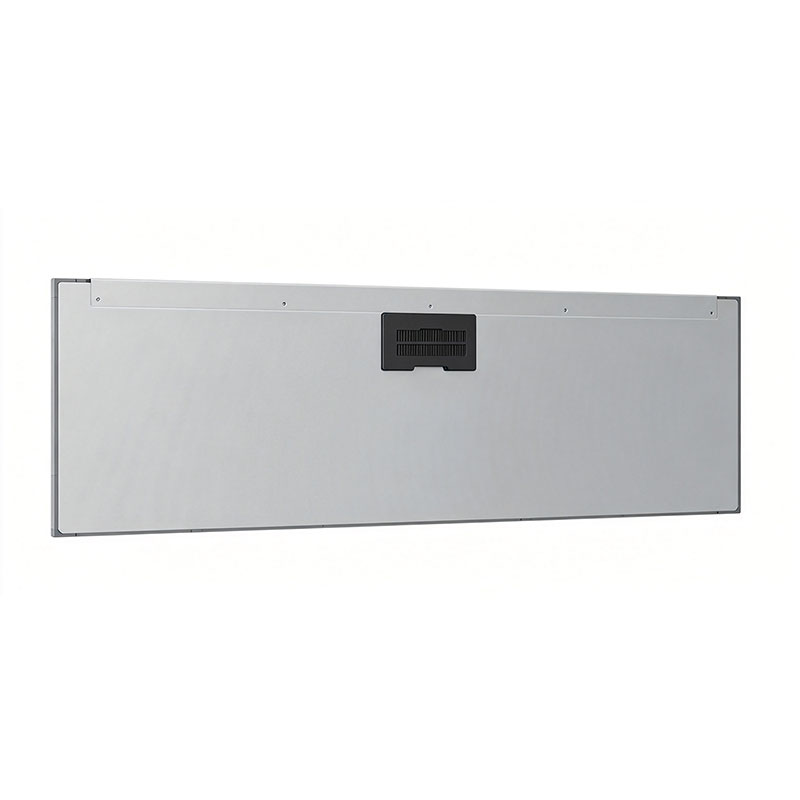

49.5 Inch 4K Ultra-Wide Stretched LCD Display 1000 Nits for OEM Digital Signage
MODEL: HT495HBM
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesBuilt by us. Configured for you.
HITULCD supplies LCD modules and display solutions directly from our manufacturing operation, giving OEMs, integrators and distributors direct access to engineering, customization and production.
Supply
Supplier Qualification
VerificationTechnical Specifications
| LCD PANEL PARAMETERS | HDMI/CONTROL BOARD SPECIFICATIONS | ||
|---|---|---|---|
| ITEM | DETAILS | ITEM | DETAILS |
| Model Number | HT495HBM | Input Interface | HDMI, VGA |
| Diagonal Size | 49.5" (55" 1/2 Cut) | Power Input | DC 12V‑5A |
| Resolution | 1920(RGB) × 540, Optional 3840×1080 | OSD KEYS | 5 KEYS (POWER SWITCH, MENU, +, -, EXIT) |
| Pixel Arrangement | RGB Vertical Stripe | OSD CONTROL | BRIGHTNESS, COLOR, CONTRAST, AUTO ROTATION, H/V POSITION, ETC. |
| Display Area(A.A) | 1209.6(W)×340.2(H) mm | ||
| Overall Dimension | 1239.6(W)×370.2(H)×20(D) mm | ||
| Panel Weight | ‑ | ||
| Surface Treatment | ‑ | ||
| LCD Technology | IPS, Normally Black, Transmissive | ||
| Panel Type | a‑Si TFT‑LCD, LCM | ||
| Typical Brightness | 1000 nits (Customizable: 300~1000 NITS) | ||
| Contrast Ratio | 700:1 (Typ.) | ||
| Response Time | ‑ | ||
| Viewing Angle | 89°/89°/89°/89°(Typ.)(CR≥10) | ||
| Viewing Direction | Full Viewing Angle | ||
| Display Colors | 16.7M / 1.07B Colors | ||
| Refresh Rate | ‑ | ||
| Backlight Type | WLED | ||
| Power Consumption | ‑ | ||
| Signal Interface | 51 pins, LVDS | ||
| Supply Voltage | ‑ | ||
| Touch Panel | Without Touch Function | ||
| Application Fields | Digital Signage | ||
| Operating Temperature | 0 ~ 50 °C | ||
| Storage Temperature | -20 ~ 70 °C | ||
OEM / ODM Custom Bar-Type LCD Solutions
Any Size. Any Aspect Ratio. Cut, Sealed, Tested and Delivered as a Ready-to-Integrate Display.
Standard 16:9 panels don't fit every shelf, façade, vehicle or cabinet. We turn mainstream TFT-LCD open-cell panels into custom stretched bar displays, sized to your drawing, and supply them as bare modules or complete kits with driver boards, cables and mechanical parts.
Send Us Your Drawing · Request a Feasibility Report · Get Samples from 20 pcs
Your Size Is Our Starting Point
Whatever the aspect ratio or dimension your project calls for, our engineers evaluate it against the widest range of source panels and cutting options available. From compact under-shelf strips to meter-wide façade bars, we build to your outline, not the other way around.
| Format Range | Typical Aspect Ratios | Typical Use Cases |
|---|---|---|
| Compact bars (approx. 10"–24") | 8:3, 12:3, 16:4.5 | Shelf-edge labels, instrument strips, automotive and transit displays |
| Mid-size bars (approx. 24"–43") | 16:6, 24:9, 32:9 | Retail counters, vending and kiosk fronts, control-panel status bars |
| Large bars (approx. 43"–65") | 32:9, 36:9, 48:9 | Window and ceiling signage, transit platforms, menu boards |
| Extra-large bars (65" and above) | 48:9 and beyond | Façade strips, stadium and mall banners, multi-screen video walls |
| Fully custom | Your specification | Any outline within the limits of available source panels |
Reference project: HT495HBM — 49.5" (cut from a 55" open cell), 1920×540, up to 1000 nits, IPS, HDMI/VGA control board. View product details
Final achievable dimensions depend on the source panel's active area, driver layout and border structure. Every request receives a written feasibility review before any sample is built.
What We Deliver
1. Cutting Solutions for Any Bar Format
Mechanical wheel cutting for cost-efficient volume programs
Ultra-fast laser cutting for tight tolerances and minimal edge chipping
Cut-line planning that protects the TFT array, Gate/Source fan-out and driver-IC areas
Tolerance options from ±0.2 mm (standard) to ±0.1 mm (laser, project-dependent)
2. Sealing and Reliability Engineering
UV-cured secondary edge sealing against moisture ingress and liquid-crystal leakage
Light-blocking and bezel-gap design to control edge light leakage and Mura
Reliability validation: high/low temperature, high-temp/high-humidity, thermal shock, vibration and packaged drop testing
Test reports and benchmark data from comparable projects available under NDA
3. Complete Module and System Integration
LCM with WLED backlight, brightness from 300 to 1000+ nits
Driver boards: LVDS, eDP, HDMI, VGA, DP, or embedded Android media player boards
Optional front glass, anti-glare/anti-reflective treatment and optical bonding
Optional touch integration (PCAP / IR), evaluated per project
Custom brackets, bezels, housings and cabling
4. Branding and Packaging
OSD language, boot logo and firmware adjustments
Private-label labeling and custom retail or bulk packaging
Serial-number traceability on every unit
Customization Matrix
| Parameter | Available Options |
|---|---|
| Size / Outline | Custom to your drawing (DWG / DXF / STEP / PDF) |
| Aspect Ratio | Standard bar ratios or fully custom |
| Resolution | Native, or optional up-scaled formats (e.g., 1920×540, 3840×1080) |
| Brightness | 300 – 1000+ nits |
| Panel Technology | IPS, VA, depending on source panel availability |
| Surface | Anti-glare, anti-reflective, optical bonding |
| Interface | LVDS, eDP, HDMI, VGA, DP |
| Orientation | Landscape or portrait installation |
| Operating Temperature | Standard 0–50 °C; wider ranges evaluated on request |
| Touch | None / PCAP / IR (optional) |
| Firmware and OSD | Custom logo, language and default settings |
| Packaging | Custom carton, foam, labels, pallet plan |
Our Development Process
| Step | What Happens | Typical Timing |
|---|---|---|
| 1. Requirement Review | You share size, quantity, brightness, environment and interface needs | 1–2 days |
| 2. Feasibility Report | Source-panel selection, cut-line drawing, risk assessment and preliminary quotation | 2–5 days |
| 3. Drawing Approval | Final outline, tolerance, sealing and bezel design signed off by both sides | 3–7 days |
| 4. Engineering Samples (from 20 pcs) | Cutting, sealing, assembly, aging and full inspection | Approx. 3–4 weeks |
| 5. Validation | Your evaluation plus our reliability testing; issue-tracking and corrections | 2–4 weeks |
| 6. Pilot Run | Process lock, yield confirmation and golden-sample sign-off | 2–3 weeks |
| 7. Mass Production | Batch production, 100% functional test, traceable shipment | Approx. 6–8 weeks |
Cutting Technology at a Glance
| Mechanical Wheel Cutting | Ultra-Fast Laser Cutting | |
|---|---|---|
| Best for | Volume programs, standard tolerances | Tight tolerances, narrow borders, low chipping |
| Typical tolerance | ±0.2 mm | ±0.1 mm |
| Edge quality | Controlled chipping, inspected per lot | Very smooth edge, minimal micro-cracks |
| Cost | Lower | Higher (project-dependent) |
| Lead time | Shorter | Standard |
We recommend the method that meets your specification at the best total cost. Our engineers explain the trade-offs in the feasibility report.
Quality and Reliability Commitments
Feasibility before commitment: no sample is built until the cut-line is validated against the panel layout
Edge inspection: magnified inspection for chipping (target ≤ 0.2 mm) and micro-crack control
Optical checks: uniformity, edge brightness and color-shift inspection with agreed limit samples
Reliability plan (typical): 50 °C and 0 °C operation, 60 °C/90% RH, 70 °C and –20 °C storage (240 h each), thermal shock (–20 °C ↔ 70 °C, 100 cycles), vibration (IEC 60068-2-6) and packaged drop (ISTA 2A/3A); extended conditions such as 85 °C/85% RH on request
Compliance support: designs prepared to support CE, RoHS and REACH requirements; documents available for your target market
Production target yield: ≥ 95%, confirmed per project after the pilot run
Commercial Terms
| Item | Typical Terms |
|---|---|
| Sample quantity | From 20 pcs |
| NRE / tooling | Quoted per project; often waived or credited against volume orders |
| Mass-production MOQ | Project-based, typically from 100 pcs per order |
| Warranty | 12 months standard; extended terms available |
| Incoterms | EXW, FOB, CIF, DDP |
| Payment | T/T, L/C (terms agreed per project) |
| IP and confidentiality | NDA available; your drawings and designs remain your property |
Industries We Support
Retail and Supermarkets: shelf-edge, aisle and window bars
Transportation: buses, trains, metro platforms, airports
Hospitality and F&B: digital menu boards, bar-counter displays
Industrial and Control Rooms: status and process-monitoring strips
Kiosks and Vending: front-panel and interactive displays
Advertising and Media: ceiling, façade and multi-screen signage
System Integrators and OEMs: custom-branded display modules for your products
What We Need to Start
To prepare your feasibility report quickly, please send:
Target outline size and tolerance (drawing preferred)
Required resolution and aspect ratio
Brightness and viewing-environment details (indoor, window, outdoor)
Preferred interface and input signal
Operating temperature and humidity range; 24/7 or scheduled operation
Annual volume forecast and target start-of-production date
Any certification or branding requirements
Frequently Asked Questions
Can you really cut to any size?We can cut to virtually any bar format that fits within the source panel's active area and border structure. Each request is checked against panel layout, and we report clearly what is and isn't achievable before you commit.
Will cutting affect image quality or lifespan?When the cut-line is planned outside the TFT array and the edge is properly sealed, image quality is unaffected. Reliability testing on cut modules confirms long-term stability.
Do you offer complete kits or only bare panels?Both. We supply bare LCM modules or complete kits with driver boards, cables, power adapters, brackets and firmware.
How do you keep supply stable for long-term programs?We work with multiple mainstream open-cell suppliers and can agree on last-time-buy and stock-holding arrangements for long-lifecycle projects.
Can you protect our design?Yes. We sign an NDA before receiving drawings, and custom outlines are supplied exclusively to you.
Where do you ship?Worldwide, with experience shipping to Europe, North America, the Middle East and Asia-Pacific.
Let's Build Your Display
Tell us the size you need. Our engineering team will respond with a feasibility assessment and quotation, typically within 24 hours.
📧 Email: chenhua@hitulcd.com🌐 Website: www.hitulcd.com💬 WhatsApp / WeChat: +86 18173373517
49.5" Ultra-Wide Stretched Bar LCD Display (HT495HBM)
1920×540 | Up to 1000 nits | IPS | HDMI + VGA Control Board | 24/7 Digital Signage Ready | OEM/ODM Custom Cutting
Cut from a 55" open-cell panel (1/2 cut) into a true 32:9 bar format. Engineered for shelf-edge signage, transit information displays, retail window bars, control-room strips, and system-integrator projects that need a non-standard aspect ratio with reliable, repeatable quality.
Request a Quote & Samples · Download Datasheet & Drawing (PDF/STEP)
Why Engineers & Buyers Choose the HT495HBM
| Advantage | What It Means for Your Project |
|---|---|
| 32:9 ultra-wide bar format | Fills shelves, ceilings, counters and façade strips that standard 16:9 panels cannot cover |
| Brightness 300–1000 nits (customizable) | Window-facing and high-ambient-light installations, or lower-power indoor builds |
| IPS, 89°/89°/89°/89° viewing angle | Consistent color from any position, portrait or landscape mounting |
| Complete kit: LCM + HDMI/VGA control board | Plug-and-play; shorter integration time, fewer sourcing headaches |
| Optional 3840×1080 resolution | Sharper text and imagery for close-viewing applications |
| Controlled cutting and edge-sealing process | Documented process, inspection standards, and reliability data available on request |
| OEM/ODM flexibility | Custom brightness, size, bezel, interface, firmware/OSD logo, and packaging |
Key Specifications
LCD Panel
| Item | Specification |
|---|---|
| Model Number | HT495HBM |
| Diagonal Size | 49.5" (cut from 55" panel, 1/2 cut) |
| Aspect Ratio | 32:9 (approx.) |
| Resolution | 1920 (RGB) × 540 · Optional 3840 × 1080 |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area (A.A.) | 1209.6 (W) × 340.2 (H) mm |
| Outline Dimension | 1239.6 (W) × 370.2 (H) × 20 (D) mm |
| Panel Type | a-Si TFT-LCD, LCM (Liquid Crystal Module) |
| LCD Technology | IPS, Normally Black, Transmissive |
| Typical Brightness | 1000 cd/m² (customizable 300–1000 cd/m²) |
| Contrast Ratio | 700:1 (typ.) |
| Viewing Angle | 89°/89°/89°/89° (typ.) at CR ≥ 10 · Full viewing angle |
| Display Colors | 16.7M / 1.07B colors |
| Response Time | 8 ms (G-to-G, typ.) |
| Refresh Rate | 60 Hz |
| Backlight | WLED |
| Backlight Lifetime | 50,000 hours (typ.) |
| Surface Treatment | Anti-glare (AG), haze approx. 25% · Hardness 3H |
| Signal Interface | LVDS, 51-pin |
| Supply Voltage (Panel Logic) | 12 V DC (typ.) |
| Power Consumption | ≤ 100 W (typ., at 1000 nits, full system) |
| Panel Weight | Approx. 8 kg (typ.) |
| Touch | Not included (no touch function) |
| Operating Temperature | 0 to 50 °C |
| Storage Temperature | –20 to 70 °C |
| Application | Digital signage |
HDMI / Control Board
| Item | Specification |
|---|---|
| Input Interface | HDMI, VGA |
| Power Input | DC 12 V, 5 A |
| OSD Keys | 5 keys (Power, Menu, +, –, Exit) |
| OSD Functions | Brightness, color, contrast, auto rotation, H/V position, etc. |
Values marked "typ." are typical figures under standard test conditions (25 °C, 60% RH). Final values are confirmed in the approval specification issued with your quotation. Optional and customized parameters are available on request.
Typical Applications
Retail: shelf-edge and aisle-end promotional strips, in-store window bars
Transportation: platform, in-vehicle and terminal information displays
Hospitality & F&B: digital menu boards, bar and counter signage
Corporate & Control Rooms: status bars, dashboards, ticker displays
Banking & Public Buildings: queue and information strips
Integrated Products: vending machines, kiosks, custom cabinets, OEM equipment
Custom Cutting: Technical Feasibility, Reliability & Project Terms
Cutting a standard TFT panel into a non-standard size is a controlled engineering process. We share the key points procurement and engineering teams ask about most, so your team can evaluate feasibility early.
1. Cutting Process & Feasibility Review
Which cutting method do you use?We select the method per project based on glass thickness, tolerance and edge requirement:
| Method | Best For | Typical Tolerance |
|---|---|---|
| Mechanical wheel cutting (scribe & break) | Cost-efficient volume production, standard bar formats | ±0.2 mm |
| Ultra-fast laser cutting | Tight tolerance, low chipping, narrow borders | ±0.1 mm |
Will the cut interfere with Gate/Source lines or the TFT array?Every project starts with a layout feasibility review against the original panel's design. The cut line is placed in the non-active margin, outside the TFT array, gate/source fan-out and driver-IC areas. Cutting is only approved when the required safety clearance from the array boundary is met.
Information we need from you for a feasibility check:
Target size, aspect ratio and outline drawing (DWG/DXF/STEP/PDF)
Preferred resolution and interface (LVDS / eDP / HDMI board)
Bezel and mounting requirements, target brightness
Operating environment (temperature, humidity, indoor/outdoor, 24/7 or not)
Annual volume forecast and target start-of-production date
We reply with a feasibility report and cut-line drawing for your sign-off before any sample is built.
What edge quality standard applies?Cut edges are inspected under magnification against internal standards. Typical acceptance targets:
Edge chipping: ≤ 0.2 mm (not extending into the seal or active area)
No visible micro-cracks propagating toward the seal line
Edge flatness and perpendicularity checked by sampling per lot (AQL-based)
2. Sealing & Reliability Assurance
How are cut edges sealed against moisture and liquid crystal leakage?After cutting, exposed cell edges are sealed using a secondary sealing process with UV-curable sealant (dispensed and cured under controlled conditions), then inspected for continuity, coverage and cure quality. Sealant is selected for low moisture permeability and compatibility with polarizers and the panel's cell materials.
Which reliability tests are performed?Our standard validation plan for cut modules follows common industrial practice. Typical test items:
| Test | Typical Condition | Pass Criteria |
|---|---|---|
| High temperature operation | 50 °C, 240 h | No functional or visual defect |
| Low temperature operation | 0 °C, 240 h | No functional or visual defect |
| High temp. / high humidity | 60 °C / 90% RH, 240 h (extended tests up to 85 °C / 85% RH available on request) | No leakage, delamination or Mura |
| High temperature storage | 70 °C, 240 h | No degradation |
| Low temperature storage | –20 °C, 240 h | No degradation |
| Thermal shock | –20 °C ↔ 70 °C, 100 cycles | No cracks, leakage or seal failure |
| Vibration | Packaged and unpackaged, per IEC 60068-2-6 | Pass |
| Drop test (packaged) | Per ISTA 2A / ISTA 3A | Pass |
Test reports and benchmark data from comparable cut-panel projects are available under NDA on request.
Will edge light leakage or color shift appear after cutting?Edge light leakage and Mura are controlled through backlight/bezel design (light-blocking tape and frame gap optimization) and 100% optical inspection at edge zones. Our final-inspection standards include uniformity, edge-brightness and color-shift checks, with golden-sample and limit-sample references agreed with you in writing.
3. Cost, Yield & Lead Time
| Item | Typical Terms |
|---|---|
| NRE / tooling | Quoted per project based on size and complexity; commonly waived or credited against volume orders |
| Engineering sample lead time | Approx. 3–4 weeks for the first 20 pcs after drawing approval |
| Sample quantity | From 20 pcs for evaluation |
| Mass-production lead time | Approx. 6–8 weeks after order and sample approval |
| Target production yield | ≥ 95% (process target, confirmed per project after pilot run) |
| MOQ (mass production) | Project-based; flexible for OEM/ODM programs, typically from 100 pcs/order |
| Warranty | 12 months standard (extended terms available) |
Please contact us with your drawing and forecast for a project-specific quotation.
Customization Options (OEM / ODM)
Brightness: 300–1000 nits
Resolution: 1920×540 or 3840×1080
Cut size and aspect ratio to your drawing
Interface: LVDS, HDMI, VGA, or embedded boards (Android / media player on request)
Front glass, anti-glare / anti-reflective options, optical bonding
Custom bezel, housing, mounting brackets
OSD language, boot logo and firmware
Custom packaging and labeling
Quality & Compliance
Manufactured under a quality management system (ISO 9001 processes)
100% functional test and aging before shipment
Designed to support CE, RoHS and REACH compliance requirements; test reports available for the target market on request
Traceable serial numbers for every unit
What's Included
1 × HT495HBM LCD module (LVDS)
1 × HDMI/VGA control board with 5-key OSD
1 × LVDS cable and backlight/key cables
1 × 12 V / 5 A DC power adapter (optional)
Technical datasheet and outline drawing
Frequently Asked Questions
Can I use this display 24/7?Yes. The WLED backlight is rated for 50,000 hours (typ.). For continuous operation, we recommend adequate ventilation and running at the lowest brightness that suits your environment to extend lifetime.
Is a touch version available?The standard model has no touch function. Projected-capacitive or IR touch integration can be evaluated as a custom project.
Can you supply other sizes?Yes. We offer a range of stretched bar sizes and can cut to custom dimensions, subject to feasibility review.
Do you ship worldwide?Yes. We support FOB, EXW, CIF and DDP terms to Europe, North America and other regions.
Can I get samples before placing a volume order?Yes. Engineering samples start from 20 pcs. Please contact us with your requirements.
Get a Quote
Send us your target size, quantity, brightness and application and our engineering team will respond with a feasibility assessment and quotation, typically within 24 hours.
📧 Email: chenhua@hitulcd.com🌐 Website: www.hitulcd.com💬 WhatsApp / WeChat: +86 18173373517
Know The Terms Before You Inquire.
|
01 — Shipping Terms
Incoterms Available
EXW
Ex Works — pick up from our factory
FOB
Free On Board — most common for ocean freight
CIF
Cost, Insurance & Freight — to your port
|
02 — Order Minimum
MOQ: 1 Units
Applies to standard specs. Custom brightness, cutting or bezel may adjust MOQ, confirmed at quotation. Sample units available before bulk order
|
03 — Payment Protection
Multiple Secured Methods
|
A Real Factory. Publicly Verifiable.
|
Legal Company Name
Shenzhen Hantu Jiashi Technology Co., Ltd.
|
Unified Social Credit Code
91440300306068446B
|
|
Legal Representative
YUN CHEN
|
Registered Capital
RMB 2,000,000
|
|
Established
May 23, 2014 (11+ years operation)
|
Business Status
● Active / In Operation
|
|
Registered Factory Address
Building B, Gangshen Innovation Park, Huaning Road, Dalang Sub-district, Longhua District, Shenzhen, Guangdong, China
|
|
Contact HITULCD
We'll respond via email within 24 hours. If you'd like to discuss details over WhatsApp or a call, please leave a preferred time and contact method in your message — we will never call you unannounced.
Related solutions
This product is suitable for the following industry application scenarios
Floor Information Bar LCD Display Solution
Ultra-wide, high-brightness stretched bar LCD disp...
view
Convenience Store Bar LCD Display Solution
Ultra-slim, high-brightness stretched bar LCD disp...
view
Bus Passenger Information Stretched Bar Display Solution
A rugged, ultra-wide stretched bar display solutio...
viewRelated Products
You may also be interested in the following products
500 Nits
42.5 Inch Custom Bar LCD Display for Industrial and Retail Equipment
1000 Nits
42.7 Inch Ultra-Wide Stretched LCD Module for Embedded Display Systems
1000 Nits
43 Inch Custom Stretched LCD Panel for OEM and ODM Equipment Projects
