32 Inch Cuttable Stretched LCD Panel for OEM Integration Projects
MODEL: HT320HDL-1000
SERVICES
- Accountability: Every unit ships standard with CE/FCC/RoHS certification. UL/CCC/EAC certification can be arranged upon request — additional cost and lead time apply depending on the specific standard; please contact us for a quote before ordering.
- Return Policy: 12-month warranty with remote troubleshooting first, followed by free replacement and expedited reshipment once a hardware fault is confirmed.
- Lead Time: 2–3 weeks for standard products, 4–6 weeks for custom orders, and 6–8 weeks for bulk orders of 500+ units, with clear scheduling confirmed before order placement.
- Customer Support: 24/7 engineering support with a direct WhatsApp link on the website, ensuring fast responses across time zones without waiting on email.
- Production Capacity: Monthly production capacity: 12,000+ units (customizable specs), supporting both small-batch prototyping and large-volume orders.
- Inventory & Lead Time Assurance: We maintain safety stock of common panel sizes and standard components to buffer against supply chain fluctuations. For repeat orders, we offer scheduled/forecasted production slots to guarantee on-time delivery.
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesTechnical Specifications

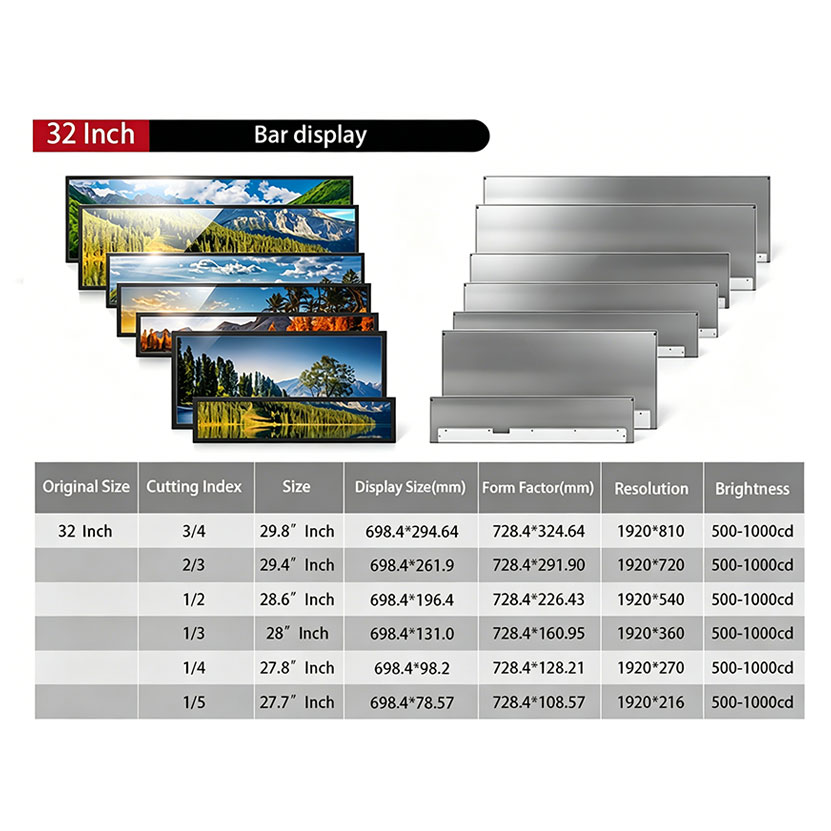

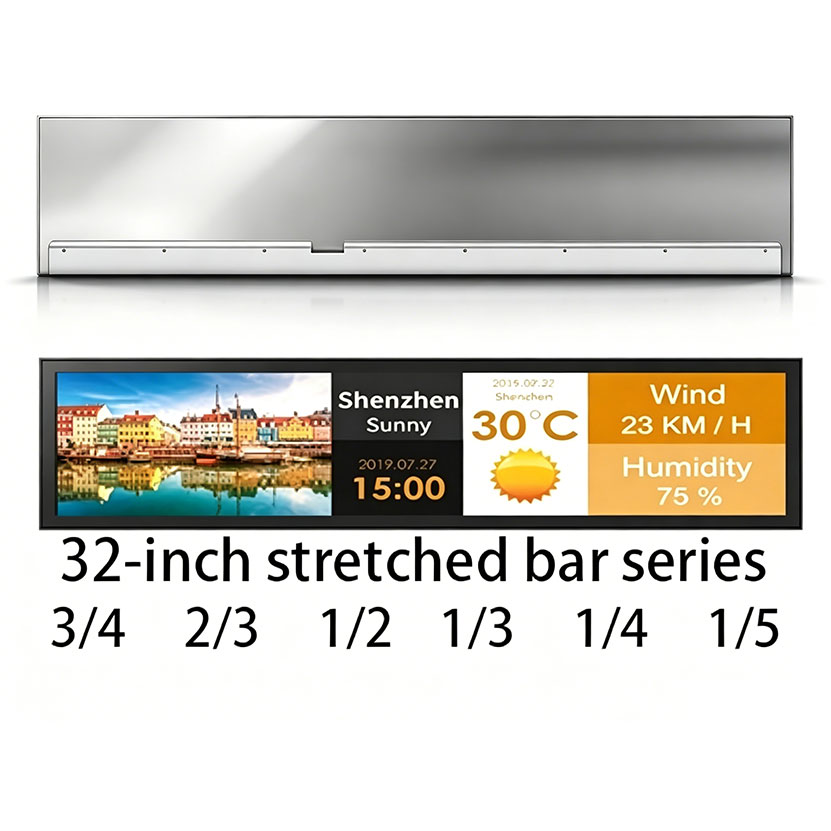

32-inch Bar Display Cuttable Sizes
| Original Size | Cutting Index | Size | Display Size(mm) | Form Factor(mm) | Resolution | Brightness |
|---|---|---|---|---|---|---|
| 32 Inch | 3/4 | 29.8" Inch | 698.4*294.64 | 728.4*324.64 | 1920*810 | 500-1000cd |
| 2/3 | 29.4" Inch | 698.4*261.9 | 728.4*291.90 | 1920*720 | 500-1000cd | |
| 1/2 | 28.6" Inch | 698.4*196.4 | 728.4*226.43 | 1920*540 | 500-1000cd | |
| 1/3 | 28" Inch | 698.4*131.0 | 728.4*160.95 | 1920*360 | 500-1000cd | |
| 1/4 | 27.8" Inch | 698.4*98.2 | 728.4*128.21 | 1920*270 | 500-1000cd | |
| 1/5 | 27.7" Inch | 698.4*78.57 | 728.4*108.57 | 1920*216 | 500-1000cd |
| LCD PANEL PARAMETERS | HDMI/CONTROL BOARD SPECIFICATIONS | ||
|---|---|---|---|
| ITEM | DETAILS | ITEM | DETAILS |
| Description | HANNTU 32" QLED QUANTUM DOT HIGH COLOR GAMUT 350CD | Input Interface | HDMI, VGA， |
| Size | 32 | Power Input | AC 100~240V |
| Display area (mm) | 698.4×392.85 mm (H×V) | OSD KEYS | 5 KEYS (POWER SWITCH, MENU, +, -, EXIT) |
| Resolution | 1920*1080 | OSD CONTROL | BRIGHTNESS, COLOR, CONTRAST, AUTO ROTATION, H/V POSITION, ETC. |
| Aspect ratio | 16:9 | ||
| Contrast ratio | 1200:1 | ||
| Pixel per inch (PPI) | 69 | ||
| Viewing angle | 178(H),178(V) | ||
| Display Colors | 16.7M, 72% NTSC | ||
| Response time(Typical) | 8ms | ||
| Signal Type | LVDS (2 ch, 8-bit) | ||
| Backlight | WLED, 30K hrs, With LED Driver | ||
| Power consumption | 50W | ||
| Dimensions (mm) | 698.4×392.85 mm (H×V) | ||
| Mounting | VESA100x100 | ||
| Bezel size (U/B/L/R) | 15/15/15/15 | ||
| Operating temperature | 0℃～+50℃ | ||
| Storage temperature | -20℃～+60℃ | ||
| Weight (Net) | 5KG | ||
32 Inch Cuttable Stretched LCD Panel for OEM Integration Projects
Customizable 32 Inch Stretched LCD Panel Designed for Embedded Display Applications
HITULCD 32 inch cuttable stretched LCD panel is developed for OEM manufacturers and system integrators who require a unique ultra-wide display format for space-limited applications.
Unlike conventional 16:9 LCD monitors, this stretched LCD panel can be customized into different aspect ratios and active display areas to fit specific mechanical designs, including retail shelves, transportation information systems, industrial equipment, smart cabinets, and custom digital signage solutions.
Based on industrial LCD engineering experience, HITULCD provides more than a standard display module. We support complete OEM/ODM customization from panel cutting, backlight design, electronic integration to final production.
Designed for OEM Projects Requiring Flexible Display Geometry
Many commercial and industrial products have narrow installation spaces where standard displays cannot be integrated effectively.
The 32 inch stretched LCD panel provides a flexible solution by allowing customers to define:
Custom display length and height ratio
Special mounting dimensions
Different viewing window designs
Customized brightness requirements
Customized interface and control solutions
This enables equipment manufacturers to create differentiated products without redesigning their entire enclosure structure.
Precision LCD Cutting for Custom Stretched Display Solutions
Cutting a conventional LCD panel into a stretched format requires precise control of glass processing, optical performance, and backlight uniformity.
HITULCD engineers optimize each custom panel project based on:
Required display ratio
Visible area dimensions
Brightness distribution
Heat dissipation requirements
Installation environment
The result is a stretched display solution with stable image performance and reliable mechanical integration.
Poor-quality cutting processes may cause light leakage, uneven brightness, edge stress, or shortened lifespan. HITULCD focuses on engineering validation before mass production to reduce integration risks for OEM customers.
OEM / ODM Customization Capability
For customers developing their own products, HITULCD provides full engineering support including:
LCD Panel Customization
Custom stretched aspect ratio
Custom active display area
Custom resolution configuration
Industrial-grade LCD selection
Backlight Development
500-1000 nits brightness options
High uniformity LED backlight design
Long-life backlight solutions for 24/7 operation
Electronic Integration
HDMI / LVDS / eDP interface options
Customized driver board
Touch integration support
Embedded controller solutions
Mechanical Adaptation
Customized frame design
Mounting hole adjustment
Cable position optimization
Enclosure integration support
Applications
The 32 inch cuttable stretched LCD panel is suitable for:
Retail & Digital Signage
Shelf edge displays
Product information screens
Advertising bars
Interactive retail displays
Transportation Systems
Passenger information displays
Station information boards
Vehicle interior displays
Industrial Equipment
Machine interface displays
Control cabinet visualization
Automation equipment monitoring
Smart Commercial Devices
Smart lockers
Self-service kiosks
Payment terminals
Customized commercial terminals
Built for Long-Term OEM Production
For OEM customers, display selection is only one part of the project. The key challenge is ensuring stable production after product launch.
HITULCD supports customers throughout the complete development cycle:
Engineering discussion
Display specification confirmation
Prototype sample production
Mechanical integration testing
Small batch validation
Mass production support
Our goal is not simply to provide a stretched LCD panel, but to help customers build a reliable display solution that can be manufactured at scale.
Why Choose HITULCD for Custom Stretched LCD Projects?
Industrial LCD engineering experience
Flexible cuttable stretched display technology
OEM/ODM development support
Custom brightness and interface options
Prototype-to-production capability
Dedicated engineering communication
For companies developing specialized display products, HITULCD provides the technical foundation required to turn unique display concepts into production-ready solutions.
32 Inch Stretched LCD Panel Cutting Solution for OEM Custom Display Integration
Customized LCD Cutting Process for Space-Limited Display Applications
HITULCD provides professional LCD cutting solutions for 32 inch stretched bar displays, helping OEM manufacturers and system integrators transform standard LCD panels into customized ultra-wide display modules for specialized applications.
Many commercial and industrial products require displays with non-standard dimensions due to limited installation space. A conventional 16:9 display often cannot fit these designs. By precisely modifying the active display area and optimizing the optical structure, HITULCD enables customers to develop unique stretched display formats while maintaining stable image quality and long-term reliability.
Custom Cutting Design Based on Application Requirements
The LCD cutting process starts from the customer's mechanical structure and display requirements rather than a fixed panel size.
Before production, HITULCD engineers evaluate:
Required visible display area
Target aspect ratio
Installation dimensions
Viewing distance
Brightness requirements
Operating environment
Interface and system compatibility
Based on these parameters, the engineering team defines the optimal cutting area and display configuration.
Typical customized formats include:
32 inch 3:1 stretched display
32 inch 4:1 ultra-wide display
32 inch narrow bar display
Custom length-to-height ratio display solutions
Precision Cutting and Optical Optimization
LCD cutting is not simply reducing the physical size of a panel. It requires precise control of multiple layers, including:
TFT glass structure
Polarizer layer
Optical films
Backlight system
Driver connection area
During the customization process, HITULCD focuses on maintaining:
Uniform Brightness
After cutting, the backlight structure is redesigned and adjusted to ensure consistent brightness across the entire display area.
Stable Image Performance
The optical design is optimized to prevent issues such as:
Brightness deviation
Edge light leakage
Uneven illumination
Visible image distortion
Mechanical Reliability
The customized panel structure is evaluated to reduce stress caused by installation, transportation, and long-term operation.
Backlight Modification for Stretched Display Applications
Because stretched LCD panels have different dimensions from standard displays, the backlight system usually requires customization.
HITULCD supports:
Customized LED backlight layout
High brightness solutions
Improved heat dissipation design
24/7 continuous operation requirements
For applications such as retail advertising displays, transportation information systems, and industrial equipment, brightness stability and thermal management are critical factors for long-term reliability.
Engineering Validation Before Mass Production
Each customized cutting project follows a structured development process:
1. Technical Evaluation
HITULCD reviews customer requirements and confirms:
Display dimensions
Cutting feasibility
Electrical specifications
Mechanical requirements
2. Prototype Development
Engineering samples are produced for:
Mechanical fitting tests
Display performance evaluation
System integration testing
3. Reliability Verification
Before mass production, the customized display solution is checked for:
Display uniformity
Operating temperature performance
Signal stability
Structural reliability
4. Production Transfer
After validation, production parameters are fixed to ensure consistency during volume manufacturing.
Designed for OEM Product Integration
The 32 inch stretched LCD cutting solution is suitable for manufacturers developing:
Digital Signage Equipment
Retail shelf displays
Advertising screens
Commercial information displays
Transportation Displays
Passenger information systems
Vehicle interior displays
Platform information screens
Industrial Equipment
Machine control interfaces
Automation systems
Monitoring equipment
Smart Commercial Devices
Self-service terminals
Smart cabinets
Interactive kiosks
HITULCD OEM Cutting Capability
For OEM and ODM customers, HITULCD provides complete support from initial concept to production:
Custom LCD cutting design
Display specification matching
Backlight customization
Controller integration
Mechanical adaptation
Prototype production
Mass production support
With experience in stretched LCD development, HITULCD helps customers reduce integration complexity and create reliable customized display products for global markets.
Know The Terms Before You Inquire.
No surprises after you send an inquiry. Shipping terms, order minimums and payment protection are all confirmed upfront.
|
01 — Shipping Terms
Incoterms Available
EXW
Ex Works — pick up from our factory
FOB
Free On Board — most common for ocean freight
CIF
Cost, Insurance & Freight — to your port
|
02 — Order Minimum
MOQ: 1 Units
Applies to standard specifications. Custom brightness, size-cutting or bezel design may adjust MOQ — confirmed at quotation stage, not after deposit.
Sample units available before bulk order
|
03 — Payment Protection
Multiple Secured Methods
|
A Real Factory. Publicly Verifiable.
Before you send an inquiry, check us out yourself. All the information below is on public record with Chinese government business registries.
|
Legal Company Name
Shenzhen Hantu Jiashi Technology Co., Ltd.
|
Unified Social Credit Code
91440300306068446B
|
|
Legal Representative
YUN CHEN
|
Registered Capital
RMB 2,000,000
|
|
Established
May 23, 2014 (11+ years in operation)
|
Business Status
● Active / In Operation
|
|
Registered Factory Address
Building B, Gangshen Innovation Park, Huaning Road, Dalang Sub-district, Longhua District, Shenzhen, Guangdong, China
|
|
Contact HITULCD
We'll respond via email within 24 hours. If you'd like to discuss details over WhatsApp or a call, please leave a preferred time and contact method in your message — we will never call you unannounced.
