40 Inch Cuttable Stretched Bar LCD for Outdoor OEM | 500-1000nits
MODEL: HT400HDL-1000
SERVICES
- Accountability: Every unit ships standard with CE/FCC/RoHS certification. UL/CCC/EAC certification can be arranged upon request — additional cost and lead time apply depending on the specific standard; please contact us for a quote before ordering.
- Return Policy: 12-month warranty with remote troubleshooting first, followed by free replacement and expedited reshipment once a hardware fault is confirmed.
- Lead Time: 2–3 weeks for standard products, 4–6 weeks for custom orders, and 6–8 weeks for bulk orders of 500+ units, with clear scheduling confirmed before order placement.
- Customer Support: 24/7 engineering support with a direct WhatsApp link on the website, ensuring fast responses across time zones without waiting on email.
- Production Capacity: Monthly production capacity: 12,000+ units (customizable specs), supporting both small-batch prototyping and large-volume orders.
- Inventory & Lead Time Assurance: We maintain safety stock of common panel sizes and standard components to buffer against supply chain fluctuations. For repeat orders, we offer scheduled/forecasted production slots to guarantee on-time delivery.
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesTechnical Specifications

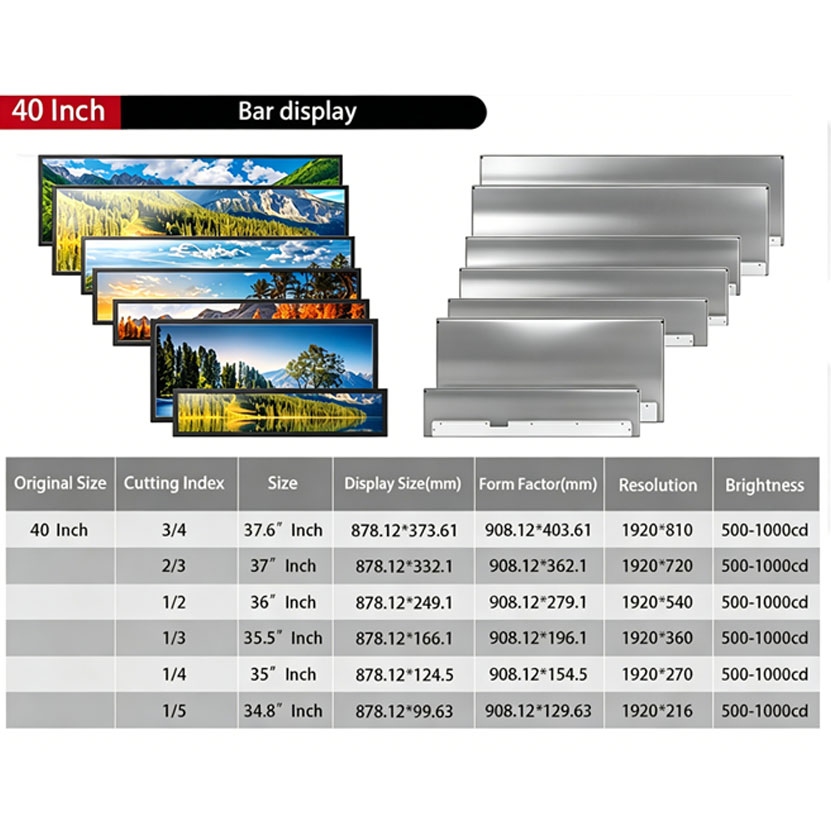

40 Inch Display Cutting Specification Table
| Original Size | Cutting Index | Size | Display Size(mm) | Form Factor(mm) | Resolution | Brightness |
|---|---|---|---|---|---|---|
| 40 Inch | 3/4 | 37.6" Inch | 878.12*373.61 | 908.12*403.61 | 1920*810 | 500-1000cd |
| 2/3 | 37" Inch | 878.12*332.1 | 908.12*362.1 | 1920*720 | 500-1000cd | |
| 1/2 | 36" Inch | 878.12*249.1 | 908.12*279.1 | 1920*540 | 500-1000cd | |
| 1/3 | 35.5" Inch | 878.12*166.1 | 908.12*196.1 | 1920*360 | 500-1000cd | |
| 1/4 | 35" Inch | 878.12*124.5 | 908.12*154.5 | 1920*270 | 500-1000cd | |
| 1/5 | 34.8" Inch | 878.12*99.63 | 908.12*129.63 | 1920*216 | 500-1000cd |
40 Inch Strip LCD Screen Technical Parameters
| LCD PANEL PARAMETERS | HDMI/CONTROL BOARD SPECIFICATIONS | ||
|---|---|---|---|
| ITEM | DETAILS | ITEM | DETAILS |
| Description | HITULCD 40" QLED QUANTUM DOT HIGH COLOR GAMUT 350CD | Input Interface | HDMI, VGA，DP |
| Size | 40 | Power Input | AC 100~240V |
| Display area (mm) | 878.112(H)×485.352(V) mm | OSD KEYS | 5 KEYS (POWER SWITCH, MENU, +, -, EXIT) |
| Resolution | 1920*1080 | OSD CONTROL | BRIGHTNESS, COLOR, CONTRAST, AUTO ROTATION, H/V POSITION, ETC. |
| Aspect ratio | 16:9 | ||
| Contrast ratio | 1200:1 | ||
| Pixel per inch (PPI) | 55 | ||
| Viewing angle | 178(H),178(V) | ||
| Display Colors | 16.7M, 72% NTSC | ||
| Response time(Typical) | 8ms | ||
| Signal Type | LVDS (2 ch, 8-bit) | ||
| Backlight | WLED, 30K hrs, With LED Driver | ||
| Power consumption | 50W | ||
| Dimensions (mm) | 878.112(H)×485.352(V) mm | ||
| Mounting | VESA400x200 | ||
| Bezel size (U/B/L/R) | 15/15/15/15 | ||
| Operating temperature | 0℃～+50℃ | ||
| Storage temperature | -20℃～+60℃ | ||
| Weight (Net) | 5KG | ||
40 Inch Cuttable Stretched Bar LCD Display for Outdoor OEM Integration
Custom Ultra-Wide LCD Solution Designed for Outdoor Digital Signage Projects
HITULCD 40-inch cuttable stretched bar LCD display is engineered for OEM manufacturers and system integrators who require a slim, wide-format display solution for outdoor and semi-outdoor applications.
Unlike conventional 16:9 commercial monitors, this ultra-wide bar LCD panel is designed to fit into narrow installation spaces where standard displays cannot be integrated effectively. The elongated display structure allows brands, advertisers, and equipment manufacturers to create unique visual experiences in storefronts, transportation environments, smart kiosks, and architectural signage systems.
With high brightness options from 500 to 1000 nits, the display maintains clear visibility under strong ambient lighting conditions, making it suitable for window-facing installations, covered outdoor areas, and public information displays.
HITULCD provides complete OEM/ODM customization support, including display ratio adjustment, cutting dimensions, brightness optimization, interface selection, touch integration, and mechanical design assistance to help customers develop project-specific display solutions.
Designed for OEM Projects Requiring Non-Standard Display Formats
Many commercial display projects are limited by installation space rather than screen size. Traditional LCD panels often leave unused areas or require complex mechanical modifications.
The 40-inch stretched bar LCD solves this challenge by providing an ultra-wide viewing area optimized for:
Long horizontal advertising structures
Narrow architectural spaces
Custom-built digital signage cabinets
Retail window display systems
Transportation information displays
Outdoor communication terminals
The slim panoramic format allows system designers to maximize visual impact while maintaining a compact installation footprint.
High Brightness Performance for Outdoor Visibility
Outdoor display applications require higher brightness levels than standard commercial monitors.
This 40-inch stretched LCD panel supports 500-1000 nits brightness configurations, providing improved readability in environments with:
Natural daylight exposure
Glass window reflections
Shopping mall entrances
Transit waiting areas
Outdoor advertising locations
Combined with industrial-grade LCD technology, the display is designed for long-term operation in commercial environments where stability and consistent image quality are essential.
Flexible Cutting Design for Project-Based Customization
Every OEM project has different enclosure dimensions and installation requirements.
HITULCD engineers provide customized stretched LCD solutions based on customer specifications, including:
Custom screen length and display ratio
Active area adjustment
Brightness customization
Connector and interface modification
Driver board integration
Touch panel integration
Protective glass and optical bonding solutions
The cuttable panel design gives equipment manufacturers greater flexibility when developing unique products without redesigning their entire enclosure structure.
Typical Applications
Outdoor Digital Signage
Designed for advertising systems installed in commercial streets, shopping centers, and public areas where traditional displays cannot fit.
Retail Window Displays
The ultra-wide format creates eye-catching promotional content while maximizing limited storefront display space.
Transportation Information Systems
Suitable for passenger information displays in stations, terminals, and public transportation facilities requiring long-format visual communication.
Smart Kiosk & Self-Service Equipment
Provides a large information display area for outdoor kiosks, ticket machines, and interactive terminals.
Architectural Display Integration
Ideal for custom building signage, entrance displays, and decorative digital media installations.
OEM / ODM Manufacturing Support
HITULCD works directly with global OEM customers, display integrators, and solution providers to develop customized stretched LCD products.
Our engineering support includes:
Display specification consultation
Mechanical integration assistance
Prototype development
Small batch verification
Mass production support
Long-term supply management
From initial concept design to final production, HITULCD helps customers transform unique display requirements into reliable commercial products.
Technical Advantages
40-inch ultra-wide stretched LCD format
500-1000 nits high brightness options
Custom cuttable display structure
Designed for outdoor and semi-outdoor environments
24/7 commercial operation capability
OEM/ODM customization available
Suitable for global digital signage projects
HITULCD 40-inch stretched bar LCD display provides a practical solution for OEM manufacturers looking beyond traditional screen formats. By combining high brightness performance, customizable dimensions, and engineering support, it enables new possibilities for outdoor signage, retail communication, and integrated display systems.
40 Inch Cuttable Stretched Bar LCD Custom Cutting Solution for OEM Digital Signage Integration
Flexible Cutting Design for Large-Format Ultra-Wide Display Applications
HITULCD 40-inch cuttable stretched bar LCD display is developed for OEM customers who need a customized ultra-wide display format for commercial and outdoor applications.
Unlike standard LCD panels with fixed 16:9 dimensions, a stretched bar display provides greater flexibility for integration into special-shaped enclosures, architectural structures, and long-format digital signage systems. Through professional cutting and customization processes, the original 40-inch panel can be adapted into different aspect ratios while maintaining stable image performance and reliable operation.
This cutting solution is designed specifically for applications where installation width is limited but a long viewing area is required, such as outdoor advertising boards, retail window displays, transportation information systems, and smart commercial equipment.
Custom Cutting Options Based on Project Dimensions
For OEM projects, HITULCD engineers evaluate the required installation space, viewing distance, content layout, and mechanical structure before defining the cutting area.
The 40-inch stretched LCD platform is suitable for developing various ultra-wide formats, including:
8:1 Ultra-Wide Display Ratio
Recommended Applications:
Outdoor advertising strips
Building entrance information displays
Shopping mall promotional banners
Commercial facade signage
The 8:1 format creates a long horizontal visual area suitable for displaying scrolling advertisements, brand messages, product promotions, and public information.
This ratio is ideal for locations where the display height is limited but maximum horizontal coverage is required.
6:1 Wide Format Display
Recommended Applications:
Retail window advertising systems
Self-service kiosks
Digital menu boards
Brand showcase displays
The 6:1 ratio provides a balance between screen width and content readability, allowing customers to display images, text, product information, and promotional videos without excessive stretching.
It is suitable for commercial environments where viewers are positioned at medium distances.
4:1 Panoramic Display Format
Recommended Applications:
Transportation information displays
Indoor/outdoor public information terminals
Commercial digital signage cabinets
Smart retail equipment
The 4:1 ratio offers a wider content area while maintaining better readability for detailed information. It is commonly used in applications requiring both graphics and text presentation.
Engineering Considerations for 40-Inch LCD Cutting Projects
A successful stretched LCD customization project requires more than simply reducing panel dimensions. HITULCD engineers consider several key factors during the design process:
Active Area Optimization
The cutting position is defined according to:
Required aspect ratio
Installation dimensions
Viewing angle requirements
Content display format
Mechanical enclosure structure
This ensures the final display maintains a balanced visual area without unnecessary black borders or unused space.
Brightness Adjustment for Outdoor Environments
For outdoor or window-facing installations, brightness performance is critical.
The 40-inch stretched display can be customized with:
500 nits brightness for indoor and semi-outdoor applications
700-800 nits brightness for high ambient light environments
1000 nits brightness for outdoor digital signage applications
Brightness selection depends on installation location, sunlight exposure, and viewing distance.
Interface and System Integration Support
To simplify OEM product development, HITULCD supports customization of:
LVDS / eDP interface options
HDMI controller integration
Driver board matching
Android media player integration
Touch panel solutions
Protective glass customization
This allows system manufacturers to integrate the stretched LCD directly into their own finished products.
Recommended Application Solutions for 40-Inch Cuttable Bar LCD
Outdoor Advertising Display
For roadside advertising, shopping center signage, and commercial building displays, the recommended configuration is:
Ultra-wide ratio: 6:1 or 8:1
Brightness: 800-1000 nits
24/7 operating design
Anti-glare surface treatment
The long horizontal structure provides strong visual recognition while reducing installation depth.
Retail Window Display
For luxury stores, chain retailers, and brand showcase applications:
Ultra-wide ratio: 4:1 or 6:1
Brightness: 700-1000 nits
Slim installation structure
Optional touch or protective glass
The display can be integrated into narrow window areas while delivering dynamic advertising content.
Transportation Information Display
For stations, terminals, and public facilities:
Recommended ratio: 4:1
Brightness: 700-1000 nits
Wide viewing angle LCD
Industrial-grade reliability
The format allows operators to display schedules, announcements, directions, and real-time information.
HITULCD OEM Cutting Service Process
Step 1 — Project Requirement Analysis
Customer provides:
Installation dimensions
Display ratio requirement
Application environment
Brightness requirement
Interface specifications
Step 2 — Display Structure Evaluation
HITULCD engineers analyze:
Cutting feasibility
Optical performance
Driver compatibility
Mechanical integration
Step 3 — Prototype Development
Sample units are produced for:
Display testing
Mechanical fitting
Brightness verification
System integration testing
Step 4 — Mass Production Support
After approval, HITULCD provides stable production supply with customized specifications for long-term OEM projects.
Customized 40-Inch Stretched LCD Solution for Global OEM Partners
The 40-inch cuttable stretched bar LCD is not designed as a standard consumer display. It is developed for professional integrators who need a reliable, flexible, and scalable display module for commercial projects.
With customized cutting capability, high brightness options, and engineering support, HITULCD helps global customers create unique digital signage solutions for outdoor advertising, retail communication, transportation systems, and smart commercial equipment.
