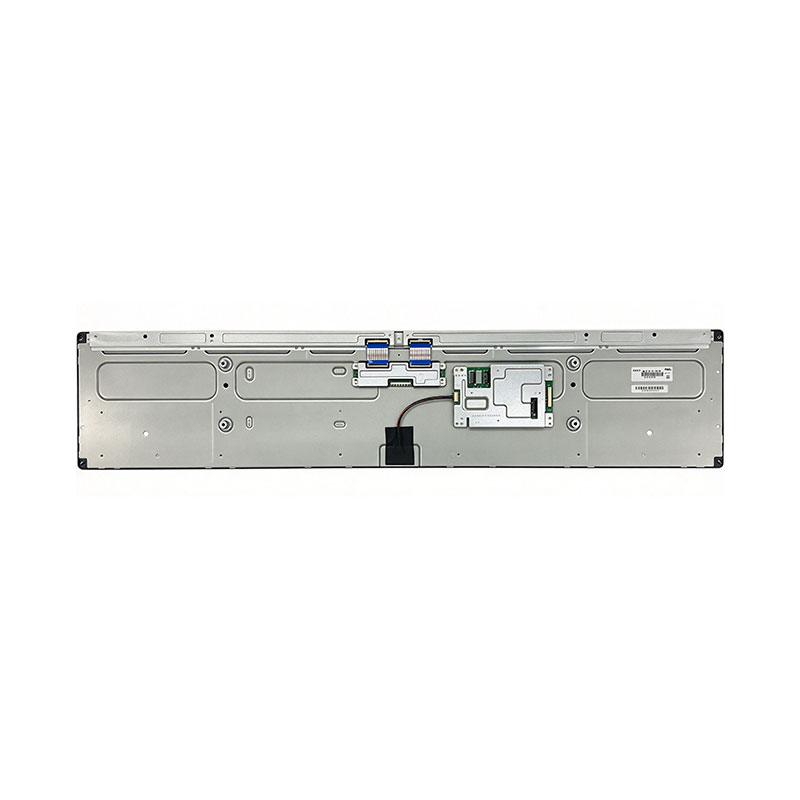

42.5 Inch Custom Bar LCD Display for Industrial and Retail Equipment
MODEL: HT425HBM
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesBuilt by us. Configured for you.
HITULCD supplies LCD modules and display solutions directly from our manufacturing operation, giving OEMs, integrators and distributors direct access to engineering, customization and production.
Supply
Supplier Qualification
VerificationTechnical Specifications
| LCD PANEL PARAMETERS | HDMI/CONTROL BOARD SPECIFICATIONS | ||
|---|---|---|---|
| ITEM | DETAILS | ITEM | DETAILS |
| Model Number | HT425HBM | Input Interface | HDMI, VGA |
| Diagonal Size | 42.5" (49" 1/5 Cut) | Power Input | DC 12V‑5A |
| Resolution | 1920(RGB) × 216, Optional 3840×512 | OSD KEYS | 5 KEYS (POWER SWITCH, MENU, +, -, EXIT) |
| Pixel Arrangement | RGB Vertical Stripe | OSD CONTROL | BRIGHTNESS, COLOR, CONTRAST, AUTO ROTATION, H/V POSITION, ETC. |
| Display Area(A.A) | 1073.78(W)×120.8(H) mm | ||
| Overall Dimension | 1103.78(W)×150.8(H)×20(D) mm | ||
| Panel Weight | ‑ | ||
| Surface Treatment | ‑ | ||
| LCD Technology | IPS, Normally Black, Transmissive | ||
| Panel Type | a‑Si TFT‑LCD, LCM | ||
| Typical Brightness | 500 nits (Customizable: 300~1000 NITS) | ||
| Contrast Ratio | ‑ | ||
| Response Time | ‑ | ||
| Viewing Angle | 89°/89°/89°/89°(Typ.)(CR≥10) | ||
| Viewing Direction | Full Viewing Angle | ||
| Display Colors | 16.7M Colors | ||
| Refresh Rate | ‑ | ||
| Backlight Type | WLED | ||
| Power Consumption | ‑ | ||
| Signal Interface | 51 pins, LVDS | ||
| Supply Voltage | ‑ | ||
| Touch Panel | Without Touch Function | ||
| Application Fields | Industrial | ||
| Operating Temperature | 0 ~ 50 °C | ||
| Storage Temperature | -20 ~ 70 °C | ||
OEM / ODM Custom Bar LCD Cutting Solutions | Any Size, Any Aspect Ratio
From 12" to 86" mother panels, cut to the exact bar size your product needs.Ultra-wide stretched LCDs, engineered, sealed, driven and delivered ready to integrate.
Can't find the right bar display off the shelf? Send us your dimensions. We will tell you within 1–2 working days whether and how we can build it.
1. Why Custom-Cut Bar Displays?
Standard 16:9 and 4:3 panels rarely fit the narrow, elongated spaces in modern products. Demand for stretched bar displays keeps growing across retail, transportation, industrial and commercial equipment, and off-the-shelf bar sizes are limited, with long lead times and high tooling costs for a fully custom-built cell.
Cutting a standard, mass-produced open-cell panel to your size gives you:
| Your Challenge | Our Cutting Solution |
|---|---|
| Standard sizes don't fit the enclosure | Any bar length and height within mother-panel limits |
| Full custom cell development costs too much | Uses proven, volume-produced panels; no new cell tooling |
| Long development cycles | Sampling in weeks, not months |
| Unstable supply of niche bar panels | Sourced from mainstream panel lines with stable long-term supply |
| Need for higher brightness or a special interface | Backlight, driver board, touch and bonding tailored to the project |
2. What We Can Cut
We offer cutting solutions for virtually any bar-type size, subject to a feasibility review of the mother panel's circuit layout.
| Parameter | Capability |
|---|---|
| Mother panel size | 12" – 86" (IPS / VA / TN, a-Si TFT) |
| Typical bar aspect ratios | 2:1, 3:1, 4:1, 5:1, 8:1, 10:1 and beyond |
| Cut fractions | 1/2, 1/3, 1/4, 1/5, 1/6 or custom dimensions |
| Example: 42.5" bar (from 49" panel) | 1920 × 216, active area 1073.78 × 120.8 mm |
| Resolution | Native cut resolution, or remapped (e.g. 3840 × 512) via custom driver board |
| Cut tolerance | ±0.2 mm (wheel), ±0.1 mm (laser) |
| Orientation | Landscape or portrait installation |
Final feasibility depends on Gate/Source routing, TFT array boundary, driver IC position and target dimensions.
3. Our Full-Service OEM / ODM Solution
Cutting and Panel Processing
Mechanical wheel cutting for cost-effective standard projects
Ultra-fast laser cutting for tight tolerances, narrow borders and cleaner edges
Edge chipping ≤ 0.2 mm (wheel) / ≤ 0.1 mm (laser); 100% microscope edge inspection
Edge Sealing
UV-cured primary sealant plus secondary moisture-barrier adhesive
Protects against moisture ingress and liquid-crystal leakage
Full-perimeter seal continuity inspection
Optical Engineering
Light-shielding design to control edge light leakage and color shift
Backlight redesign for the new size: WLED, 300–1000 nits
100% optical inspection (Mura, uniformity, edge leakage)
Electronics and Interface
Custom driver / control boards: HDMI, VGA, DP, LVDS, eDP, MIPI (project-dependent)
Optional Android / Linux media-player boards for standalone signage
OSD with brightness, color, contrast, rotation and H/V position control
Custom firmware, boot logo and EDID
Mechanical and Integration
Custom bezels, brackets, chassis and cable lengths
Optical bonding, cover glass, anti-glare / anti-reflective treatment
Projected-capacitive or IR touch on request
Extended-temperature and high-humidity variants (subject to panel selection)
Branding
Private label, custom OSD logo, custom packaging
4. Our Process: From Idea to Mass Production
| Step | What Happens | Typical Time |
|---|---|---|
| 1. Requirement review | You share size, brightness, interface, environment and volume | 1–2 days |
| 2. Feasibility study | We check mother-panel routing, cut lines, driver compatibility and give a quote | 2–5 days |
| 3. Drawing confirmation | 2D/3D mechanical drawing and specification approval | 3–5 days |
| 4. Sample build (e.g. 20 pcs) | Cutting, sealing, backlight, control board assembly | 15–25 working days |
| 5. Validation | Optical checks and reliability testing per agreed plan | 2–4 weeks |
| 6. Pilot run | Process stabilization and yield confirmation | 2–3 weeks |
| 7. Mass production | Scheduled deliveries with batch traceability | 30–45 days after PO |
5. Reliability and Quality Assurance
Typical validation plan for cut-panel projects (final conditions agreed per project):
| Test | Condition (Typical) |
|---|---|
| High-temp operation | 50 °C, 500 h |
| Low-temp operation | 0 °C, 500 h |
| High-temp / low-temp storage | 70 °C / -20 °C, 240 h |
| Damp heat | 60 °C / 90% RH, 240 h (85 °C / 85% RH available) |
| Thermal shock | -20 °C ↔ 70 °C, 100 cycles |
| Vibration | Random, IEC 60068-2-64 (custom profile) |
| Packaged drop test | ISTA 2A |
Expected mass-production yield: ≥ 95% after pilot stabilization
100% final inspection; batch-level traceability
ISO 9001 quality system; CE / RoHS / REACH declarations on request
Test reports for similar projects available under NDA
6. Commercial Terms
| Item | Information |
|---|---|
| NRE | Project-based, quoted after drawing review; may be refundable against volume orders |
| Sampling | From 20 pcs |
| MOQ | 100 pcs (standard cuts); project-based for special requirements |
| Sample lead time | 15–25 working days |
| Mass production lead time | 30–45 days |
| Warranty | 12 months |
| Payment / Incoterms | T/T; FOB / EXW / DAP available |
| IP and confidentiality | NDA available before design disclosure |
7. Applications We Serve
| Industry | Typical Use |
|---|---|
| Retail | Shelf-edge displays, dynamic price labels, promotional strips, cooler-door displays |
| Transportation | Bus, train, subway and airport passenger-information displays |
| Vending and kiosks | Fascia and status-bar displays |
| Industrial | Control-panel status bars, HMI, machine dashboards |
| Commercial | Digital signage, menu boards, elevator displays, window displays |
| Medical and lab | Equipment status and instrument displays |
| Audio and entertainment | Mixing consoles, gaming cabinets, stage equipment |
8. Featured Model: HT425HBM (42.5" Bar Display)
A typical example of our cutting capability: a 49" panel cut to 1/5 height.
| Item | Specification |
|---|---|
| Resolution | 1920 × 216 (optional 3840 × 512) |
| Active area | 1073.78 × 120.8 mm |
| Outline | 1103.78 × 150.8 × 20 mm |
| Technology | IPS, 500 nits (300–1000 nits custom), 89° viewing angle |
| Interface | HDMI + VGA, DC 12 V / 5 A |
9. FAQ
Can you cut any size?Almost any bar size within the physical limits of the mother panel. Feasibility depends on the panel's circuit layout, so send us your target size and we will confirm.
What do you need to start?Target dimensions and tolerance, mechanical drawing (DXF / STEP / PDF), brightness and interface requirements, operating environment and expected volume.
Will cutting affect reliability?Edge sealing, optical shielding and full validation testing are built into our process. We share reliability data for comparable projects under NDA.
Do you provide the controller and backlight too?Yes. We deliver a complete module: cut LCD, redesigned backlight and matched control board.
Can you support low-volume projects?Yes, from 20 pcs for samples and 100 pcs for production, with flexible scaling.
How do you protect our designs?We sign an NDA before receiving your drawings and never share customer designs.
10. Start Your Custom Bar Display Project
Tell us your size, quantity and application. Our engineers will reply with a feasibility review and quotation within 1–2 working days.
📧 Email: chenhua@hitulcd.com
🌐 Website: www.hitulcd.com
💬 WhatsApp / WeChat: +86 18173373517
Specifications are typical values and subject to change without notice. Samples, datasheets, 2D/3D drawings and test reports available on request.
42.5" Stretched Bar LCD Display | 1920×216 IPS | 500 nits | HDMI + VGA | Custom-Cut from 49" Panel
Model: HT425HBM · Industrial-Grade Ultra-Wide Bar Display for Retail, Transportation, Digital Signage & Equipment Integration
Ultra-wide 8.9:1 aspect ratio · Full-viewing-angle IPS · Ready-to-run HDMI/VGA control board · Customizable brightness, resolution, size and interface
1. Overview
The HT425HBM is a 42.5-inch stretched bar LCD module, engineered by precision-cutting a standard 49" open-cell panel to 1/5 of its height (a "1/5 cut"). It ships as a complete, plug-and-play kit: LCD module, WLED backlight, LVDS cable and an HDMI/VGA control board with OSD.
It is built for OEM/ODM projects that need an ultra-wide, slim display where a standard 16:9 screen will not fit: shelf-edge displays, vending and kiosk fascias, elevator and bus passenger-information strips, control-panel status bars and industrial HMI.
Why engineers and procurement teams choose it
Pre-engineered cut process – proven cutting, edge sealing and driver re-mapping reduce your R&D risk and time-to-market.
Integrated control board – no separate scaler design; HDMI/VGA in, 12 V DC power.
Wide customization – brightness 300–1000 nits, optional 3840×512 resolution, custom size, interface, touch and bonding.
Stable supply and traceability – consistent panel sourcing with batch-level traceability.
2. Key Features
| Feature | Benefit |
|---|---|
| 42.5" ultra-wide bar format (1073.78 × 120.8 mm active area) | Fits narrow, elongated mounting spaces |
| 1920 (RGB) × 216 pixels, RGB vertical stripe | Sharp text and smooth scrolling content; square pixels (~0.559 mm pitch) |
| IPS, normally black, transmissive | Wide viewing angle, stable color |
| 89°/89°/89°/89° (Typ., CR ≥ 10) | Readable from any angle in public-facing installs |
| 500 nits typical (300–1000 nits custom) | From indoor retail to high-ambient-light or window-facing use |
| 16.7M colors (8-bit) | Accurate brand colors and imagery |
| HDMI + VGA input with 5-key OSD | Easy integration and field adjustment |
| DC 12 V / 5 A input | Simple power design with common adapters |
| 20 mm low-profile depth | Slim enclosure design |
3. Technical Specifications
3.1 LCD Panel
| Item | Specification |
|---|---|
| Model Number | HT425HBM |
| Diagonal Size | 42.5" (cut from 49" panel, 1/5 cut) |
| Panel Type | a-Si TFT-LCD, LCM |
| LCD Technology | IPS, Normally Black, Transmissive |
| Resolution | 1920 (RGB) × 216 (optional: 3840 × 512) |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area (A.A.) | 1073.78 (W) × 120.8 (H) mm |
| Overall Dimension | 1103.78 (W) × 150.8 (H) × 20 (D) mm |
| Panel Weight | Approx. 2.6 kg (Typ.) |
| Surface Treatment | Anti-glare (haze ~25%), 3H hardness (Typ.) |
| Typical Brightness | 500 cd/m² (customizable 300–1000 cd/m²) |
| Contrast Ratio | 1000:1 (Typ.) |
| Response Time | 25 ms (Typ., gray-to-gray) |
| Viewing Angle | 89°/89°/89°/89° (Typ., CR ≥ 10), full viewing angle |
| Display Colors | 16.7M (8-bit) |
| Refresh Rate | 60 Hz |
| Backlight Type | WLED |
| Backlight Lifetime | 30,000 hours (Typ., to 50% brightness) |
| Power Consumption | Approx. 35 W (Typ.) at 500 nits, panel + backlight |
| Signal Interface | 51-pin LVDS |
| Panel Supply Voltage | 12 V (Typ.) |
| Touch Panel | Without touch (projected-capacitive optional) |
| Application Field | Industrial |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 70 °C |
3.2 HDMI / Control Board
| Item | Specification |
|---|---|
| Input Interface | HDMI, VGA |
| Power Input | DC 12 V, 5 A |
| OSD Keys | 5 keys: Power, Menu, +, −, Exit |
| OSD Functions | Brightness, color, contrast, auto rotation, H/V position, etc. |
| Output to Panel | 51-pin LVDS |
4. Customization Options (OEM / ODM)
Brightness: 300–1000 nits; high-brightness backlight for sunlight-readable use
Resolution: 1920 × 216 standard; 3840 × 512 optional
Cut size: alternative bar lengths and heights, subject to feasibility review
Interfaces: HDMI, VGA, DP, or custom driver board (Android / Linux media-player boards available)
Touch: projected-capacitive or IR touch
Optical bonding / cover glass: for outdoor, vibration and anti-condensation needs
Extended temperature: available on request, subject to panel and backlight selection
Mechanical: custom bezel, brackets, cable length, connector orientation
Branding: private label, custom OSD logo
5. Cut-Panel Engineering FAQ
Buyers often ask how a cut panel stays reliable. These are our standard answers.
5.1 Cutting Method and Tolerance
| Item | Standard |
|---|---|
| Cutting method | Mechanical wheel cutting (standard); ultra-fast laser cutting for tight-tolerance or narrow-border projects |
| Cut tolerance | ±0.2 mm (wheel) / ±0.1 mm (laser) |
| Edge chipping | ≤ 0.2 mm (wheel) / ≤ 0.1 mm (laser) |
| Micro-crack control | 100% microscope edge inspection; no cracks propagating toward the active area |
5.2 Circuit Layout Feasibility
Before each project we review the original panel's Gate/Source routing, TFT array boundary and driver IC position, and place cut lines clear of the routing and active area.
To confirm feasibility, please send us:
Target active area, overall dimensions and tolerances
Mechanical drawing (DXF / STEP / PDF) with mounting holes and bezel
Required brightness, interface and operating environment
Expected annual volume and project schedule
5.3 Edge Sealing
Cut edges are sealed with UV-cured sealant plus a secondary moisture-barrier adhesive, protecting against moisture ingress and liquid crystal leakage.
The seal is applied along the full cut edge and inspected for continuity.
5.4 Optical Performance
Edge light leakage and color shift are controlled through edge sealing, light-shielding tape and backlight/bezel design.
100% optical inspection (Mura, edge light leakage, color uniformity) before shipment.
6. Reliability Testing
Typical validation plan for cut-panel projects (final conditions agreed per project):
| Test | Condition (Typical) | Criteria |
|---|---|---|
| High-temp operation | 50 °C, 500 h | No functional or optical defects |
| Low-temp operation | 0 °C, 500 h | No functional or optical defects |
| High-temp storage | 70 °C, 240 h | No functional or optical defects |
| Low-temp storage | -20 °C, 240 h | No functional or optical defects |
| Damp heat | 60 °C / 90% RH, 240 h (85 °C / 85% RH available for edge-seal validation) | No leakage, no delamination |
| Thermal shock | -20 °C ↔ 70 °C, 100 cycles | No cracks, no seal failure |
| Vibration | Random vibration per IEC 60068-2-64 (custom profile) | Functional after test |
| Drop / shock (packaged) | Per ISTA 2A | No damage |
Test reports for comparable cutting projects are available to qualified buyers under NDA.
7. Quality, Yield and Lead Time
| Item | Information |
|---|---|
| Quality system | ISO 9001, 100% final inspection |
| Compliance | CE, RoHS, REACH (declarations on request) |
| Expected mass-production yield | ≥ 95% (target after pilot-run stabilization) |
| NRE (custom cut / tooling) | Project-based; quoted after drawing review, may be refundable against volume orders |
| Sampling (20 pcs) | 15–25 working days after drawing confirmation |
| Mass production lead time | 30–45 days after PO and sample approval |
| MOQ | 100 pcs for standard model; project-based for custom cuts |
| Warranty | 12 months |
| Packaging | Anti-static, shock-absorbing carton; export pallet |
| Payment / Incoterms | T/T, FOB / EXW / DAP on request |
8. Typical Applications
Retail shelf-edge and price-label displays
Vending machines and self-service kiosks
Bus, train, subway and elevator passenger information
Industrial control panels and HMI status bars
Medical and laboratory equipment
Digital signage and menu boards
Audio/broadcast equipment and gaming cabinets
9. What's in the Box
1 × HT425HBM LCD module with WLED backlight
1 × HDMI/VGA control board with OSD keypad
1 × LVDS cable (51-pin)
1 × DC 12 V / 5 A power adapter (regional plug on request)
1 × HDMI cable (optional)
1 × Specification sheet and mechanical drawing
10. Request a Quote or Sample
Send us your target size, brightness, interface, quantity and environment, and our engineers will reply with a feasibility review and quotation within 1–2 working days.
📧 Email: chenhua@hitulcd.com
🌐 Website: www.hitulcd.com
💬 WhatsApp / WeChat: +86 18173373517
Specifications are typical values and subject to change without notice. Full datasheet, 2D/3D drawings and test reports are available on request.
Know The Terms Before You Inquire.
|
01 — Shipping Terms
Incoterms Available
EXW
Ex Works — pick up from our factory
FOB
Free On Board — most common for ocean freight
CIF
Cost, Insurance & Freight — to your port
|
02 — Order Minimum
MOQ: 1 Units
Applies to standard specs. Custom brightness, cutting or bezel may adjust MOQ, confirmed at quotation. Sample units available before bulk order
|
03 — Payment Protection
Multiple Secured Methods
|
A Real Factory. Publicly Verifiable.
|
Legal Company Name
Shenzhen Hantu Jiashi Technology Co., Ltd.
|
Unified Social Credit Code
91440300306068446B
|
|
Legal Representative
YUN CHEN
|
Registered Capital
RMB 2,000,000
|
|
Established
May 23, 2014 (11+ years operation)
|
Business Status
● Active / In Operation
|
|
Registered Factory Address
Building B, Gangshen Innovation Park, Huaning Road, Dalang Sub-district, Longhua District, Shenzhen, Guangdong, China
|
|
Contact HITULCD
We'll respond via email within 24 hours. If you'd like to discuss details over WhatsApp or a call, please leave a preferred time and contact method in your message — we will never call you unannounced.
Related solutions
This product is suitable for the following industry application scenarios
Floor Information Bar LCD Display Solution
Ultra-wide, high-brightness stretched bar LCD disp...
view
Convenience Store Bar LCD Display Solution
Ultra-slim, high-brightness stretched bar LCD disp...
view
Bus Passenger Information Stretched Bar Display Solution
A rugged, ultra-wide stretched bar display solutio...
viewRelated Products
You may also be interested in the following products
