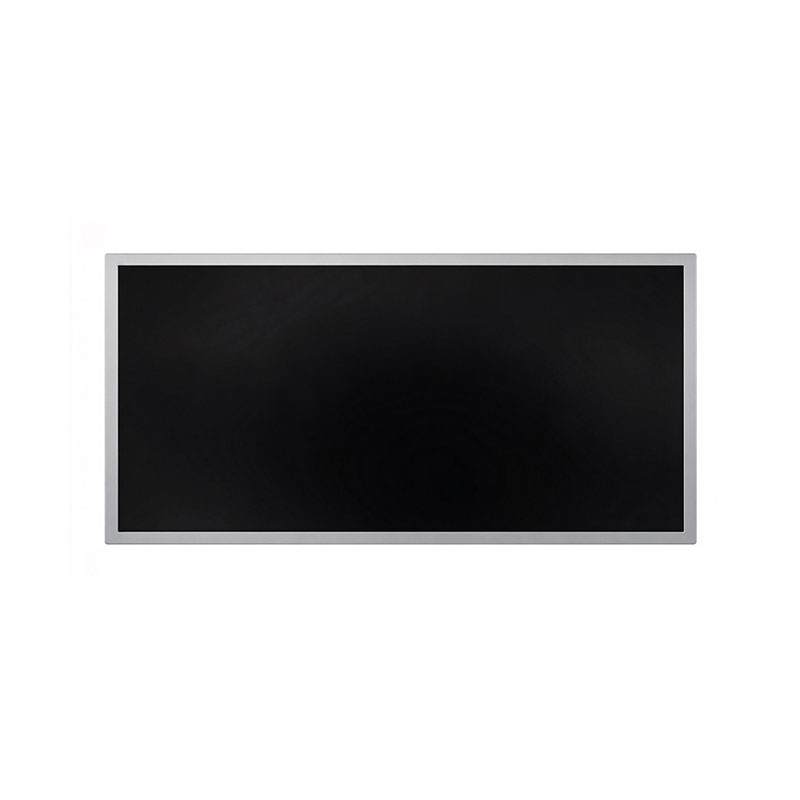

45.9 Inch 4K Ultra-Wide Stretched LCD Display 1000 Nits for OEM Digital Signage
MODEL: HT459HBM
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesBuilt by us. Configured for you.
HITULCD supplies LCD modules and display solutions directly from our manufacturing operation, giving OEMs, integrators and distributors direct access to engineering, customization and production.
Supply
Supplier Qualification
VerificationTechnical Specifications
| LCD PANEL PARAMETERS | HDMI/CONTROL BOARD SPECIFICATIONS | ||
|---|---|---|---|
| ITEM | DETAILS | ITEM | DETAILS |
| Model Number | HT459HBM | Input Interface | HDMI, VGA |
| Diagonal Size | 45.9" (49" 3/4 Cut) | Power Input | DC 12V‑5A |
| Resolution | 1920(RGB) × 810, Optional 3840×1620 | OSD KEYS | 5 KEYS (POWER SWITCH, MENU, +, -, EXIT) |
| Pixel Arrangement | RGB Vertical Stripe | OSD CONTROL | BRIGHTNESS, COLOR, CONTRAST, AUTO ROTATION, H/V POSITION, ETC. |
| Display Area(A.A) | 1073.78(W)×453(H) mm | ||
| Overall Dimension | 1103.78(W)×483(H)×20(D) mm | ||
| Panel Weight | ‑ | ||
| Surface Treatment | ‑ | ||
| LCD Technology | IPS, Normally Black, Transmissive | ||
| Panel Type | a‑Si TFT‑LCD, LCM | ||
| Typical Brightness | 1000 nits (Customizable: 300~1000 NITS) | ||
| Contrast Ratio | 700:1 (Typ.) | ||
| Response Time | ‑ | ||
| Viewing Angle | 89°/89°/89°/89°(Typ.)(CR≥10) | ||
| Viewing Direction | Full Viewing Angle | ||
| Display Colors | 16.7M Colors | ||
| Refresh Rate | ‑ | ||
| Backlight Type | WLED | ||
| Power Consumption | ‑ | ||
| Signal Interface | 51 pins, LVDS | ||
| Supply Voltage | ‑ | ||
| Touch Panel | Without Touch Function | ||
| Application Fields | Industrial, Digital Signage | ||
| Operating Temperature | 0 ~ 50 °C | ||
| Storage Temperature | -20 ~ 60 °C | ||
OEM / ODM Custom Bar LCD Cutting Solutions
Any Size. Any Aspect Ratio. One Engineering Partner.
From 10" to 100"+ stretched bar displays, cut, sealed and integrated to your exact outline, with sample-to-mass-production support.
Can't find the right size in a catalog? Don't design around a standard screen. Tell us the active area you need, and we'll engineer the display to fit your product.
Why the Market Is Moving to Custom Bar Displays
Standard 16:9 panels force product designers to compromise. Across retail, transportation, smart buildings and industrial equipment, demand is shifting to ultra-wide, non-standard formats:
Retail & shelf-edge: slim strips (e.g. 8:1 to 32:1) that follow shelf and gondola lengths for dynamic pricing and promotions
Public transport: bus, metro and rail passenger-information displays that fit above doors and along ceilings
Elevators & building automation: narrow, high-brightness banners inside limited cabin space
Control rooms & industrial HMI: status bars, process tickers and dashboards
Vehicle & EV interiors: wide instrument and infotainment strips
Hospitality, corporate & venues: menu boards, lobby tickers, sports and stage banners
Kiosks & vending: displays sized to the cabinet, not the other way round
The result: buyers need custom aspect ratios in low-to-mid volumes, faster than a new panel-fab tooling program can deliver. Glass cutting of mass-produced open-cell panels closes that gap.
What We Offer
Custom Cutting Solutions for Bar-Type LCDs
We re-engineer large-format, mass-produced TFT-LCD panels into the exact dimensions your project requires, then re-seal, re-light and re-integrate them into a fully working display module.
| Capability | Range / Options |
|---|---|
| Final diagonal size | Approx. 10" to 100"+ (depending on source panel) |
| Aspect ratios | 2:1, 3:1, 4:1, 8:1, 12:1, 16:1, 24:10 and custom |
| Cut tolerance | ±0.2 mm typical (tighter after feasibility review) |
| Brightness | 300 to 1500+ nits (project-dependent) |
| Resolution | Native cut resolution, or scaled options such as 1920×810 / 3840×1620 |
| Technology | IPS, VA, TN (subject to source panel) |
| Interfaces | HDMI, VGA, DisplayPort, LVDS, eDP, MIPI (via bridge) |
| Touch | Projected-capacitive (PCAP), IR, or none |
| Environment | Standard 0–50 °C; wide-temperature option on request |
Final ranges depend on available source open-cell, glass thickness and driver-IC layout. Every project starts with a free feasibility review.
Our Process: From Idea to Mass Production
| Stage | What Happens | Typical Timing |
|---|---|---|
| 1. Requirement Review | You share outline, active area, brightness, interface, quantity, environment | 1–2 days |
| 2. Feasibility Study | Engineers select source panel, check Gate/Source routing, TFT array and driver-IC areas, define cut line | 2–5 days |
| 3. Quotation & NRE | Cost breakdown for tooling, backlight, mechanical drawing and samples | 1–2 days |
| 4. Engineering Sample | Cutting, edge finishing, sealing, backlight and control-board integration (20 pcs typical) | 3–5 weeks |
| 5. Validation | Optical inspection and reliability testing to your standard | 2–4 weeks |
| 6. Mass Production | Stable process, 100% functional test, batch traceability | 6–8 weeks |
Cutting Technology & Quality Control
Cutting Methods
Mechanical wheel scribing and breaking: proven, cost-effective for standard bar formats
Ultra-fast laser cutting: for narrow borders, complex contours and tight edge-quality needs (evaluated per project)
Edge Quality
Microscope inspection of every cut lot
Typical edge chipping ≤ 0.2 mm, with no micro-cracks toward the seal line
Chamfering or polishing for safe handling
Sealing & Moisture Protection
Automated dispensing of UV-curable epoxy/acrylic edge sealant
Additional protective layer for high-humidity applications
Post-cure leak and moisture inspection
Optical Performance
Backlight redesigned for the new outline
Edge light-shielding to control light leakage and color shift
Mura inspection on white, gray and black patterns against an agreed limit sample
Reliability Testing (Reference Plan)
| Test | Typical Condition |
|---|---|
| High-temp / high-humidity operation | 50 °C / 90% RH, 240 h |
| High-temp storage | 60 °C, 240 h |
| Low-temp storage | −20 °C, 240 h |
| Thermal shock | −20 °C ↔ 60 °C, 100 cycles |
| Vibration & drop (packaged) | ISTA-2A / IEC 60068-2-64 |
Test reports from comparable cut projects are available under NDA.
Full ODM Integration
Beyond cutting, we deliver a ready-to-integrate display:
Custom backlight (WLED), brightness 300–1500+ nits
Custom PCB and control board: HDMI/VGA/DP input, OSD, auto-rotation, dimming
Android media-player board or customer-specific boards
Optical bonding, anti-glare, anti-reflective or cover glass
Touch integration
Custom bezel, brackets, metal frame or full enclosure
Custom firmware, boot logo and OSD language
Private-label packaging and labeling
Commercial Terms (Reference)
| Item | Typical Reference |
|---|---|
| NRE | Project-based; quoted after feasibility review |
| Sample quantity | 1–20 pcs |
| Sample lead time | Approx. 3–5 weeks |
| Mass-production MOQ | From 100 pcs (negotiable) |
| Expected yield | ≥ 95% target after process stabilization |
| Warranty | 12 months (extendable) |
| Trade terms | EXW / FOB / CIF / DDP |
| Payment | T/T, L/C |
What We Need to Start
To provide a fast, accurate feasibility assessment, please send:
Target outline drawing (DXF / DWG / STEP) with tolerances
Active area size and position
Required brightness, resolution and viewing angle
Interface and control-board preference
Operating environment (temperature, humidity, indoor/outdoor)
Quantities: sample and annual forecast
Target delivery date and market certifications needed
Don't have a full drawing? Send a sketch or dimensions and our engineers will help you complete it.
Frequently Asked Questions
Can you really cut to any size?Within the limits of the source panel, yes. Size is determined by the available open-cell, driver-IC positions and the non-active margins. We select the best source panel for your target and confirm feasibility before any commitment.
Does cutting affect image quality or lifetime?No, when properly engineered. The cut is placed only in non-active margins, the edge is sealed, and the backlight is redesigned for the new size. Each module passes optical and reliability inspection.
What about small quantities?Prototype quantities are supported. Mass-production MOQ typically starts from 100 pcs, and lower quantities can be discussed by project.
Can you match a competitor's or an existing display?Yes. Send a sample or datasheet and we will propose a compatible cut-panel solution.
Do you sign NDAs?Yes. We regularly sign NDAs before receiving drawings and sharing test data.
Start Your Custom Bar Display Project
Tell us the size you need. We'll tell you how to build it.
📧 Email: chenhua@hitulcd.com
🌐 Website: www.hitulcd.com
💬 WhatsApp / WeChat: +86 18173373517
[Submit Your Requirements] · [Request Feasibility Review] · [Talk to an Engineer]
Reference example: HT459HBM, a 45.9" (1073.78 × 453 mm) stretched bar display cut from a 49" panel, 1000 nits, HDMI + VGA.
45.9" 4K Ultra-Wide Stretched Bar LCD Display | 1000 nits | HDMI + VGA | OEM Digital Signage
Model: HT459HBM · 1920×810 (Optional 3840×1620) · IPS · 1000 cd/m² (Customizable 300–1000) · 24/7-Ready Industrial Design
A factory-cut 49" panel engineered into a 24:10 ultra-wide bar display. Built for retail shelf-edge, transit information, control-room banners, elevator and vehicle-interior signage, and any project where a standard 16:9 screen simply doesn't fit.
Product Overview
The HT459HBM is a 45.9-inch stretched bar-type TFT-LCD module with an aspect ratio of approximately 2.37:1. It is produced by precision-cutting a 49" open-cell panel to a ¾ format, then re-sealing, re-assembling the backlight and integrating a ready-to-use HDMI/VGA control board.
With a 1000 nits WLED backlight, IPS wide-viewing technology and a slim 20 mm profile, it delivers sunlight-readable, uniform images across a 1.07 m active width, and is fully customizable for OEM/ODM projects (brightness, interface, bezel, mechanical outline, resolution).
Key Features
Ultra-wide 24:10 format: 1073.78 × 453 mm active area, ideal for banner, ticker and dashboard content
High brightness: 1000 nits typical; adjustable 300–1000 nits to match indoor or window-facing environments
IPS technology: 89°/89°/89°/89° viewing angle (CR ≥ 10), stable colors from any position
16.7M colors (8-bit) with RGB vertical stripe pixel arrangement for sharp text and graphics
Optional 4K-class resolution: 3840 × 1620 upgrade path for fine-pitch content
Plug-and-play control board: HDMI + VGA input, 5-key OSD, DC 12 V single-rail power
Slim, integration-friendly: 20 mm module thickness, 51-pin LVDS panel interface
Custom cut sizes available from various open-cell sources (see Custom Cutting & Sealing below)
Technical Specifications
LCD Panel
| Item | Specification |
|---|---|
| Model Number | HT459HBM |
| Diagonal Size | 45.9" (cut from 49" panel, ¾ format) |
| Resolution | 1920 (RGB) × 810; optional 3840 × 1620 |
| Aspect Ratio | ≈ 24:10 (2.37:1) |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area (A.A.) | 1073.78 (W) × 453 (H) mm |
| Module Outline | 1103.78 (W) × 483 (H) × 20 (D) mm |
| Panel Weight | Approx. 8.5 kg (typical) |
| Surface Treatment | Anti-glare (haze 25%), hardness 3H (typical) |
| LCD Technology | IPS, Normally Black, Transmissive |
| Panel Type | a-Si TFT-LCD, LCM |
| Brightness (Typ.) | 1000 cd/m² (customizable 300–1000) |
| Contrast Ratio (Typ.) | 700:1 |
| Response Time (Typ.) | 25 ms (gray-to-gray) |
| Viewing Angle | 89°/89°/89°/89° (Typ., CR ≥ 10) |
| Viewing Direction | Full viewing angle |
| Display Colors | 16.7M (8-bit) |
| Refresh Rate | 60 Hz |
| Backlight | WLED, edge/direct-lit (per configuration) |
| Backlight Lifetime | 50,000 hours (typ., at 25 °C, to 50% brightness) |
| Power Consumption | Approx. 85 W typ. at 1000 nits (panel + backlight) |
| Signal Interface | 51-pin LVDS |
| Supply Voltage | 12 V DC (via control board) |
| Touch Panel | None (touch overlay available on request) |
| Application | Industrial, Digital Signage |
| Operating Temperature | 0 to 50 °C |
| Storage Temperature | −20 to 60 °C |
HDMI / Control Board
| Item | Specification |
|---|---|
| Input Interface | HDMI, VGA |
| Power Input | DC 12 V, 5 A |
| OSD Keys | 5 keys: Power, Menu, +, −, Exit |
| OSD Functions | Brightness, Color, Contrast, Auto Rotation, H/V Position, etc. |
| Output to Panel | 51-pin LVDS |
Values marked "typical" are design references at 25 °C. Final datasheet, 2D/3D drawings and specification approval sheet are available on request.
Custom Cutting & Sealing: Engineering FAQ
Cut-panel projects carry more technical risk than standard modules. Below are the questions our engineers and buyers most often raise, and how we address them.
1. Technical Process & Feasibility
Which cutting method do you use, and what tolerances can we expect?For this panel size and glass thickness we use mechanical wheel scribing and breaking as the standard process, with ultra-fast laser cutting evaluated for narrow-border or complex-contour requests. Typical cut tolerance is ±0.2 mm (tighter on request after feasibility review).
Will the cut line interfere with Gate/Source routing or the TFT array?Each project starts with a layout review. The cut line is placed only in the non-active margin, keeping safe distance from the seal line, Gate/Source fan-out and driver IC bonding areas. To confirm feasibility, please provide:
Target outline drawing (DXF/DWG/STEP) with tolerance
Preferred active area size and position
Mounting, bezel and interface requirements
Source open-cell model (or let us recommend a suitable one)
What edge quality standard do you apply?Post-cut edges are inspected under microscope. Typical acceptance: edge chipping ≤ 0.2 mm, no micro-cracks propagating toward the seal line, and edges finished (chamfered/polished as required) before sealing.
2. Reliability & Edge Sealing
How is the cut edge sealed against moisture and liquid crystal leakage?The exposed cell edge is re-sealed with UV-curable epoxy/acrylic sealant applied by automated dispensing, followed by UV curing and inspection. An additional protective edge layer is used for higher-humidity environments.
Can cut modules pass standard industrial reliability tests?Yes. Typical test plan for cut-panel modules (reference conditions, adjustable to your standard):
| Test | Typical Condition |
|---|---|
| High-temperature / high-humidity operation | 50 °C / 90% RH, 240 h |
| High-temperature storage | 60 °C, 240 h |
| Low-temperature storage | −20 °C, 240 h |
| Thermal shock | −20 °C ↔ 60 °C, 100 cycles |
| Vibration (packaged) | Per ISTA-2A / IEC 60068-2-64 |
| Drop (packaged) | Per ISTA-2A |
Test reports from comparable cut projects can be shared under NDA.
Is light leakage or Mura a concern along the cut edge?The backlight is redesigned to the new outline, with light-shielding tape and reflector/light-guide optimization at the edges. Final units are inspected for edge light leakage, color shift and Mura under full-white, gray and black patterns against an agreed limit sample.
3. Cost, Yield & Lead Time
| Topic | Typical Reference |
|---|---|
| NRE | Project-based (tooling, cutting jig, backlight, mechanical drawing); quoted after feasibility review |
| First samples (20 pcs) | Approx. 3–5 weeks after drawing and NRE confirmation |
| Mass production lead time | Approx. 6–8 weeks after sample approval |
| Expected mass-production yield | ≥ 95% (target, after process stabilization) |
| Sample MOQ | 1–20 pcs |
| Mass production MOQ | Starting from 100 pcs (negotiable by project) |
Typical Applications
Retail: shelf-edge displays, promotional strips, supermarket aisle signage
Transportation: bus, metro, train and station passenger information
Elevators & building automation: slim ultra-wide information banners
Control rooms & industrial HMI: status bars, process dashboards
Hospitality & corporate: menu boards, lobby ticker displays, meeting-room schedules
Kiosks & vending: OEM embedded displays
OEM / ODM Customization
Brightness range 300–1000 nits
Resolution: 1920×810 or 3840×1620
Interfaces: HDMI, VGA, DisplayPort, eDP/LVDS, Android media player board
Custom cut size, bezel, brackets and enclosures
Optional touch, cover glass, optical bonding, anti-glare or anti-reflective coating
Custom OSD, boot logo and firmware
Private-label packaging
Quality & Compliance
Manufactured under ISO 9001 quality management
RoHS and REACH compliant materials
CE / FCC / UL documentation for the control board available on request
100% burn-in and functional testing before shipment
Standard warranty: 12 months (extended warranty available)
Packaging & Delivery
Anti-static, shock-absorbing foam and export carton (pallet packing for bulk)
Incoterms: EXW / FOB / CIF / DDP (by agreement)
Payment: T/T, L/C (by agreement)
Request a Quote or Sample
Send us your quantity, target delivery date, interface requirements and drawing and our engineers will respond with a feasibility assessment and quotation within 1–2 business days.
📧 Email: chenhua@hitulcd.com
🌐 Website: www.hitulcd.com
💬 WhatsApp / WeChat: +86 18173373517
[Request a Quote] · [Download Datasheet] · [Book an Engineering Call]
Know The Terms Before You Inquire.
|
01 — Shipping Terms
Incoterms Available
EXW
Ex Works — pick up from our factory
FOB
Free On Board — most common for ocean freight
CIF
Cost, Insurance & Freight — to your port
|
02 — Order Minimum
MOQ: 1 Units
Applies to standard specs. Custom brightness, cutting or bezel may adjust MOQ, confirmed at quotation. Sample units available before bulk order
|
03 — Payment Protection
Multiple Secured Methods
|
A Real Factory. Publicly Verifiable.
|
Legal Company Name
Shenzhen Hantu Jiashi Technology Co., Ltd.
|
Unified Social Credit Code
91440300306068446B
|
|
Legal Representative
YUN CHEN
|
Registered Capital
RMB 2,000,000
|
|
Established
May 23, 2014 (11+ years operation)
|
Business Status
● Active / In Operation
|
|
Registered Factory Address
Building B, Gangshen Innovation Park, Huaning Road, Dalang Sub-district, Longhua District, Shenzhen, Guangdong, China
|
|
Contact HITULCD
We'll respond via email within 24 hours. If you'd like to discuss details over WhatsApp or a call, please leave a preferred time and contact method in your message — we will never call you unannounced.
Related solutions
This product is suitable for the following industry application scenarios
Floor Information Bar LCD Display Solution
Ultra-wide, high-brightness stretched bar LCD disp...
view
Convenience Store Bar LCD Display Solution
Ultra-slim, high-brightness stretched bar LCD disp...
view
Bus Passenger Information Stretched Bar Display Solution
A rugged, ultra-wide stretched bar display solutio...
viewRelated Products
You may also be interested in the following products
500 Nits
42.5 Inch Custom Bar LCD Display for Industrial and Retail Equipment
1000 Nits
42.7 Inch Ultra-Wide Stretched LCD Module for Embedded Display Systems
1000 Nits
43 Inch Custom Stretched LCD Panel for OEM and ODM Equipment Projects
