49 Inch Stretched LCD Display Cutting Solution for Retail OEM/ODM Projects

Custom 49 Inch Bar LCD Cutting Design for Retail Window Display and Digital Signage Integration

HITULCD 49 inch stretched LCD cutting solution is developed for OEM customers who need a large-format ultra-wide display module integrated into customized retail equipment, advertising fixtures, and architectural digital signage systems.

Unlike standard 16:9 LCD panels, the stretched LCD cutting structure allows the display area to be redesigned into a long horizontal viewing surface, making better use of narrow installation spaces such as storefront windows, mall advertising channels, and retail brand display walls.

The 49 inch stretched LCD solution is optimized for retail applications requiring wide visual coverage, slim installation depth, and high visibility under strong ambient lighting conditions.

49 Inch Stretched LCD Cutting Concept

The 49 inch bar LCD panel is based on a large-size LCD substrate with customized cutting and optical optimization to create an ultra-wide display format.

Typical cutting directions include:

Horizontal Stretched Display

Recommended application:

• Storefront window advertising

• Shopping mall advertising strip

• Brand promotion display

• Entrance digital signage

The horizontal format provides a wide visual communication area while keeping the display height limited, allowing installation above entrances, inside glass windows, or along retail walls.

Typical aspect ratio options:

• 4:1

• 5:1

• 8:1

• Custom ultra-wide ratio

Example application:

A retail store can install a long horizontal display above product shelves or behind glass windows to show promotional videos, product information, and brand campaigns without occupying valuable floor space.

Vertical Stretched Display

For projects requiring narrow vertical integration, the 49 inch LCD module can also be customized into a portrait bar display.

Recommended applications:

• Luxury retail pillars

• Shopping mall column displays

• Brand showcase structures

• Elevator advertising systems

The vertical design provides extended viewing height and is suitable for architectural installations where width is limited.

Recommended Cutting Ratios for Different Retail Applications

4:1 Ratio — General Retail Advertising Display

Application scenarios:

• Supermarket promotional screens

• Retail shelf header displays

• Entrance advertising boards

Advantages:

• Balanced content area

• Suitable for video and graphic advertisements

• Easier content adaptation from existing digital signage systems

This ratio provides a wider screen appearance while maintaining good readability from medium viewing distances.

5:1 Ratio — Store Window and Brand Display Solution

Application scenarios:

• Fashion stores

• Cosmetics shops

• Electronics retail stores

• Shopping mall storefronts

Advantages:

• Better fit for long glass windows

• Strong visual impact from outside viewing angles

• Reduced installation height requirements

This configuration is commonly selected by retail fixture manufacturers who need a display integrated into customized cabinets.

8:1 Ratio — Ultra-Wide Retail Information Strip

Application scenarios:

• Mall advertising networks

• Transportation retail areas

• Large commercial installations

Advantages:

• Maximum horizontal coverage

• Suitable for scrolling information and branding content

• Creates a continuous visual advertising line

This design is suitable for professional digital signage projects where the display becomes part of the store architecture.

Engineering Considerations for 49 Inch LCD Cutting Projects

Viewing Distance Optimization

Because the 49 inch stretched display is normally installed in public retail spaces, the cutting ratio should match the viewing distance.

Recommended:

• 2-5 meters viewing distance → 4:1 / 5:1 ratio

• 5-10 meters viewing distance → 5:1 / 8:1 ratio

• Long corridor or mall advertising → custom ultra-wide ratio

The correct ratio helps maintain text readability and prevents content distortion.

Brightness Configuration

For retail window installations, standard commercial displays often suffer from reduced visibility caused by sunlight and reflections.

HITULCD supports brightness customization:

• 500nits: indoor retail environment

• 700-800nits: bright commercial areas

• 1000nits: storefront window and high ambient light applications

Anti-glare surface treatment and optical bonding options can be added according to project requirements.

Mechanical Integration Design

For OEM customers, the 49 inch stretched LCD cutting solution can be integrated into:

• Custom advertising kiosks

• Retail display cabinets

• Wall-mounted signage systems

• Window display structures

• Digital shelf systems

HITULCD provides engineering support for:

• Panel mounting design

• Driver board selection

• Cable position adjustment

• Thermal management

• Housing integration

Content Adaptation for Stretched Displays

Because stretched LCD displays have non-standard aspect ratios, content design is an important part of OEM projects.

Recommended content formats:

• Product scrolling banners

• Brand logo animation

• Promotional videos

• Price information

• Store navigation

• Advertising campaigns

The ultra-wide format works particularly well for retail environments where customers pass by continuously rather than watch from a fixed position.

OEM/ODM Project Support from HITULCD

For 49 inch stretched LCD customization projects, HITULCD provides complete engineering support:

• Custom aspect ratio development

• Display brightness adjustment

• Touch panel integration

• Customized controller solutions

• Prototype testing

• Mass production support

Before production, customers can provide:

• Cabinet drawing

• Installation dimensions

• Display orientation

• Viewing distance

• Brightness requirement

• Annual quantity forecast

HITULCD engineering team will evaluate the LCD cutting structure and recommend the most suitable display configuration for the final application.

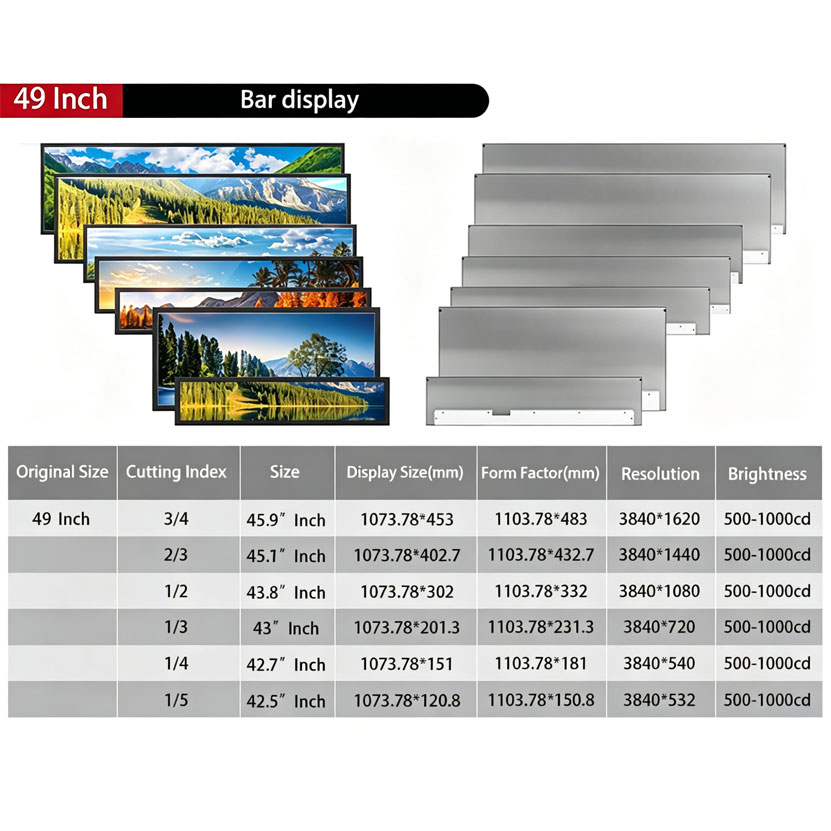

Typical 49 inch stretched LCD cutting recommendation:

This cutting solution is designed specifically for OEM/ODM customers who need a reliable large-format stretched LCD module for professional retail display integration.
